Toyota Crown/Crown Majesta

1991-10 → 1995-08 · chassis JZS14#,LS141,UZS14#,GS141 · catalogue 331180 · Japan

Discontinued model Data version 1996-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

23 part groups · 12 illustrations

Illustrations

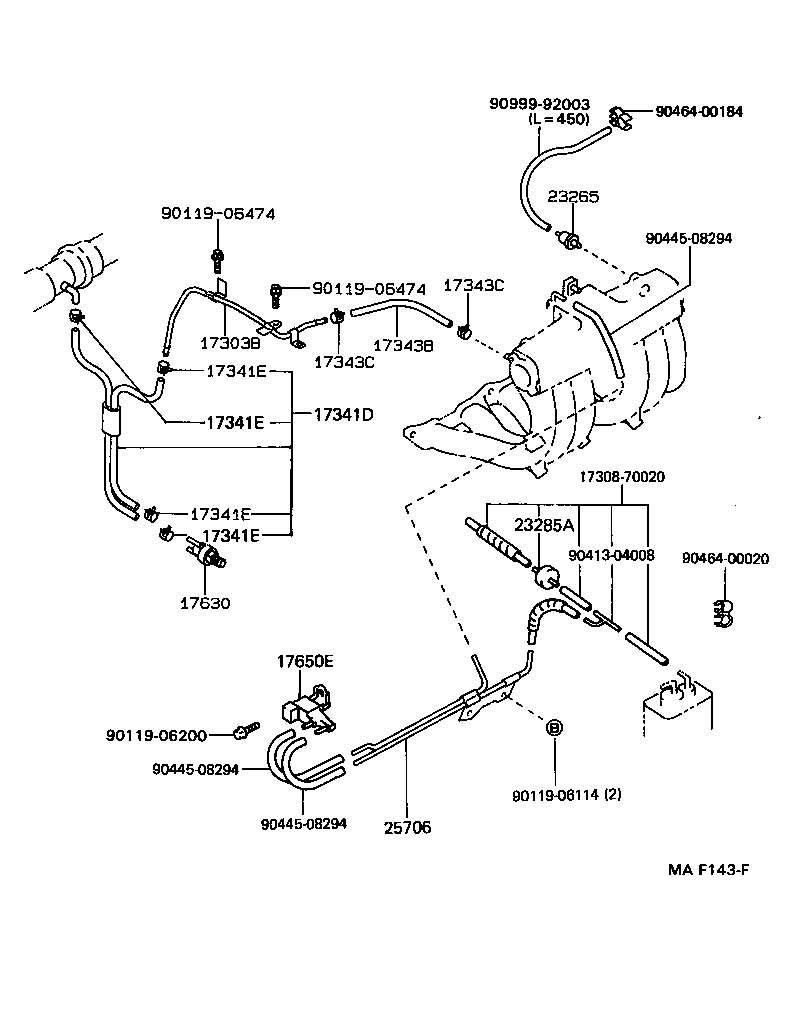

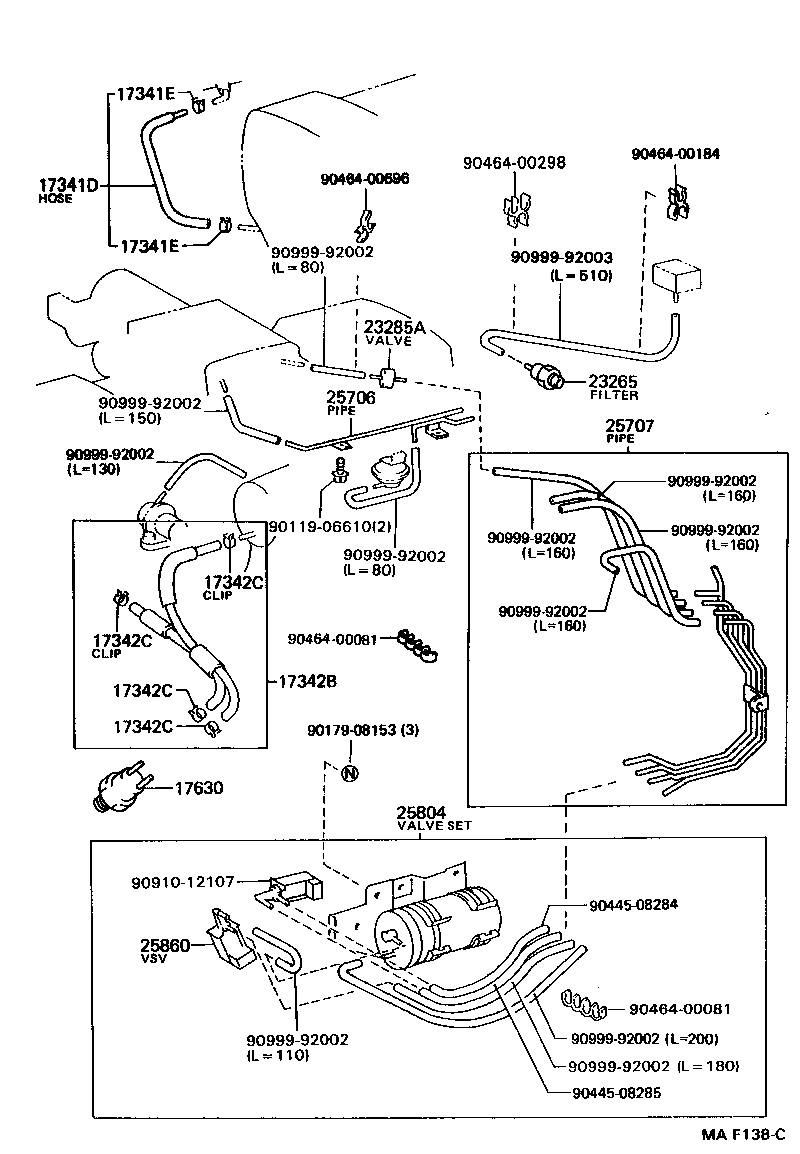

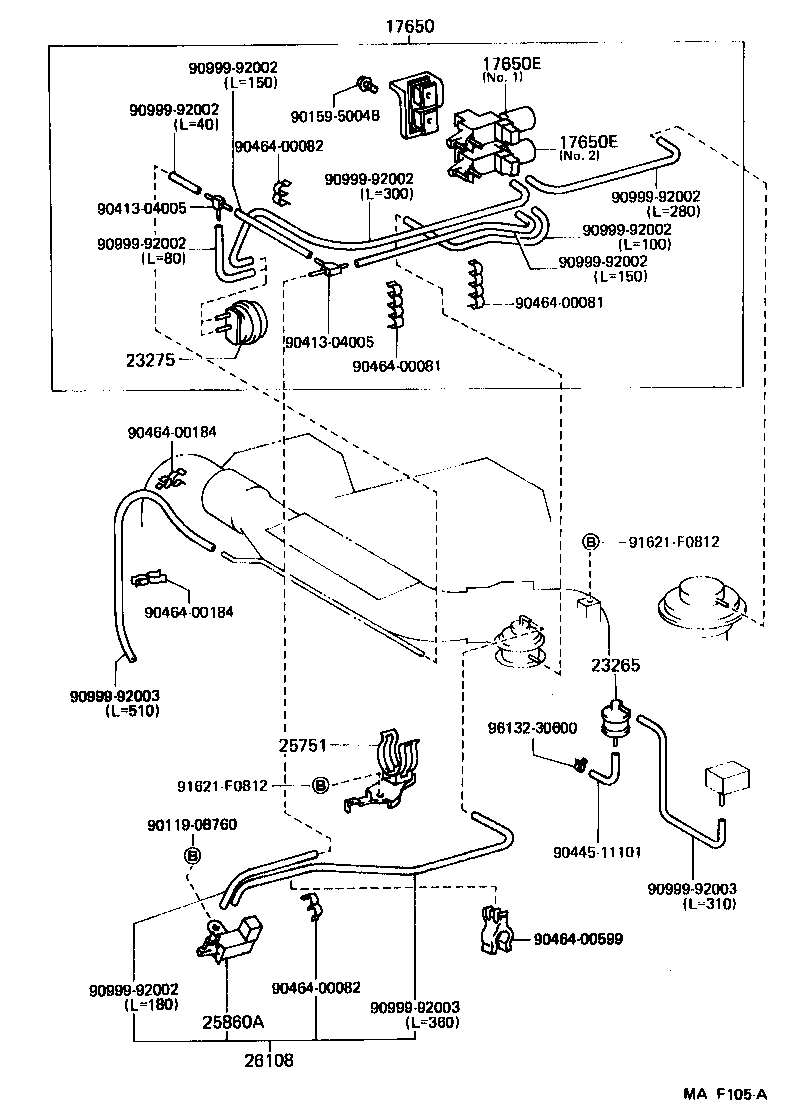

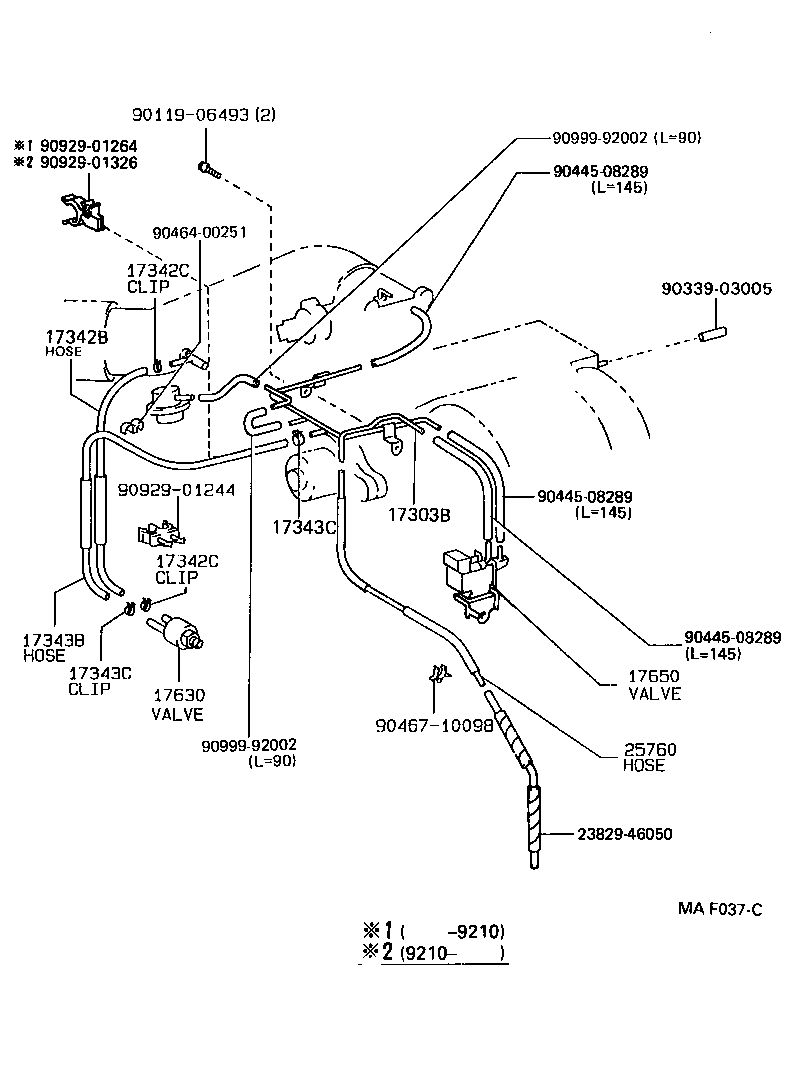

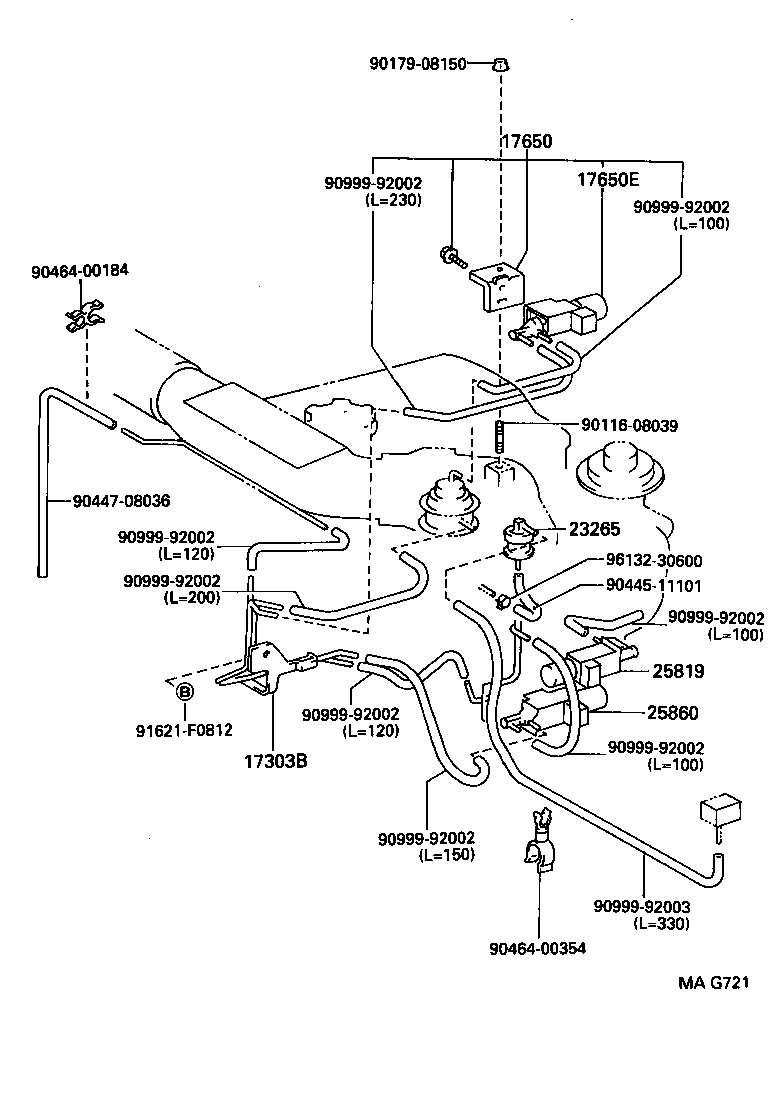

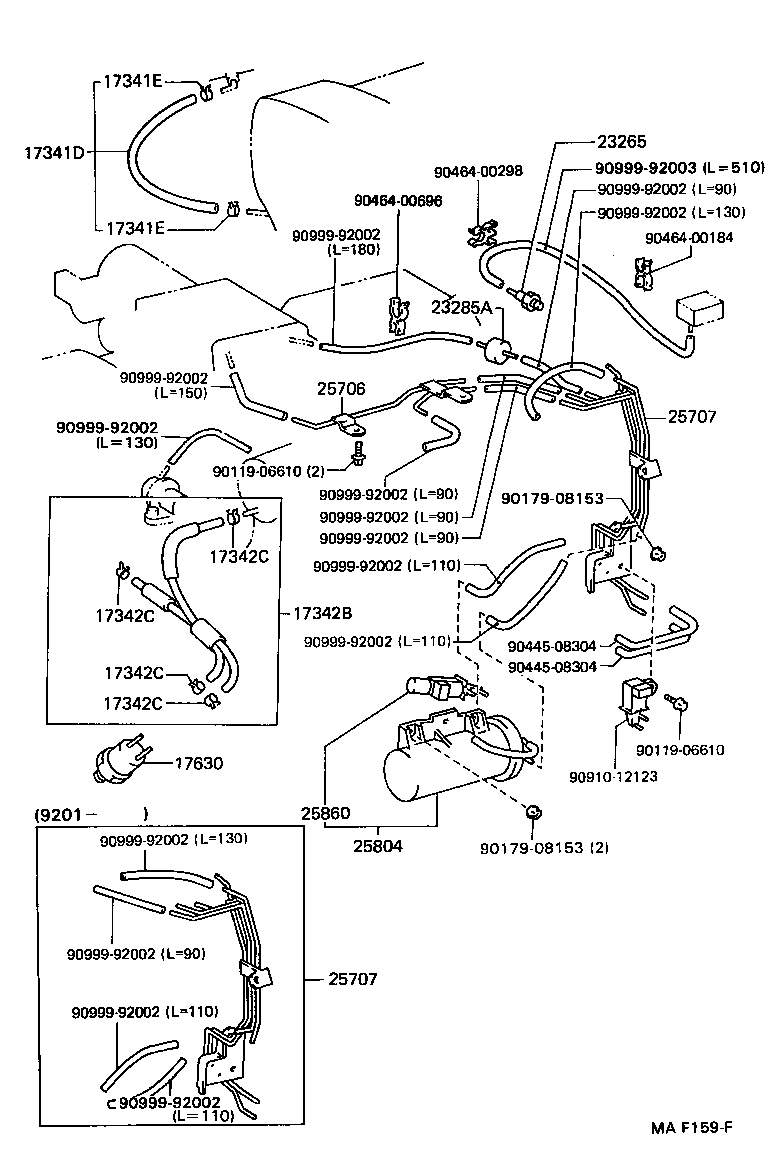

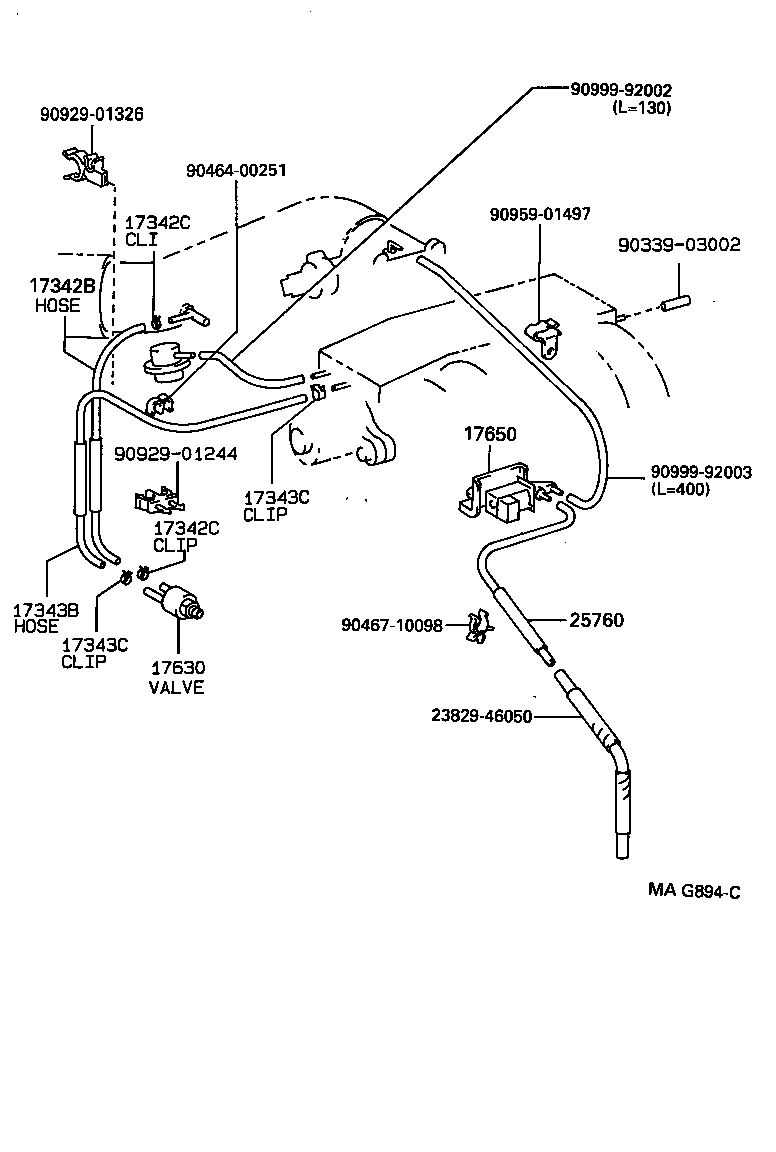

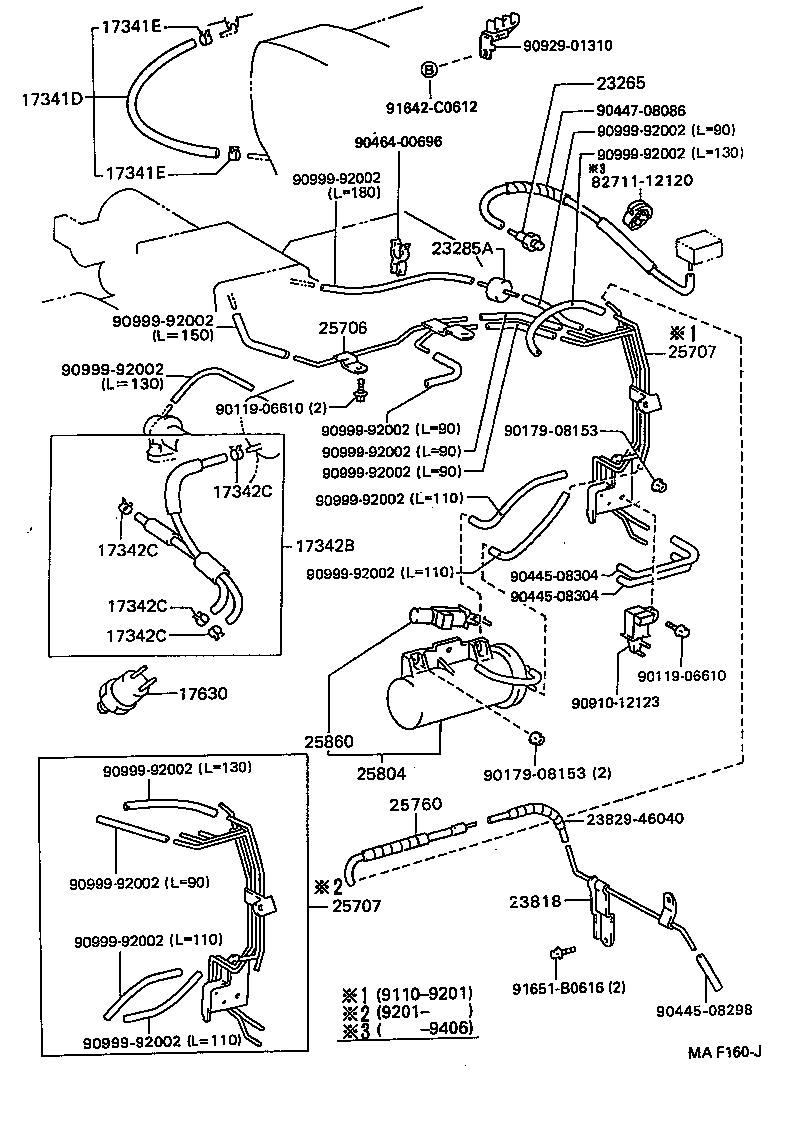

Figure MA9503A MA9503A 1991-10 → — Figure MAF143F MAF143F 1993-08 → — Figure MA9503A MA9503A 1991-10 → — Figure MAF138C MAF138C 1991-10 → — Figure MAF159F MAF159F 1991-10 → — Figure MAF160J MAF160J 1991-10 → — Figure MA9503A MA9503A 1991-10 → — Figure MAF105A MAF105A 1991-10 → 1993-08 Figure MAG721 MAG721 1993-08 → — Figure MA9503A MA9503A 1991-10 → — Figure MAF037C MAF037C 1991-10 → 1993-08 Figure MAG894C MAG894C 1993-08 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650E Valve, Vacuum Switching
23265 Filter, Gas, NO.1
23275 Valve, Vacuum Control, NO.1
23285A Valve, Check, NO.1
23818 Pipe, Fuel Vapor Feed
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25751 Clamp, Vacuum Control Valve, NO.1
25760 Hose Assy, Vacuum Transmitting
25804 Valve Set, Vacuum Control
25819 Valve Assy, Vacuum Regulating
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
26108 Valve Set, Intake Air Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
