Toyota Crown/Crown Majesta
1991-10 → 1995-08 · chassis JZS14#,LS141,UZS14#,GS141 · catalogue 331180 · Japan
Discontinued model
Data version 1996-03

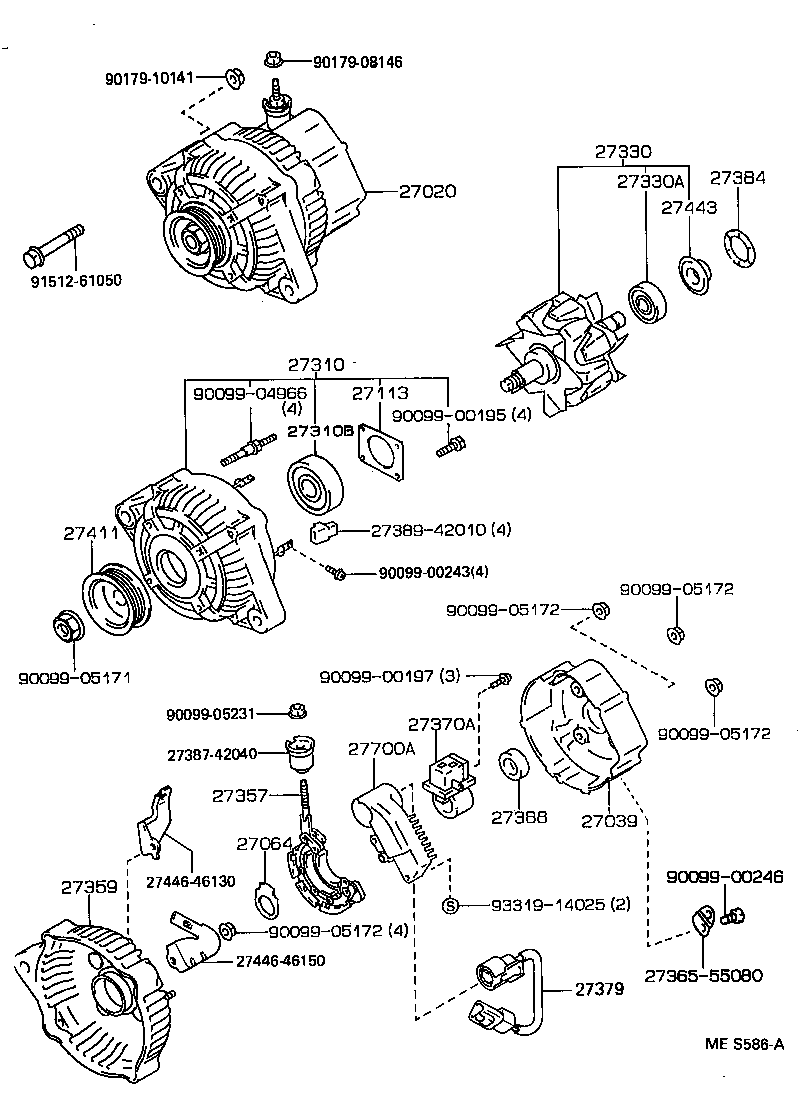

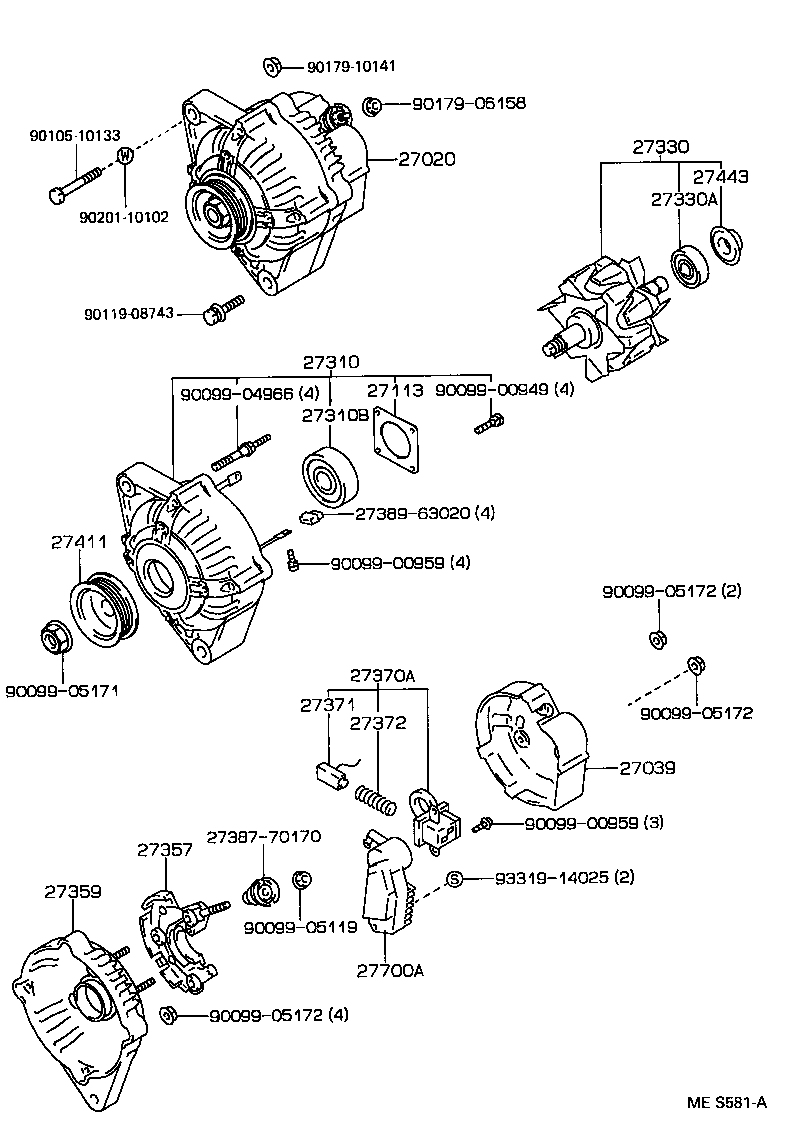

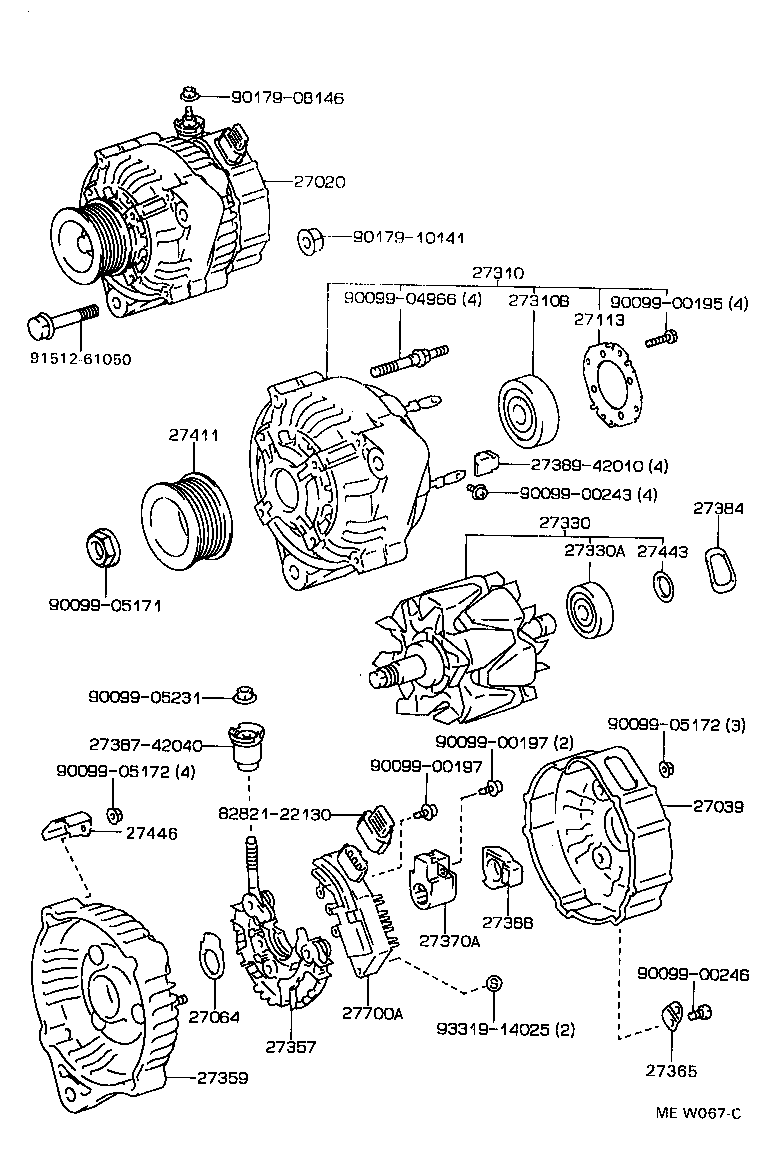

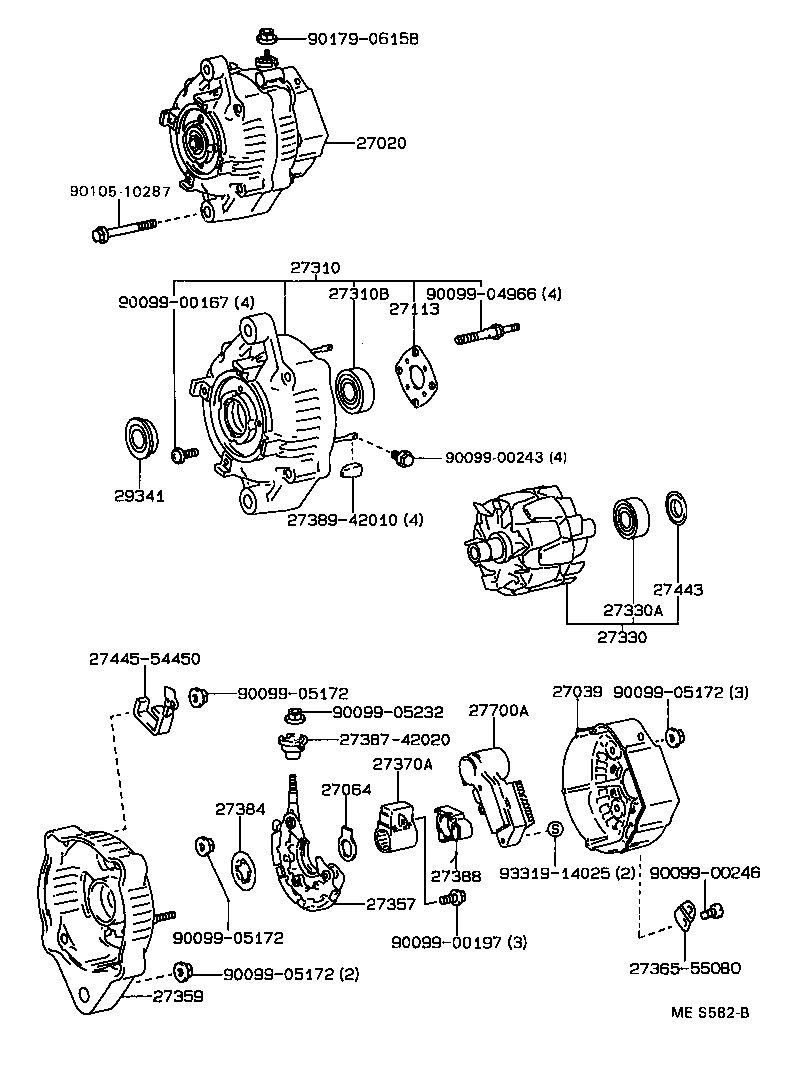

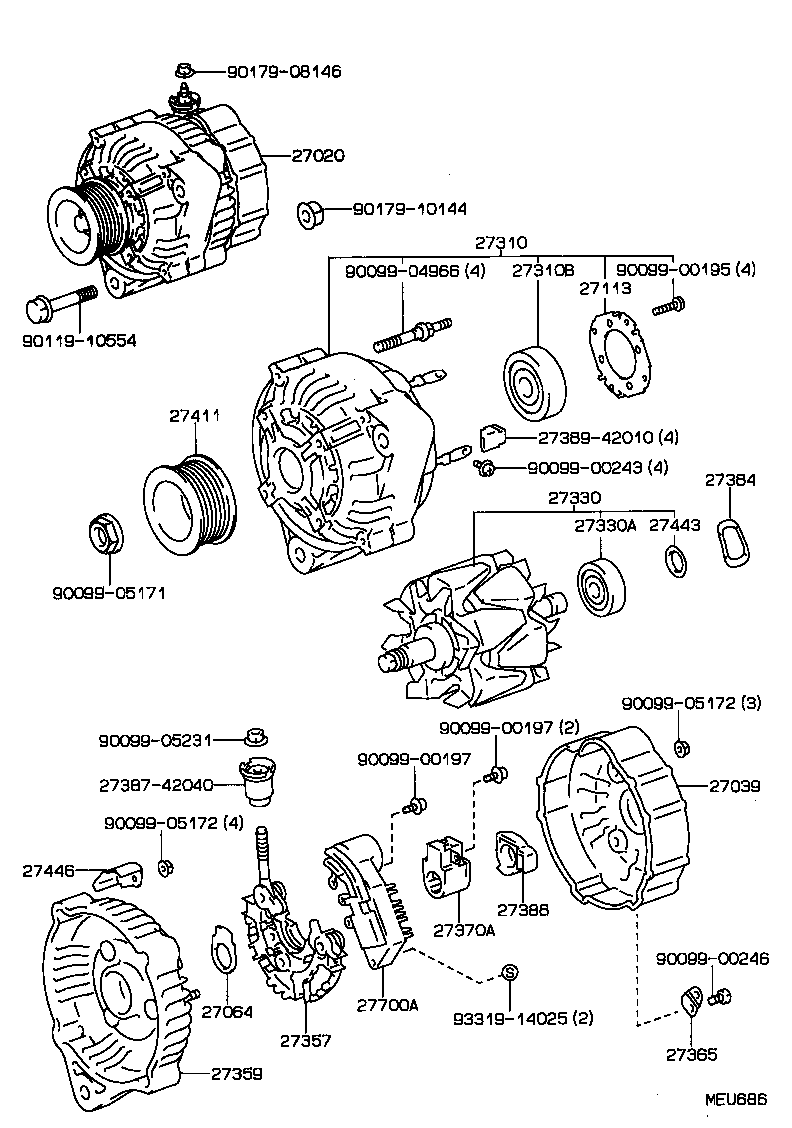

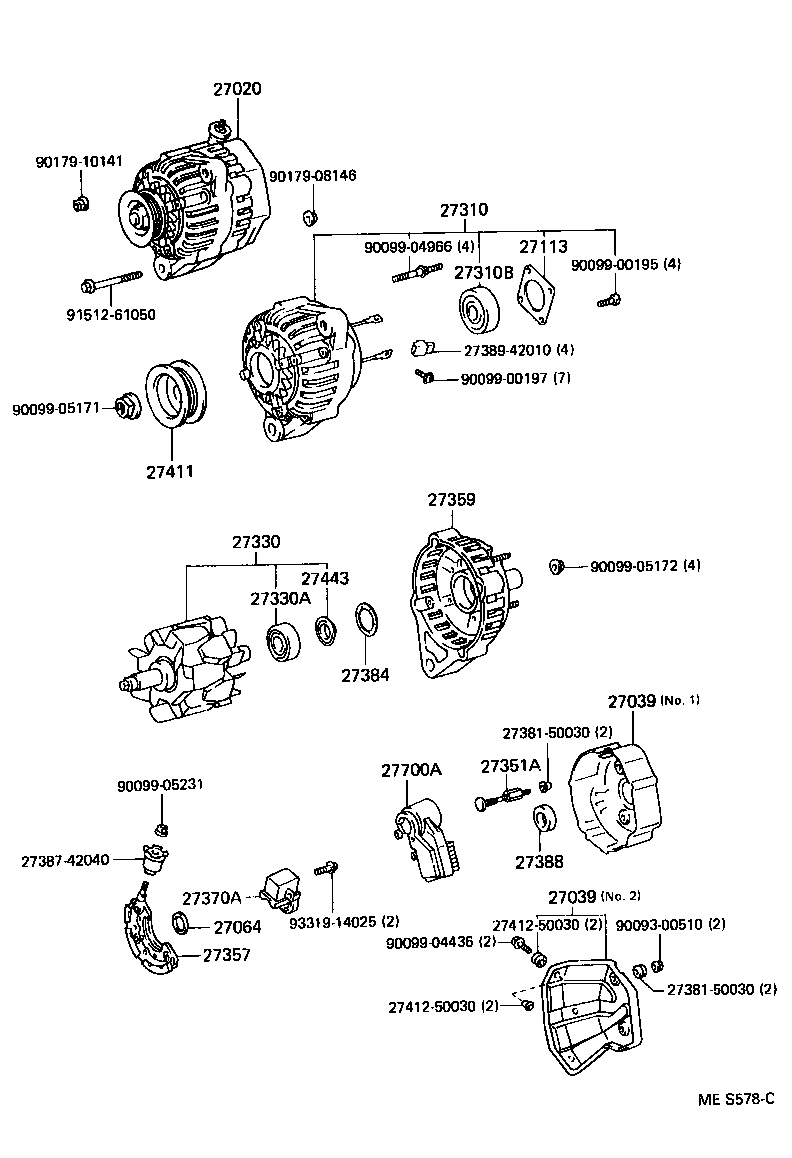

Alternator
23 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 27020 | Alternator Assy |
| 27039 | Cover, Alternator Rear End |
| 27064 | Seal, Alternator Plate |
| 27113 | Plate, Bearing Retainer, Alternator |
| 27310 | Frame Assy, Drive End, Alternator |
| 27310B | Bearing(FOR ALTERNATOR DRIVE END FRAME) |
| 27330 | Rotor Assy, Alternator |
| 27330A | Bearing(FOR ALTERNATOR ROTOR) |
| 27351A | Collar, Adjusting Alternator |
| 27357 | Holder, Alternator, W/Rectifier |
| 27359 | Frame, Alternator Rectifier End |
| 27365 | Plate, Terminal |
| 27370A | Holder Assy, Alternator Brush |
| 27371 | Brush, Alternator |
| 27372 | Spring, Alternator Brush |
| 27379 | Wire, Alternator Lead |
| 27384 | Washer |
| 27388 | Cover, Alternator Brush |
| 27411 | Pulley, Alternator |
| 27443 | Cover, Alternator Bearing |
| 27446 | Clip, Alternator Cord |
| 27700A | Regulator Assy, Generator |
| 29341 | Seal, Alternator Oil |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
