Toyota Crown/Crown Majesta

1991-10 → 1995-08 · chassis JZS14#,LS141,UZS14#,GS141 · catalogue 331180 · Japan

Discontinued model Data version 1996-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

21 part groups · 9 illustrations

Illustrations

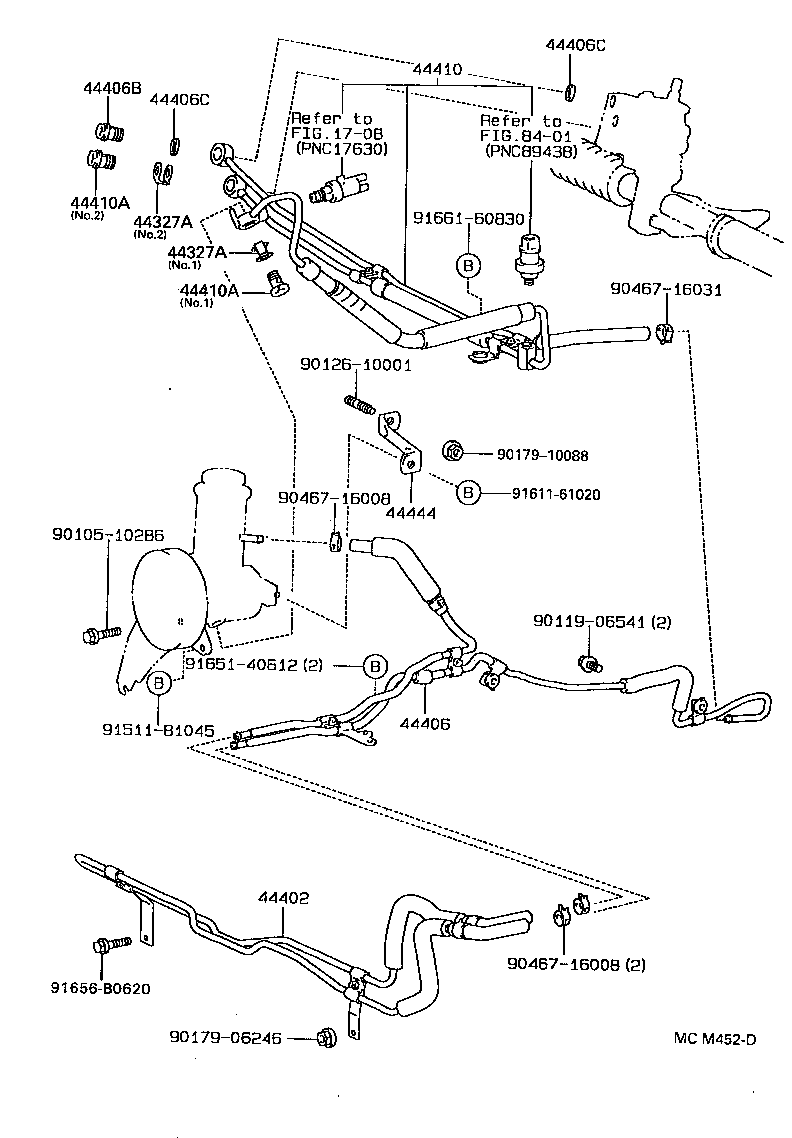

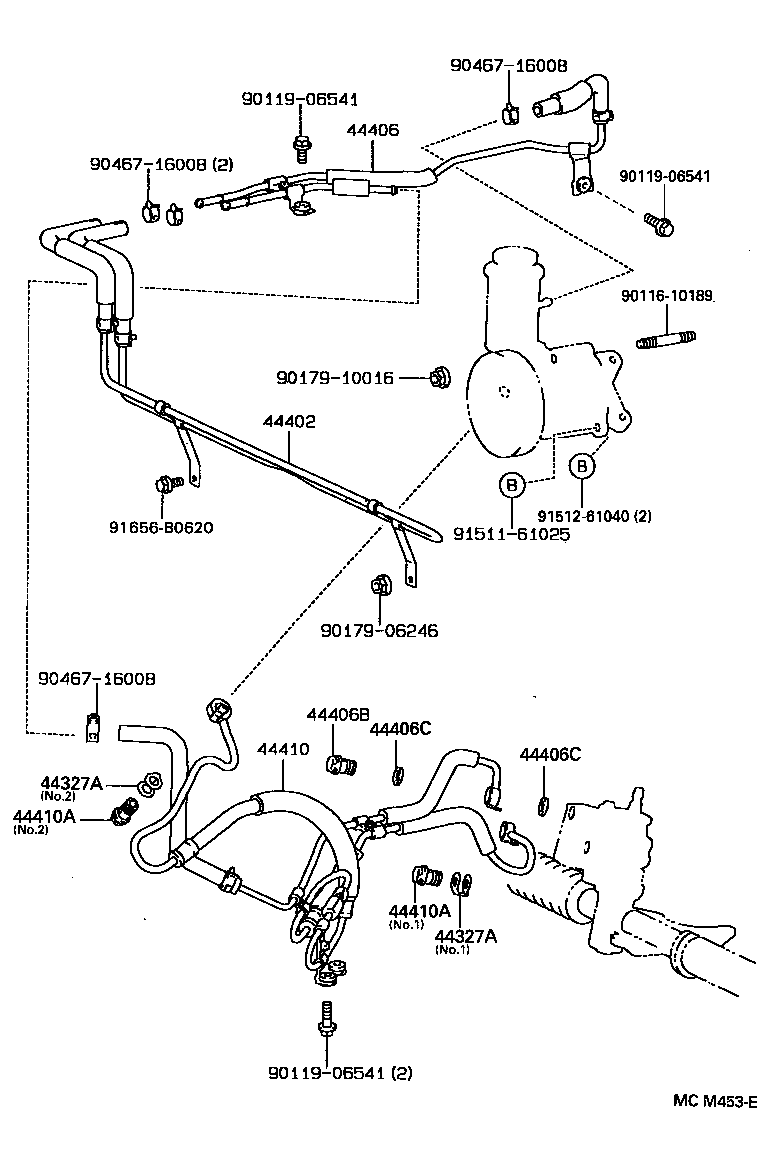

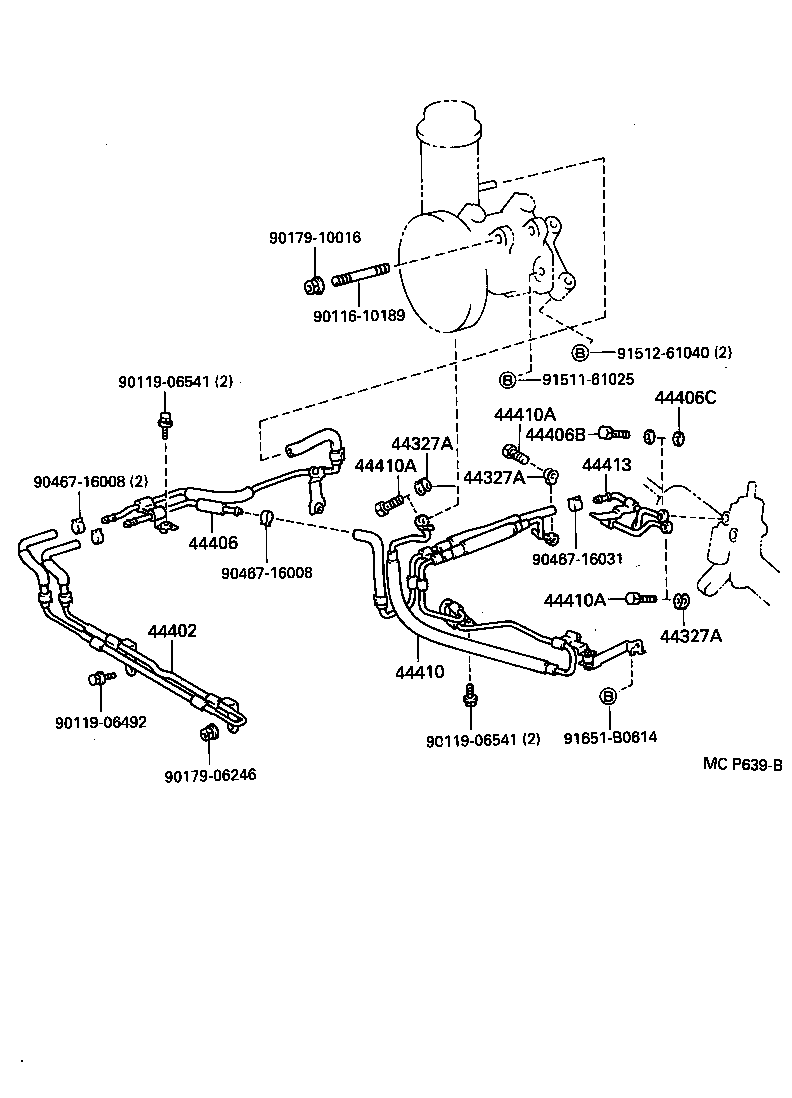

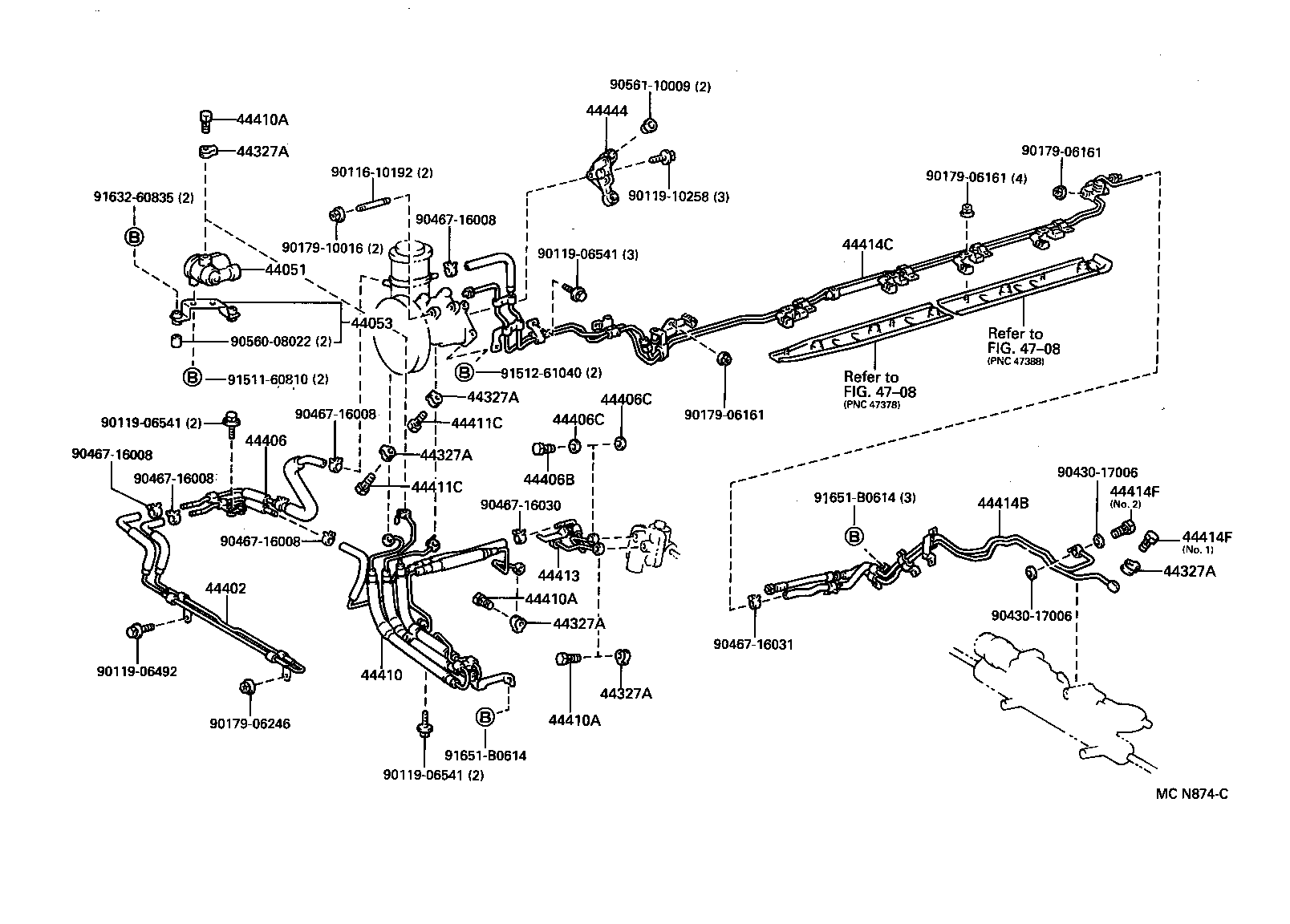

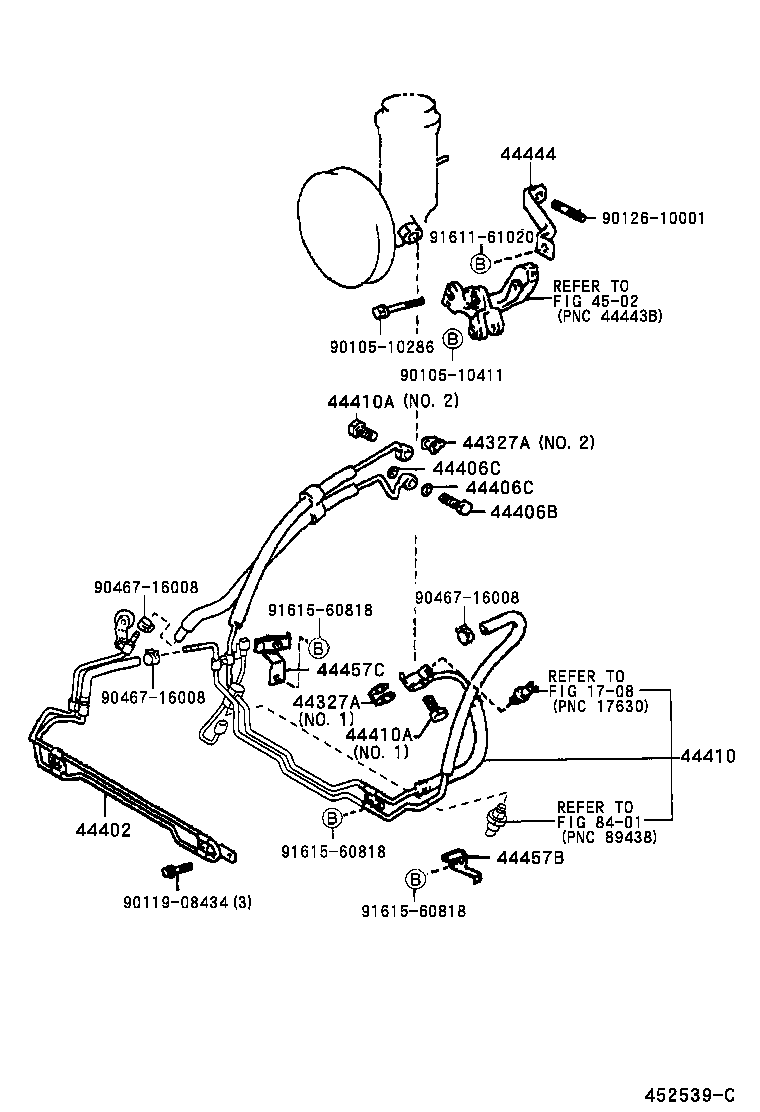

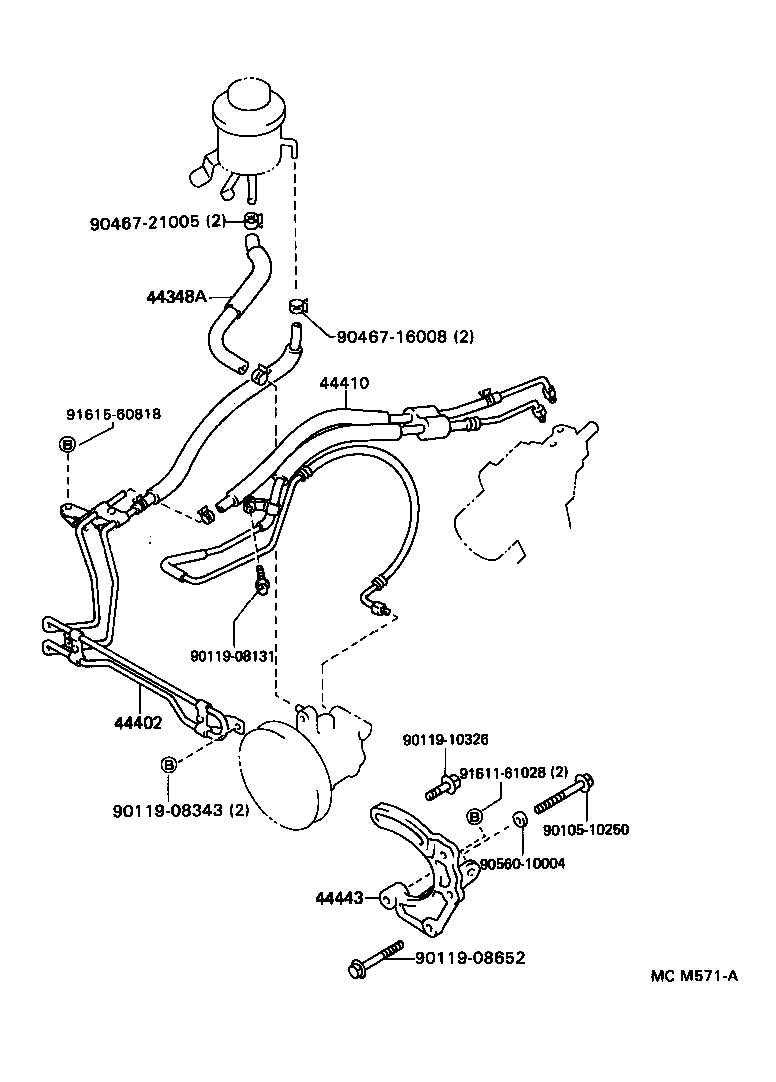

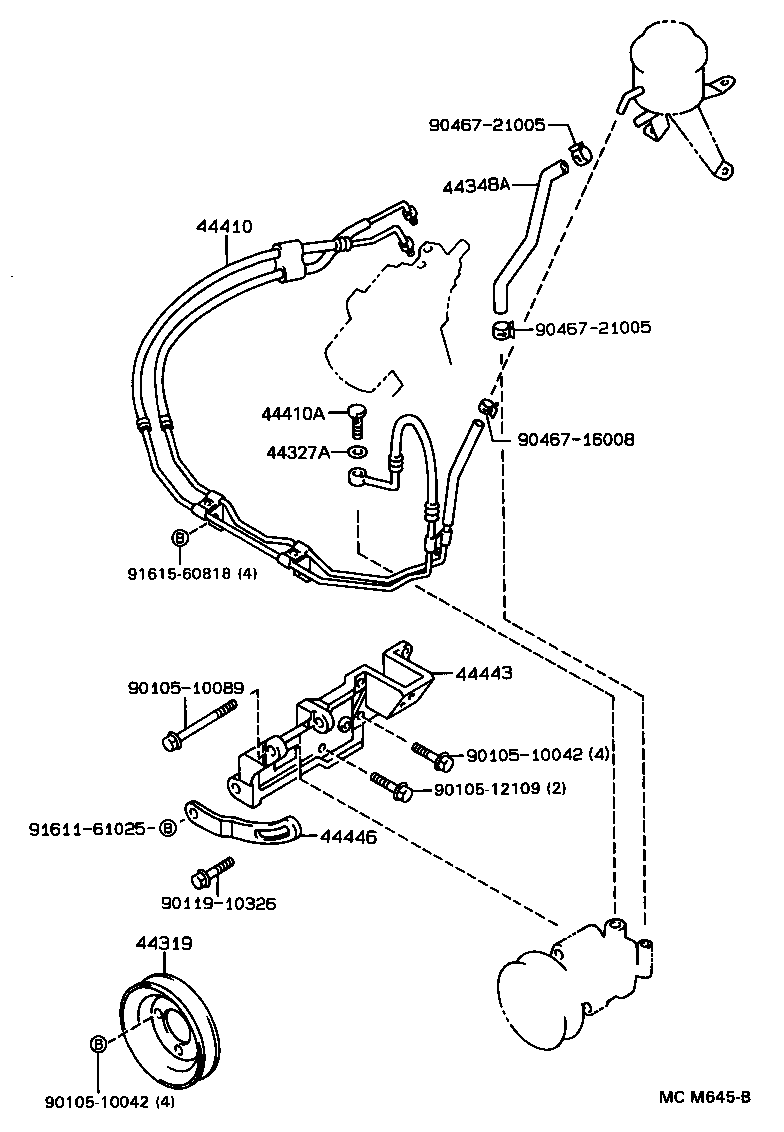

Figure MCM572B MCM572B 1991-10 → — Figure 452539C 452539C 1991-10 → — Figure MCM452D MCM452D 1991-10 → — Figure MCM645B MCM645B 1991-10 → — Figure MCM453E MCM453E 1991-10 → — Figure MCM453E MCM453E 1993-08 → — Figure MCP639B MCP639B 1992-10 → — Figure MCN874C MCN874C 1992-10 → — Figure MCM571A MCM571A 1993-08 → —

Part groups

PNCDescription
44051 Filter Sub-assy, Power Steering Oil Line
44053 Bracket Sub-assy, Power Steering Oil Filter
44319 Pulley, Vane Pump Drive
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44406 Tube Sub-assy, Return
44406B Bolt, Union(FOR RETURN TUBE)
44406C Gasket(FOR RETURN TUBE)
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44413 Tube, Pressure Feed, NO.1
44414B Tube, Pressure Feed, NO.3
44414C Tube, Pressure Feed, NO.4
44414F Bolt, Union(PRESSURE FEED TUBE)
44443 Bracket, Pump
44444 Stay, Pump, Rear
44446 Strut, Adjusting
44457B Bracket, Power Steering Tube Support, NO.2
44457C Bracket, Power Steering Tube Support, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
