Toyota Crown/Crown Majesta

1991-10 → 1995-08 · chassis JZS14#,LS141,UZS14#,GS141 · catalogue 331180 · Japan

Discontinued model Data version 1996-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

11 part groups · 6 illustrations

Illustrations

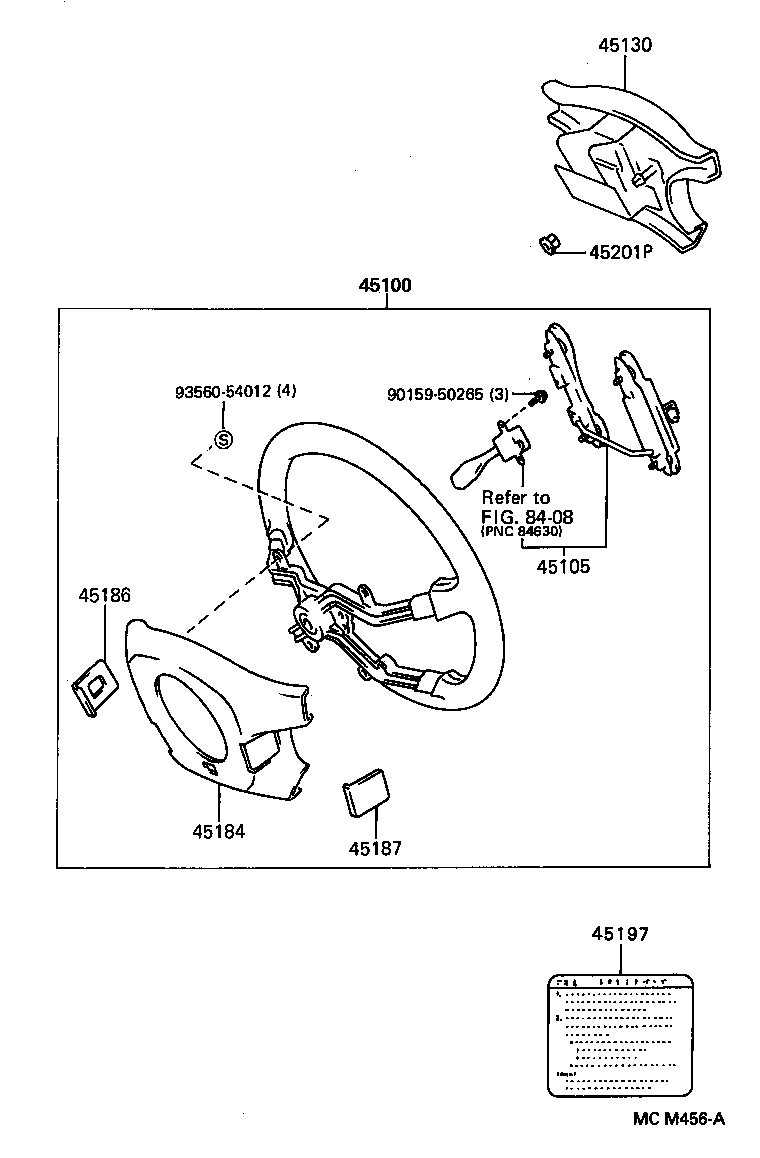

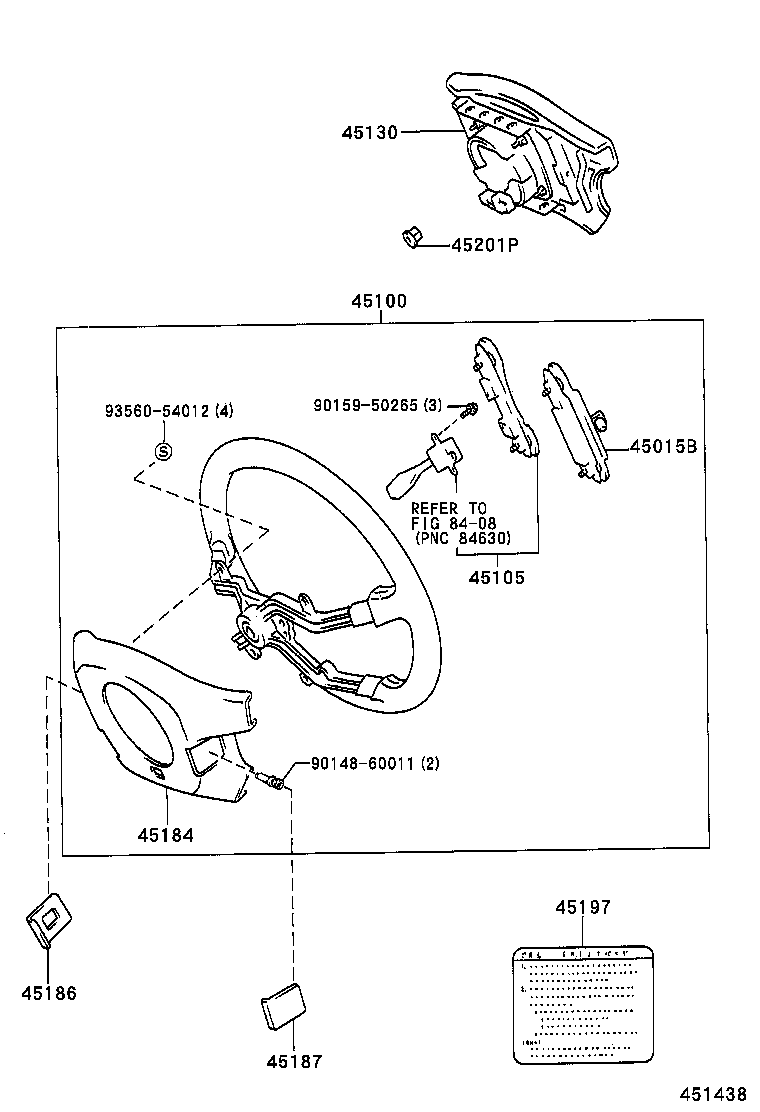

Figure MCM479C MCM479C 1991-10 → — Figure MCM478E MCM478E 1991-10 → — Figure MCM477B MCM477B 1991-10 → — Figure 451437 451437 1991-10 → — Figure MCM456A MCM456A 1991-10 → — Figure 451438 451438 1991-10 → —

Part groups

PNCDescription
45015B Plate Sub-assy, Horn Button Contact, NO.2
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45130 Button Assy, Horn
45180 Cover Sub-assy, Steering Wheel
45184 Cover, Steering Wheel Boss, Lower
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45197 Label, Airbag Caution
45201P Nut, Steering Wheel Set
45819C Retainer, Telescopic Lever
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
