Toyota Crown/Crown Majesta

1991-10 → 1995-08 · chassis JZS14#,LS141,UZS14#,GS141 · catalogue 331180 · Japan

Discontinued model Data version 1996-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Height Control (AUTO-LEVELER)

55 part groups · 7 illustrations

Illustrations

MCM447B 1991-10 → —

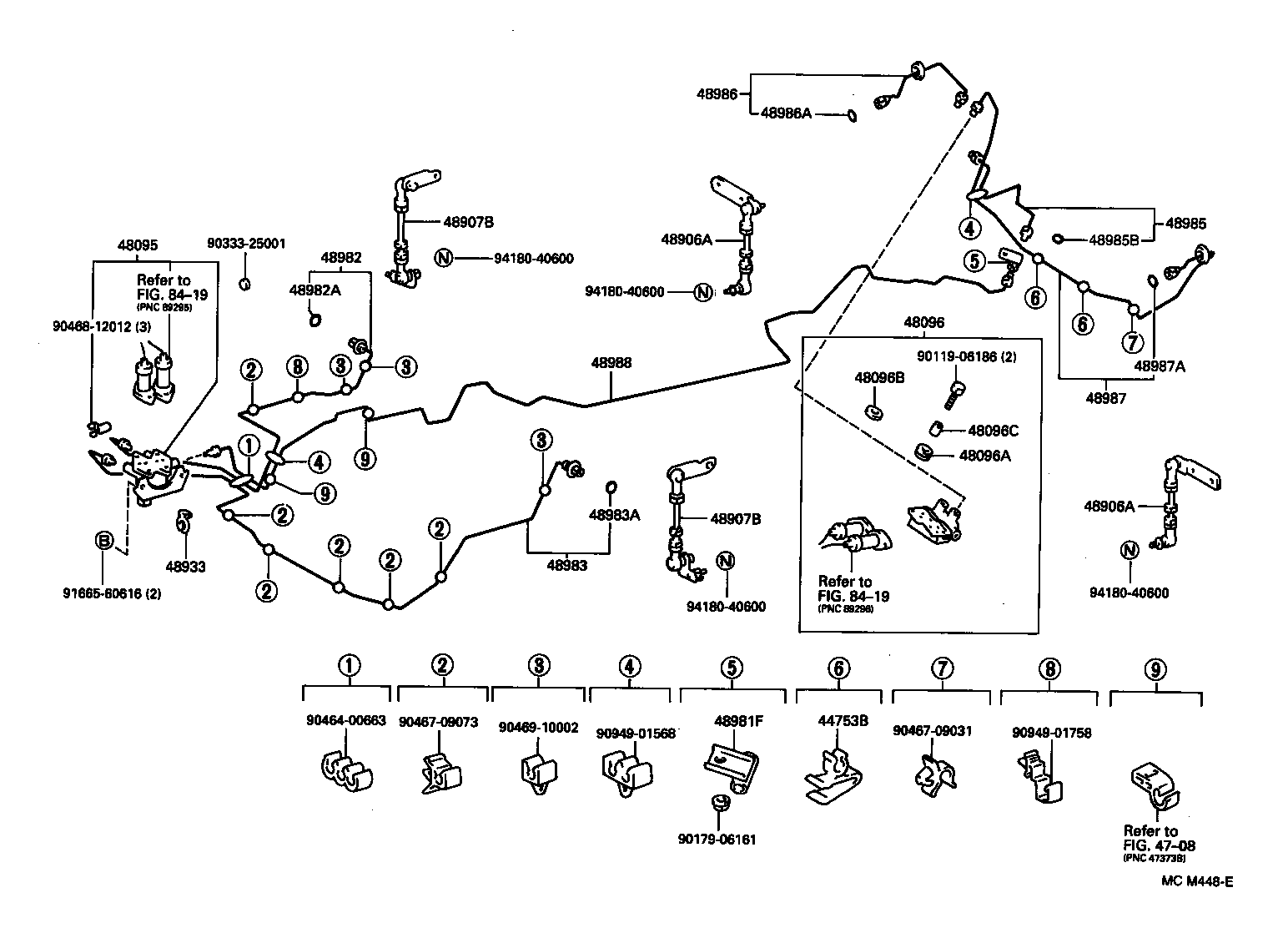

MCM448E 1991-10 → —

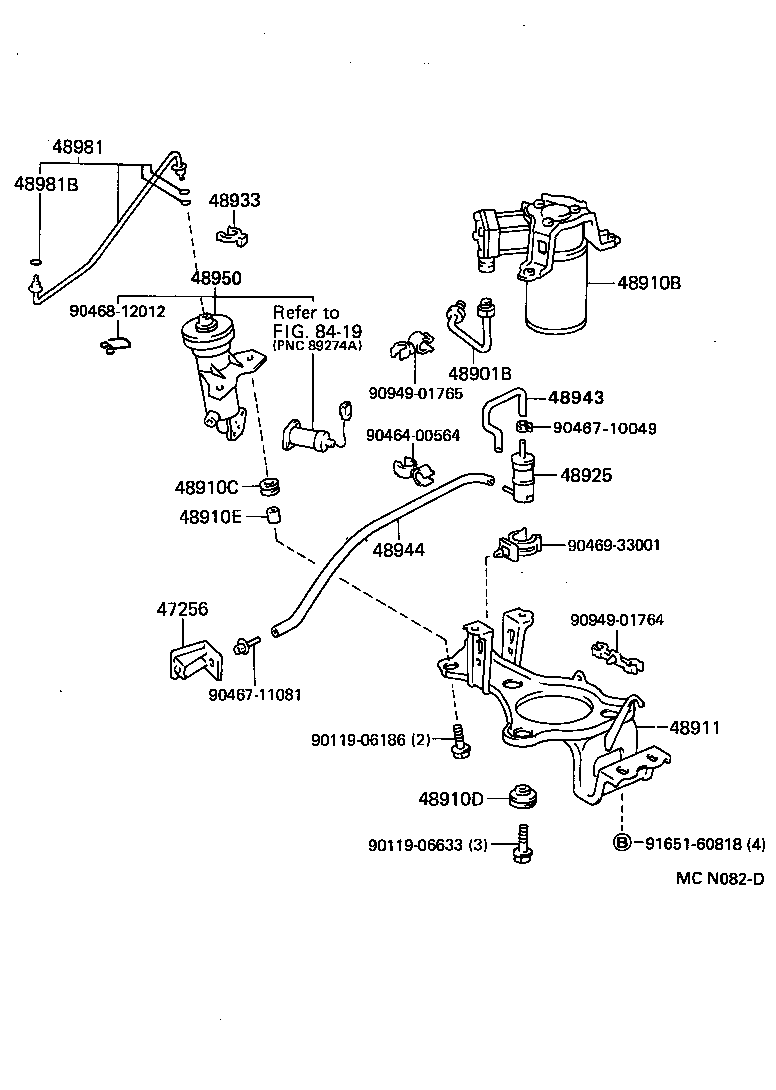

MCN082D 1991-10 → 1995-08

Part groups

PNC	Description
44753B	Clamp, Height Control Tube, NO.1
47256	Grommet, Cap
48095	Valve Sub-assy, Height Control, NO.1
48096	Valve Sub-assy, Height Control, NO.2
48096A	Bush, NO.2(FOR HEIGHT CONTROL VALVE)
48096B	Cushion, NO.2(FOR HEIGHT CONTROL VALVE)
48096C	Spacer, NO.2(FOR HEIGHT CONTROL VALVE)
48097	Bracket Sub-assy, Pneumatic Tank, NO.1
48098	Bracket Sub-assy, Pneumatic Tank, NO.2
48901	Compressor Sub-assy, Height Control
48901B	Hose, Flexible(FOR HEIGHT CONTROL COMPRESSOR)
48904	Tank Sub-assy, Pneumatic, Rear
48906A	Link Sub-assy, Height Control Sensor, Rear
48907B	Link Sub-assy, Height Control Sensor, Front
48910B	Compressor Assy, Height Control
48910C	Bush, NO.1(FOR HEIGHT CONTROL COMPRESSOR)
48910D	Bush, NO.2(FOR HEIGHT CONTROL COMPRESSOR)
48910E	Spacer(FOR HEIGHT CONTROL COMPRESSOR)
48911	Bracket, Height Control Compressor
48925	Filter, Height Control
48927	Bracket, Height Control Air Cleaner, NO.1
48927A	Bracket, Height Control Air Cleaner, NO.2
48930E	Tank Assy, Pneumatic
48933	Holder, Air Connector Clip
48940	Valve Assy, Height Control, NO.1
48943	Hose, Height Control, NO.1
48943A	Hose, Height Control, NO.3
48943B	Hose, Height Control, NO.2
48944	Hose, Height Control, NO.2
48947	Tube, Chamber TO Tank, Front
48947A	Ring, O(FOR CHAMBER TO TANK FRONT TUBE)
48948	Tube, Chamber TO Tank, Rear
48948A	Ring, O(FOR CHAMBER TO TANK REAR TUBE)
48950	Dryer Assy, Height Control
48960	Valve Assy, Height Control, NO.2
48967A	End, Sensor Connecting Rod, NO.1
48968A	End, Sensor Connecting Rod, NO.2
48970A	Bush(FOR HEIGHT CONTROL COMPRESSOR)
48970B	Spacer(FOR HEIGHT CONTROL COMPRESSOR BRACKET)
48981	Tube, Height Control, NO.1
48981B	Ring, O(FOR HEIGHT CONTROL TUBE NO.1)
48981F	Way, NO.1(FOR HEIGHT CONTROL TUBE)
48982	Tube, Height Control, NO.2
48982A	Ring, O(FOR HEIGHT CONTROL TUBE NO.2)
48983	Tube, Height Control, NO.3
48983A	Ring, O(FOR HEIGHT CONTROL TUBE NO.3)
48984	Tube, Height Control, NO.4
48984A	Ring, O(FOR HEIGHT CONTROL TUBE NO.4)
48985	Tube, Height Control, NO.5
48985B	Ring, O(FOR HEIGHT CONTROL TUBE NO.5)
48986	Tube, Height Control, NO.6
48986A	Ring, O(FOR HEIGHT CONTROL NO.6 TUBE)
48987	Tube, Height Control, NO.7
48987A	Ring, O(FOR HEIGHT CONTROL NO.7 TUBE)
48988	Tube, Height Control, NO.8

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
