Toyota Crown/Crown Majesta

1991-10 → 1995-08 · chassis JZS14#,LS141,UZS14#,GS141 · catalogue 331180 · Japan

Discontinued model Data version 1996-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

4 part groups · 2 illustrations

Illustrations

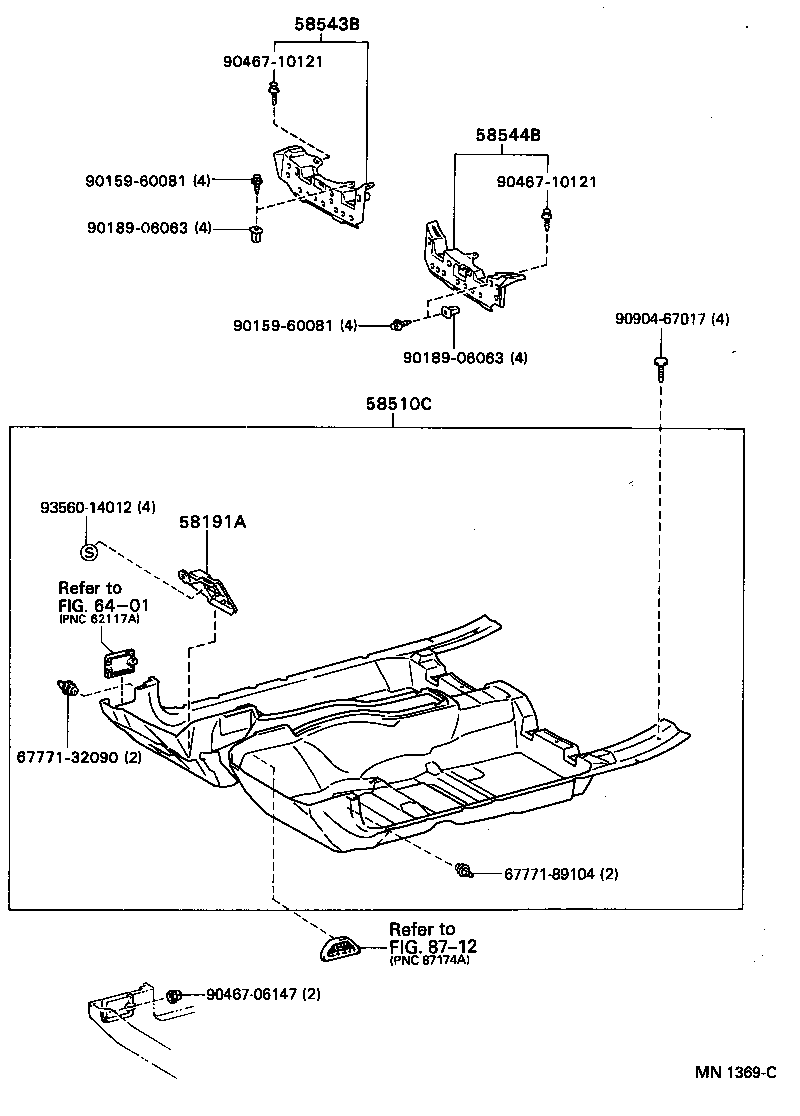

Figure MN1368A MN1368A 1991-10 → — Figure MN1369C MN1369C 1991-10 → —

Part groups

PNCDescription
58191A Footrest, Front Floor, RH
58510C Carpet Assy, Front Floor, Front
58543B Bracket, Floor Carpet, RH
58544B Bracket, Floor Carpet, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
