Toyota Crown/Crown Majesta
1991-10 → 1995-08 · chassis JZS14#,LS141,UZS14#,GS141 · catalogue 331180 · Japan
Discontinued model
Data version 1996-03

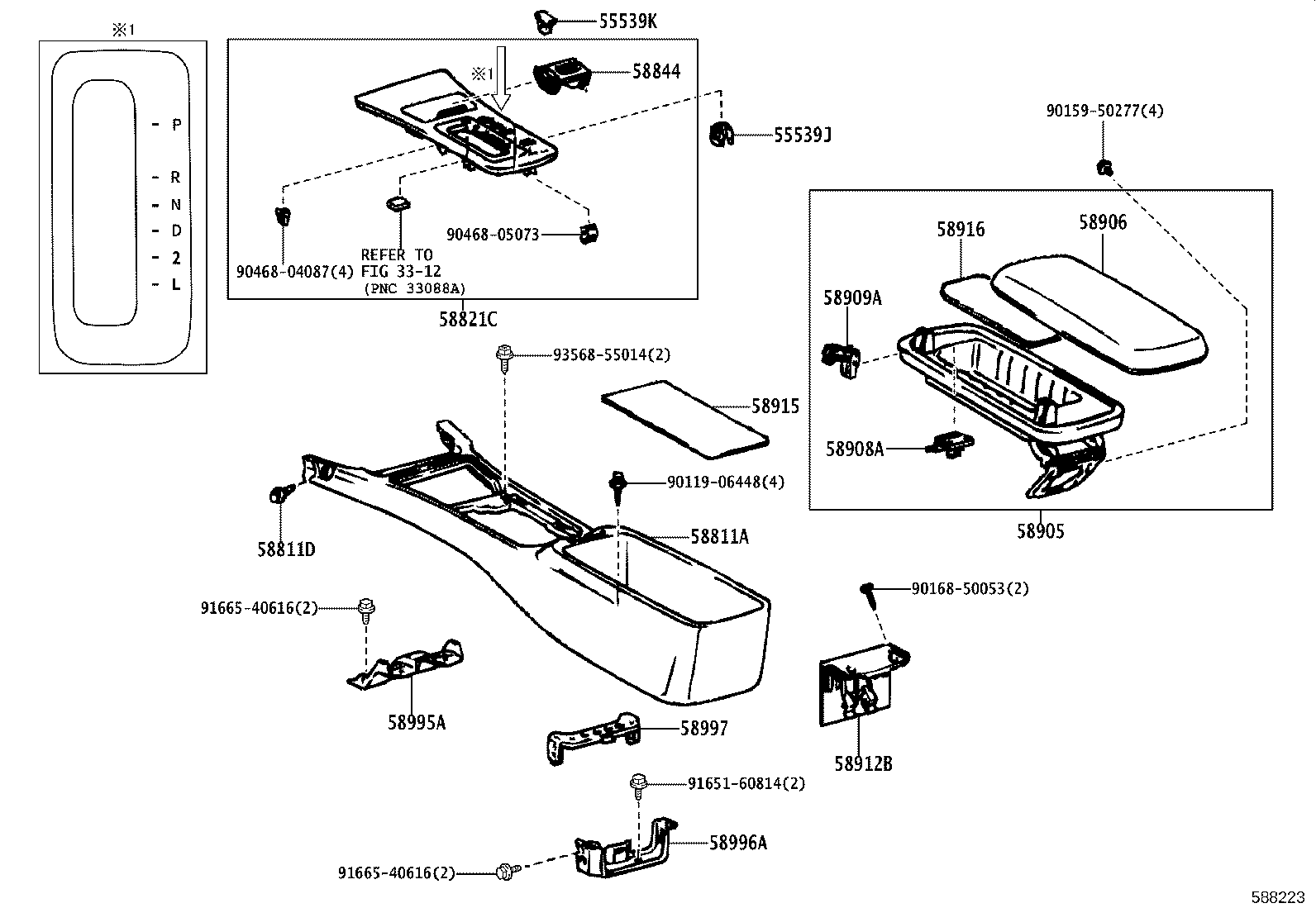

Console Box & Bracket
28 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55539J | Cover, Spare Switch Hole |
| 55539K | Cover, Spare Switch Hole |
| 55549A | Cover, Rear Cooler Switch Hole |
| 58811A | Box, Console, Front |
| 58811B | Box, Console |
| 58811D | Clip(FOR CONSOLE BOX) |
| 58811E | Box, Console, Upper |
| 58821C | Panel, Console, Upper |
| 58839A | Cover, Console Box Hole |
| 58844 | Bezel, Console Box |
| 58901A | Box Sub-assy, Console, Rear |
| 58905 | Door Sub-assy, Console Compartment |
| 58906 | Door Sub-assy, Upper Console |
| 58907 | Hinge Sub-assy, Console Compartment Door |
| 58908A | Lock Sub-assy, Console Compartment Door |
| 58909A | Stopper Sub-assy, Console Compartment Door |
| 58912B | Box, Rear Console, Lower |
| 58915 | Panel, Box Bottom |
| 58916 | Mat, Box Bottom |
| 58917 | Mat, Box Bottom, NO.2 |
| 58923A | Panel, Console Rear End |
| 58924A | Panel, Console Rear End, NO.2 |
| 58933 | Garnish, Console Rear End Panel |
| 58967A | Spring, Console Door Stopper |
| 58971 | Lock, Console Compartment Door |
| 58995A | Bracket, Console Box Mounting, NO.1 |
| 58996A | Bracket, Console Box Mounting, NO.2 |
| 58997 | Bracket, Console Box Mounting, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
