Toyota Crown/Crown Majesta

1991-10 → 1995-08 · chassis JZS14#,LS141,UZS14#,GS141 · catalogue 331180 · Japan

Discontinued model Data version 1996-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Luggage Compartment Door & Lock

14 part groups · 2 illustrations

Illustrations

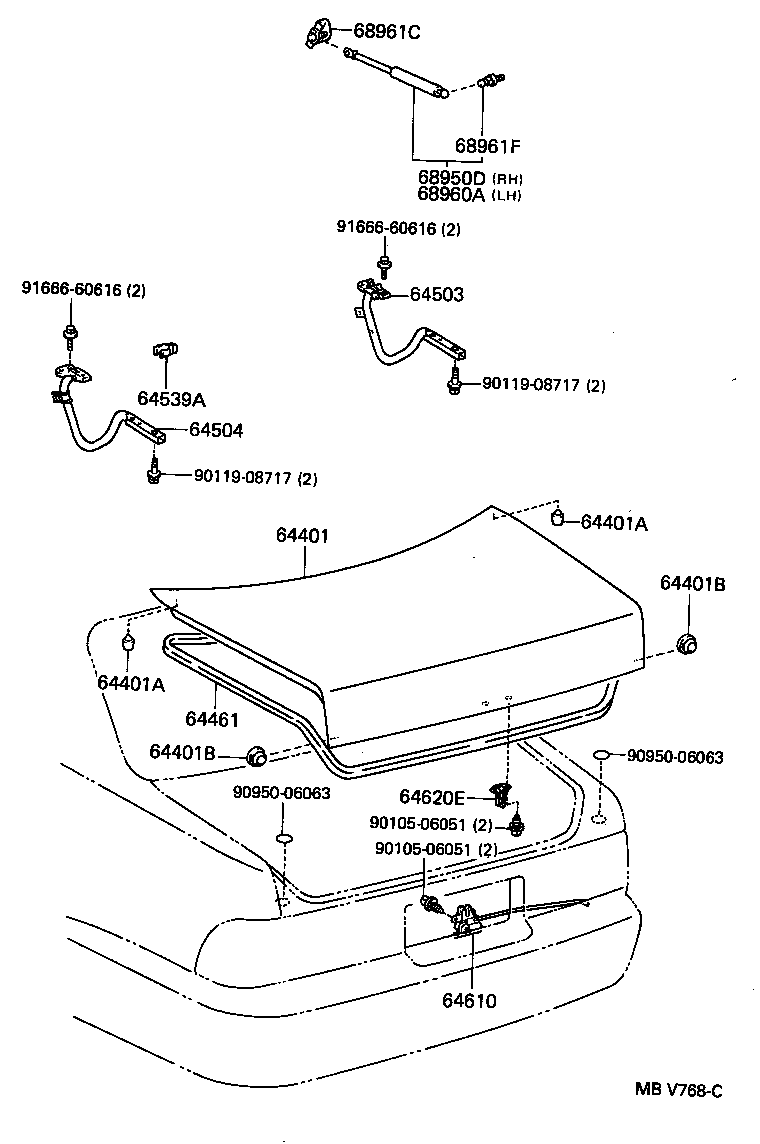

Figure MBV767D MBV767D 1991-10 → — Figure MBV768C MBV768C 1991-10 → —

Part groups

PNCDescription
64401 Panel Sub-assy, Luggage Compartment Door
64401A Cushion(FOR LUGGAGE COMPARTMENT DOOR PANEL)
64401B Plug, Hole(FOR LUGGAGE COMPARTMENT DOOR PANEL)
64461 Weatherstrip, Luggage Compartment Door
64503 Arm Sub-assy, Luggage Compartment Door Hinge, RH
64504 Arm Sub-assy, Luggage Compartment Door Hinge, LH
64539A Plate, Luggage Door Hinge Arm
64571 Cover, Luggage Compartment Door Hinge
64610 Lock Assy, Luggage Compartment Door
64620E Striker Assy, Luggage Compartment Door
68950D Stay Assy, Luggage Door, RH
68960A Stay Assy, Luggage Door, LH
68961C Bolt, Luggage Door Stay
68961F Bolt, Back Door Stay
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
