Toyota Crown/Crown Majesta
1991-10 → 1995-08 · chassis JZS14#,LS141,UZS14#,GS141 · catalogue 331180 · Japan
Discontinued model
Data version 1996-03

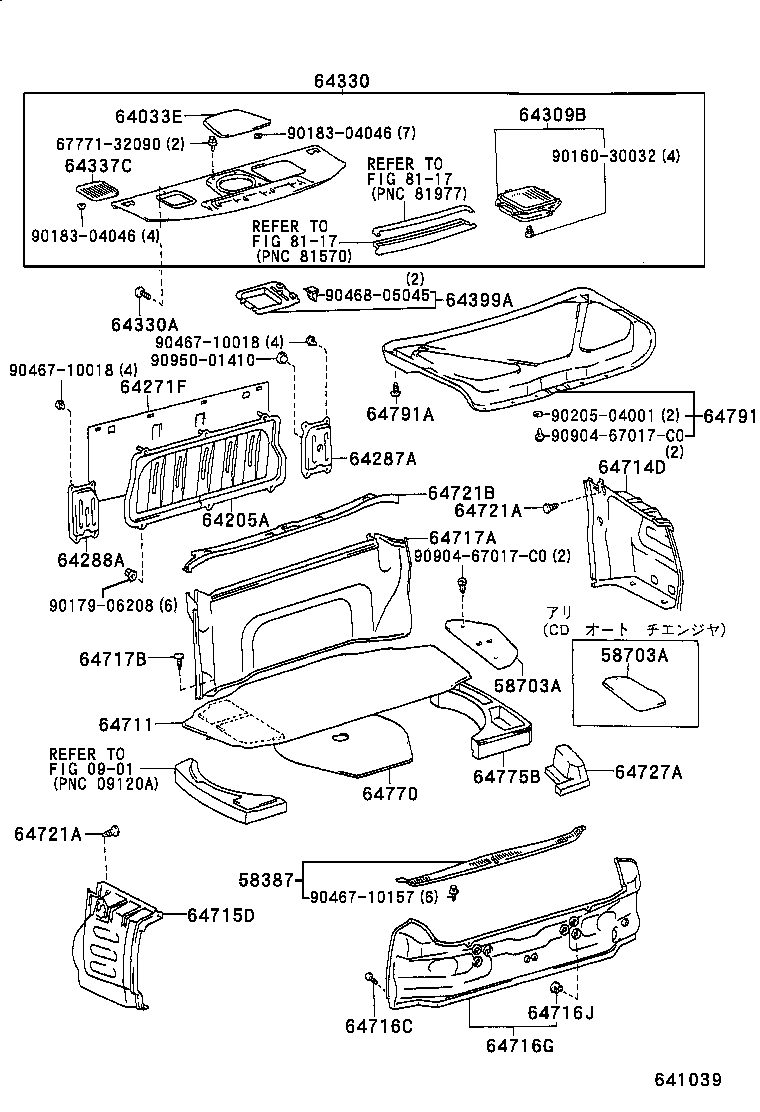

Package Tray Panel & Luggage Compartment Mat
33 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58322E | Insulator, Rear Floor Heat, NO.2 |
| 58387 | Plate, Rear Floor Finish |
| 58517A | Mat, Rear Floor, NO.2 |
| 58703A | Cover Sub-assy, Luggage Compartment Side, RH |
| 58704A | Cover Sub-assy, Luggage Compartment Side, LH |
| 64033E | Grille Sub-assy, Rear Speaker |
| 64205A | Cover Sub-assy, Room Partition |
| 64206E | Panel Sub-assy, Room Partition |
| 64271F | Trim, Room Partition |
| 64287A | Cover, Room Partition, NO.4 RH |
| 64288A | Cover, Room Partition, NO.4 LH |
| 64309B | Pocket Sub-assy, Package Tray Trim |
| 64330 | Panel Assy, Package Tray Trim |
| 64330A | Clip(FOR PACKAGE TRAY TRIM PANEL) |
| 64337C | Garnish, Package Tray Trim |
| 64399A | Bracket, Package Tray Trim Pocket |
| 64711 | Mat, Luggage Compartment Floor |
| 64714D | Cover, Luggage Compartment Trim, Side, RH |
| 64715D | Cover, Luggage Compartment Trim, Side, LH |
| 64716C | Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER) |
| 64716G | Cover, Luggage Compartment Trim, Rear |
| 64716J | Plug, Hole(FOR LUGGAGE COMPARTMENT REAR COVER) |
| 64717A | Cover, Luggage Compartment Trim, Front |
| 64717B | Clip(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER) |
| 64721A | Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER) |
| 64721B | Cover, Luggage Compartment Trim, NO.1 |
| 64727A | Pad, Luggage Compartment Trim, Inner |
| 64770 | Cover Assy, Spare Wheel |
| 64773 | Cover, Spare Wheel, NO.2 |
| 64775B | Guard, Spare Wheel |
| 64778B | Protector, Spare Wheel |
| 64791 | Cover, Back Door Trim |
| 64791A | Clip(FOR BACK DOOR TRIM) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
