Toyota Crown/Crown Majesta

1991-10 → 1995-08 · chassis JZS14#,LS141,UZS14#,GS141 · catalogue 331180 · Japan

Discontinued model Data version 1996-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Lock & Handle

16 part groups · 2 illustrations

Illustrations

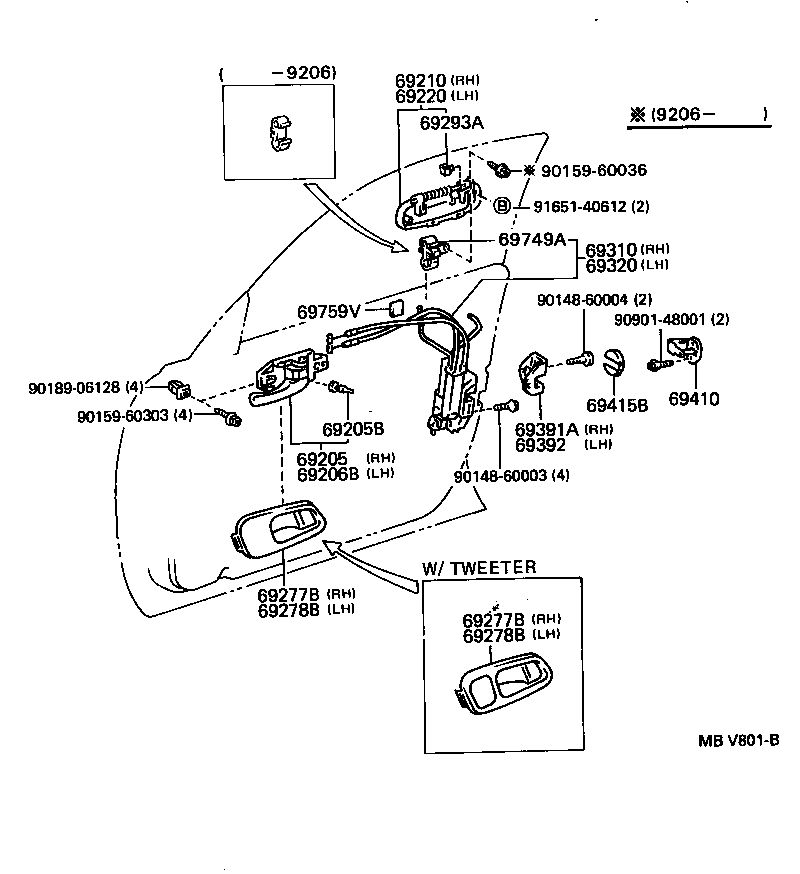

Figure MBV800B MBV800B 1991-10 → — Figure MBV801B MBV801B 1991-10 → —

Part groups

PNCDescription
69205 Handle Sub-assy, Front Door Inside, RH
69205B Cushion(FOR FRONT DOOR INSIDE HANDLE)
69206B Handle Sub-assy, Front Door Inside, LH
69210 Handle Assy, Front Door, Outside RH
69220 Handle Assy, Front Door Outside, LH
69277B Bezel, Front Door Inside Handle, RH
69278B Bezel, Front Door Inside Handle, LH
69293A Snap, Front Door Outside Handle
69310 Lock Assy, Front Door, RH
69320 Lock Assy, Front Door, LH
69391A Cover, Front Door Lock, Outer RH
69392 Cover, Front Door Lock, Outer LH
69410 Plate Assy, Front Door Lock Striker
69415B Cover, Door Lock Striker, Front
69749A Clamp, Front Door Lock Link, NO.1
69759V Silencer, Front Door Lock Link
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
