Toyota Crown/Crown Majesta

1991-10 → 1995-08 · chassis JZS14#,LS141,UZS14#,GS141 · catalogue 331180 · Japan

Discontinued model Data version 1996-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Window Regulator & Hinge

15 part groups · 2 illustrations

Illustrations

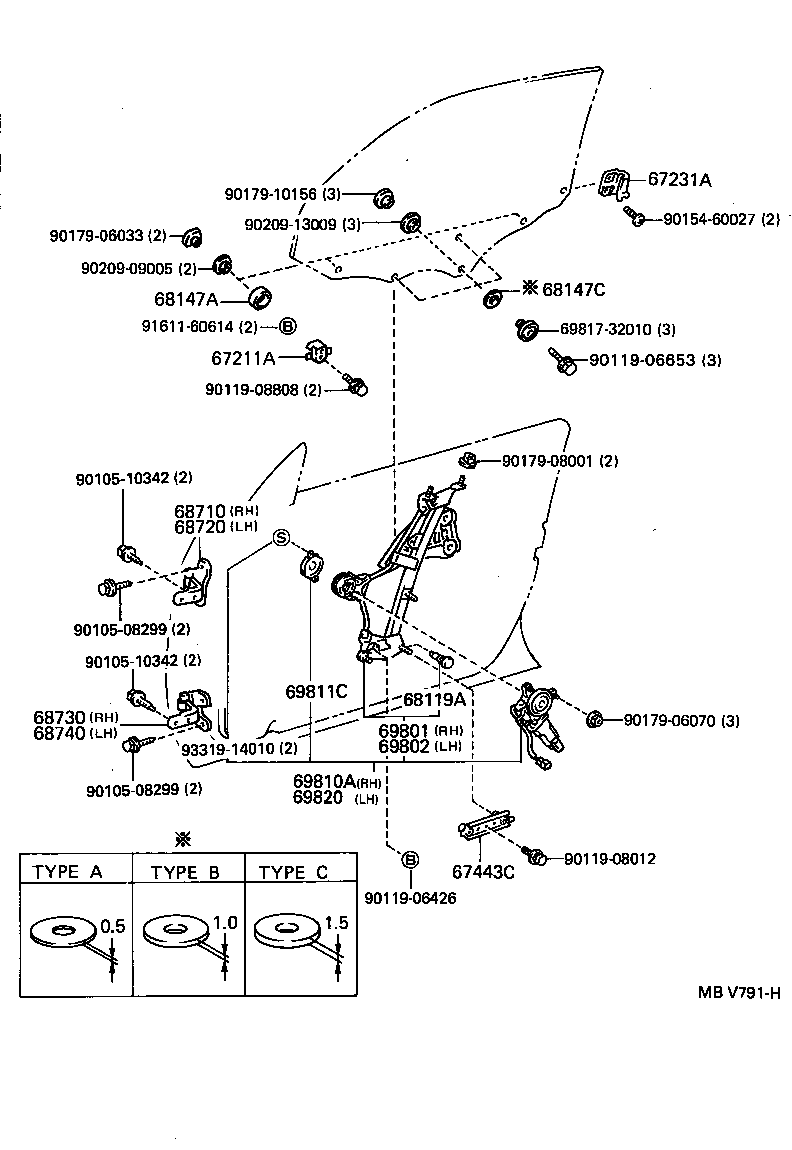

Figure MBV790G MBV790G 1991-10 → — Figure MBV791H MBV791H 1991-10 → —

Part groups

PNCDescription
67211A Stop, Front Door Window, Upper
67231A Support, Front Door Trim
67443C Plate, Front Door Window Guide, Lower
68119A Cushion, Window Regulator Door Glass Bracket, NO.1
68147A Stop, Front Door Glass, Upper
68147C Washer, Front Door Glass Stop
68710 Hinge Assy, Front Door, Upper RH
68720 Hinge Assy, Front Door, Upper LH
68730 Hinge Assy, Front Door, Lower RH
68740 Hinge Assy, Front Door, Lower LH
69801 Regulator Sub-assy, Front Door Window, RH
69802 Regulator Sub-assy, Front Door Window, LH
69810A Regulator Assy, Front Door Window, RH
69811C Plate, Front Door Power Window Regulator Base
69820 Regulator Assy, Front Door Window, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
