Toyota Crown/Crown Majesta
1991-10 → 1995-08 · chassis JZS14#,LS141,UZS14#,GS141 · catalogue 331180 · Japan
Discontinued model
Data version 1996-03
Rear Door Panel & Glass
32 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|

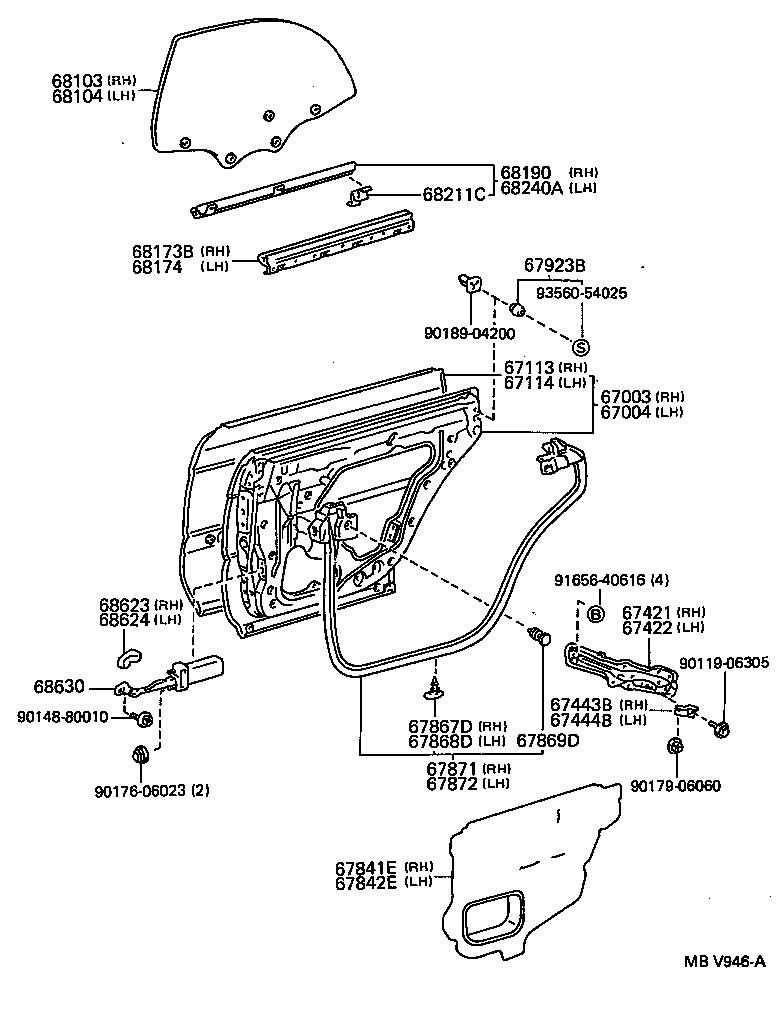

| 67003 | Panel Sub-assy, Rear Door, RH |
| 67004 | Panel Sub-assy, Rear Door, LH |
| 67113 | Panel, Rear Door, Outer RH |
| 67114 | Panel, Rear Door, Outer LH |
| 67421 | Frame, Rear Door Window, Front Upper RH |
| 67422 | Frame, Rear Door Window, Front Upper LH |
| 67443B | Plate, Rear Door Inside Panel, RH |
| 67444B | Plate, Rear Door Inside Panel, LH |

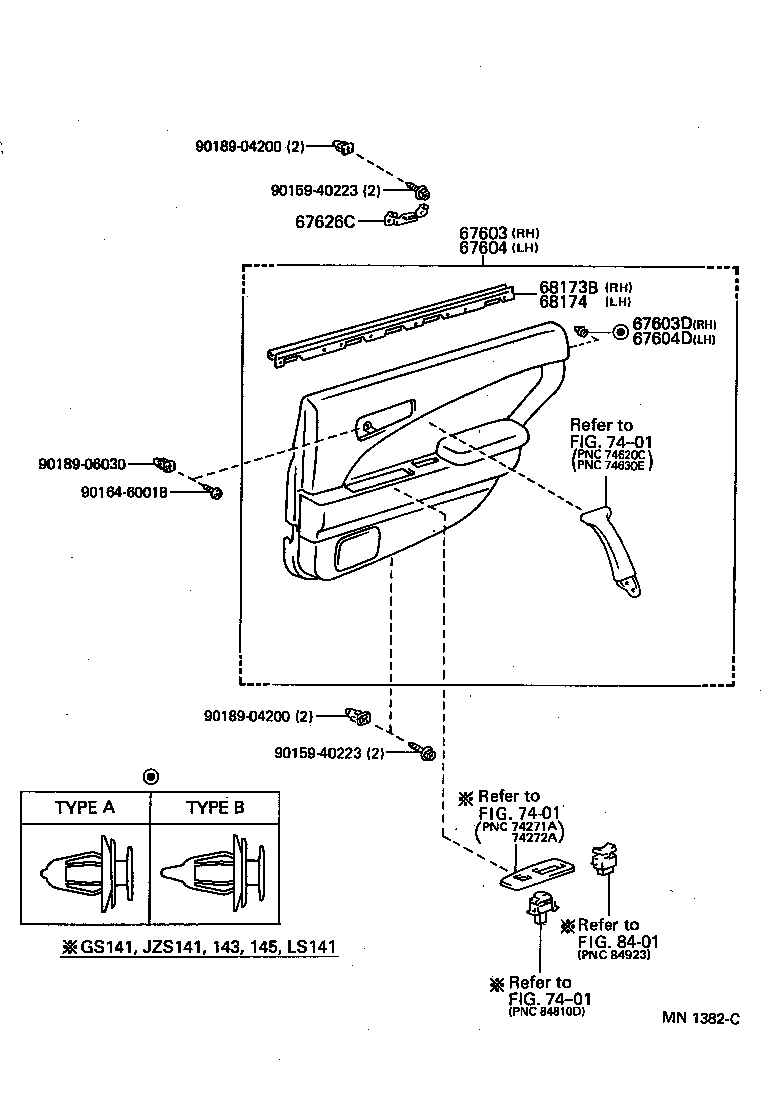

| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603D | Retainer, Rear Door Trim, RH |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67604D | Retainer, Rear Door Trim, LH |
| 67626C | Bracket, Rear Door Trim, NO.2 |
| 67841E | Cover, Rear Door Service Hole, RH |
| 67842E | Cover, Rear Door Service Hole, LH |
| 67867D | Retainer, Rear Door Weatherstrip, RH |
| 67868D | Retainer, Rear Door Weatherstrip, LH |
| 67869D | Clip, Door Weatherstrip |
| 67871 | Weatherstrip, Rear Door, RH |
| 67872 | Weatherstrip, Rear Door, LH |
| 67923B | Cushion, Rear Door Stiffener, NO.1 |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68173B | Weatherstrip, Rear Door Glass, Inner RH |
| 68174 | Weatherstrip, Rear Door Glass, Inner LH |
| 68190 | Weatherstrip Assy, Rear Door Glass, Inner |
| 68211C | Clip(FOR REAR DOOR GLASS WEATHERSTRIP) |
| 68240A | Weatherstrip Assy, Rear Door Glass, Inner LH |
| 68617A | Pin, Rear Door Check |
| 68623 | Cover, Door Check, RH |
| 68624 | Cover, Door Check, LH |
| 68630 | Check Assy, Rear Door |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
