Toyota Crown/Crown Majesta

1991-10 → 1995-08 · chassis JZS14#,LS141,UZS14#,GS141 · catalogue 331180 · Japan

Discontinued model Data version 1996-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Door Window Regulator & Hinge

15 part groups · 2 illustrations

Illustrations

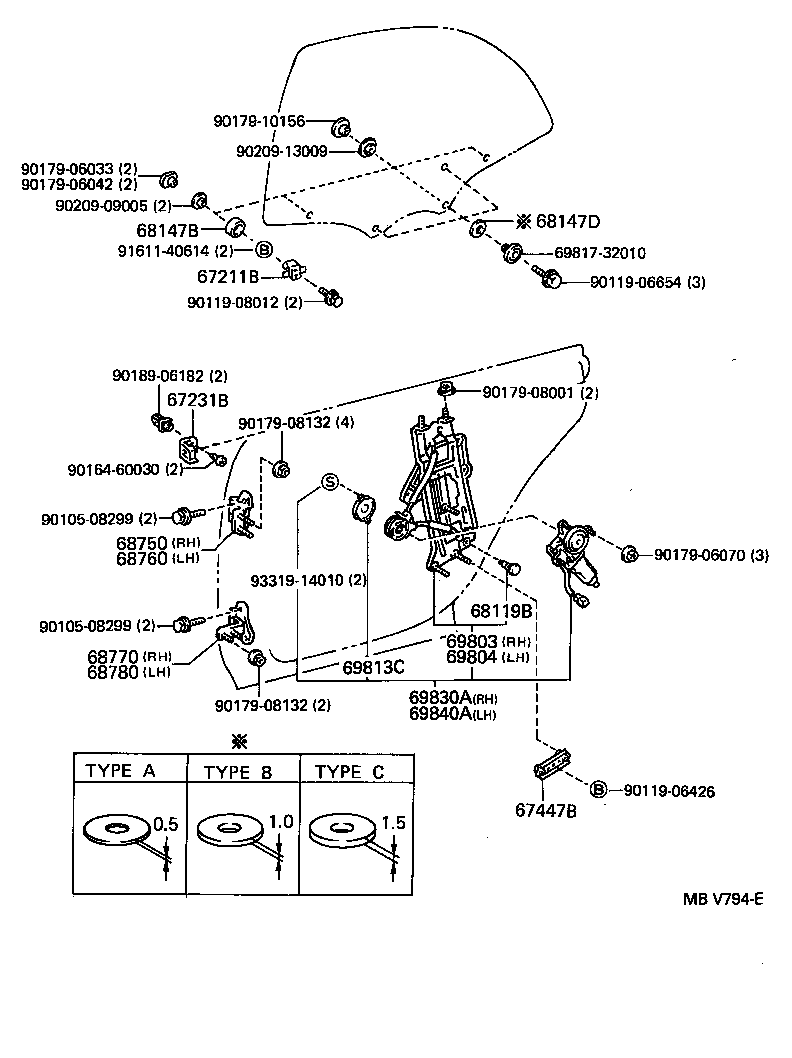

Figure MBV793E MBV793E 1991-10 → — Figure MBV794E MBV794E 1991-10 → —

Part groups

PNCDescription
67211B Stop, Rear Door Window, Upper
67231B Support, Rear Door Trim
67447B Plate, Rear Door Window Guide, Lower
68119B Cushion, Window Regulator Door Glass Bracket, NO.2
68147B Stop, Rear Door Glass, Upper
68147D Washer, Rear Door Glass Stop
68750 Hinge Assy, Rear Door, Upper RH
68760 Hinge Assy, Rear Door, Upper LH
68770 Hinge Assy, Rear Door, Lower RH
68780 Hinge Assy, Rear Door, Lower LH
69803 Regulator Sub-assy, Rear Door Window, RH
69804 Regulator Sub-assy, Rear Door Window, LH
69813C Plate, Rear Door Power Window Regulator Base
69830A Regulator Assy, Rear Door Window, RH
69840A Regulator Assy, Rear Door Window, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
