Toyota Crown/Crown Majesta

1991-10 → 1995-08 · chassis JZS14#,LS141,UZS14#,GS141 · catalogue 331180 · Japan

Discontinued model Data version 1996-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

60 part groups · 7 illustrations

Illustrations

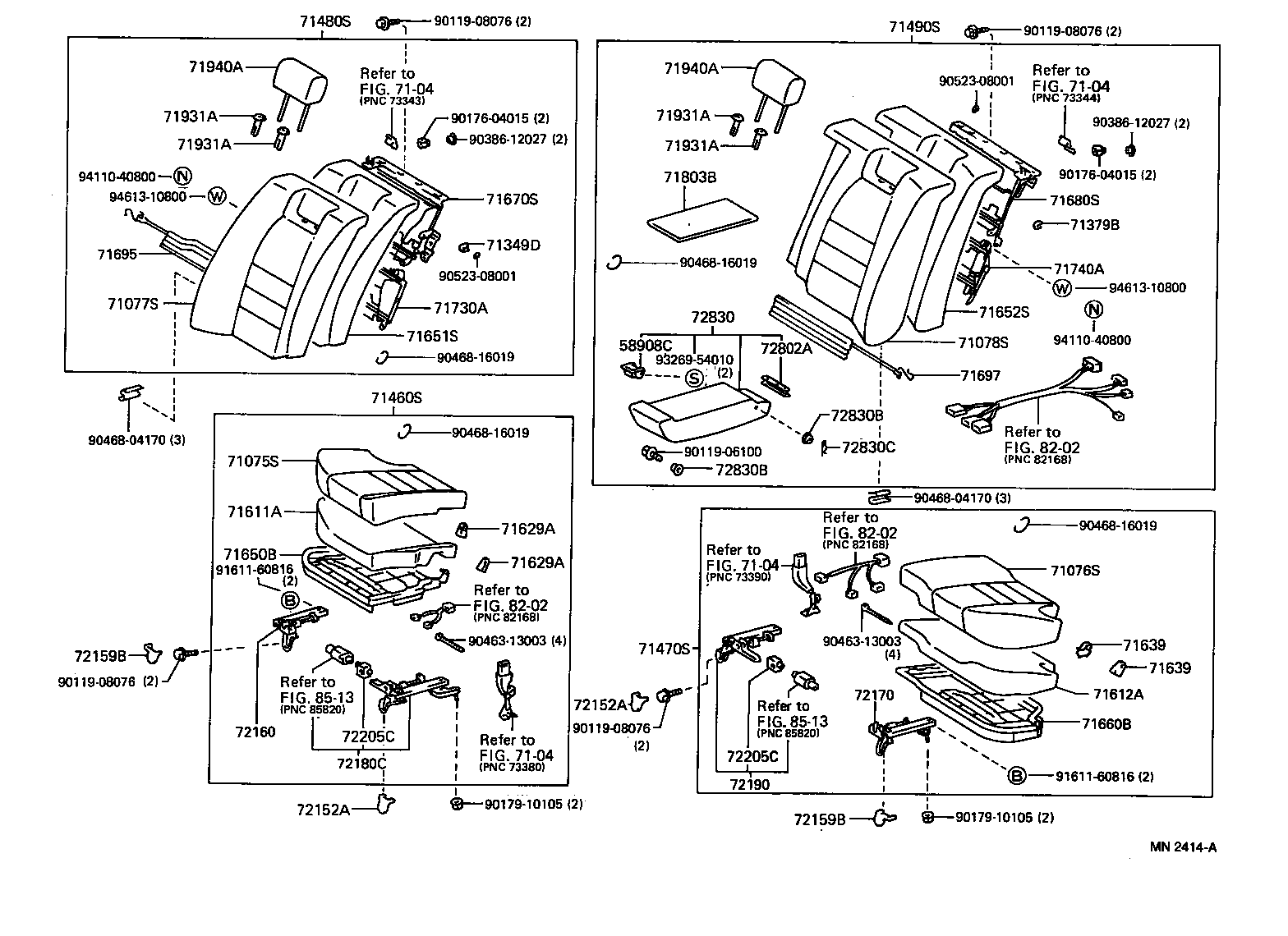

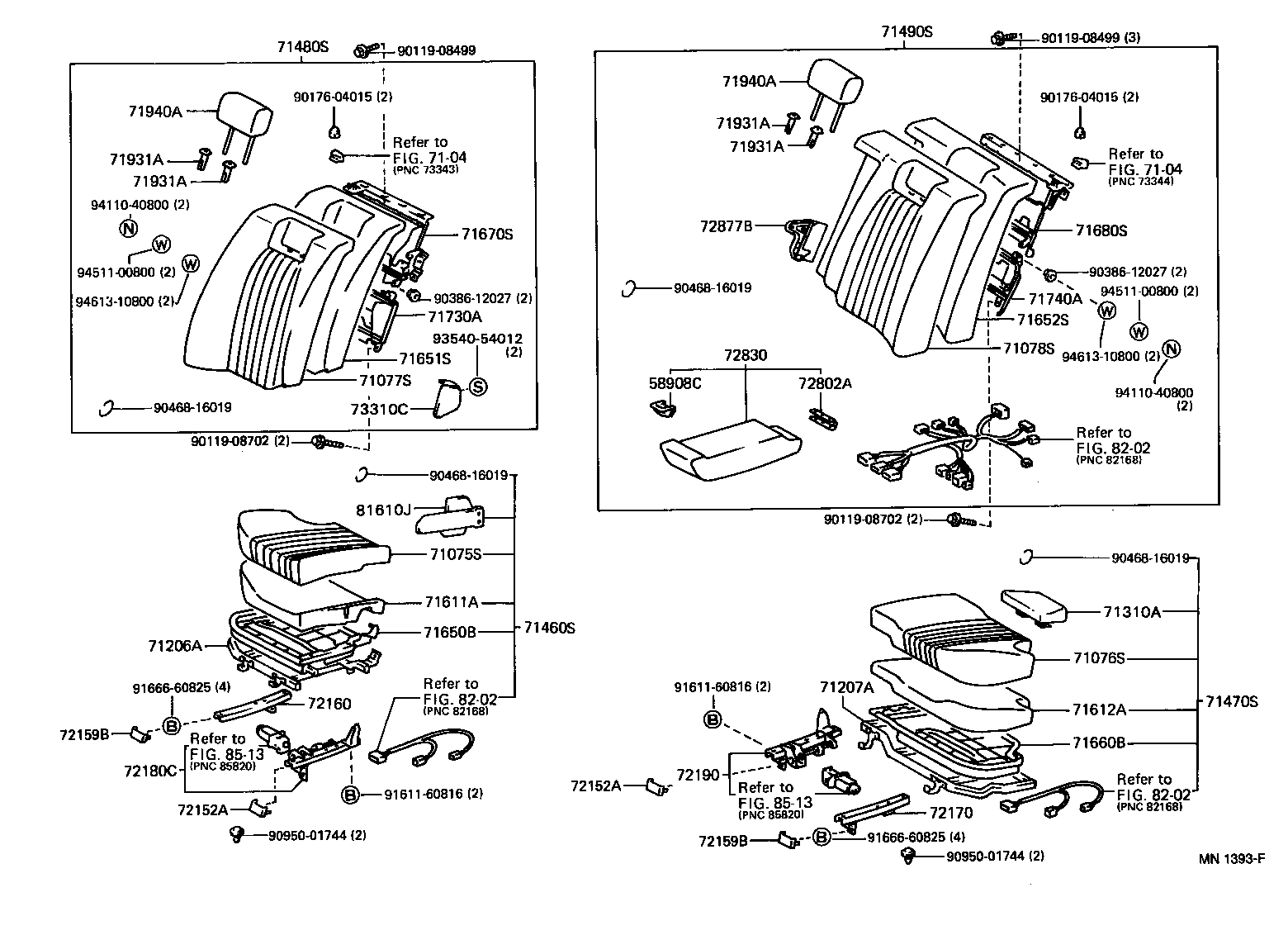

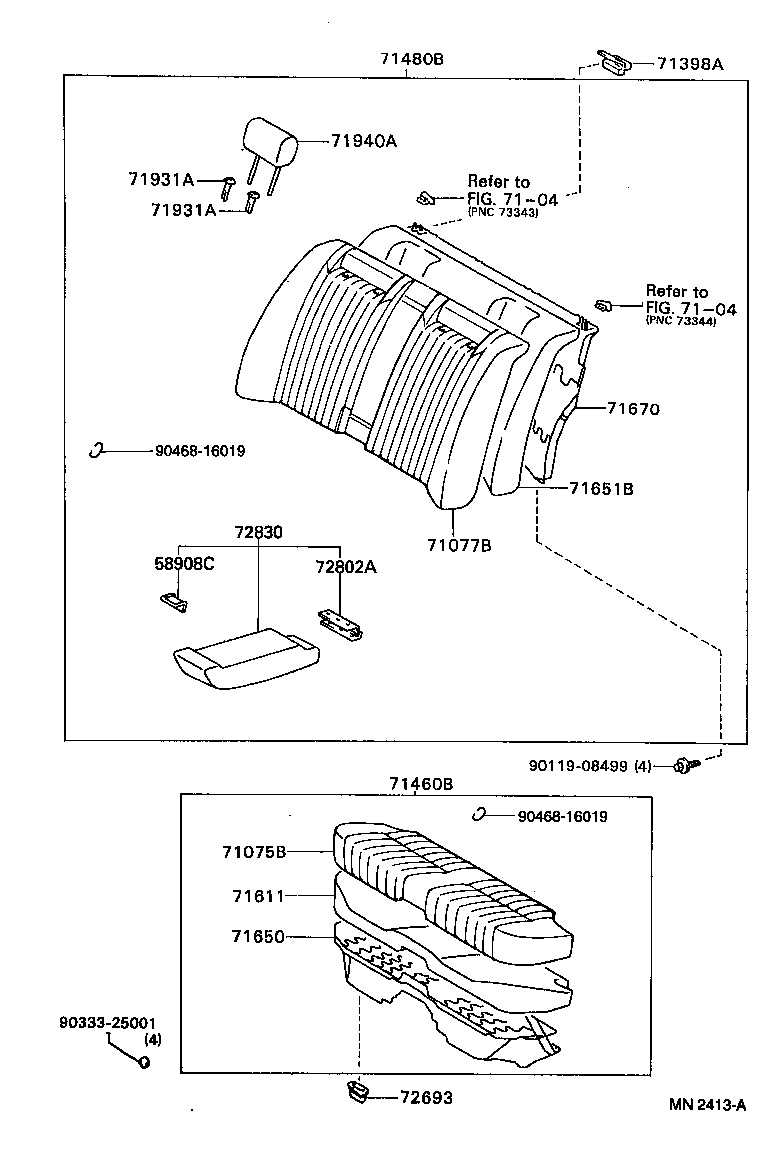

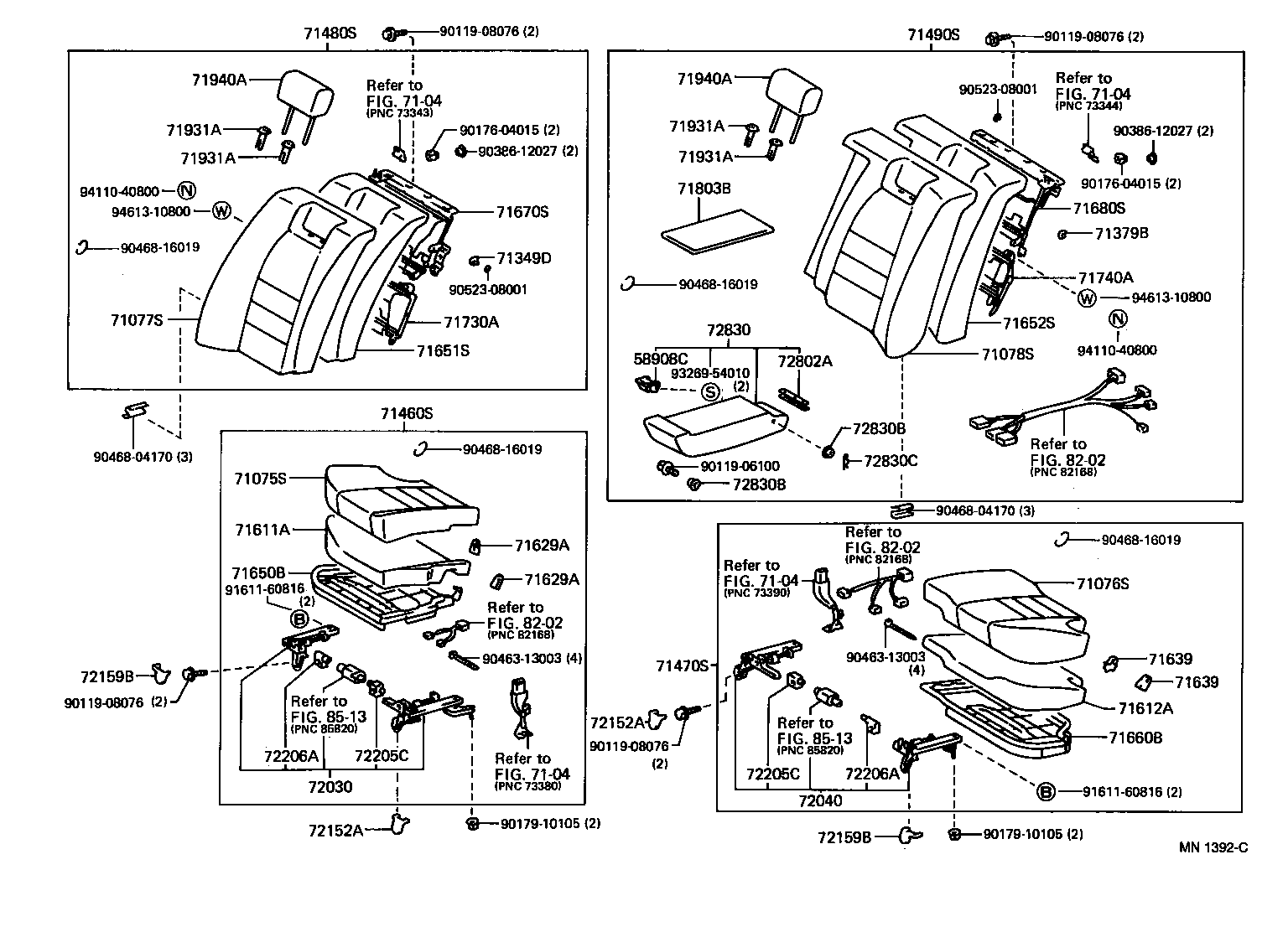

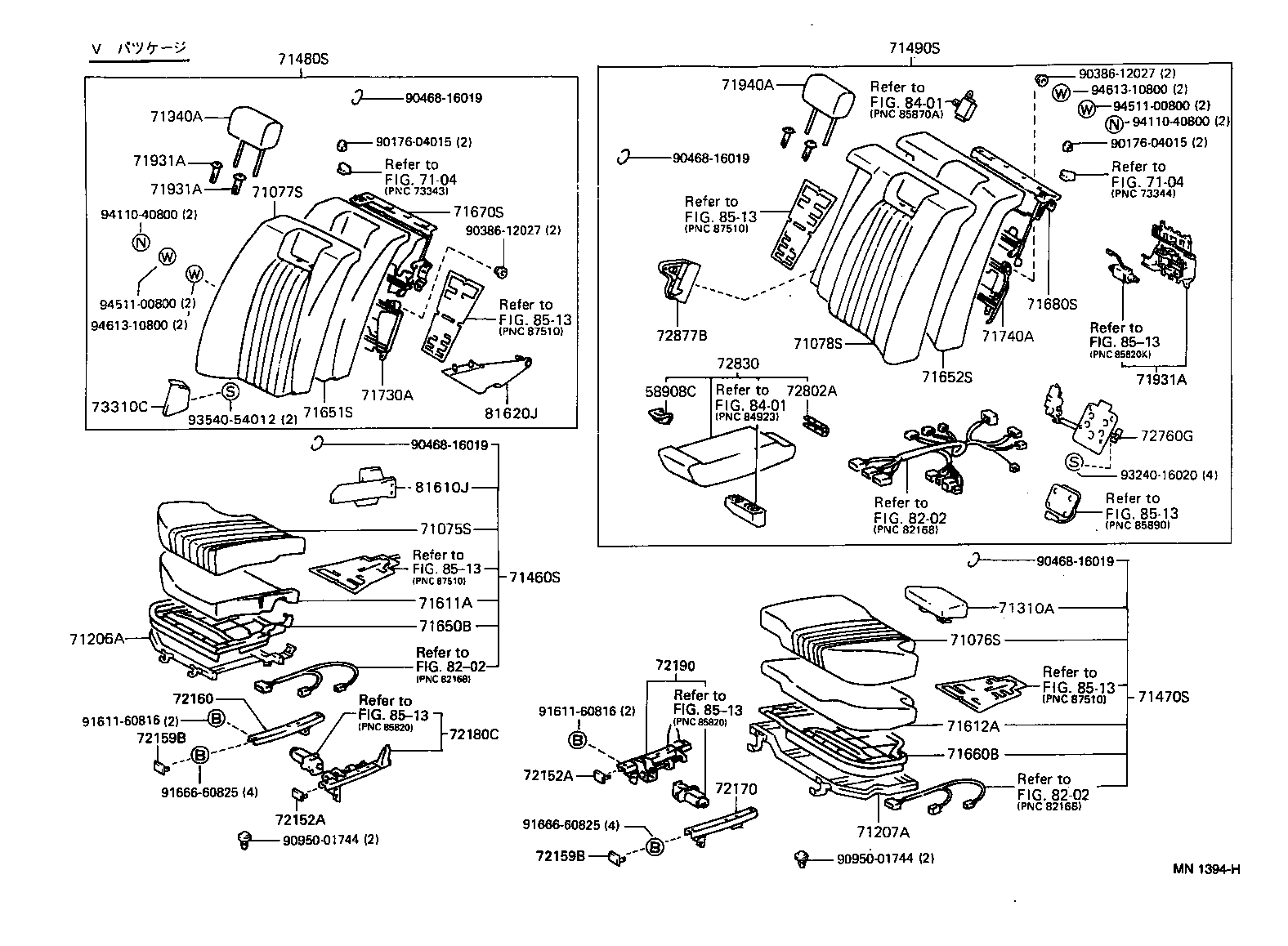

Figure MN1391C MN1391C 1991-10 → — Figure MN2413A MN2413A 1993-08 → — Figure MN1392C MN1392C 1991-10 → 1993-08 Figure MN2414A MN2414A 1993-08 → — Figure MN1393F MN1393F 1991-10 → — Figure MN1394H MN1394H 1991-10 → 1993-08 Figure MN1394H MN1394H 1993-08 → —

Part groups

PNCDescription
58908C Lock Sub-assy, Rear Seat Armrest
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71075S Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71206A Bracket Sub-assy, Rear Seat Stopper, RH
71207A Bracket Sub-assy, Rear Seat Stopper, LH
71310A Cushion Assy, Center Seat
71349D Cover, Rear Seatback Hinge, RH
71379B Cover, Rear Seatback Hinge, LH
71398A Holder, Rear Seatback
71460B Cushion Assy, Rear Seat (FOR BENCH TYPE)
71460S Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
71470S Cushion Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71480B Back Assy, Rear Seat (FOR BENCH TYPE)
71480S Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71490S Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71611 Pad, Rear Seat Cushion
71611A Pad, Rear Seat Cushion, RH
71612A Pad, Rear Seat Cushion, LH
71629A Cover, Rear Seat Cushion Hinge, RH
71639 Cover, Rear Seat Cushion Hinge, LH
71650 Spring Assy, Rear Seat Cushion
71650B Spring Assy, Rear Seat Cushion, RH
71651B Pad, Rear Seatback(FOR BENCH TYPE)
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71660B Spring Assy, Rear Seat Cushion, LH
71670 Spring Assy, Rear Seatback(FOR BENCH SEAT)
71670S Spring Assy, Rear Seatback, RH(FOR SEPARATE SEAT)
71680S Spring Assy, Rear Seatback, LH(FOR SEPARATE SEAT)
71695 Protector, Rear Seatback
71697 Protector, Rear Seatback Edge
71730A Spring Assy, Rear Seatback, Lower RH
71740A Spring Assy, Rear Seatback, Lower LH
71803B Board Sub-assy, Rear Seat Armrest Hole
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
72030 Adjuster Assy, Rear NO.1 Seat
72040 Adjuster Assy, Rear NO.2 Seat
72152A Cover, Rear Seat Track Bracket, Inner
72159B Cover, Rear Seat Track Bracket, Outer
72160 Track Assy, Rear Seat, Outer RH
72170 Track Assy, Rear Seat, Outer LH
72180C Track Assy, Rear Seat, Inner RH
72190 Track Assy, Rear Seat Inner, LH
72205C Housing Sub-assy, Power Seat, NO.1
72206A Housing Sub-assy, Power Seat, NO.2
72693 Hook, Rear Seat Cushion Lock
72760G Adjuster Assy, Lumbar Support, LH
72802A Hinge Sub-assy, Armrest Console
72830 Armrest Assy, Rear Seat, Center
72830B Bush(FOR REAR SEAT CENTER ARMREST)
72830C Clip, Rear Seat Center Armrest
72877B Cover, Seat Armrest, RH
73310C Cover Assy, Rear Seat 3 Point Type
81610J Cover Assy, Seat Belt, RH
81620J Cover Assy, Seat Belt, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
