Toyota Crown/Crown Majesta
1991-10 → 1995-08 · chassis JZS14#,LS141,UZS14#,GS141 · catalogue 331180 · Japan
Discontinued model
Data version 1996-03

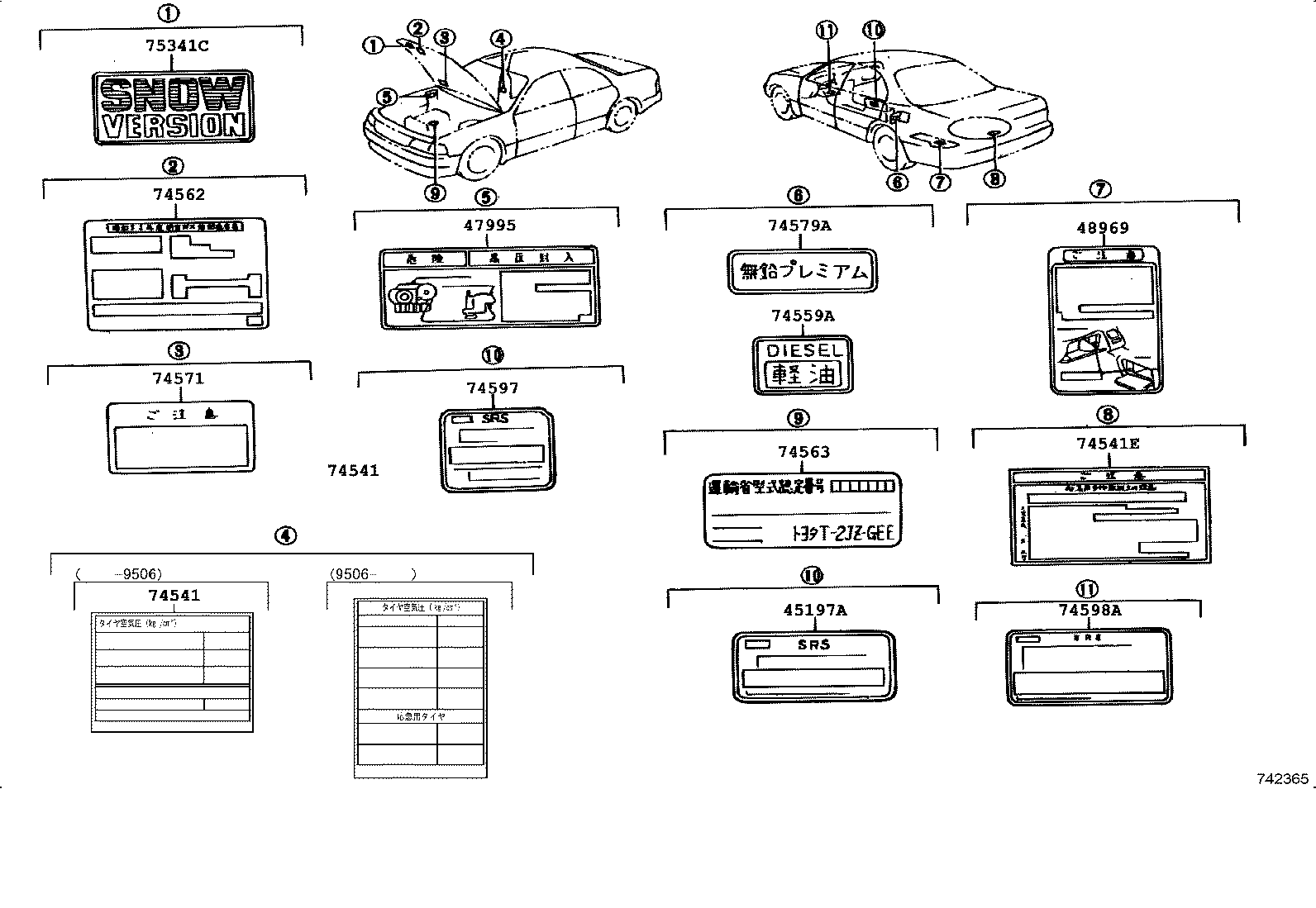

Caution Plate (EXTERIOR & INTERIOR)
26 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11277A | Plate, Engine Specification, NO.2 |
| 11283B | Label, Leak Detection Pump Information |
| 11284A | Plate, Engine Bolt Information |
| 11286B | Plate, Engine Specification |
| 11291B | Plate, Engine Name |
| 11293D | Label, Engine Caution |
| 11296C | Label, Engine Service Information |
| 11296D | Label, Engine Service Information |
| 11297D | Label, Engine Starting Information |
| 13564 | Label, Timing Belt Replacement Information |
| 15369A | Label, Engine Oil Information |
| 17700R | Label, Air Cleaner Information |
| 17791A | Label, Maintenance Information |
| 45197A | Label, Airbag Caution |
| 47995 | Label, Brake Tube Caution |
| 48969 | Label, Jack UP Caution |
| 74541 | Plate, Tire Pressure Caution |
| 74541E | Plate, Compact Spare Tire Caution |
| 74559A | Plate, Fuel Caution |
| 74562 | Plate, Emission Control System Information |
| 74563 | Plate, Emission Control Device Identification |
| 74571 | Plate, Brake Fluid Caution |
| 74579A | Label, Unleaded Fuel Information |
| 74597 | Label, Driver & Passenger Airbag Caution |
| 74598A | Label, Passenger Airbag Caution |
| 75341C | Plate, Hood Name |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
