Toyota Crown/Crown Majesta
1991-10 → 1995-08 · chassis JZS14#,LS141,UZS14#,GS141 · catalogue 331180 · Japan
Discontinued model
Data version 1996-03

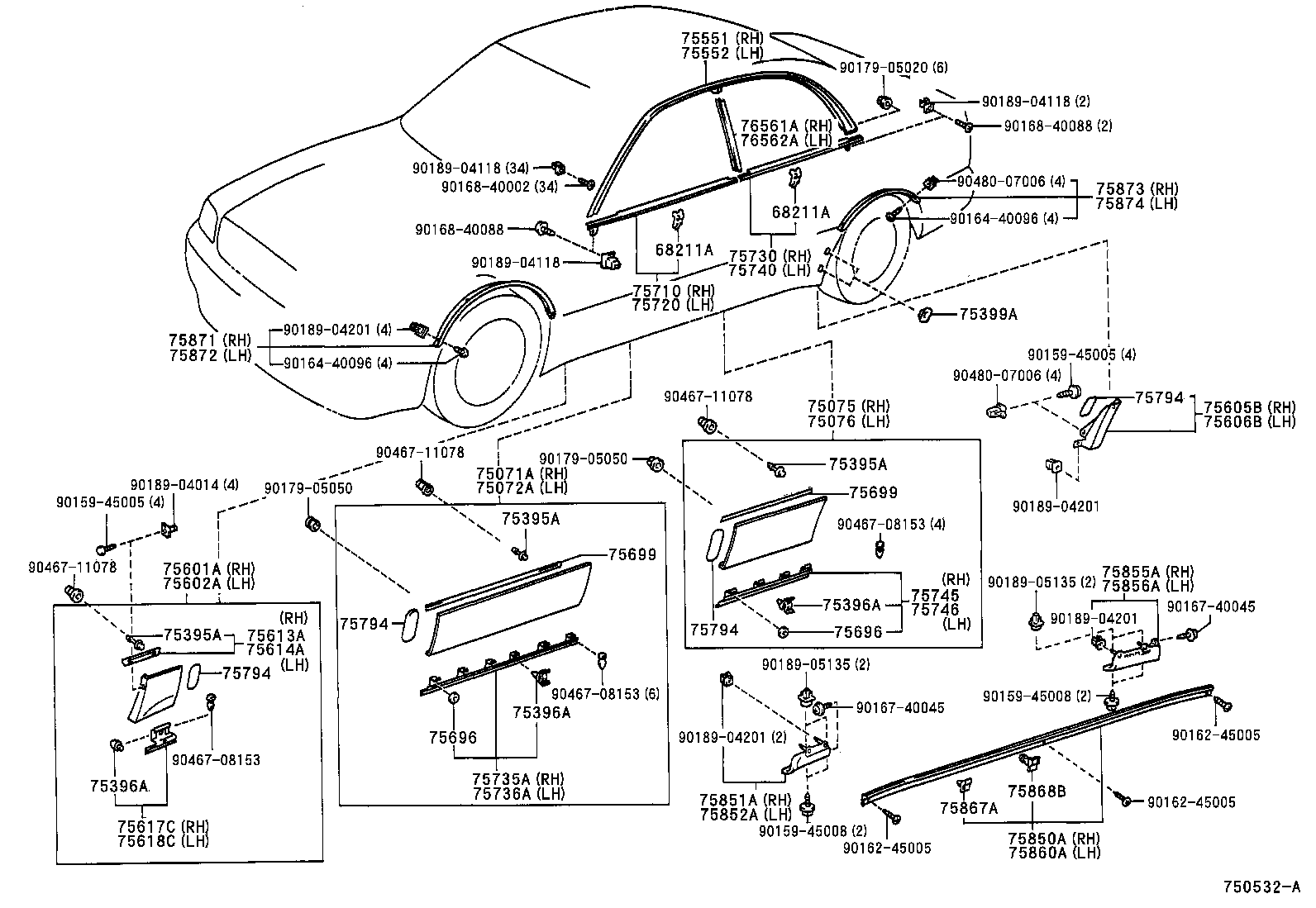

Side Moulding
51 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 68211A | Clip, Door Belt Moulding |
| 75071A | Moulding Sub-assy, Front Door, Outside RH |
| 75072A | Moulding Sub-assy, Front Door, Outside LH |
| 75075 | Moulding Sub-assy, Rear Door, Outside RH |
| 75076 | Moulding Sub-assy, Rear Door, Outside LH |
| 75395A | Clip, Outside Moulding, NO.1 |
| 75396A | Clip, Outside Moulding, NO.2 |
| 75399A | Holder, Outside Moulding Seal |
| 75551 | Moulding, Roof Drip Side Finish, RH |
| 75552 | Moulding, Roof Drip Side Finish, LH |
| 75601A | Moulding Sub-assy, Front Fender, RH |
| 75602A | Moulding Sub-assy, Front Fender, LH |
| 75605B | Moulding Sub-assy, Quarter Outside, RH |
| 75606B | Moulding Sub-assy, Quarter Outside, LH |
| 75613A | Moulding, Front Fender, Front RH |
| 75614A | Moulding, Front Fender, Front LH |
| 75617C | Moulding, Front Fender, Lower Rear RH |
| 75618C | Moulding, Front Fender, Lower Rear LH |
| 75623A | Moulding, Front Fender, Outside Rear RH |
| 75624A | Moulding, Front Fender, Outside Rear LH |
| 75651 | Moulding, Quarter, Outside RH |
| 75652 | Moulding, Quarter, Outside LH |
| 75696 | Pad, Body Outside Moulding, NO.1 |
| 75699 | Pad, Body Outside Moulding, NO.4 |
| 75710 | Moulding Assy, Front Door Belt, RH |
| 75720 | Moulding Assy, Front Door Belt, LH |
| 75730 | Moulding Assy, Rear Door Belt, RH |
| 75731A | Moulding, Front Door, Outside RH |
| 75732A | Moulding, Front Door, Outside LH |
| 75735A | Moulding, Front Door Outside, Lower RH |
| 75736A | Moulding, Front Door Outside, Lower LH |
| 75740 | Moulding Assy, Rear Door Belt, LH |
| 75741 | Moulding, Rear Door, Outside RH |
| 75742 | Moulding, Rear Door, Outside LH |
| 75745 | Moulding, Rear Door Outside, Lower RH |
| 75746 | Moulding, Rear Door Outside, Lower LH |
| 75794 | Pad, Front Door Outside Moulding, Rear |
| 75850A | Moulding Assy, Body Rocker Panel, RH |
| 75851A | Moulding, Rocker Panel, Front RH |
| 75852A | Moulding, Rocker Panel, Front LH |
| 75855A | Moulding, Rocker Panel, Rear RH |
| 75856A | Moulding, Rocker Panel, Rear LH |
| 75860A | Moulding Assy, Body Rocker Panel, LH |
| 75867A | Clip, Rocker Panel Moulding |
| 75868B | Clip, Rocker Panel Moulding, NO.2 |
| 75871 | Moulding, Front Fender Wheel Opening, RH |
| 75872 | Moulding, Front Fender Wheel Opening, LH |
| 75873 | Moulding, Quarter Panel Wheel Opening, RH |
| 75874 | Moulding, Quarter Panel Wheel Opening, LH |
| 76561A | Moulding, Center Pillar, RH |
| 76562A | Moulding, Center Pillar, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
