Toyota Crown/Crown Majesta

1991-10 → 1995-08 · chassis JZS14#,LS141,UZS14#,GS141 · catalogue 331180 · Japan

Discontinued model Data version 1996-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

5 part groups · 2 illustrations

Illustrations

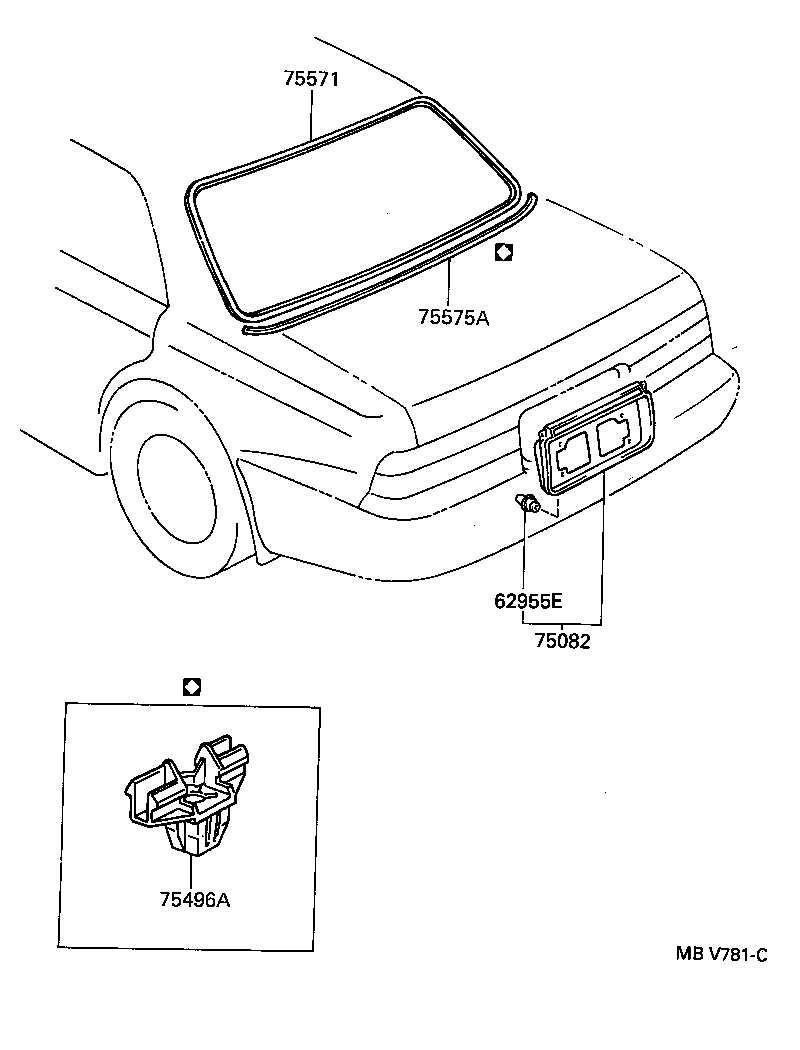

Figure 751521 751521 1991-10 → — Figure MBV781C MBV781C 1991-10 → —

Part groups

PNCDescription
62955E Retainer, Lower Back Finish Panel
75082 Panel Sub-assy, Lower Back Finish, Center
75496A Clip, Back Window Outside Moulding, NO.1
75571 Moulding, Back Window, Outside Upper
75575A Moulding, Back Window, Outside Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
