Toyota Crown/Crown Majesta

1991-10 → 1995-08 · chassis JZS14#,LS141,UZS14#,GS141 · catalogue 331180 · Japan

Discontinued model Data version 1996-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

84 part groups · 8 illustrations

Illustrations

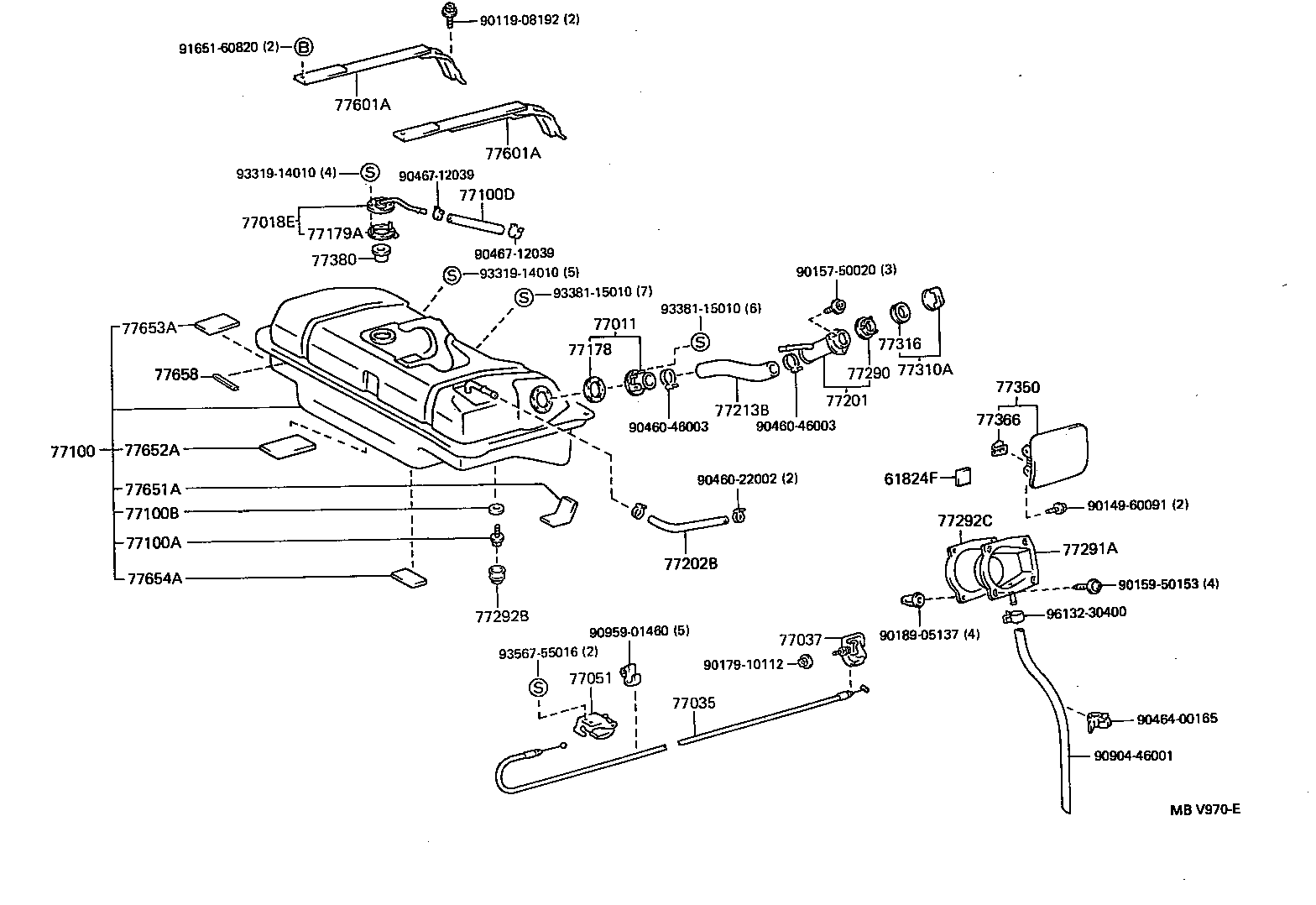

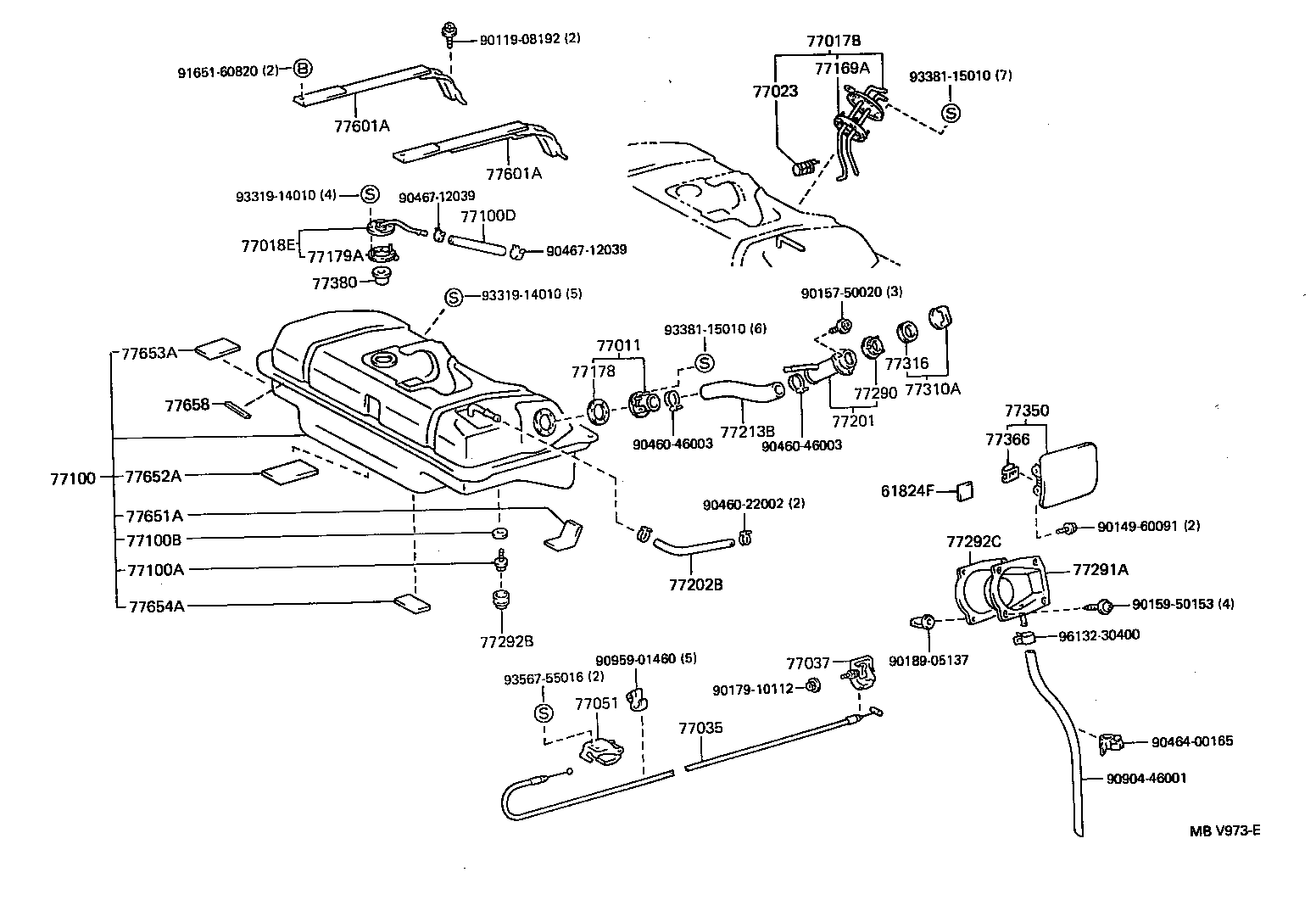

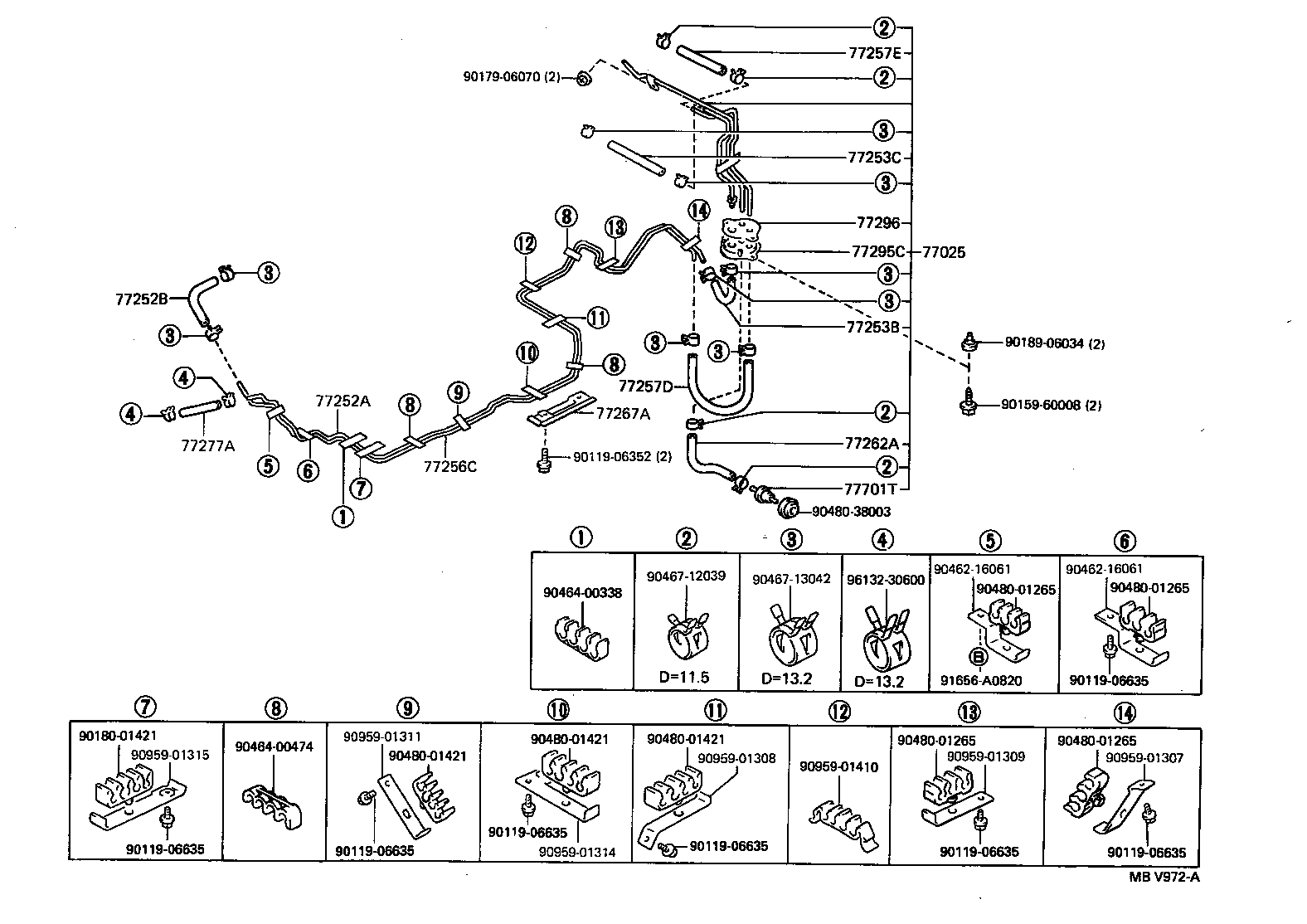

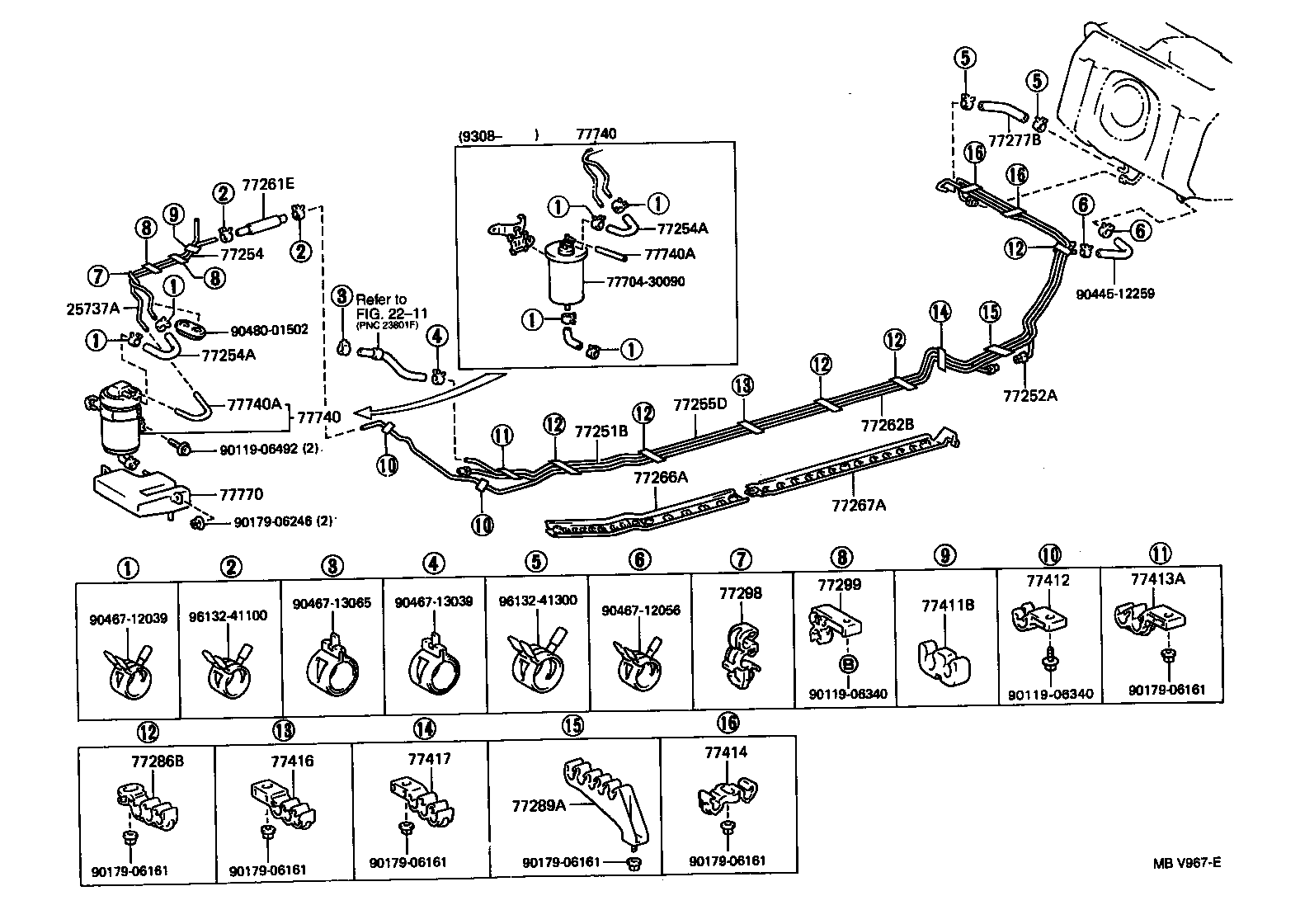

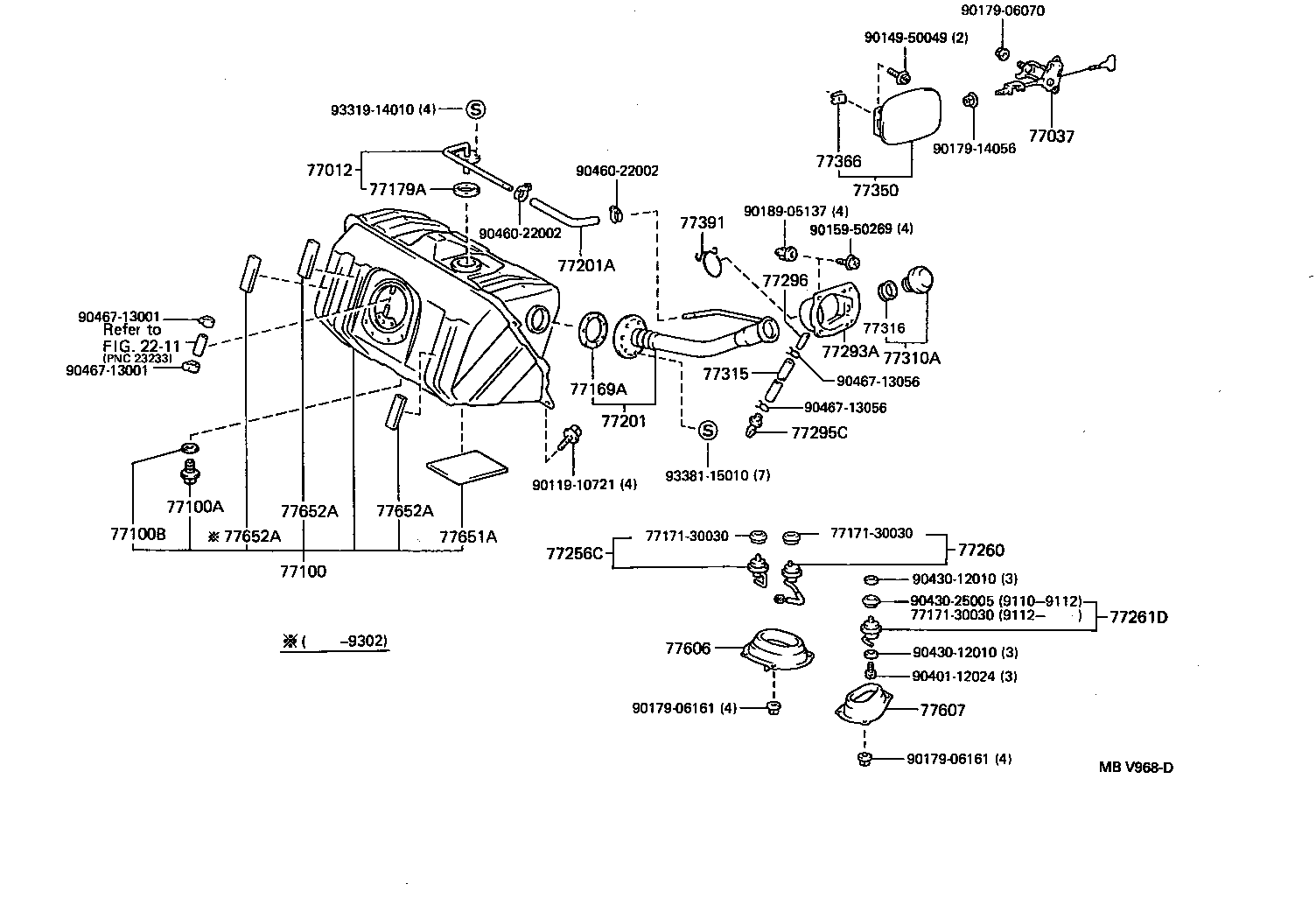

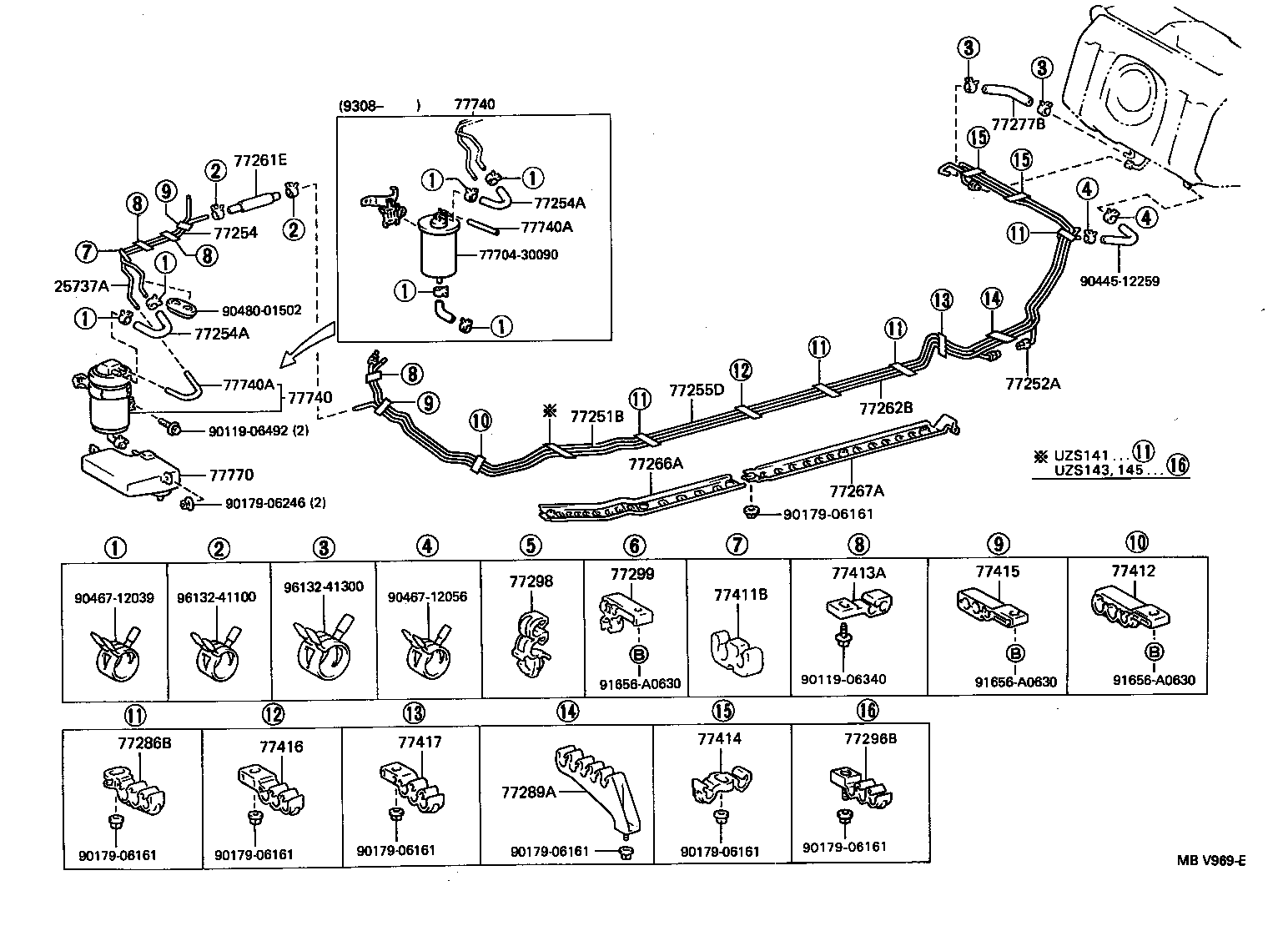

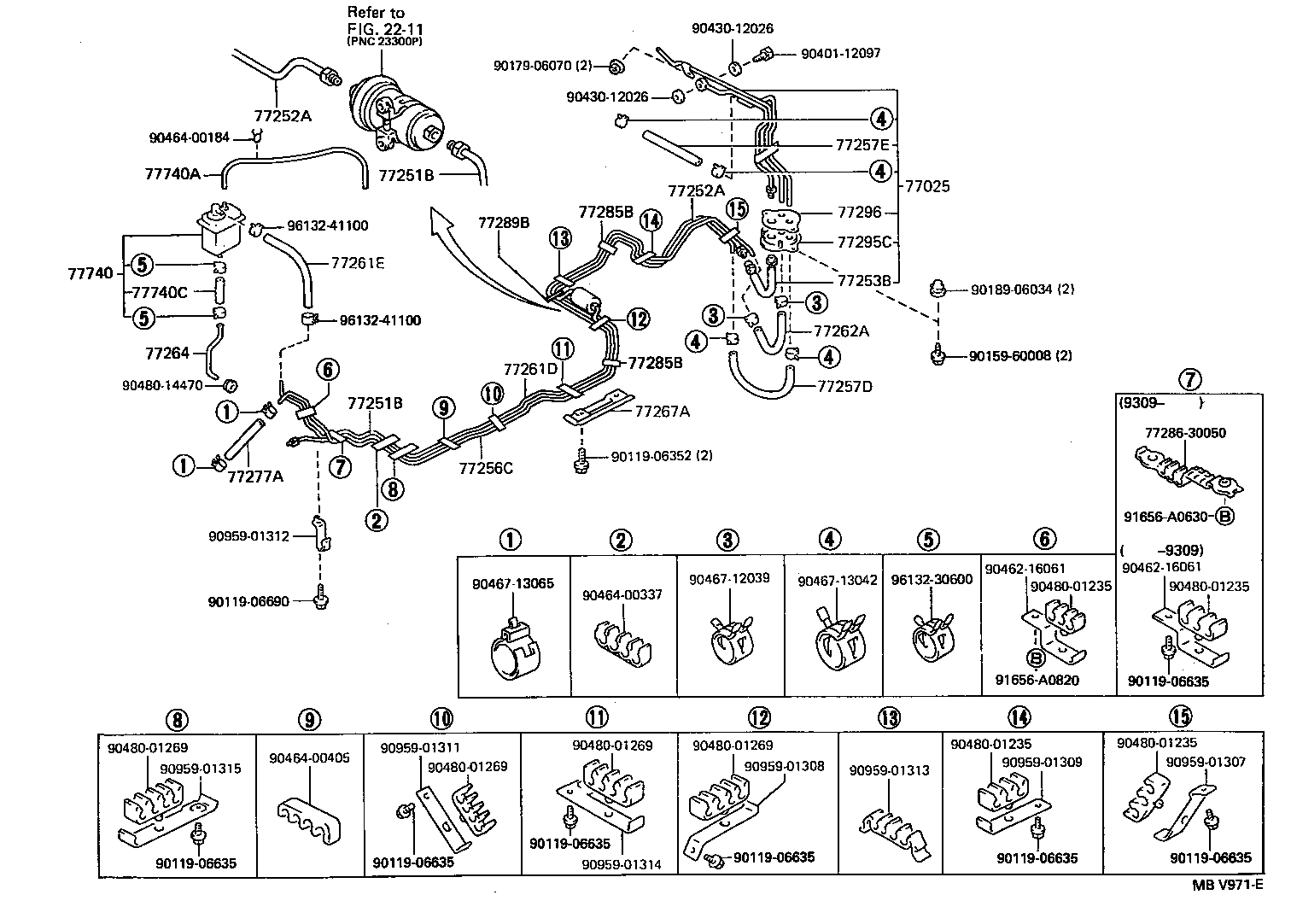

Figure MBV966D MBV966D 1991-10 → — Figure MBV968D MBV968D 1991-10 → — Figure MBV970E MBV970E 1991-10 → — Figure MBV973E MBV973E 1991-10 → — Figure MBV967E MBV967E 1991-10 → — Figure MBV969E MBV969E 1991-10 → — Figure MBV971E MBV971E 1991-10 → — Figure MBV972A MBV972A 1991-10 → —

Part groups

PNCDescription
25737A Fuel Tube, NO.1
61824F Plate, Noise Control, NO.1
77011 Pipe Sub-assy, Fuel Tank Filler, Lower
77012 Tube Sub-assy, Fuel Tank Breather
77017B Tube Sub-assy, Fuel Tank Vent
77018E Tube Sub-assy, Fuel Tank Evaporation Vent
77023 Filter Sub-assy, Fuel Suction Tube
77025 Tube Sub-assy, Fuel Main & Return, Rear
77035 Cable Sub-assy, Fuel Lid Lock Control
77037 Lock Sub-assy, Fuel Filler Opening Lid
77051 Lever Sub-assy, Fuel Lid Open
77100 Tank Assy, Fuel
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77100D Hose, Fuel, NO.1(FOR FUEL TANK)
77169A Gasket, Fuel Suction Tube Set
77178 Gasket, Fuel Tank Filler Pipe, Lower
77179A Gasket, Fuel Tank Breather Tube
77201 Pipe Sub-assy, Fuel Tank Inlet
77201A Hose, Fuel, NO.1(FOR FUEL TANK INLET PIPE)
77202B Hose, Fuel, NO.2 (FOR BREATHER TUBE)
77213B Hose, Fuel Tank TO Filler Pipe
77251B Tube, Fuel Main
77252A Tube, Fuel Main, NO.2
77252B Hose, Fuel, NO.1 (FOR FUEL MAIN NO.2 TUBE)
77253B Hose, Fuel, NO.1(FOR FUEL MAIN NO.3 TUBE)
77253C Hose, Fuel, NO.2(FOR FUEL MAIN NO.3 TUBE)
77254 Tube, Fuel Emission, NO.1
77254A Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1)
77255D Tube, Fuel Return
77256C Tube, Fuel Return, NO.2
77257D Hose, Fuel, NO.1(FOR FUEL RETURN NO.3 TUBE)
77257E Hose, Fuel, NO.2(FOR FUEL RETURN NO.3 TUBE)
77260 Hose Assy, Fuel Main
77261D Tube, Fuel Tank TO Canister
77261E Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77262A Hose, Fuel, NO.1(FOR FUEL TANK TO CANISTER CENTER TUBE)
77262B Tube, Fuel Tank TO Canister, NO.2
77264 Tube, Canister TO Front Side Member
77266A Protector, Fuel Tube, NO.1
77267A Protector, Fuel Tube, NO.2
77277A Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
77277B Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
77285B Clamp, Fuel Tube W/Grommet, NO.1
77286B Clamp, Fuel Tube W/Grommet, NO.2
77289A Clamp, Fuel Tube W/Grommet, NO.3
77289B Clamp, Fuel Tube, NO.3
77290 Shield Assy, Fuel Tank Filler Pipe
77291A Shield, Fuel Tank Filler Pipe
77292B Shield, Fuel Tank Drain Plug
77292C Shield, Fuel Tank Filler Pipe, NO.2
77293A Shield, Fuel Tank Filler Pipe, NO.3
77295C Grommet, Fuel Tube
77296 Plate, Fuel Tube Grommet Support
77296B Support, Fuel Tube Protector, NO.1
77298 Clamp, Fuel Tube W/Grommet, NO.4
77299 Clamp, Fuel Tube W/Grommet, NO.5
77310A Cap Assy, Fuel Tank
77315 Hose, Fuel Filler Opening
77316 Gasket, Fuel Tank Cap
77350 Lid Assy, Fuel Filler Opening
77366 Spring, Fuel Filler Opening Lid Hinge
77380 Valve Assy, Fuel Cut Off
77391 Ring, Fuel Inlet Box
77411B Support, Fuel Tube Grommet, NO.1
77412 Support, Fuel Tube Grommet, NO.2
77413A Support, Fuel Tube Grommet, NO.3
77414 Support, Fuel Tube Grommet, NO.4
77415 Support, Fuel Tube Grommet, NO.5
77416 Support, Fuel Tube Grommet, NO.6
77417 Support, Fuel Tube Grommet, NO.7
77601A Band Sub-assy, Fuel Tank, NO.1
77606 Protector Sub-assy, Fuel Tank, NO.1
77607 Case Sub-assy, Fuel Tank Cover Vent, LH
77651A Cushion, Fuel Tank, NO.1
77652A Cushion, Fuel Tank, NO.2
77653A Cushion, Fuel Tank, NO.3
77654A Cushion, Fuel Tank, NO.4
77658 Moulding, Fuel Tank Edge
77701T Valve, Check (FOR MAIN FUEL TANK)
77740 Canister Assy, Charcoal
77740A Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
77740C Hose, Fuel, NO.3(FOR CHARCOAL CANISTER)
77770 Tank Assy, Charcoal Canister
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
