Toyota Crown/Crown Majesta

1991-10 → 1995-08 · chassis JZS14#,LS141,UZS14#,GS141 · catalogue 331180 · Japan

Discontinued model Data version 1996-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

13 part groups · 4 illustrations

Illustrations

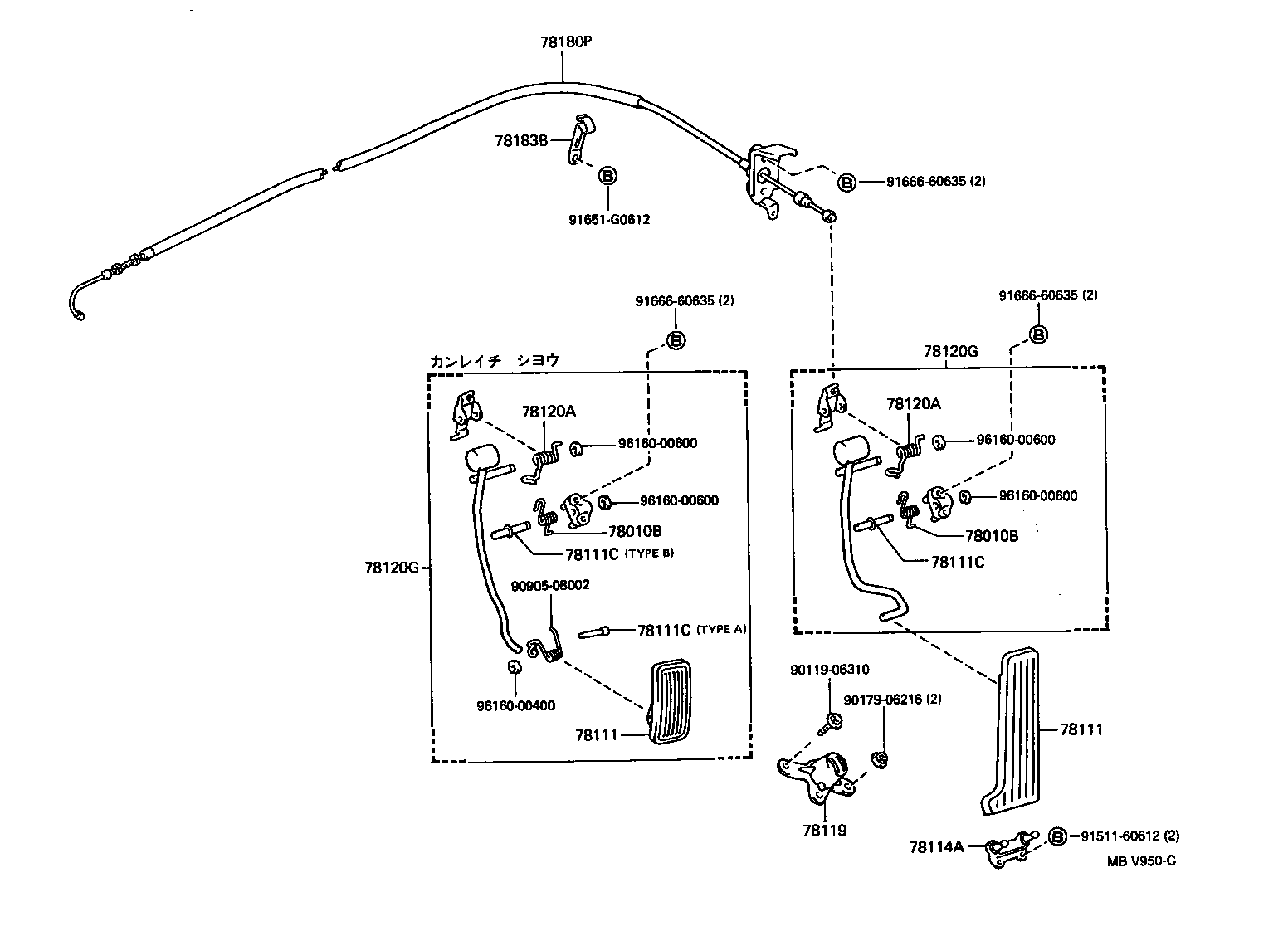

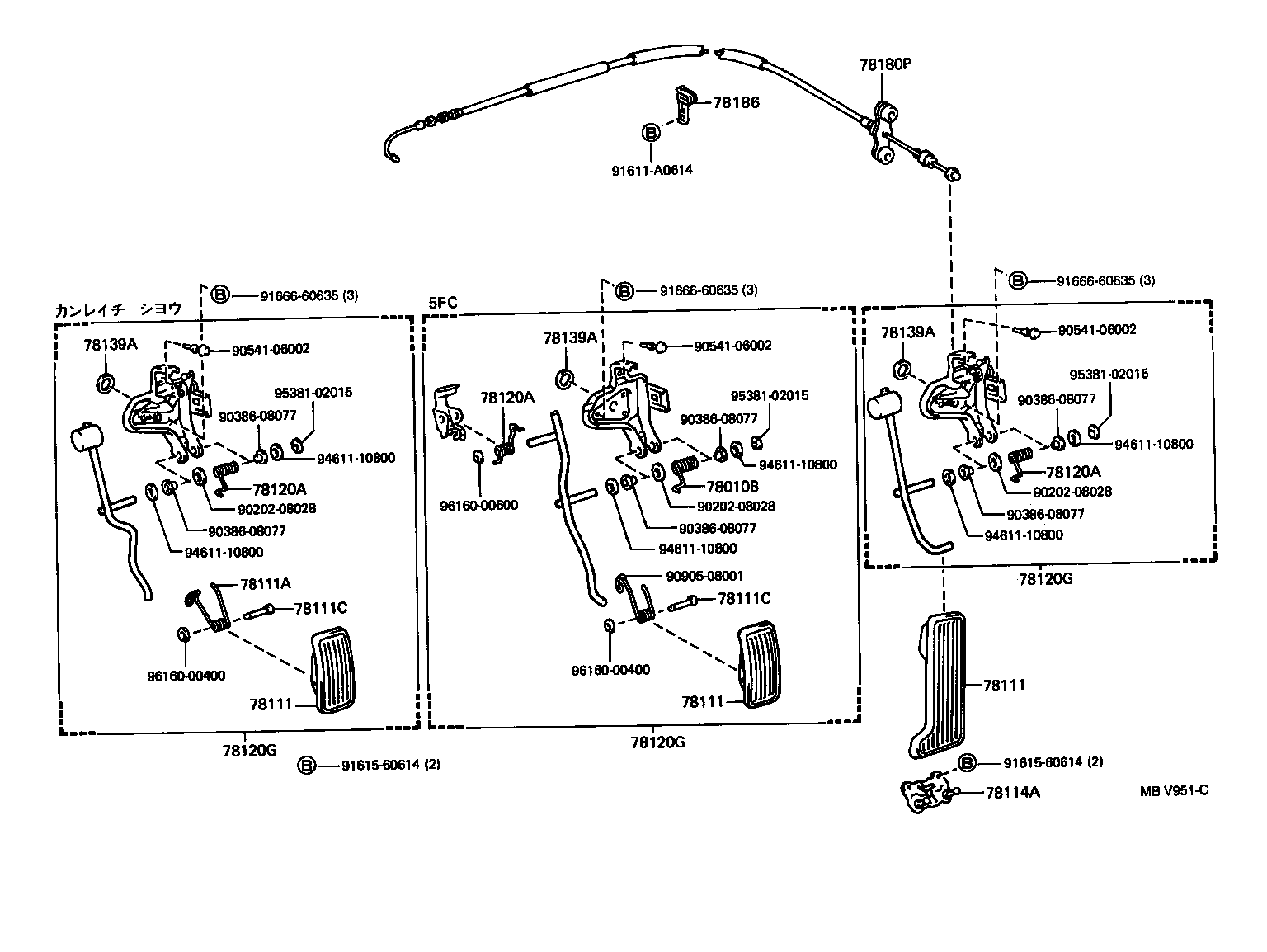

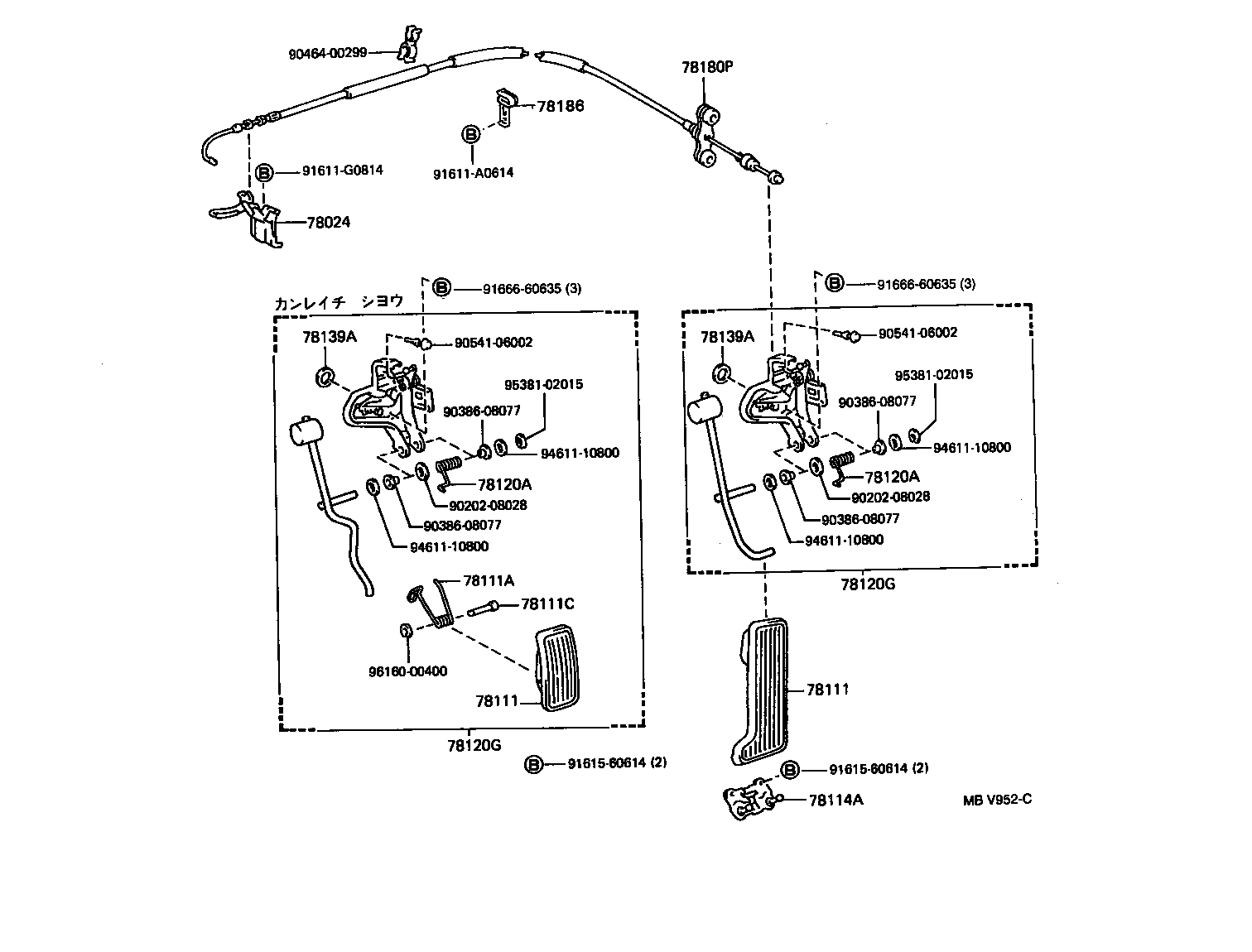

Figure MBV949C MBV949C 1991-10 → — Figure MBV950C MBV950C 1991-10 → — Figure MBV951C MBV951C 1991-10 → — Figure MBV952C MBV952C 1991-10 → —

Part groups

PNCDescription
78010B Spring, Torsion (FOR ACCELERATOR LINK)
78024 Bracket Sub-assy, Accelerator Control Cable
78111 Pedal, Accelerator
78111A Spring (FOR ACCELERATOR PEDAL)
78111C Pin (FOR ACCELERATOR PEDAL)
78114A Bracket, Accelerator Pedal Support
78119 Stopper, Accelerator Pedal Rod
78120A Spring, Compression (FOR ACCELERATOR LINK ROD)
78120G Rod Assy, Accelerator Pedal
78139A Seal, Accelerator Pedal Rod Bracket, NO.2
78180P Cable Assy, Accelerator Control
78183B Clamp, Accelerator Control Cable
78186 Support, Accelerator Control Cable, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
