Toyota Crown/Crown Majesta
1991-10 → 1995-08 · chassis JZS14#,LS141,UZS14#,GS141 · catalogue 331180 · Japan
Discontinued model
Data version 1996-03

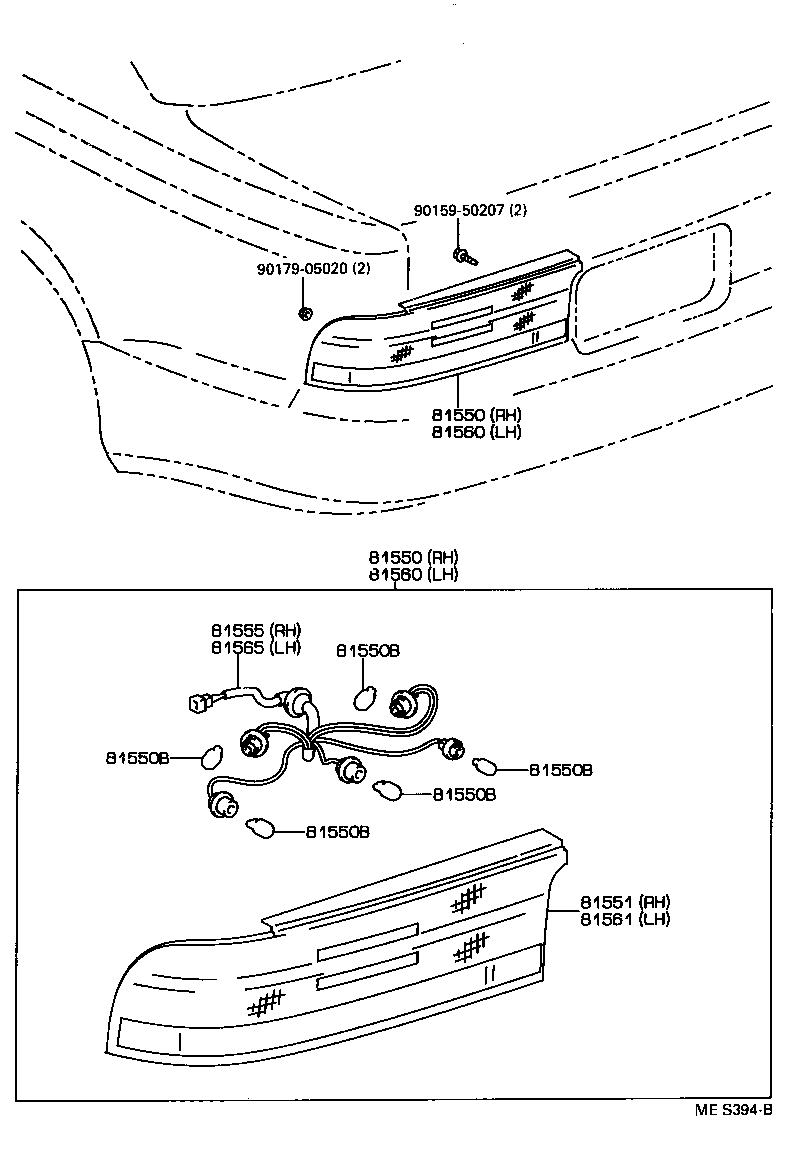

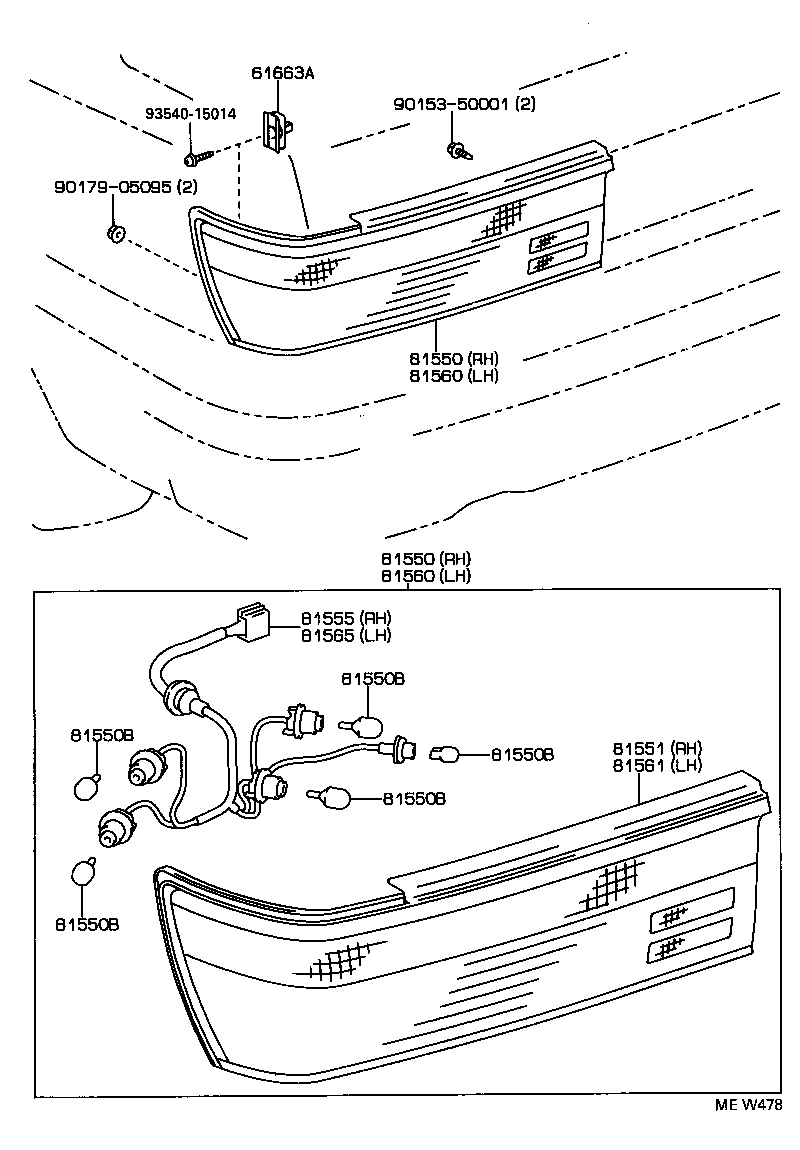

Rear Combination Lamp
12 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 61663A | Bracket, Rear Combination Lamp Mounting |
| 81550 | Lamp Assy, Rear Combination, RH |
| 81550B | Bulb(FOR REAR COMBINATION LAMP) |
| 81551 | Lens, Rear Combination Lamp, RH |
| 81555 | Socket & Wire Sub-assy, Rear Combination Lamp, RH |
| 81560 | Lamp Assy, Rear Combination, LH |
| 81561 | Lens, Rear Combination Lamp, LH |
| 81565 | Socket & Wire Sub-assy, Rear Combination Lamp, LH |
| 81580A | Lamp Assy, Rear |
| 81580B | Bulb (FOR REAR LAMP) |
| 81581 | Lens, Rear Lamp |
| 81585 | Socket & Wire, Rear Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
