Toyota Crown/Crown Majesta

1991-10 → 1995-08 · chassis JZS14#,LS141,UZS14#,GS141 · catalogue 331180 · Japan

Discontinued model Data version 1996-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

41 part groups · 26 illustrations

Illustrations

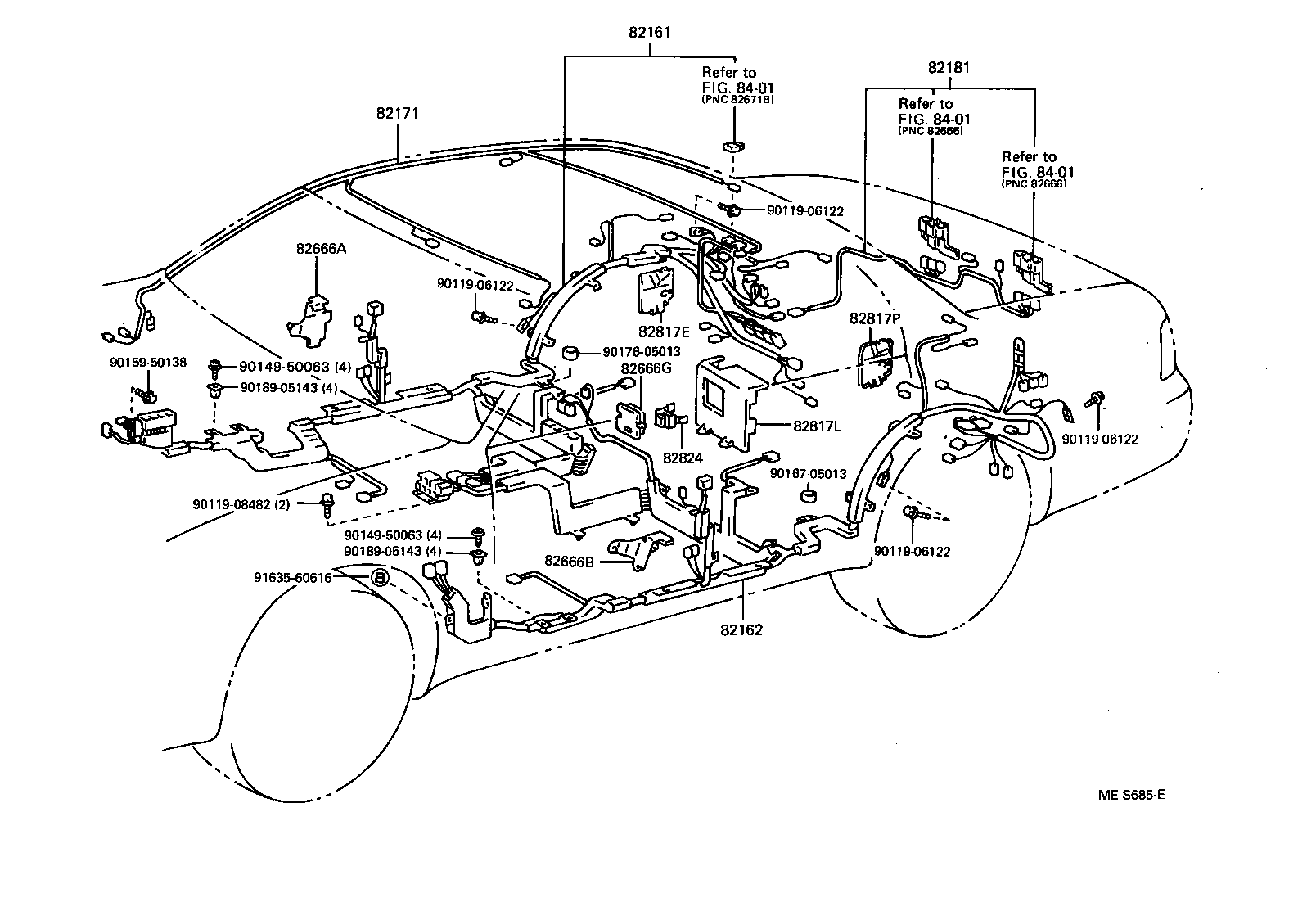

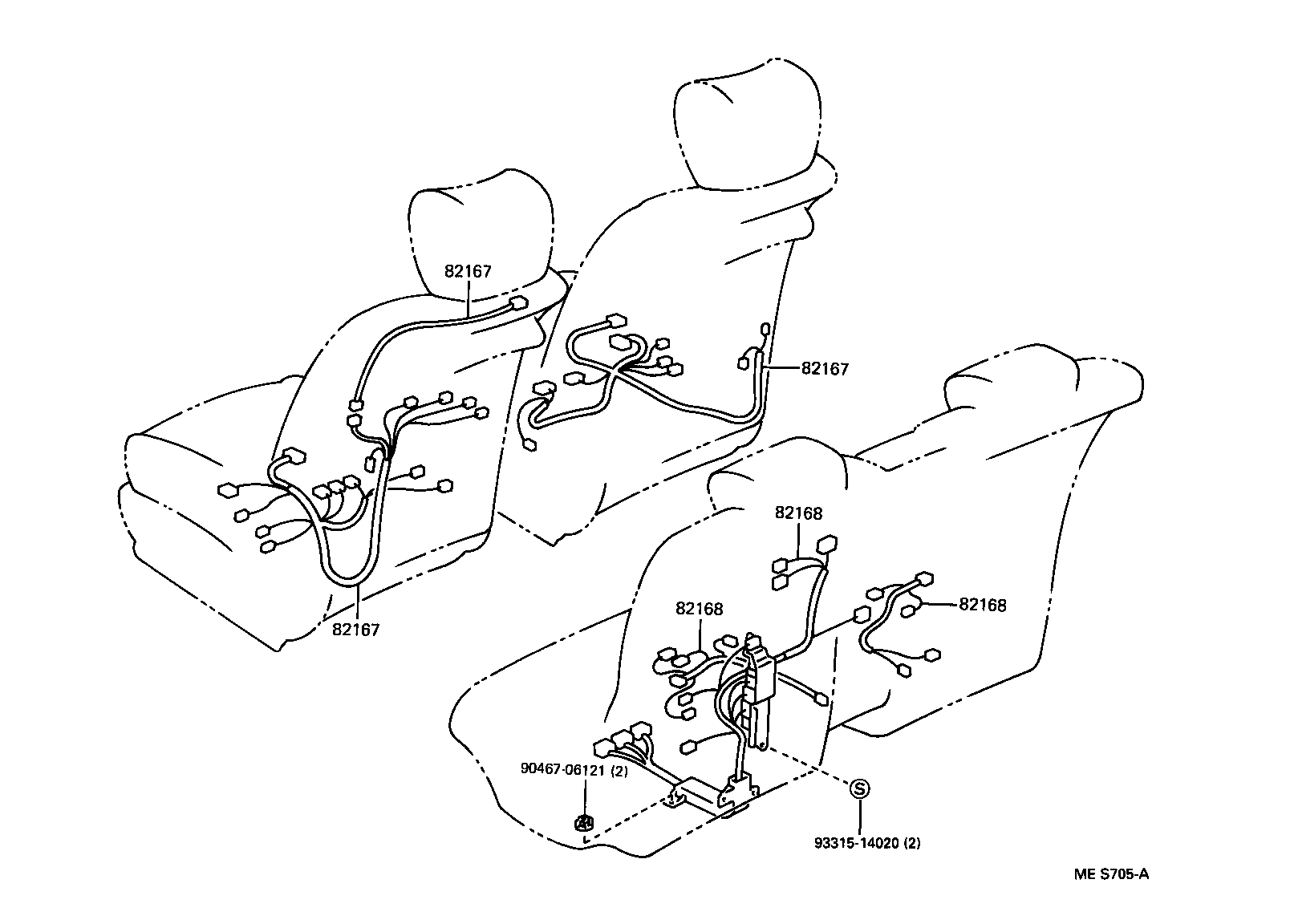

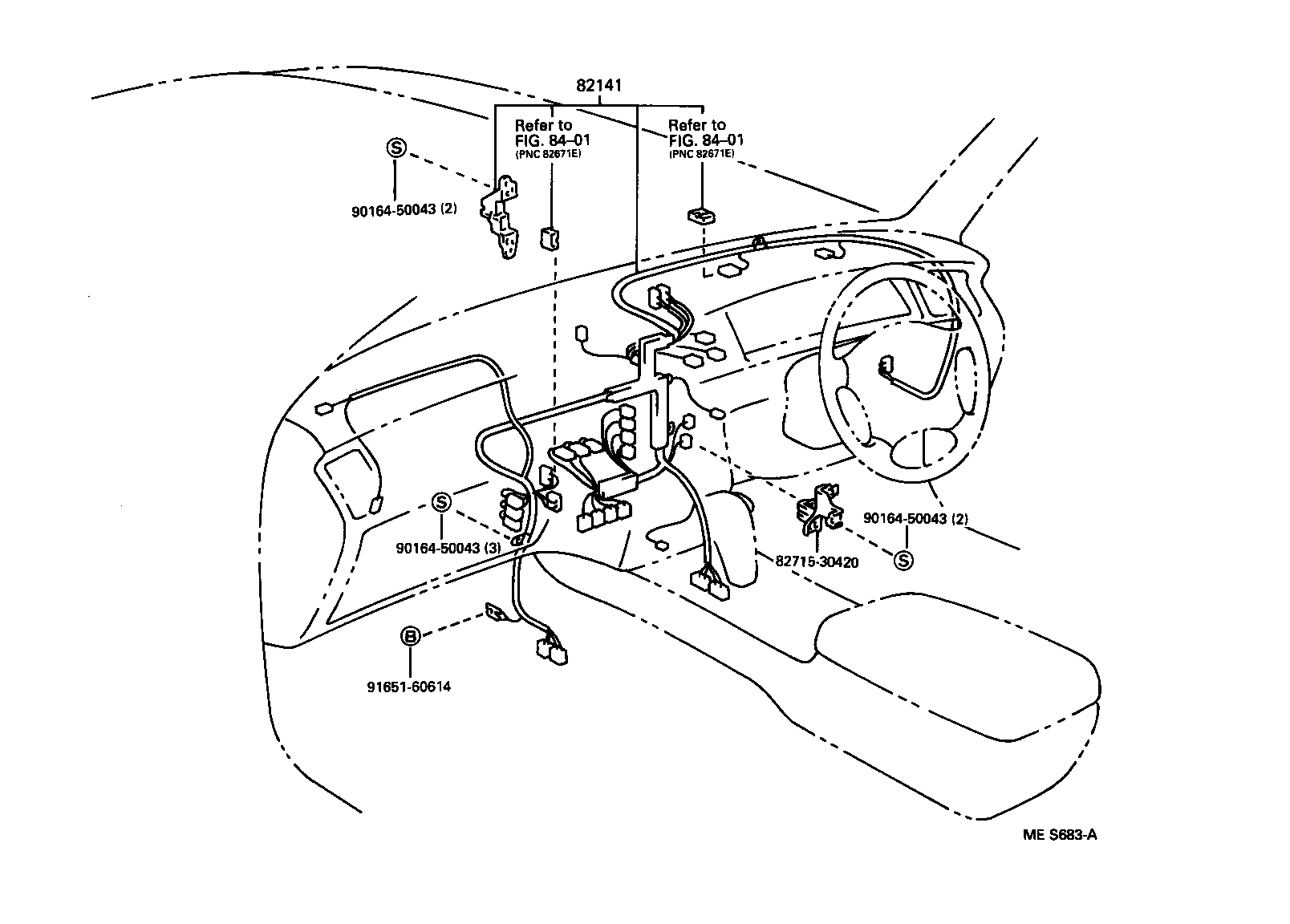

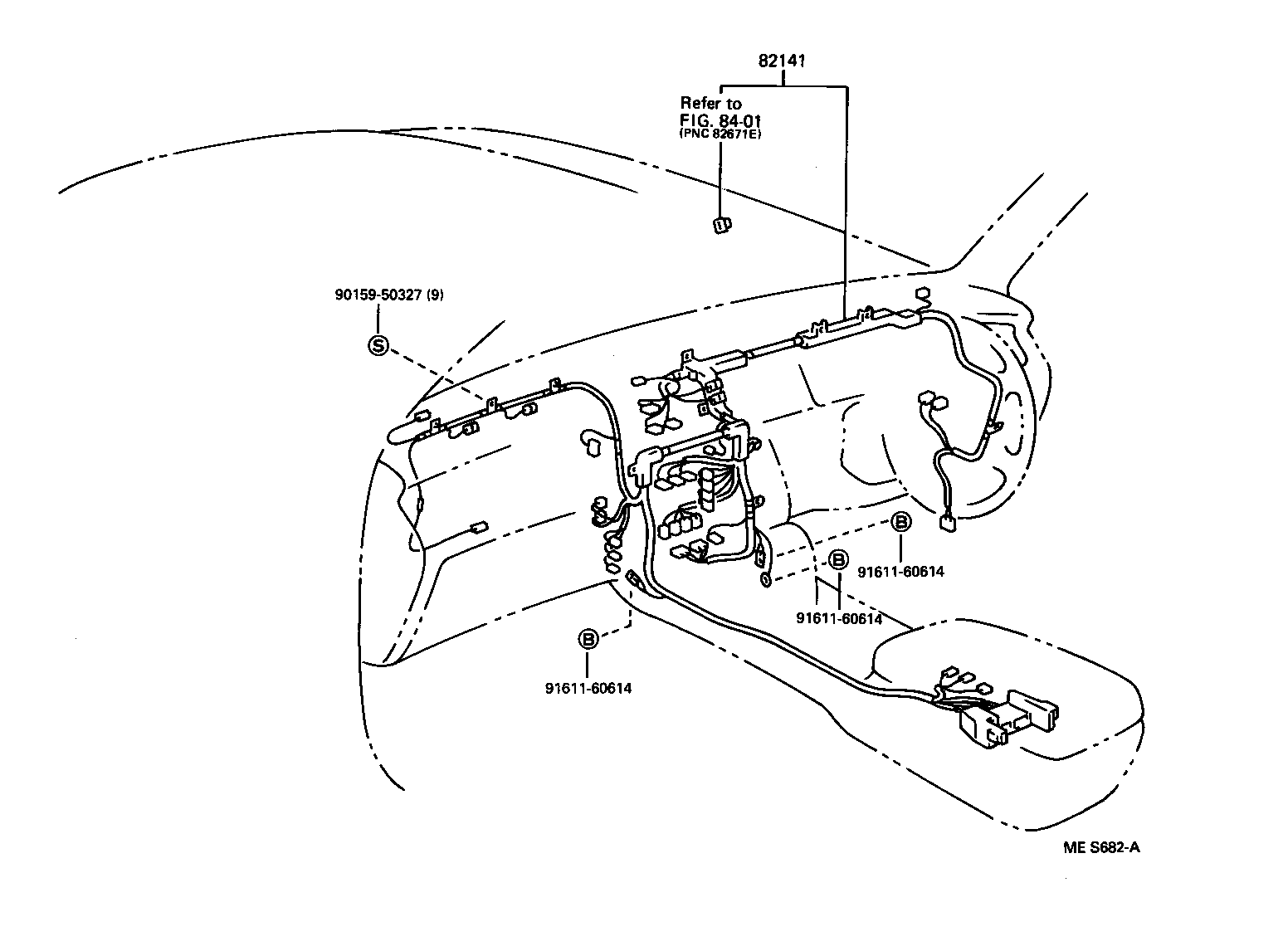

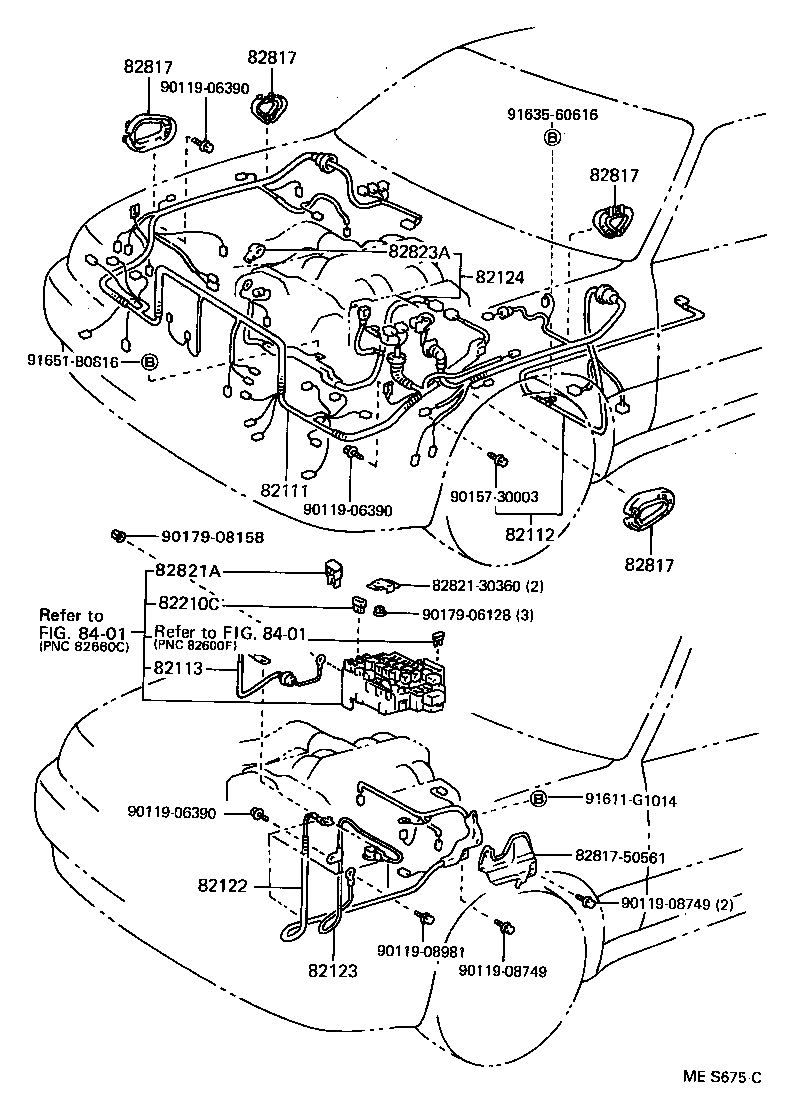

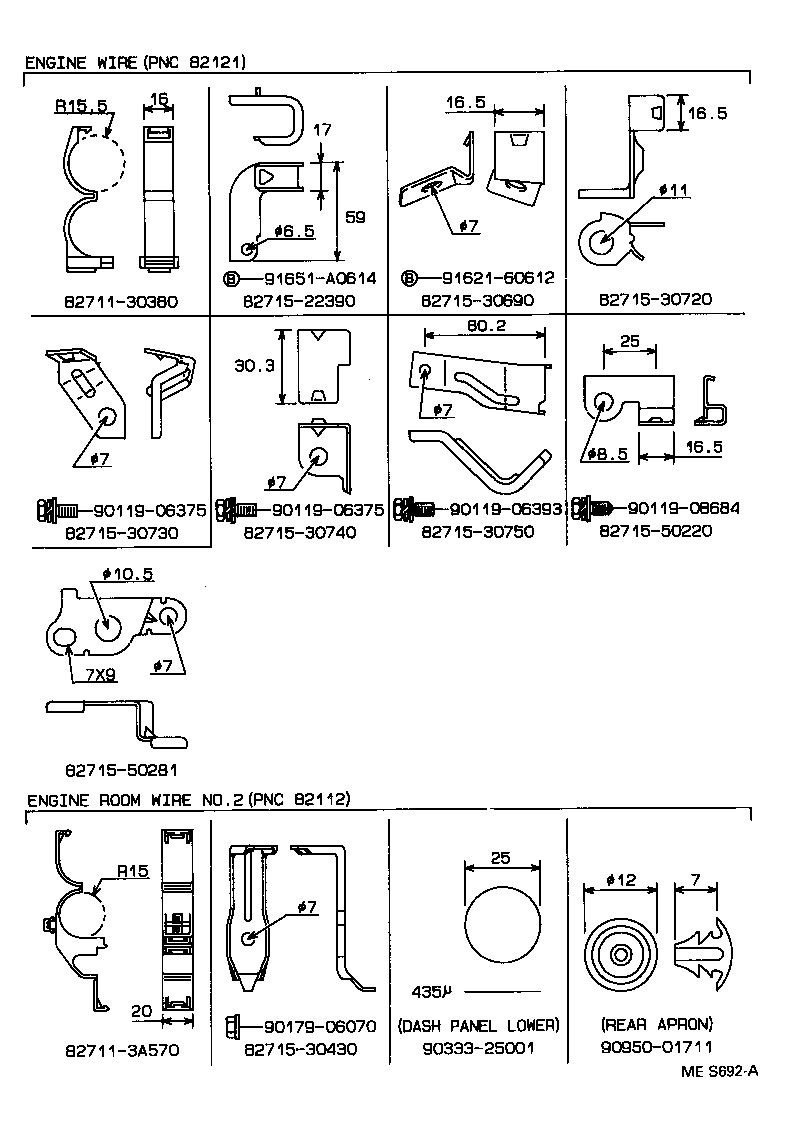

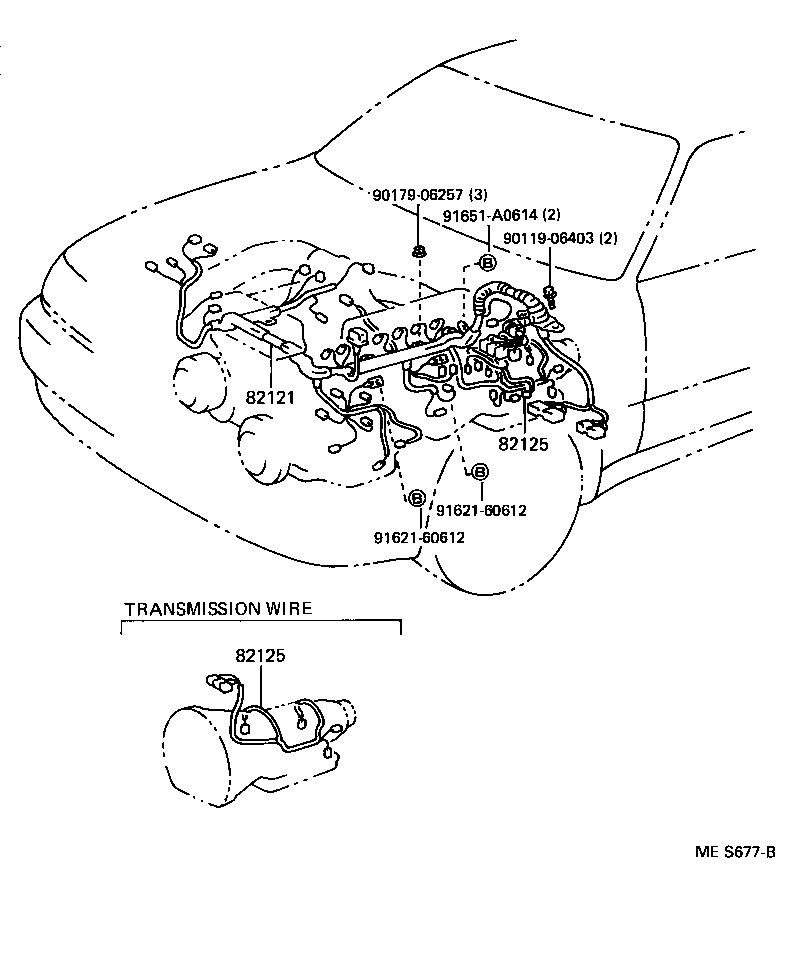

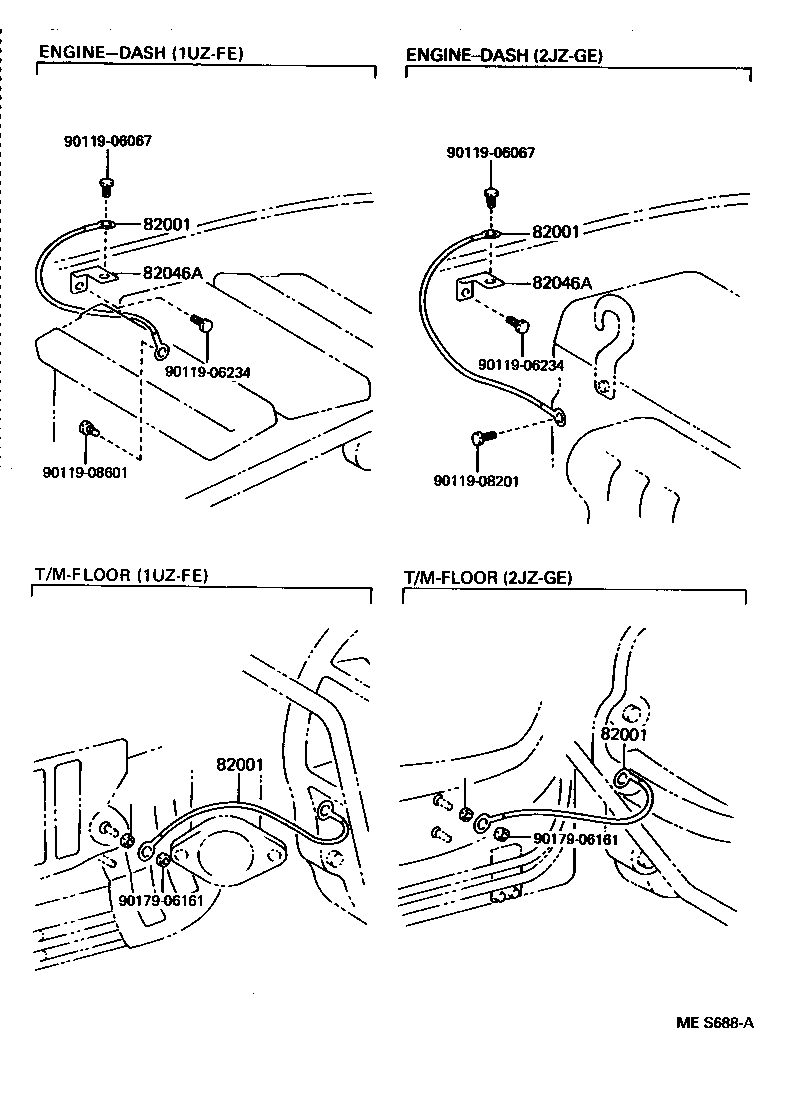

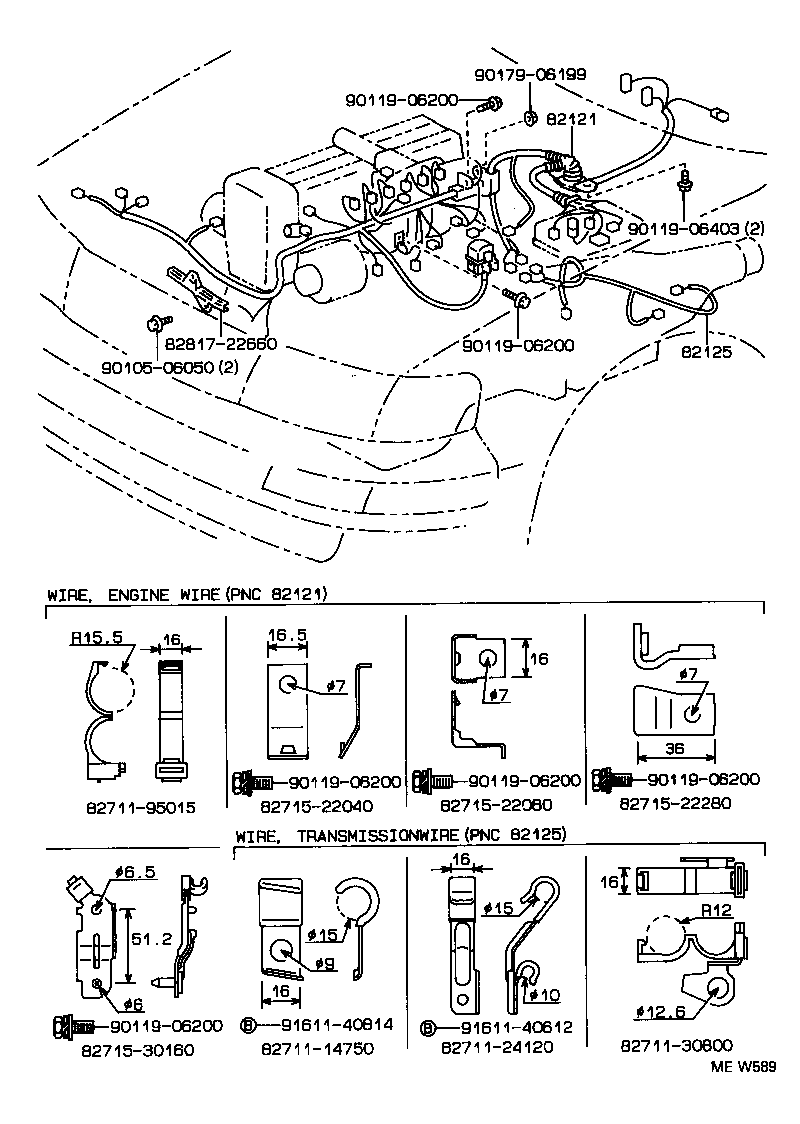

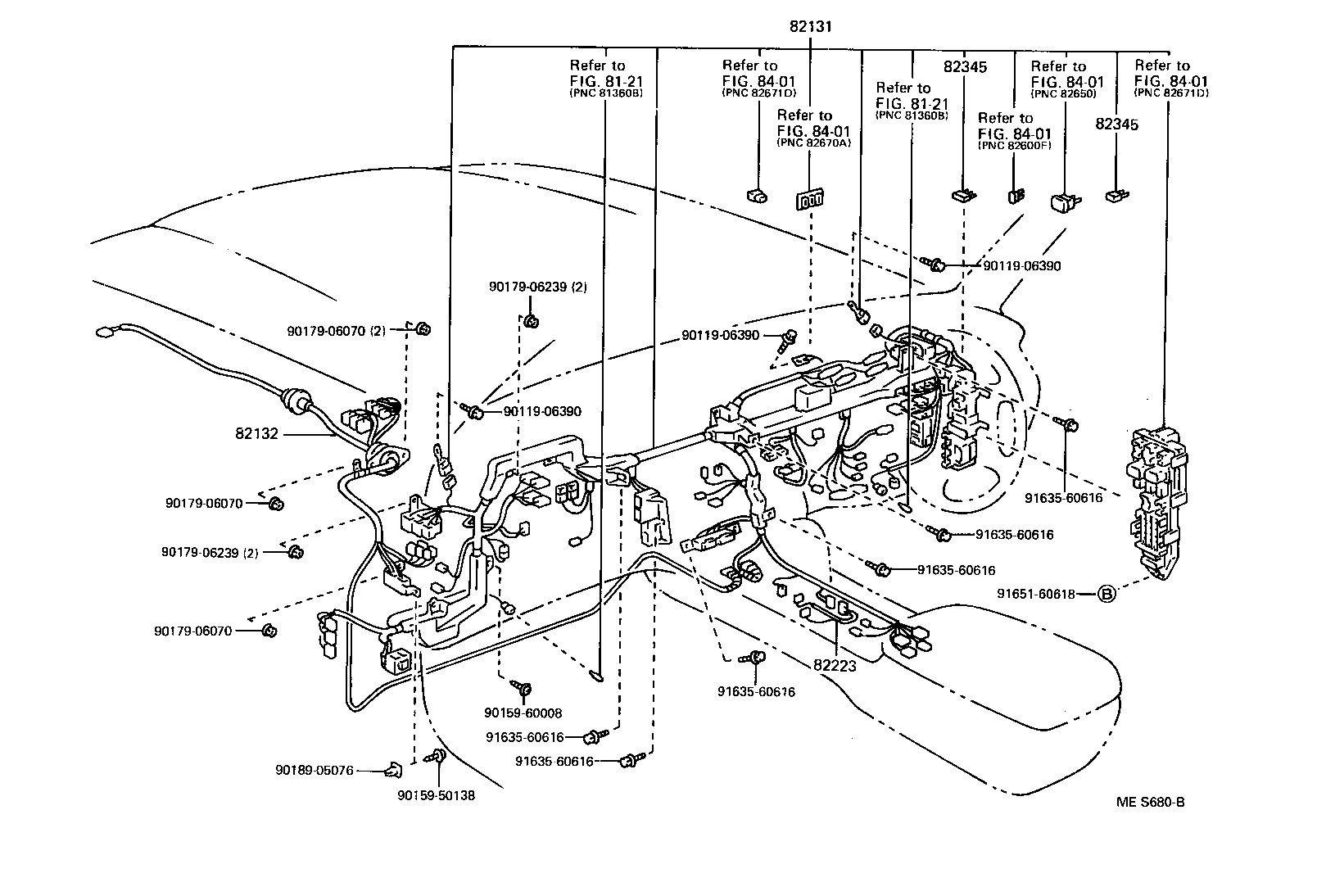

Figure MES676A MES676A 1991-10 → 1995-08 Figure MES675C MES675C 1991-10 → 1995-08 Figure MES689A MES689A 1991-10 → 1995-08 Figure MEW589 MEW589 1993-08 → 1995-08 Figure MES677B MES677B 1991-10 → 1995-08 Figure MES678A MES678A 1991-10 → 1995-08 Figure MES679B MES679B 1991-10 → 1995-08 Figure MES690A MES690A 1991-10 → 1995-08 Figure MES691A MES691A 1991-10 → 1995-08 Figure MES692A MES692A 1991-10 → 1995-08 Figure MEW591A MEW591A 1991-10 → 1995-08 Figure MES694B MES694B 1991-10 → 1995-08 Figure MES680B MES680B 1991-10 → 1995-08 Figure MES681B MES681B 1991-10 → 1995-08 Figure MES682A MES682A 1991-10 → 1995-08 Figure MES683A MES683A 1991-10 → 1995-08 Figure MES684B MES684B 1991-10 → 1995-08 Figure MES685E MES685E 1991-10 → 1995-08 Figure MES686B MES686B 1991-10 → 1995-08 Figure MES695A MES695A 1991-10 → 1995-08 Figure MES705A MES705A 1991-10 → 1995-08 Figure MEW590 MEW590 1993-08 → 1995-08 Figure MEW588 MEW588 1991-10 → 1995-08 Figure MES688A MES688A 1991-10 → 1995-08 Figure MES629A MES629A 1991-10 → 1995-08 Figure MES721 MES721 1991-10 → 1995-08

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82046A Wire Sub-assy, Body Ground, NO.1
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3

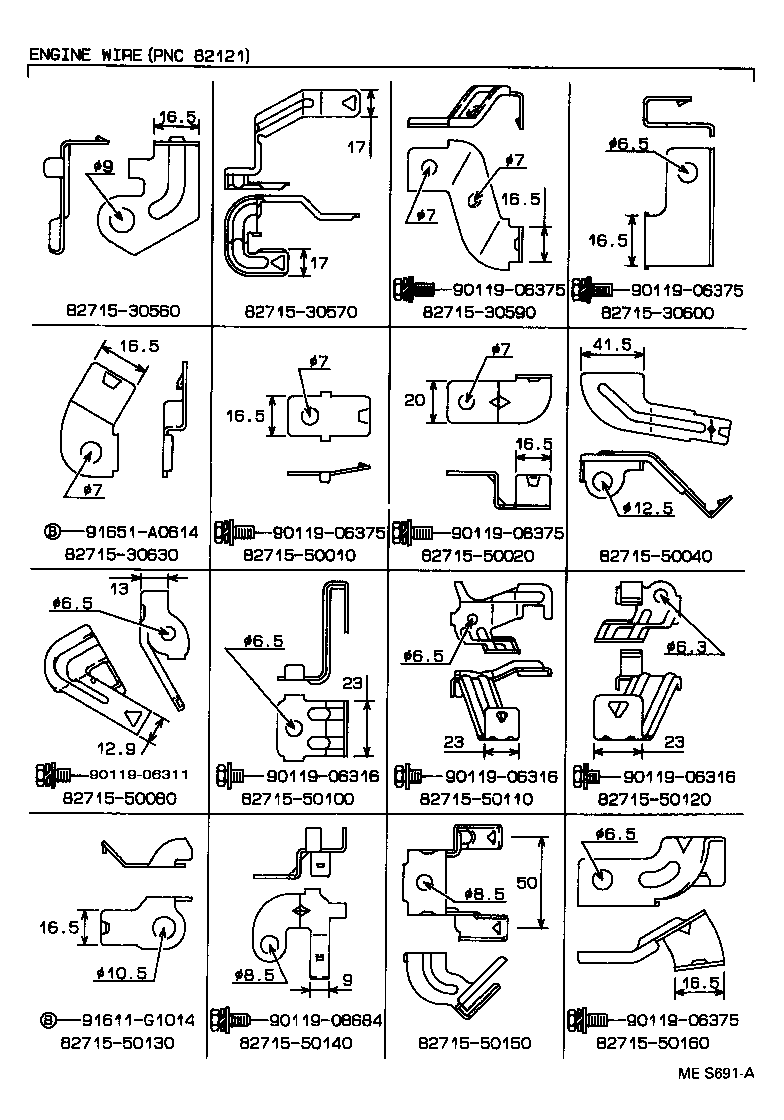

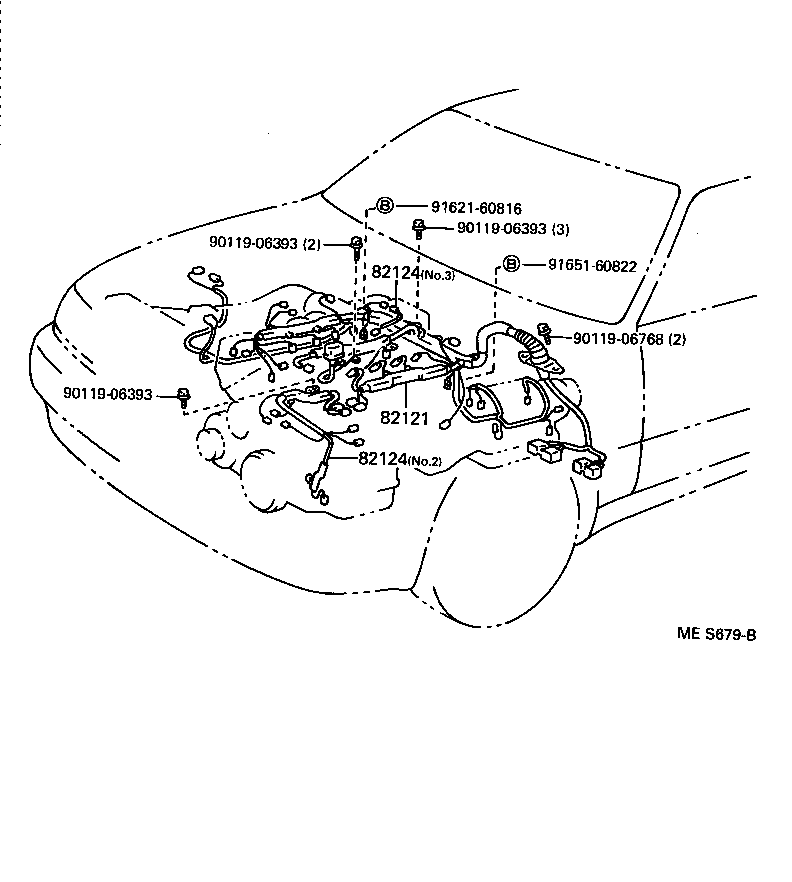

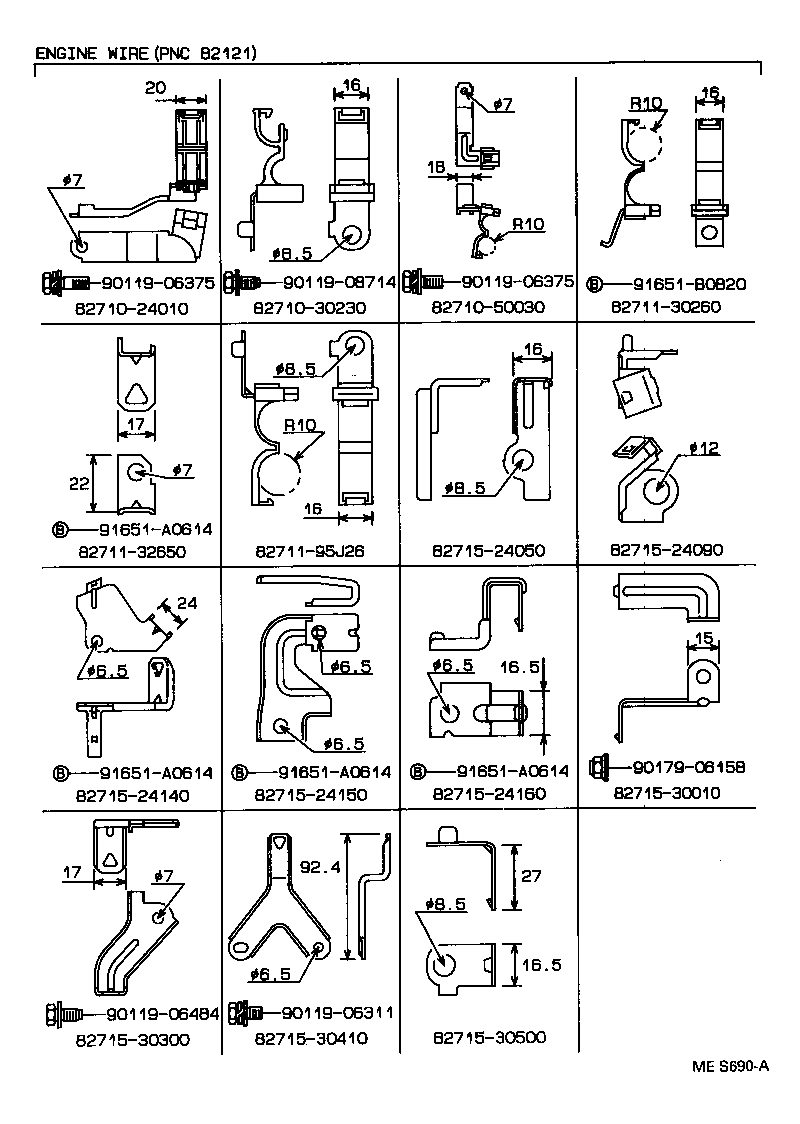

82121 Wire, Engine

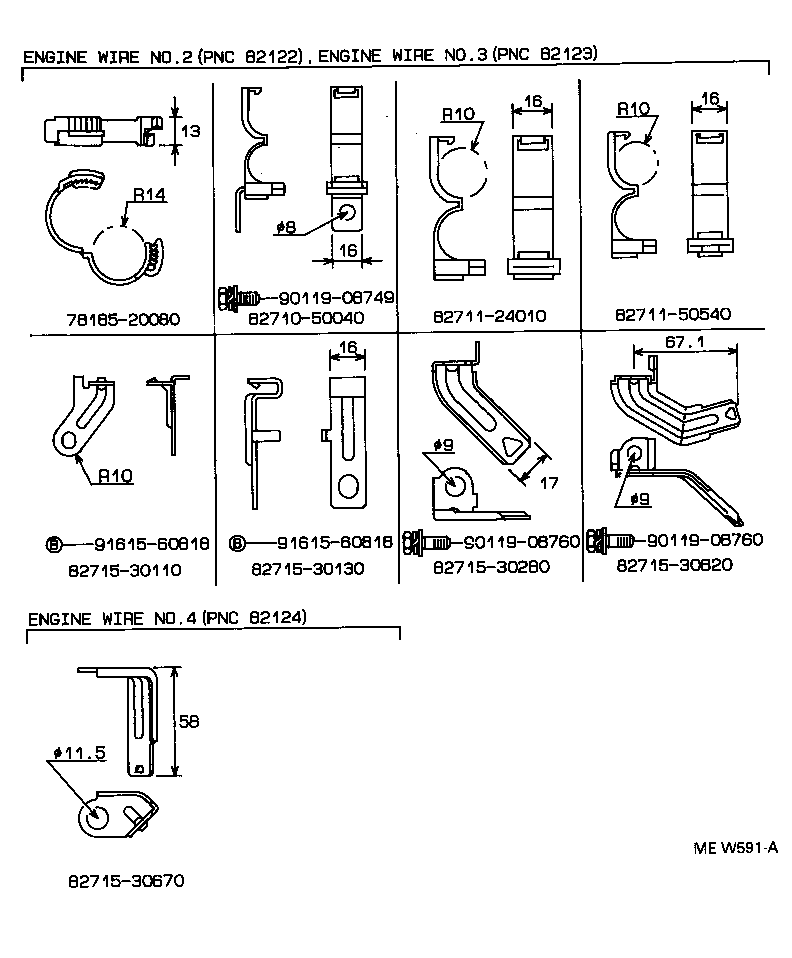

82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125 Wire, Transmission

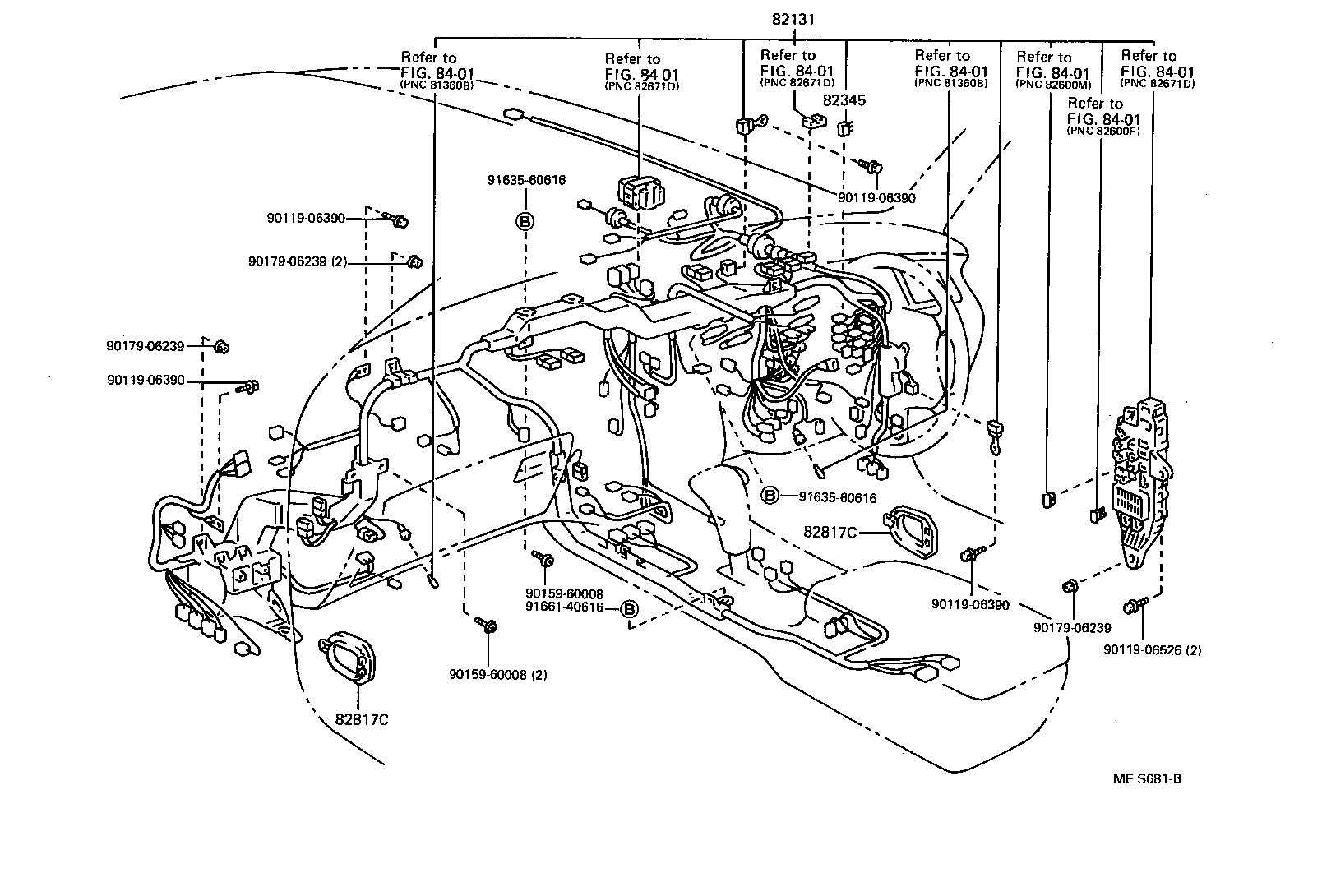

82131 Wire, Cowl
82132 Wire, Cowl, NO.2
82141 Wire, Instrument Panel

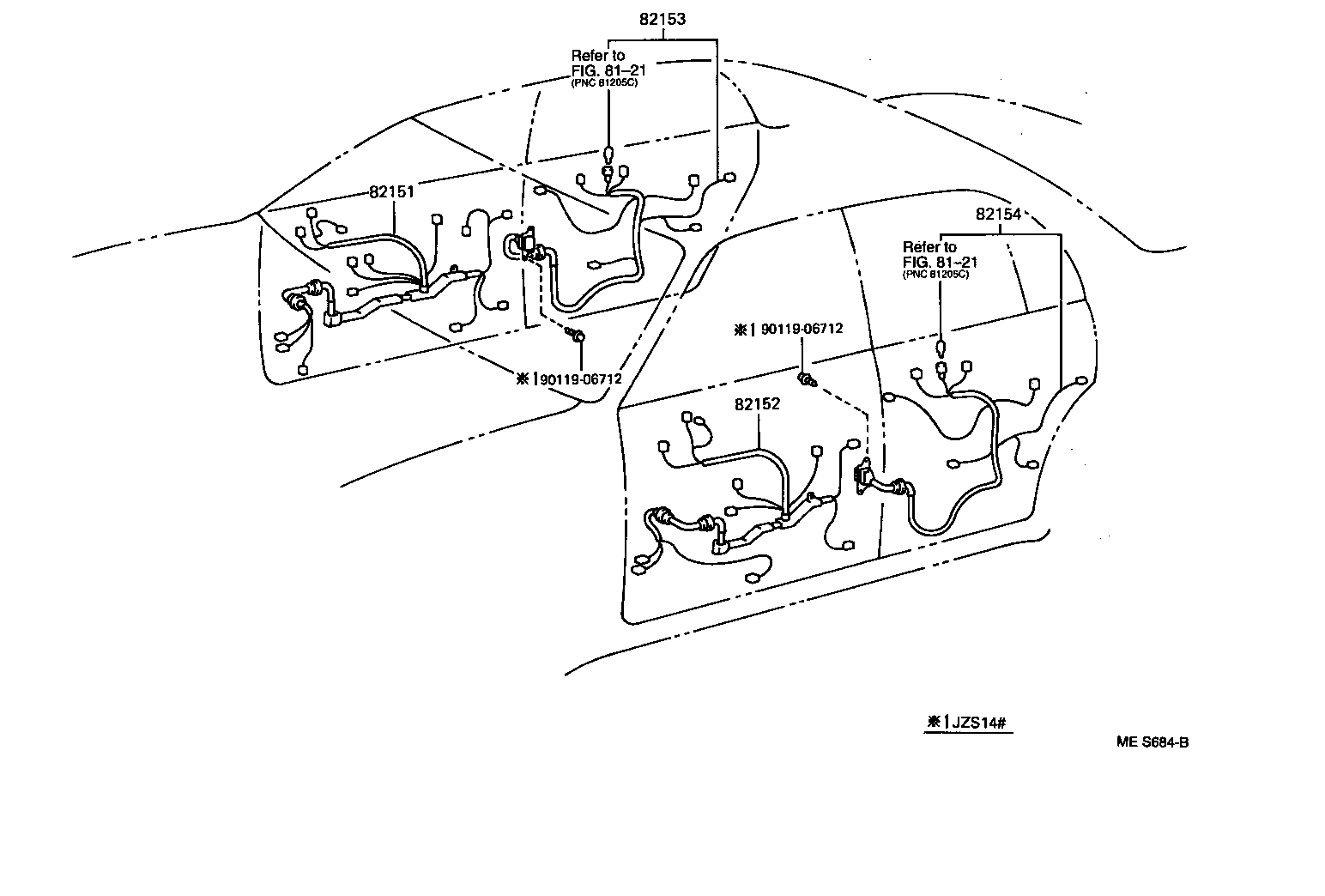

82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2

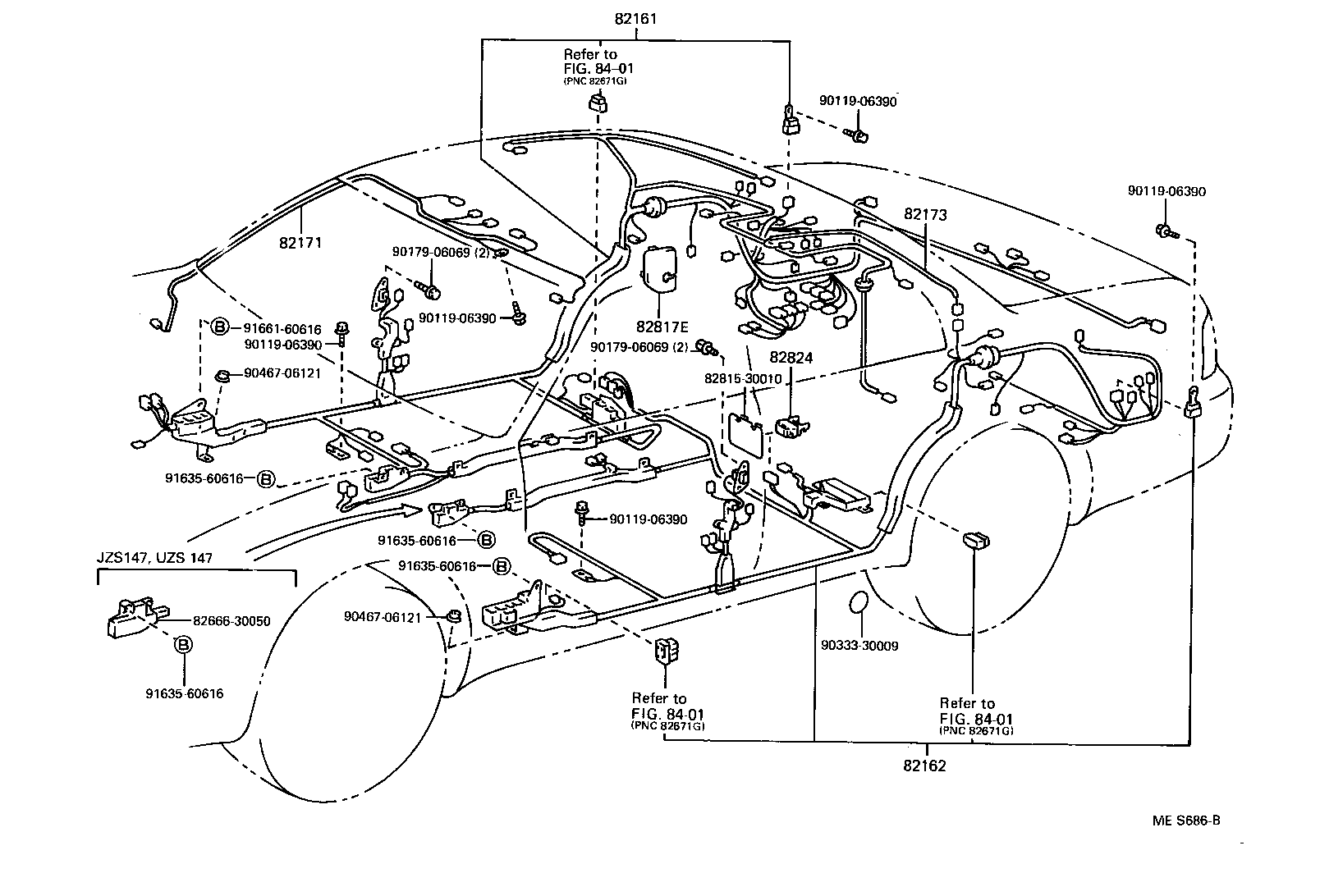

82161 Wire, Floor
82162 Wire, Floor, NO.2

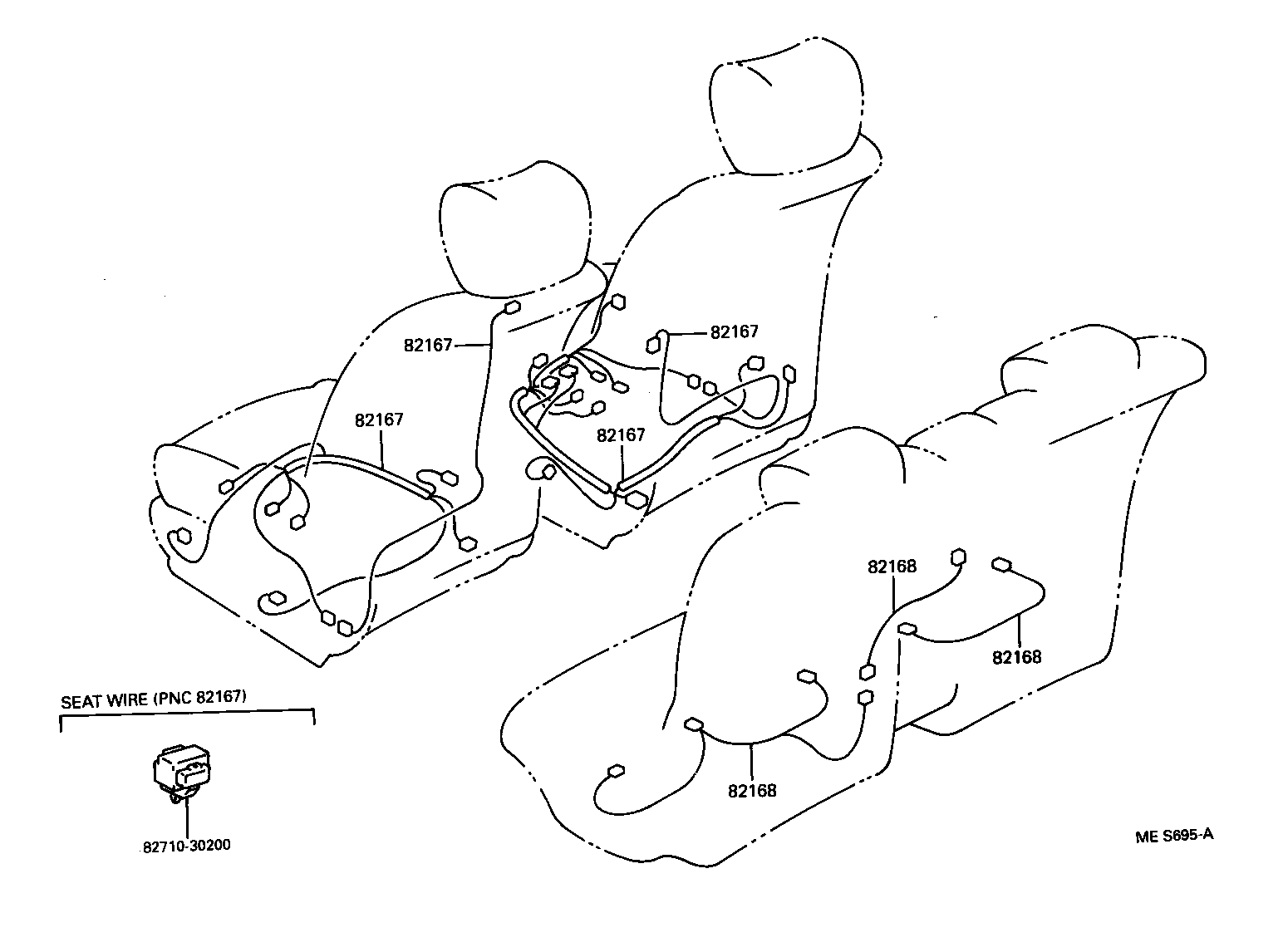

82167 Wire, Seat, NO.1
82168 Wire, Seat, NO.2
82171 Wire, Roof, NO.1
82173 Wire, Roof, NO.3
82181 Wire, Luggage Room, NO.1
82210C Fusible Link
82221 Wire, Oil Pressure Switch
82223 Wire, Switch
82345 Diode
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666G Holder, Connector NO.8
82817 Protector, Wiring Harness, NO.1
82817C Protector, Wiring Harness, NO.4
82817E Protector, Wiring Harness, NO.6
82817L Protector, Wiring Harness, NO.11
82817P Protector, Wiring Harness, NO.14
82821A Cover, Connector
82823 Cap, Terminal, NO.1
82823A Cap, Terminal, NO.2
82824 Connector, Wiring Harness
82988 Wire, Airbag Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
