Toyota Crown/Crown Majesta
1991-10 → 1995-08 · chassis JZS14#,LS141,UZS14#,GS141 · catalogue 331180 · Japan
Discontinued model
Data version 1996-03
Meter
31 part groups · 4 illustrations
Part groups

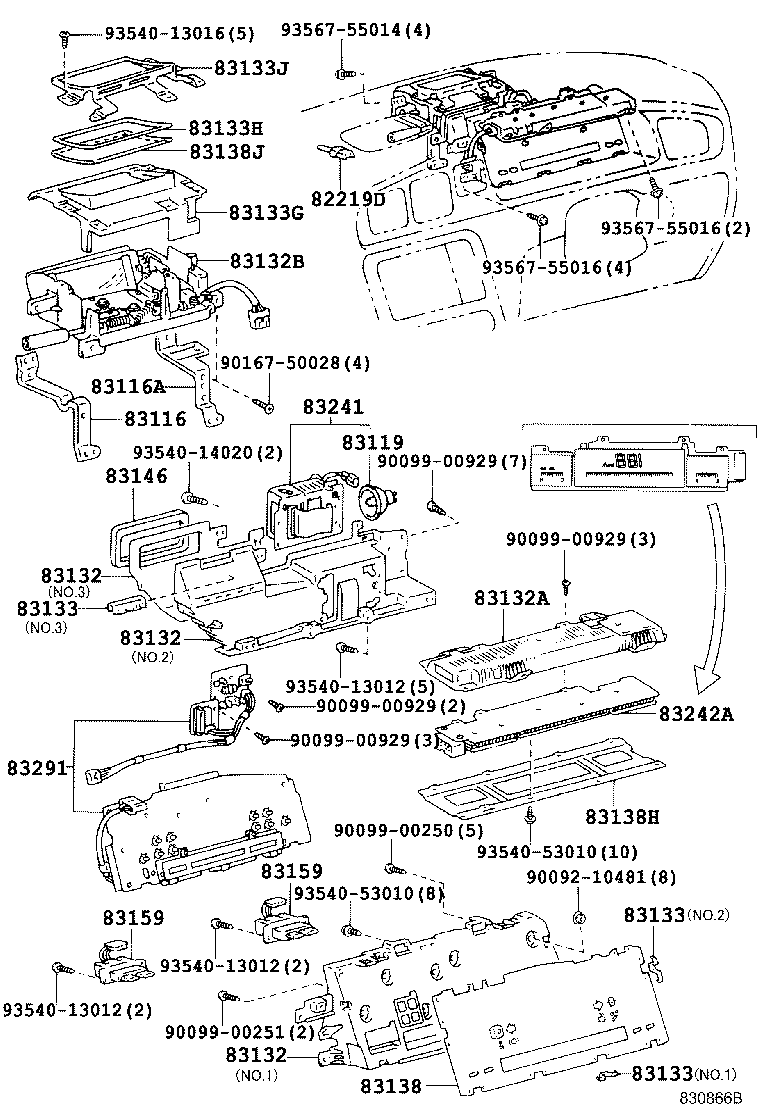

| PNC | Description |
|---|---|
| 82219D | Wire, Sensor |

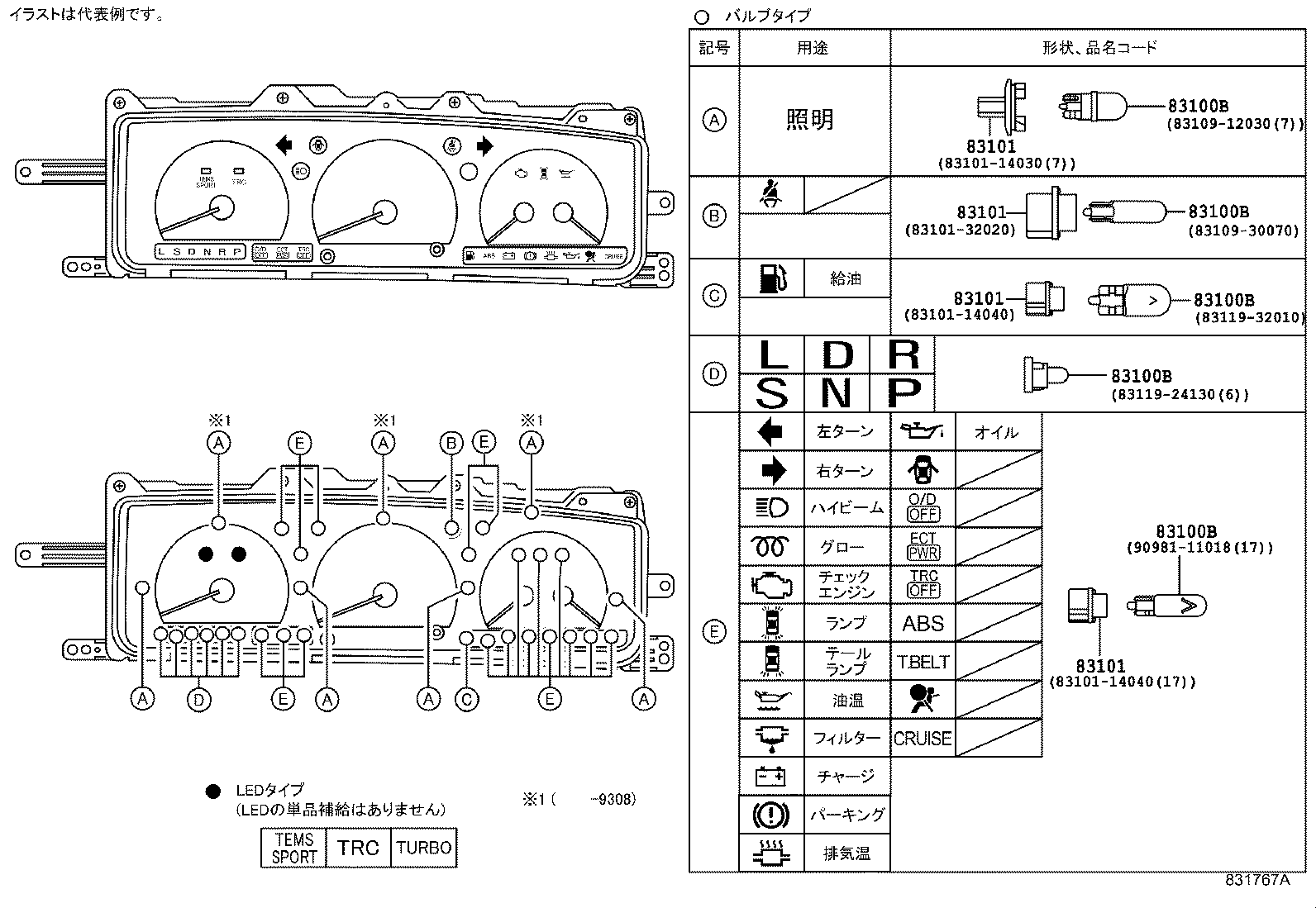

| 83100B | Bulb, Combination Meter, NO.1 |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83102 | Plate Sub-assy, Combination Meter Circuit, NO.1 |
| 83110 | Speedometer Assy |
| 83116 | Bracket, Speedometer |
| 83116A | Bracket, Speedometer NO.2 |
| 83119 | Bulb, Combination Meter, NO.3 |
| 83132 | Case, Combination Meter |
| 83132A | Case, Meter |
| 83132B | Case, Combination Meter NO.3 |
| 83133 | Plate, Combination Meter, NO.1 |
| 83133G | Plate,Combination Meter |
| 83133H | Packing, Combination Meter |
| 83133J | Case, Combination Meter NO.3 |
| 83138 | Glass, Speedometer |
| 83138H | Glass, Combination Meter NO.2 |
| 83138J | Case, Combination Meter NO.2 |
| 83146 | Grommet, Meter Glass |
| 83159 | Switch, Meter, NO.1 |
| 83159B | Relay Assy, Meter |
| 83181A | Sensor, Speedometer |
| 83241 | Meter Sub-assy, Speed |
| 83242A | Computer Assy, Digital Meter |
| 83270 | Tachometer Assy, Engine |
| 83291 | Computer, Combination Meter |
| 83310 | Gage Assy, Fuel Receiver |
| 83410 | Gage Assy, Water Temperature Receiver |
| 83910 | Clock Assy |
| 83970 | Buzzer Assy, Reverse Warning |
| 86650G | Buzzer Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
