Toyota Crown/Crown Majesta

1991-10 → 1995-08 · chassis JZS14#,LS141,UZS14#,GS141 · catalogue 331180 · Japan

Discontinued model Data version 1996-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cruise Control (AUTO DRIVE)

9 part groups · 3 illustrations

Illustrations

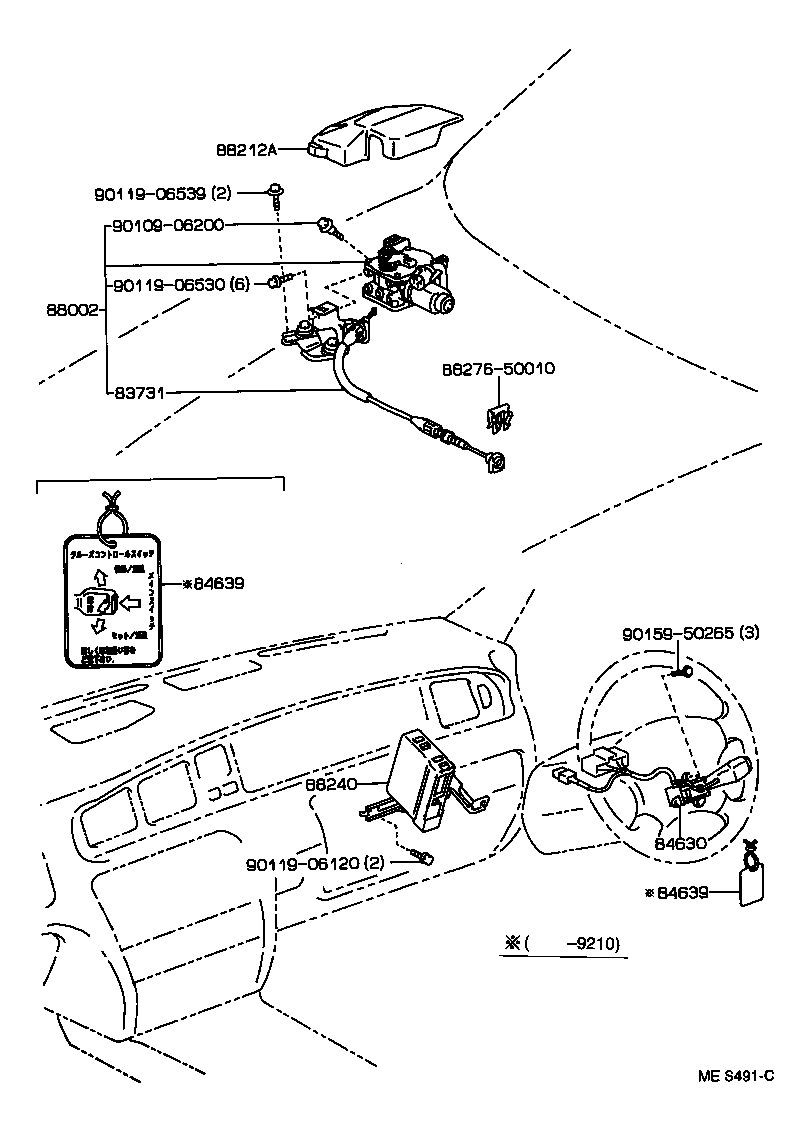

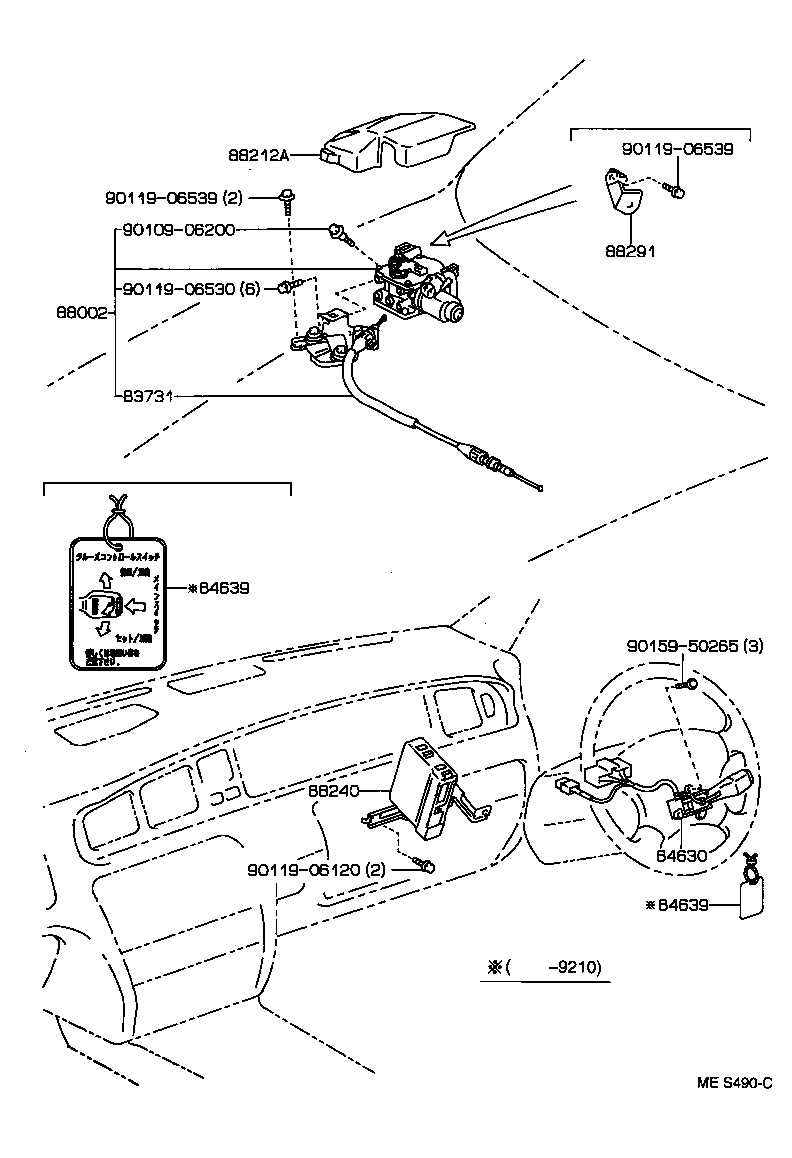

Figure MES489C MES489C 1991-10 → 1995-08 Figure MES490C MES490C 1991-10 → 1995-08 Figure MES491C MES491C 1991-10 → 1995-08

Part groups

PNCDescription
83731 Cable, Cruise Control
84630 Switch Assy, Cruise Control Main
84639 Label, Cruise Control Switch Infomation
88002 Cruise Control(AUTO DRIVE) Set
88200B Hose, Cruise Control Vacuum
88200D Actuator Assy, Cruise Control
88212A Cover, Cruise Control Actuator
88240 Computer Assy, Cruise Control
88291 Bracket, Cruise Control(AUTO DRIVE), NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
