Toyota Crown/Crown Majesta
1991-10 → 1995-08 · chassis JZS14#,LS141,UZS14#,GS141 · catalogue 331180 · Japan
Discontinued model
Data version 1996-03
Traction Control

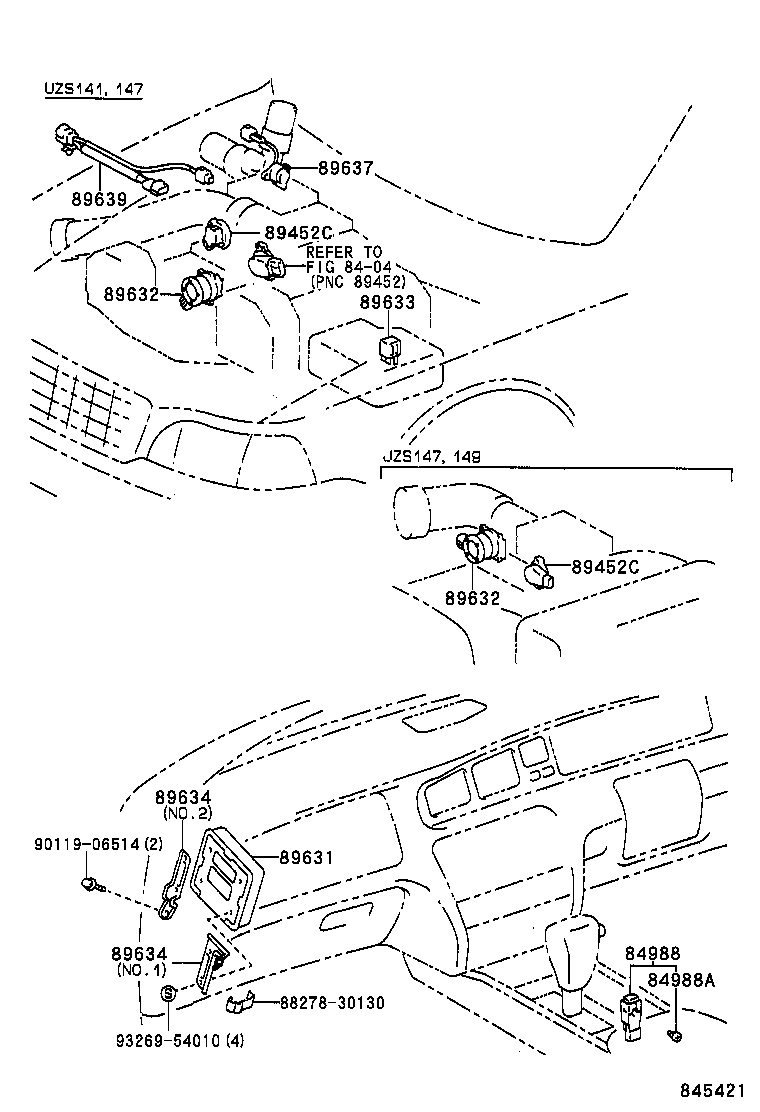

10 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 84988 | Switch, Traction Control |
| 84988A | Bulb, Traction Control Switch |
| 85999V | Bracket, Relay |
| 89452C | Sensor, Throttle Position |
| 89631 | Computer, Traction Control |
| 89632 | Motor, Traction Throttle Valve |
| 89633 | Relay, Traction Control |
| 89634 | Bracket, Traction Control Computer |
| 89637 | Sensor, Oil Pressure |
| 89639 | Wire, Brake Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
