Toyota Crown/Crown Majesta

1991-10 → 1995-08 · chassis JZS14#,LS141,UZS14#,GS141 · catalogue 331180 · Japan

Discontinued model Data version 1996-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Modulated Suspension

12 part groups · 3 illustrations

Illustrations

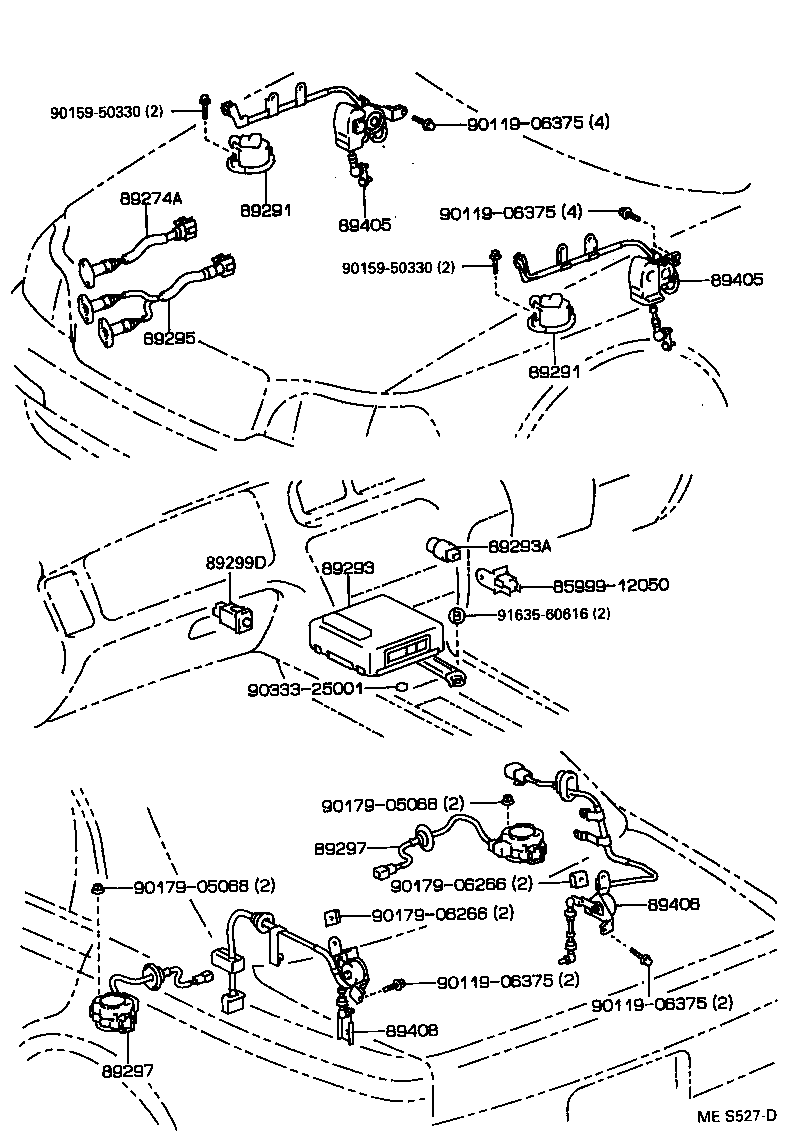

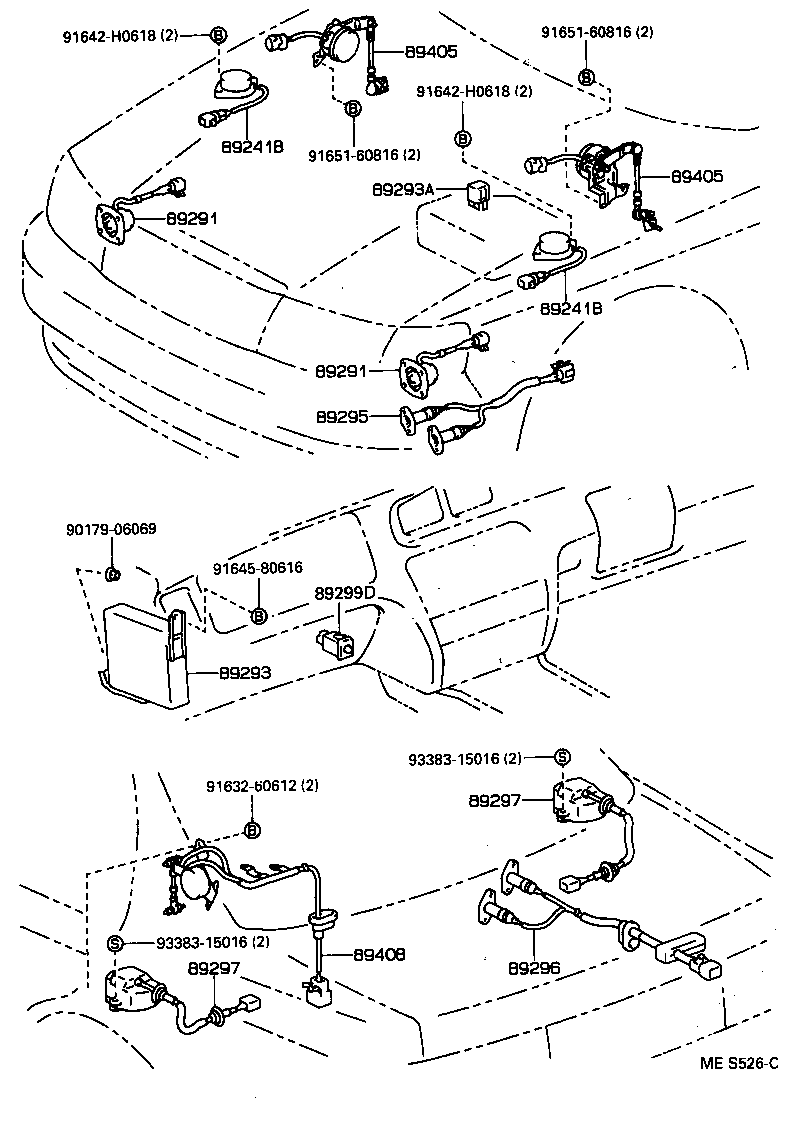

Figure MES525A MES525A 1991-10 → 1995-08 Figure MES526C MES526C 1991-10 → 1995-08 Figure MES527D MES527D 1991-10 → 1995-08

Part groups

PNCDescription
89241B Actuator, Absorber Control
89243 Computer, Absorber Control
89274A Solenoid, Air Valve
89291 Actuator, Suspension Control, Front
89293 Computer, Suspension Control
89293A Relay, Suspension Control
89295 Solenoid, Suspension Control, Front
89296 Solenoid, Suspension Control, Rear
89297 Actuator, Suspension Control, Rear
89299D Switch, Suspension Control, NO.2
89405 Sensor Sub-assy, Height Control, Front
89408 Sensor Sub-assy, Height Control, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
