Toyota Crown/Crown Majesta
1991-10 → 1995-08 · chassis JZS14#,LS141,UZS14#,GS141 · catalogue 331180 · Japan
Discontinued model
Data version 1996-03
Windshield Wiper

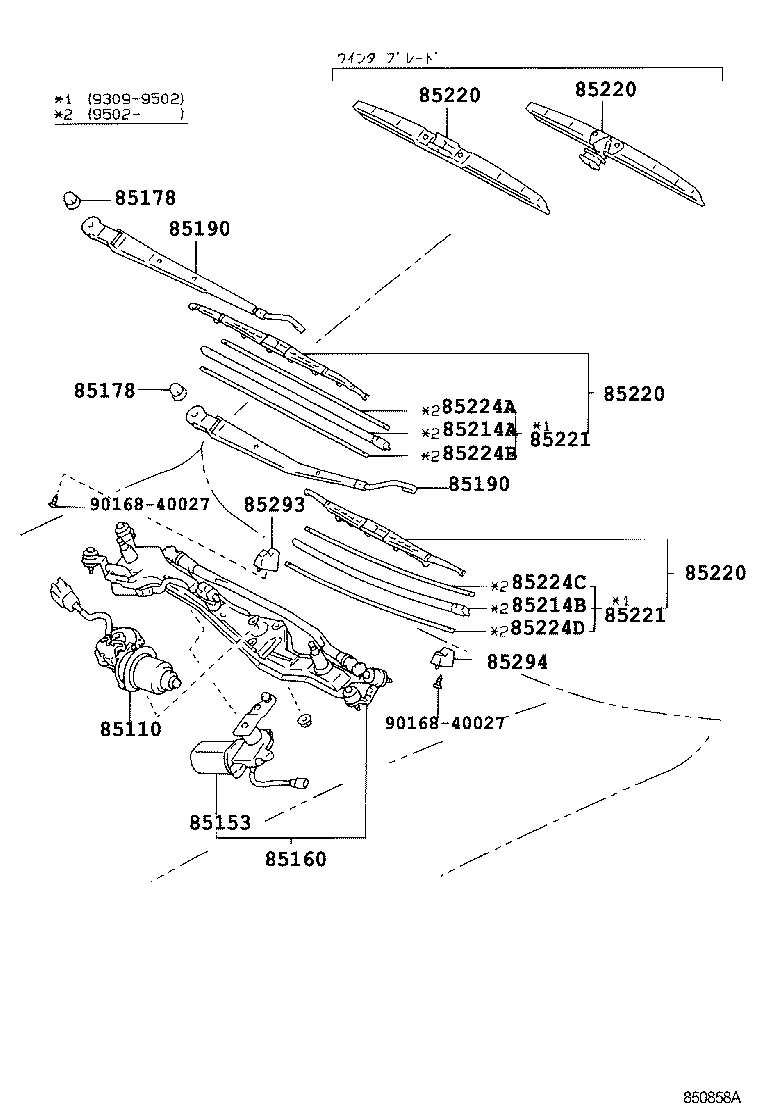

15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85110 | Motor Assy, Windshield Wiper |
| 85153 | Motor, Full Area Wiper |
| 85160 | Link Assy, Windshield Wiper |
| 85178 | Nut (FOR FRONT WIPER ARM SETTING) |
| 85190 | Arm Assy, Windshield Wiper |
| 85214A | Rubber, Wiper, RH |
| 85214B | Rubber, Wiper, LH |
| 85220 | Blade Assy, Windshield Wiper |
| 85221 | Blade, Windshield Wiper |
| 85224A | Plate, Wiper Rubber Backing, NO.1 |
| 85224B | Plate, Wiper Rubber Backing, NO.2 |
| 85224C | Plate, Wiper Rubber Backing, NO.3 |
| 85224D | Plate, Wiper Rubber Backing, NO.4 |
| 85293 | Step, Linear Wiper, RH |
| 85294 | Step, Linear Wiper, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
