Toyota Crown/Crown Majesta

1991-10 → 1995-08 · chassis JZS14#,LS141,UZS14#,GS141 · catalogue 331180 · Japan

Discontinued model Data version 1996-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

14 part groups · 8 illustrations

Illustrations

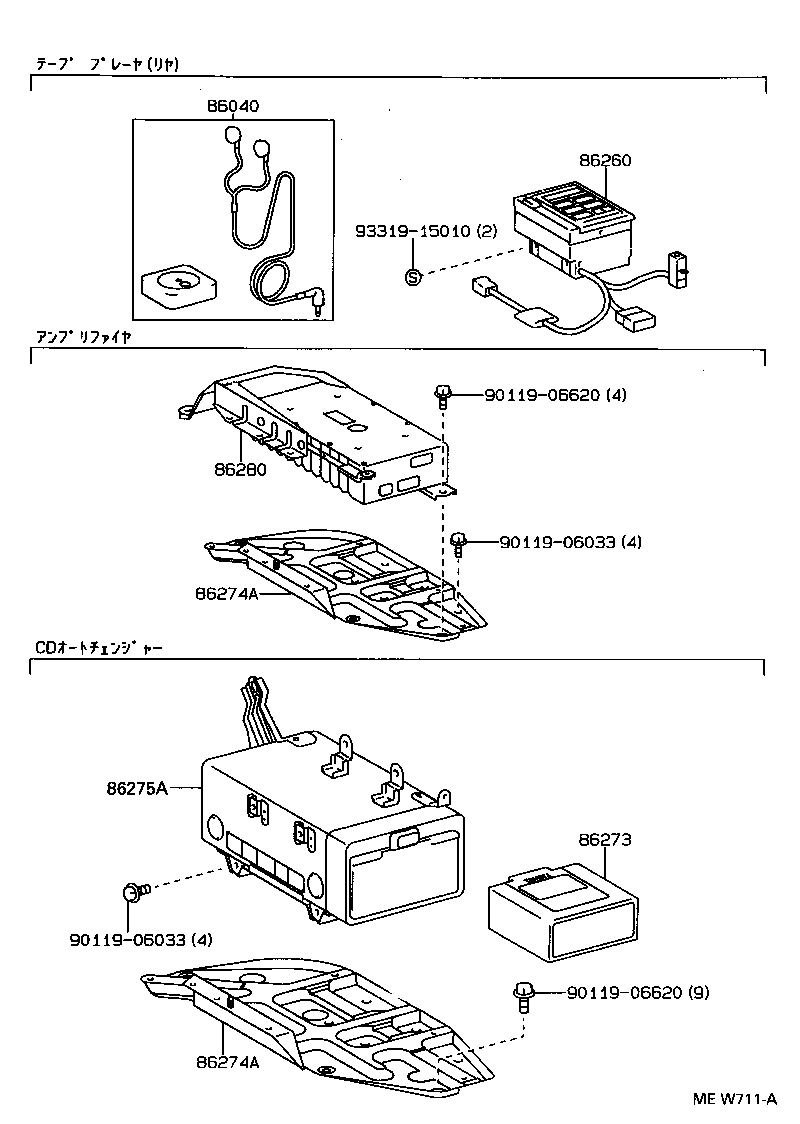

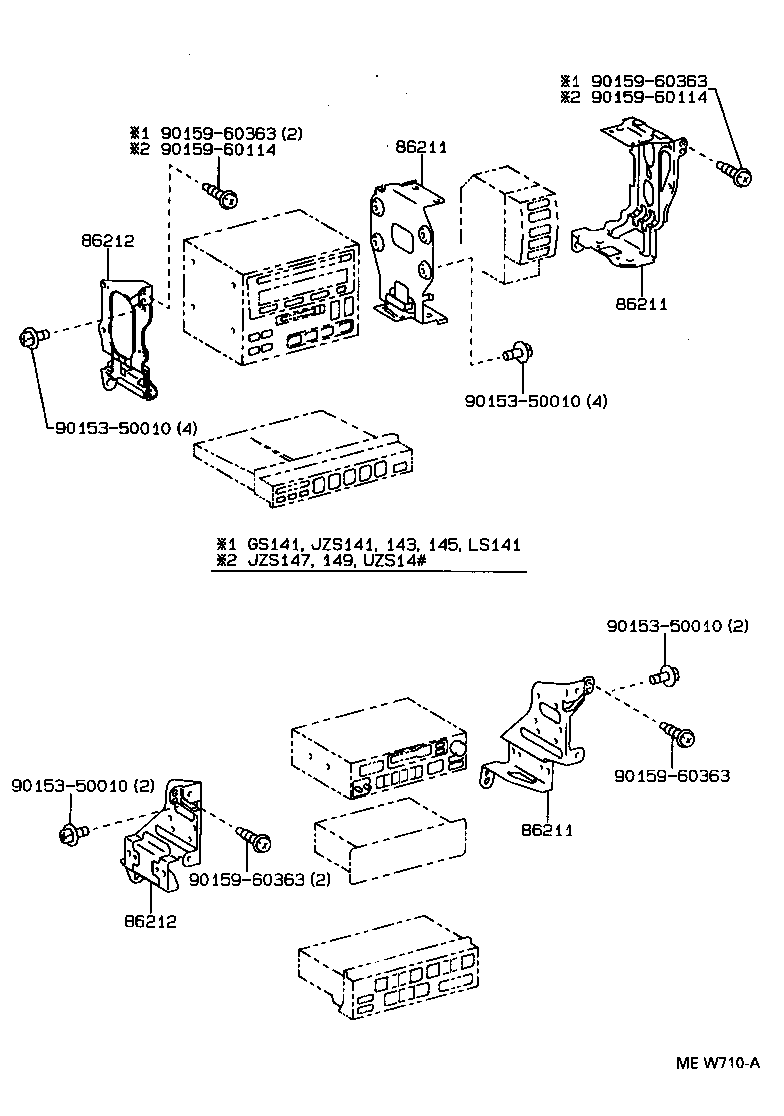

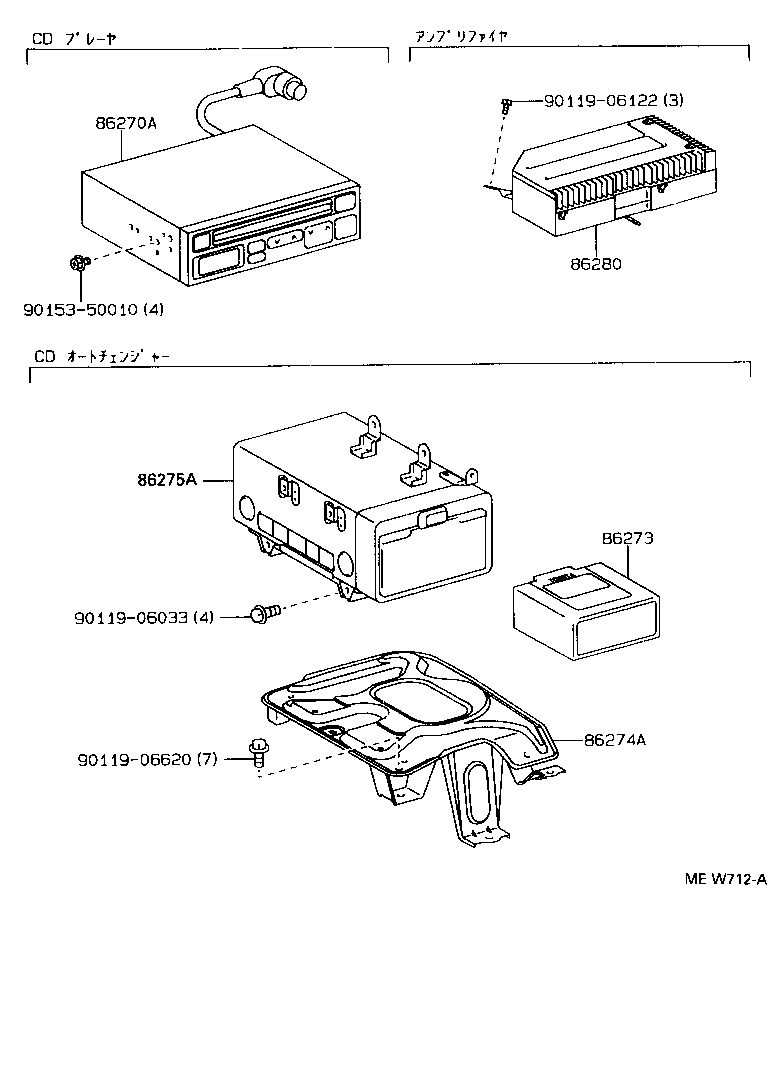

Figure MEW708 MEW708 1991-10 → 1995-08 Figure MEW709 MEW709 1991-10 → 1995-08 Figure MEW710A MEW710A 1991-10 → 1995-08 Figure MEW711A MEW711A 1991-10 → 1995-08 Figure MEW712A MEW712A 1991-10 → 1995-08 Figure MEW714A MEW714A 1991-10 → 1995-08 Figure MEW715 MEW715 1991-10 → 1995-08 Figure MEW406 MEW406 1991-10 → 1995-08

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011C Filter, Noise
86040 Headphone Assy, Stereo
86120 Receiver Assy, Radio
86170R Switch & Volume Assy, RR
86180 Tuner Assy, Stereo Component
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86260 Tape Player Assy
86270A Disc Player Assy
86273 Magazine, Disc Player
86274A Bracket, Disc Player
86275A Changer, Disc Player
86280 Amplifier Assy, Stereo Component
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
