Toyota Crown/Crown Majesta

1991-10 → 1995-08 · chassis JZS14#,LS141,UZS14#,GS141 · catalogue 331180 · Japan

Discontinued model Data version 1996-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

12 part groups · 3 illustrations

Illustrations

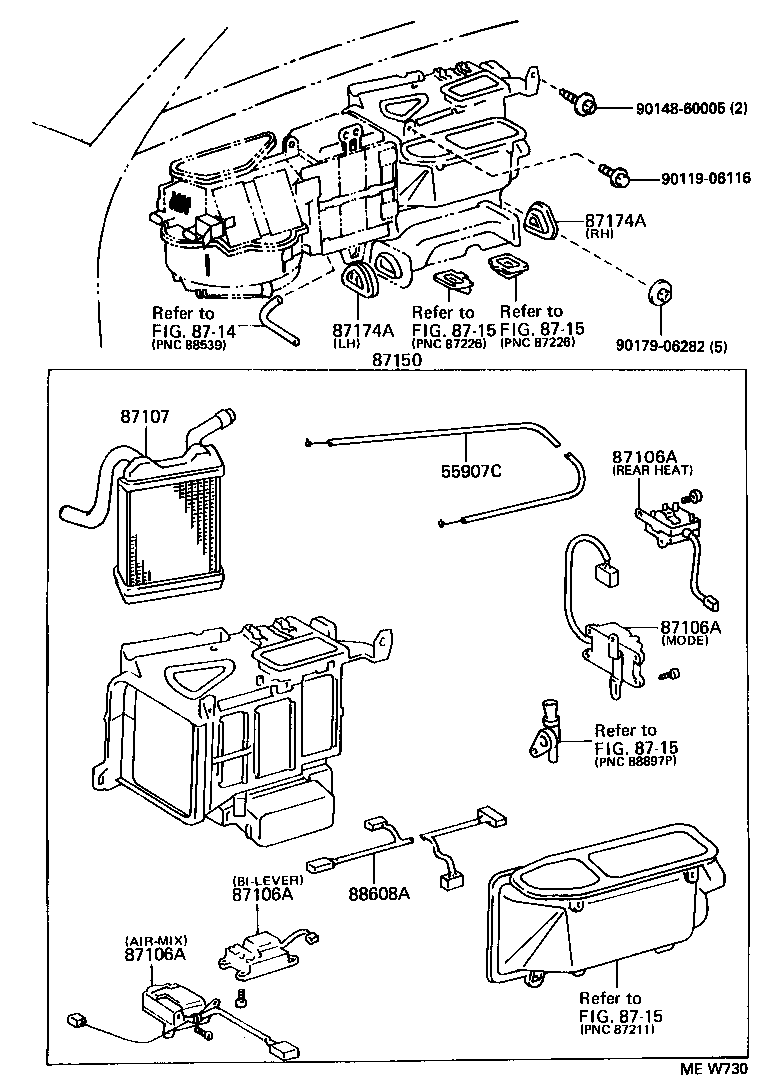

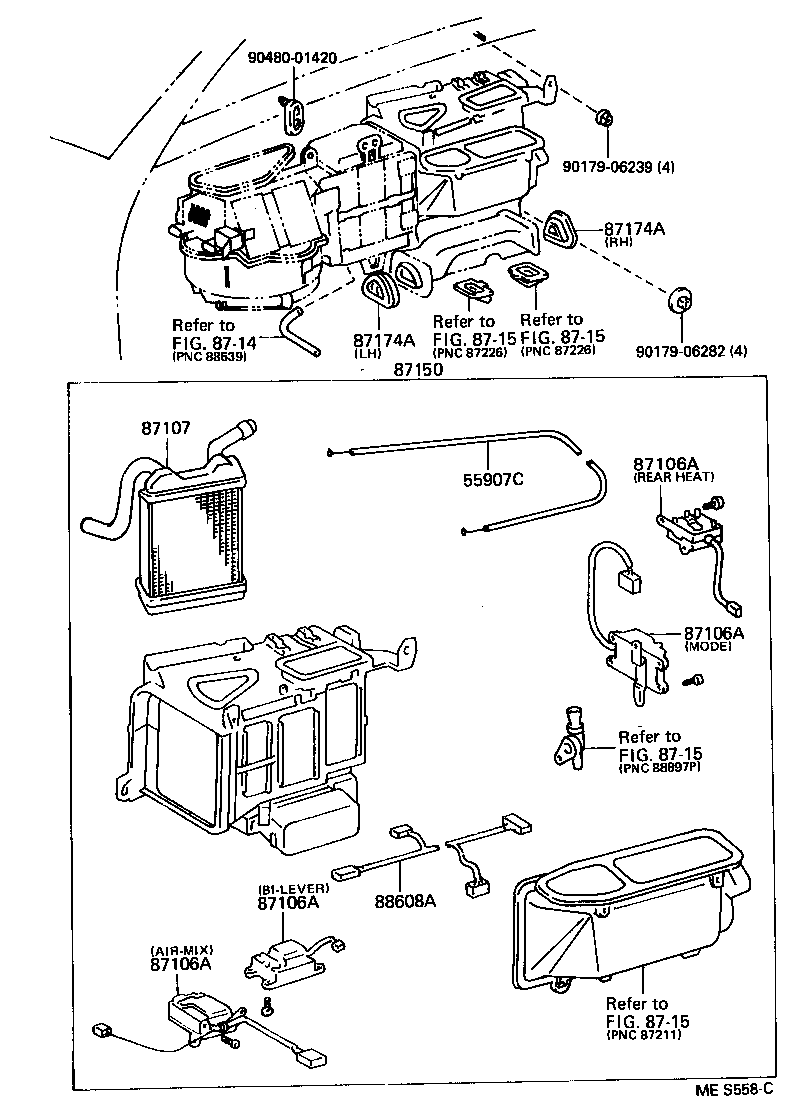

Figure MES557D MES557D 1991-10 → 1995-08 Figure MES558C MES558C 1991-10 → 1995-08 Figure MEW730 MEW730 1991-10 → 1995-08

Part groups

PNCDescription
55907C Cable Sub-assy, Water Valve Control
87103 Motor Sub-assy, Heater Blower, W/Fan
87106A Servo Sub-assy, Damper
87107 Unit Sub-assy, Heater Radiator
87121A Bracket, Heater
87130 Blower Assy, Heater, Front
87150 Radiator Assy, Heater
87165 Control, Blower Motor, NO.1
87165A Control, Blower Motor, NO.2
87165B Control, Blower Motor, NO.3
87174A Guide, Air Heater
88608A Harness Sub-assy, Wiring Air Conditioner, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
