Toyota Crown/Crown Majesta

1991-10 → 1995-08 · chassis JZS14#,LS141,UZS14#,GS141 · catalogue 331180 · Japan

Discontinued model Data version 1996-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

14 part groups · 9 illustrations

Illustrations

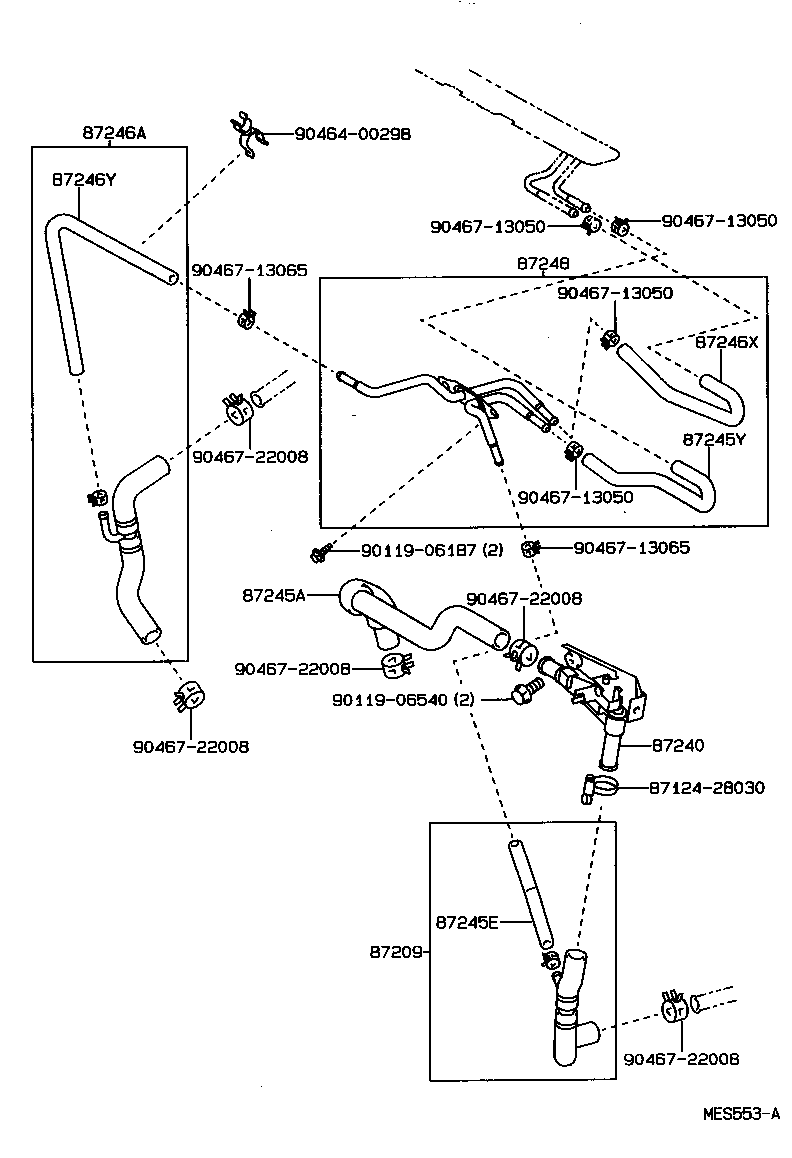

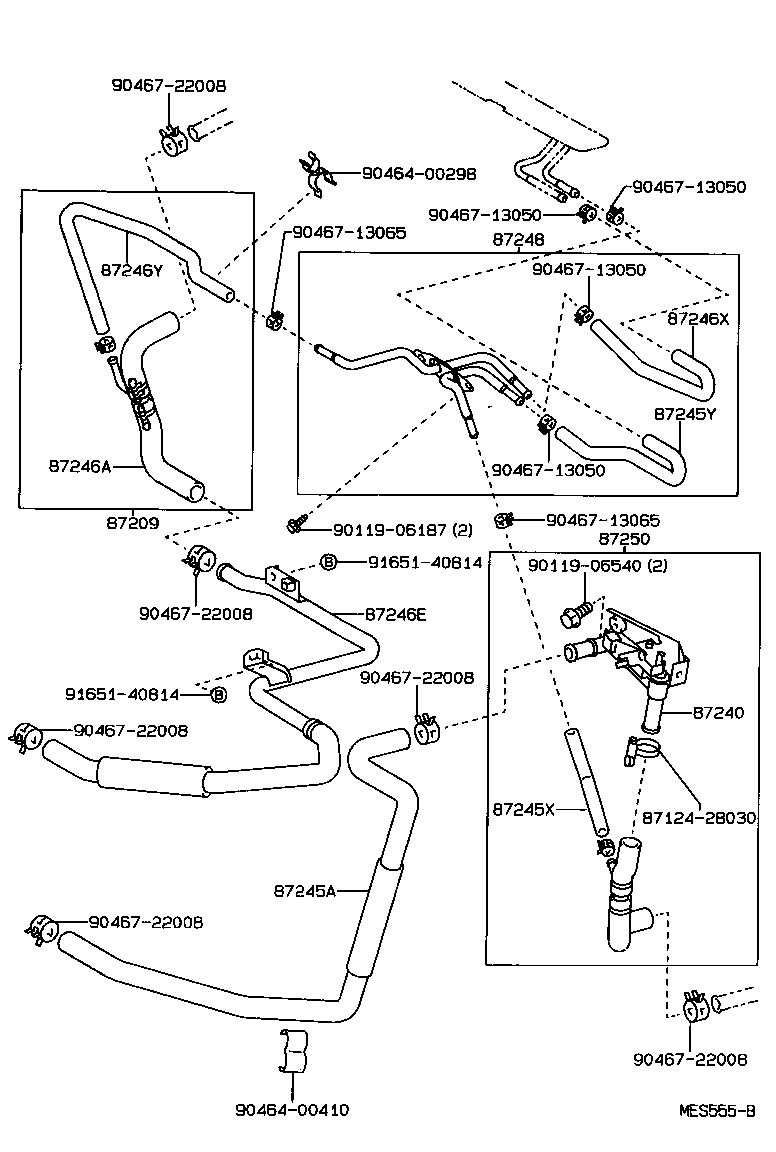

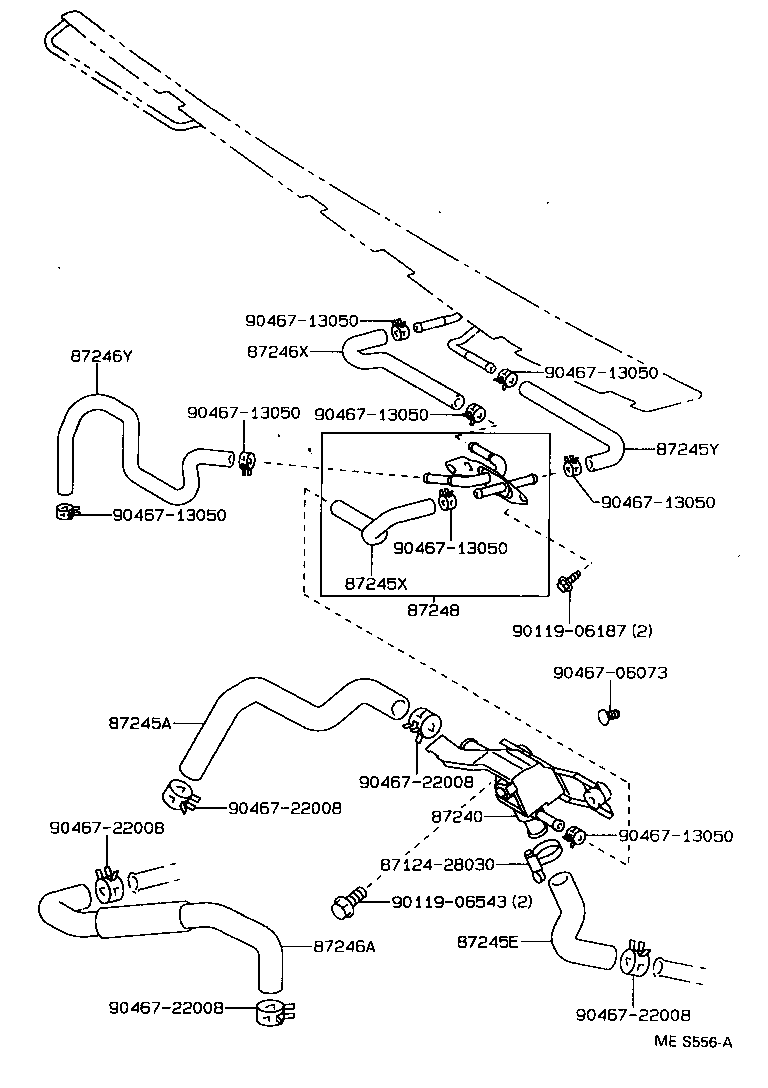

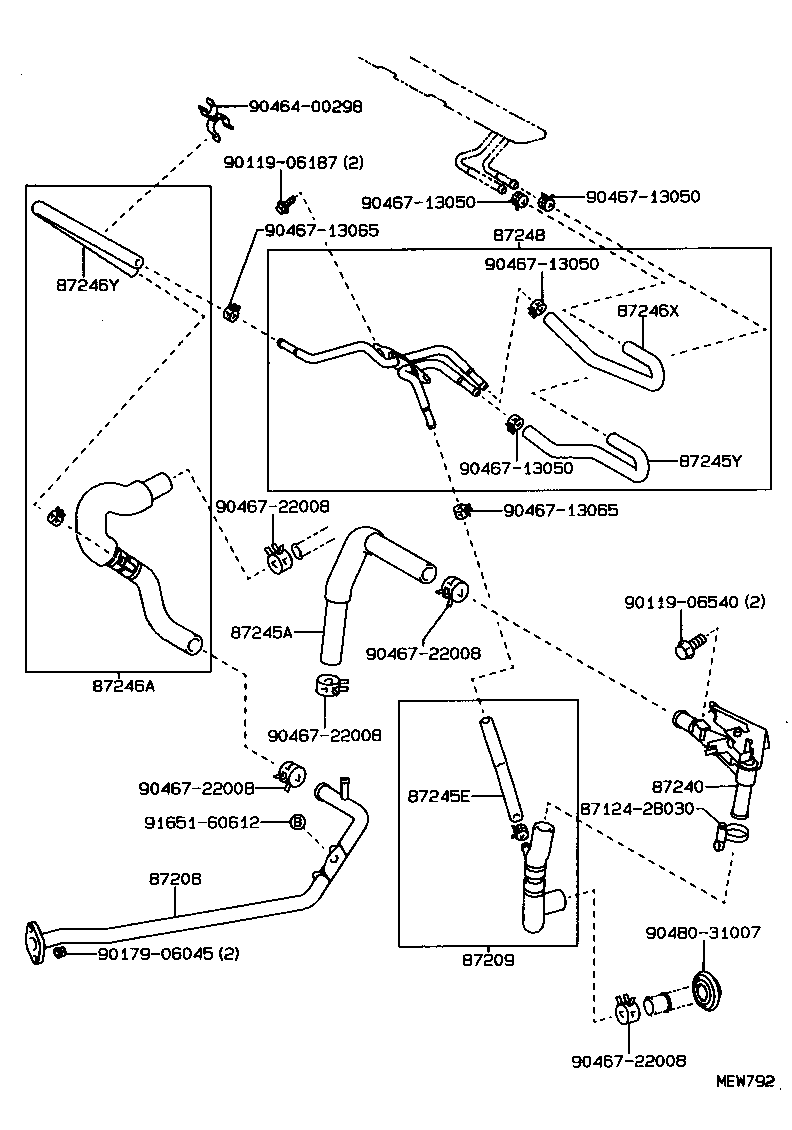

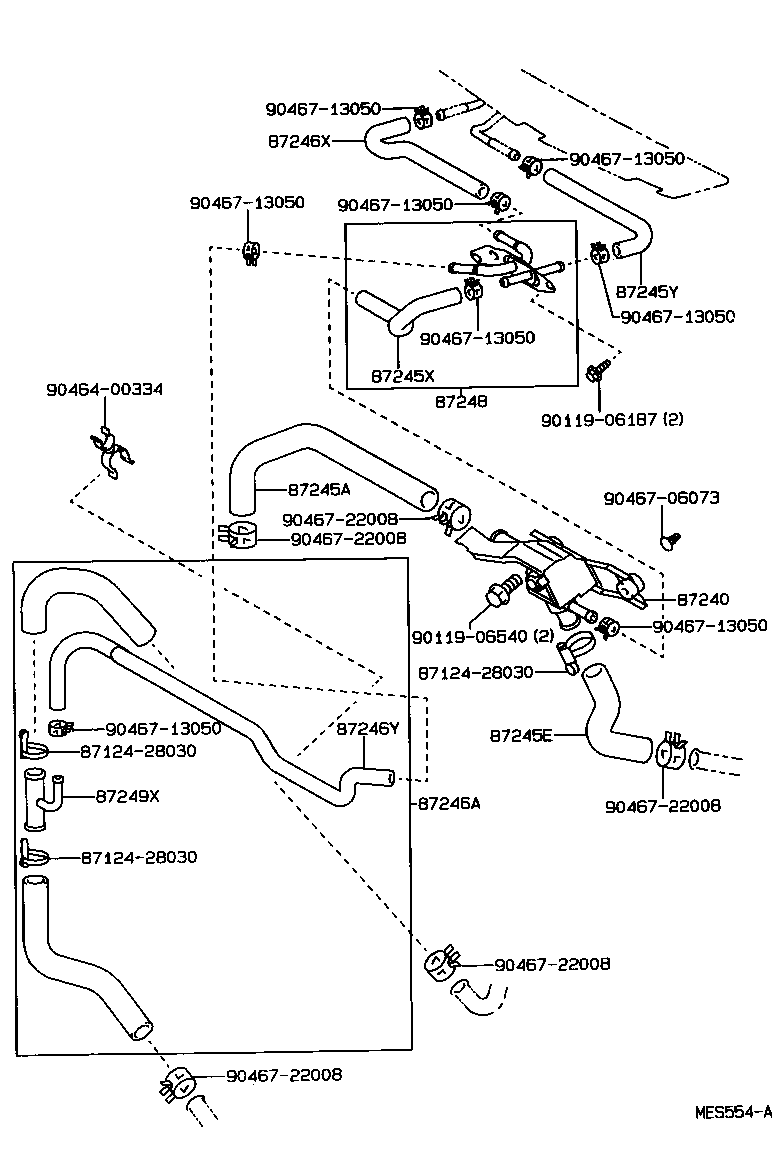

Figure MES540B MES540B 1991-10 → 1995-08 Figure MES553A MES553A 1991-10 → 1995-08 Figure MES554A MES554A 1991-10 → 1995-08 Figure MES537B MES537B 1991-10 → 1995-08 Figure MES555B MES555B 1991-10 → 1995-08 Figure MES541A MES541A 1991-10 → 1995-08 Figure MES556A MES556A 1991-10 → 1995-08 Figure MEW791 MEW791 1993-08 → 1995-08 Figure MEW792 MEW792 1993-08 → 1995-08

Part groups

PNCDescription
87208 Pipe Sub-assy, Heater Water
87209 Hose Sub-assy, Water
87240 Valve Assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245E Hose, Heater Water, Inlet E
87245X Hose, Heater Water
87245Y Hose, Heater Water
87246A Hose, Heater Water, Outlet A
87246E Hose, Heater Water, Outlet E
87246X Hose, Heater Water
87246Y Hose, Heater Water
87248 Pipe Sub-assy, Water
87249X Pipe, Water
87250 Hose And Valve Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
