Toyota Crown/Crown Majesta

1991-10 → 1995-08 · chassis JZS14#,LS141,UZS14#,GS141 · catalogue 331180 · Japan

Discontinued model Data version 1996-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

31 part groups · 8 illustrations

Illustrations

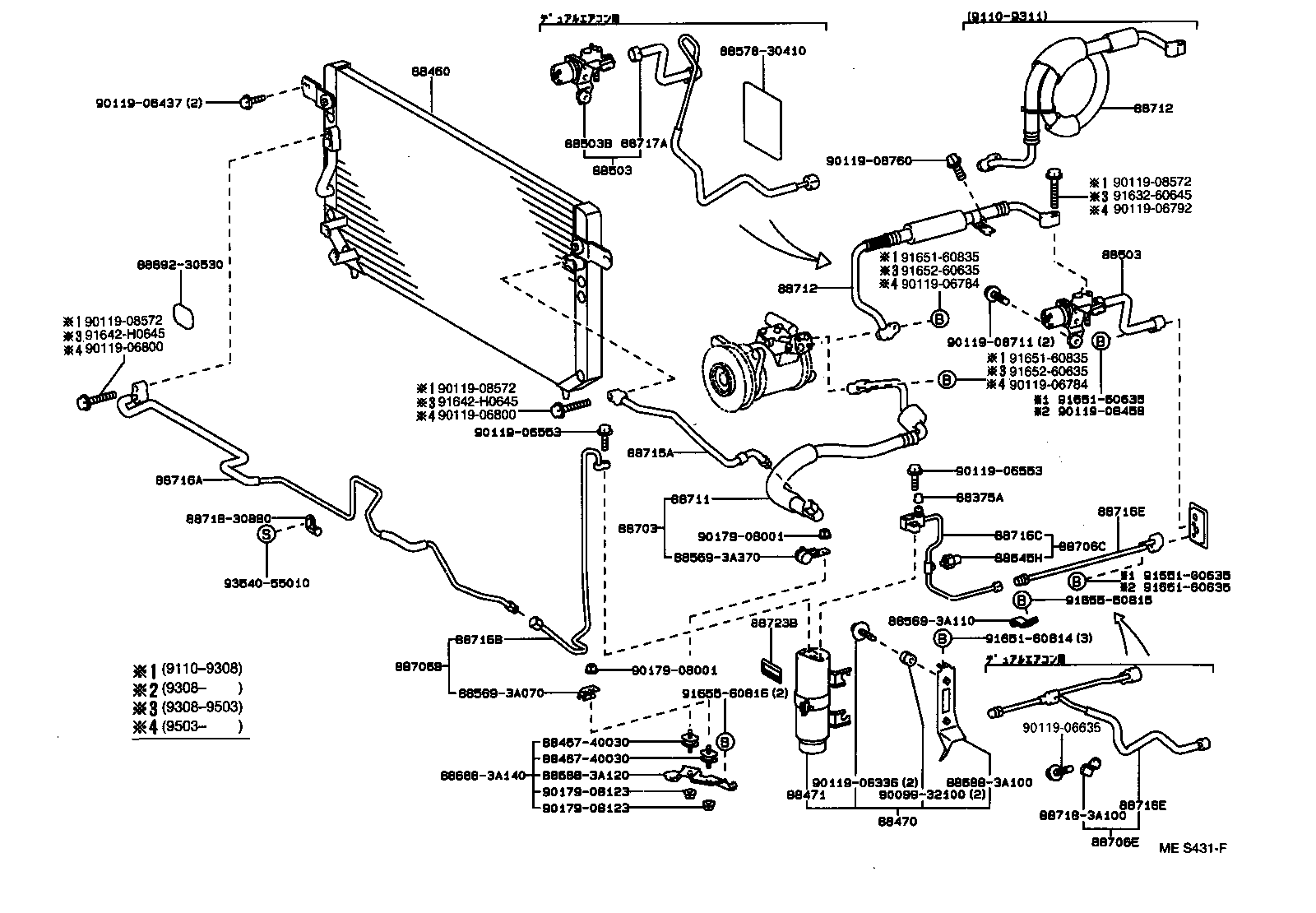

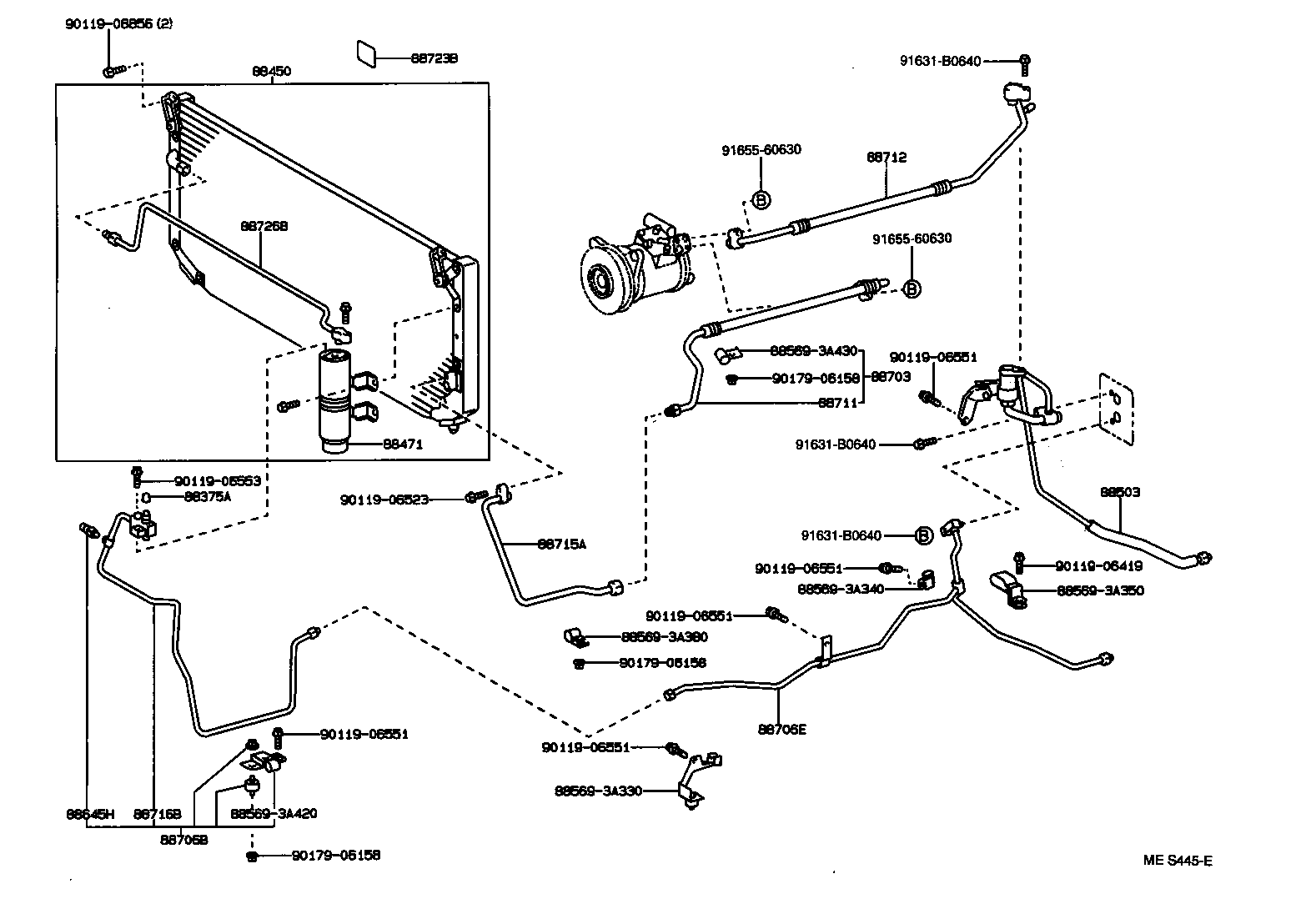

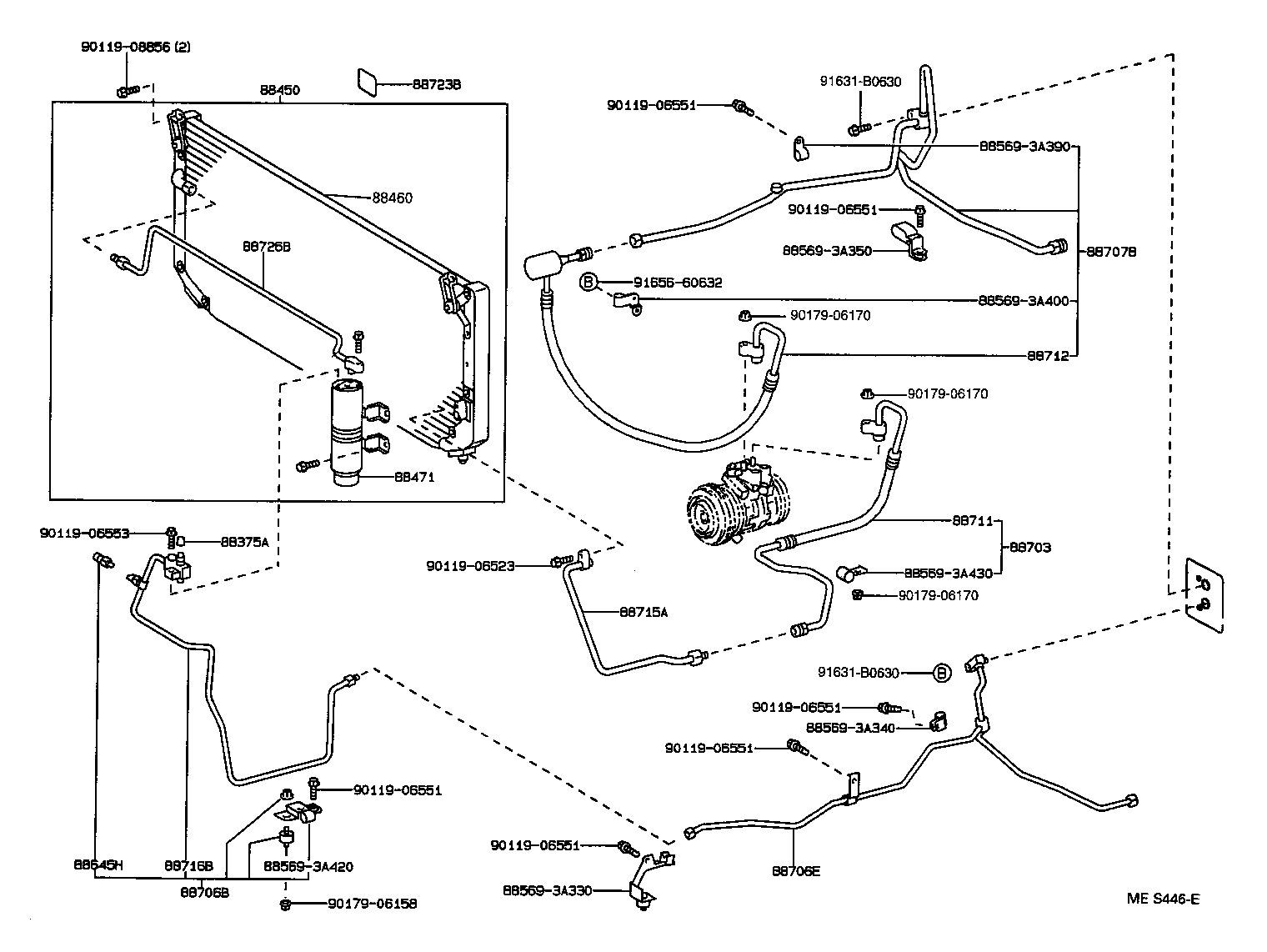

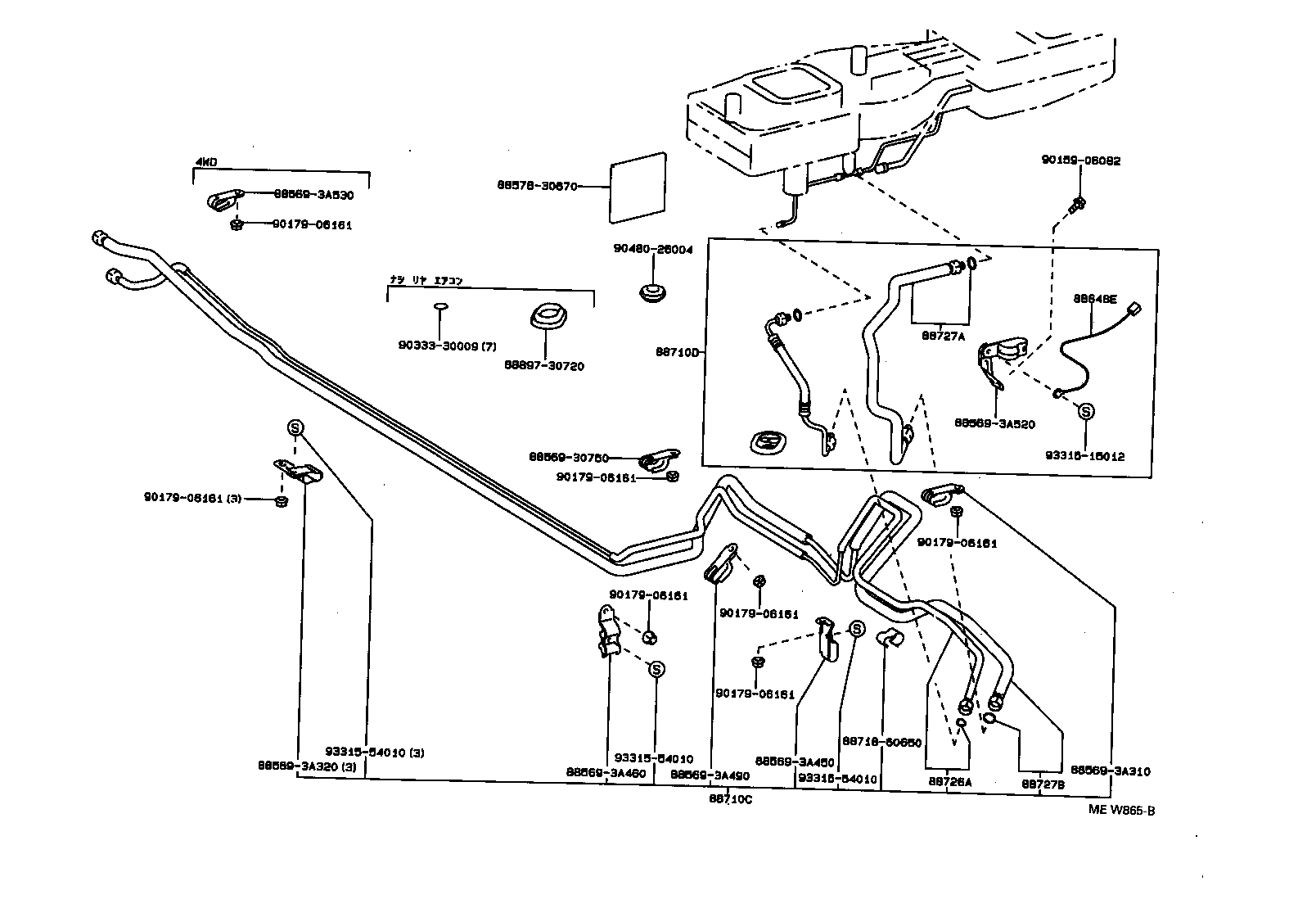

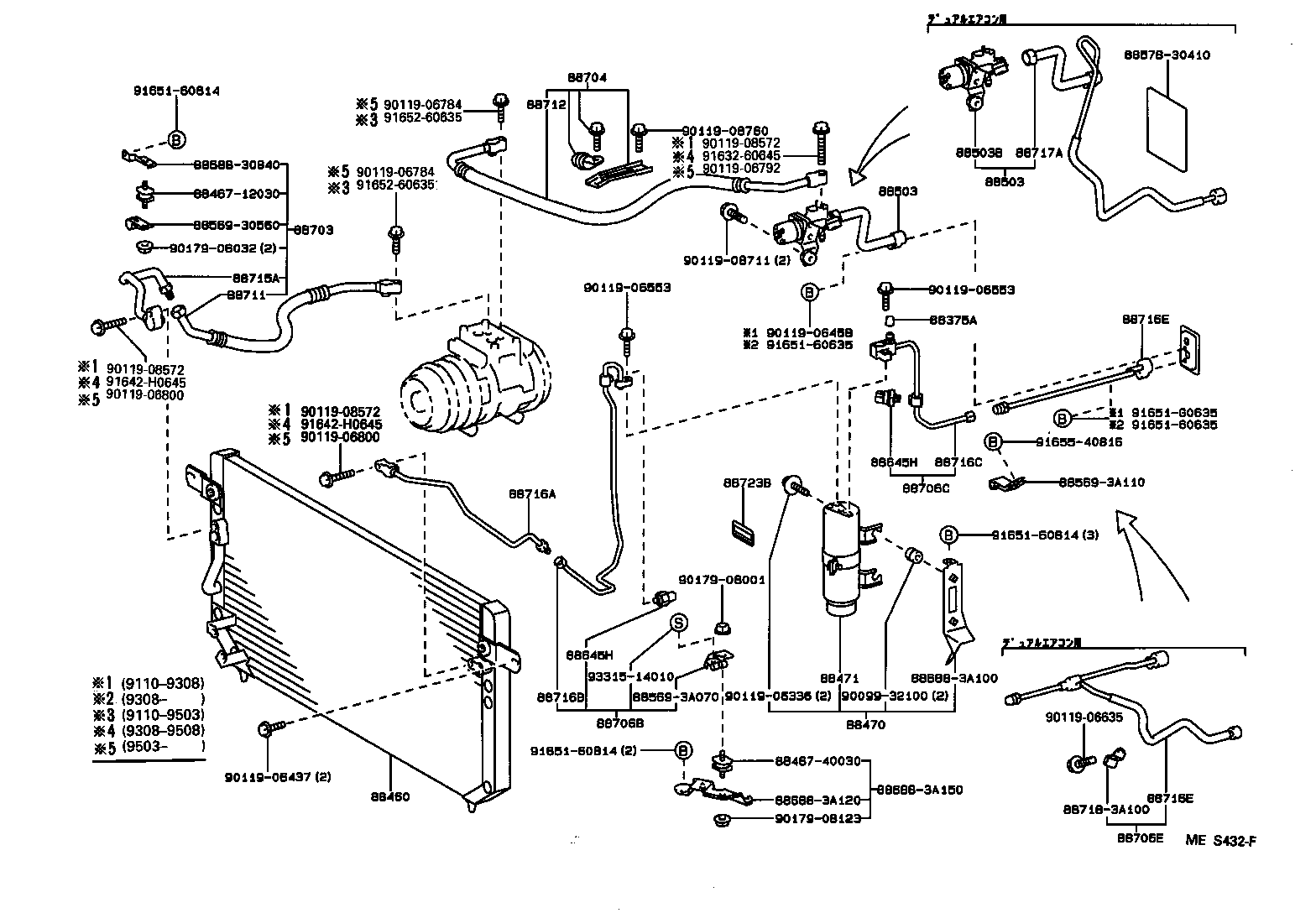

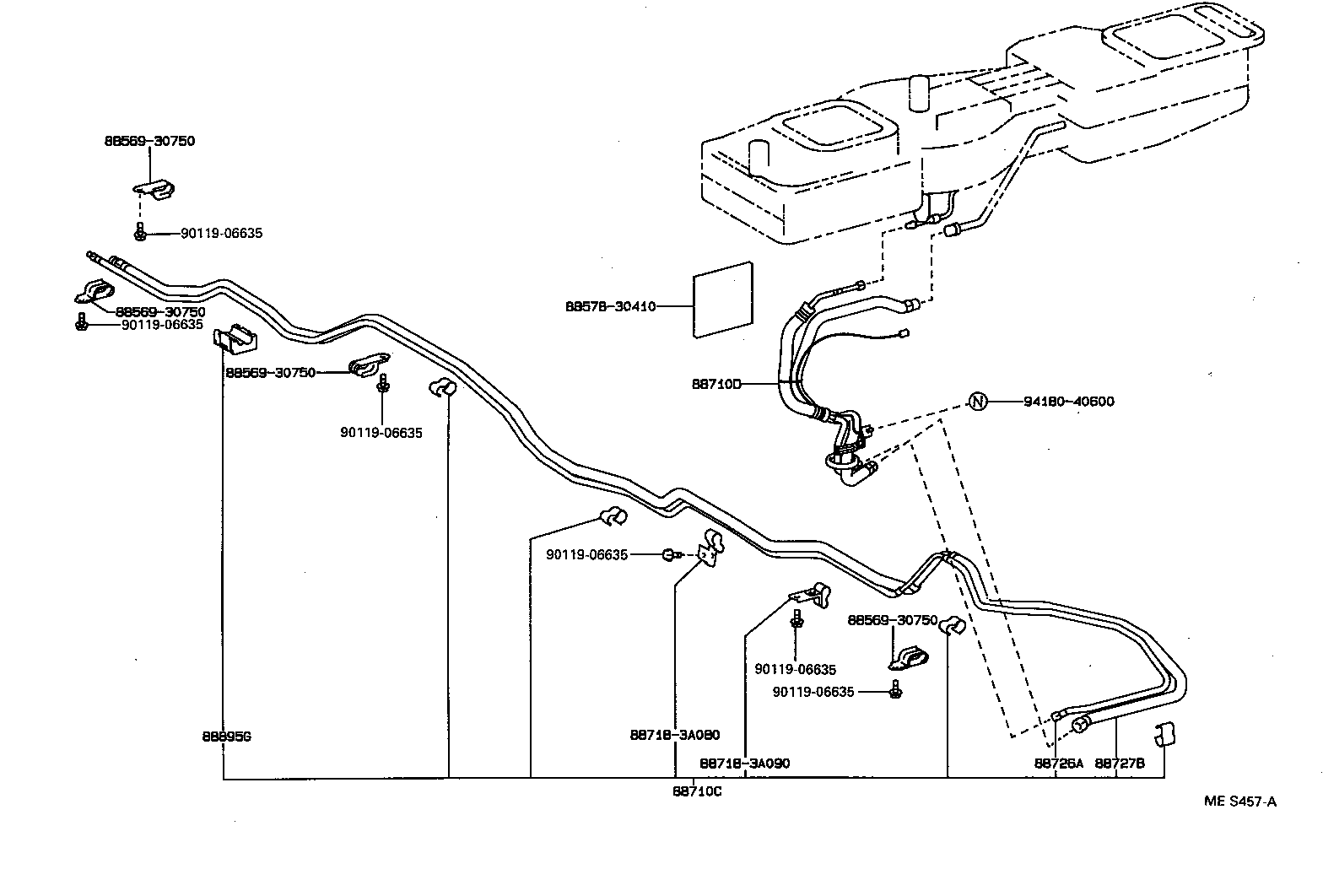

Figure MES430D MES430D 1993-08 → 1995-08 Figure MES431F MES431F 1991-10 → 1995-08 Figure MES445E MES445E 1991-10 → 1995-08 Figure MES432F MES432F 1991-10 → 1995-08 Figure MES446E MES446E 1991-10 → 1995-08 Figure MES457A MES457A 1991-10 → 1995-08 Figure MEW865B MEW865B 1991-10 → 1995-08 Figure 870152 870152 1991-10 → 1995-08

Part groups

PNCDescription
88375A Cap, Service Valve (FOR COOLER PIPE)
88450 Condenser Assy, W/Receiver
88460 Condenser Assy, Cooler
88470 Receiver & Dryer Assy, Cooler
88471 Tank, Receiver Air Conditioner
88503 Regulator Assy, Pressure
88503B Regulator Sub-assy, Pressure
88645H Switch, Pressure NO.1
88648E Wiring, Cooler
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88706B Tube Sub-assy, Liquid, B
88706C Tube Sub-assy, Liquid, C
88706E Tube Sub-assy, Liquid, E
88707B Tube Sub-assy, Suction, B
88710C Tube Assy, Air Conditioner
88710D Tube Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
88723B Label, Cooler Service Caution
88726A Pipe, Cooler Refrigerant Liquid, A
88726B Pipe, Cooler Refrigerant Liquid, B
88727A Pipe, Cooler Refrigerant Suction, A
88727B Pipe, Cooler Refrigerant Suction, B
88895G Bush
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
