Toyota Crown/Crown Majesta
1991-10 → 1995-08 · chassis JZS14#,LS141,UZS14#,GS141 · catalogue 331180 · Japan
Discontinued model
Data version 1996-03

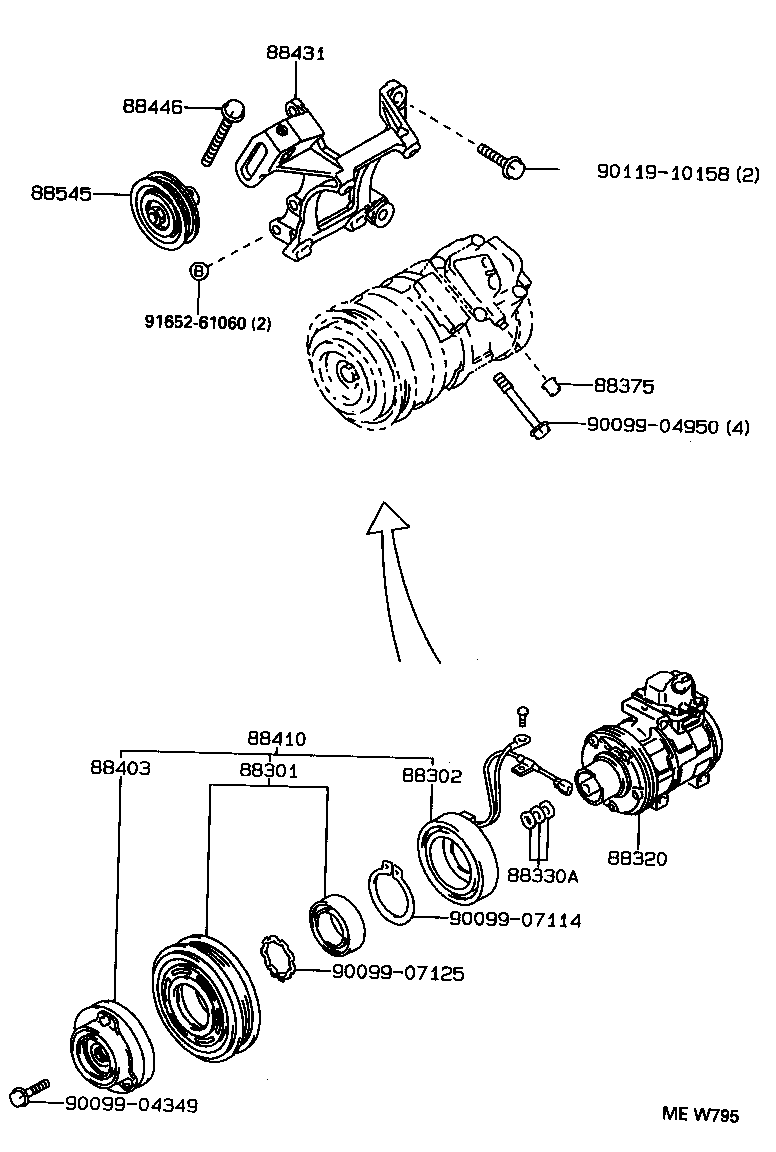

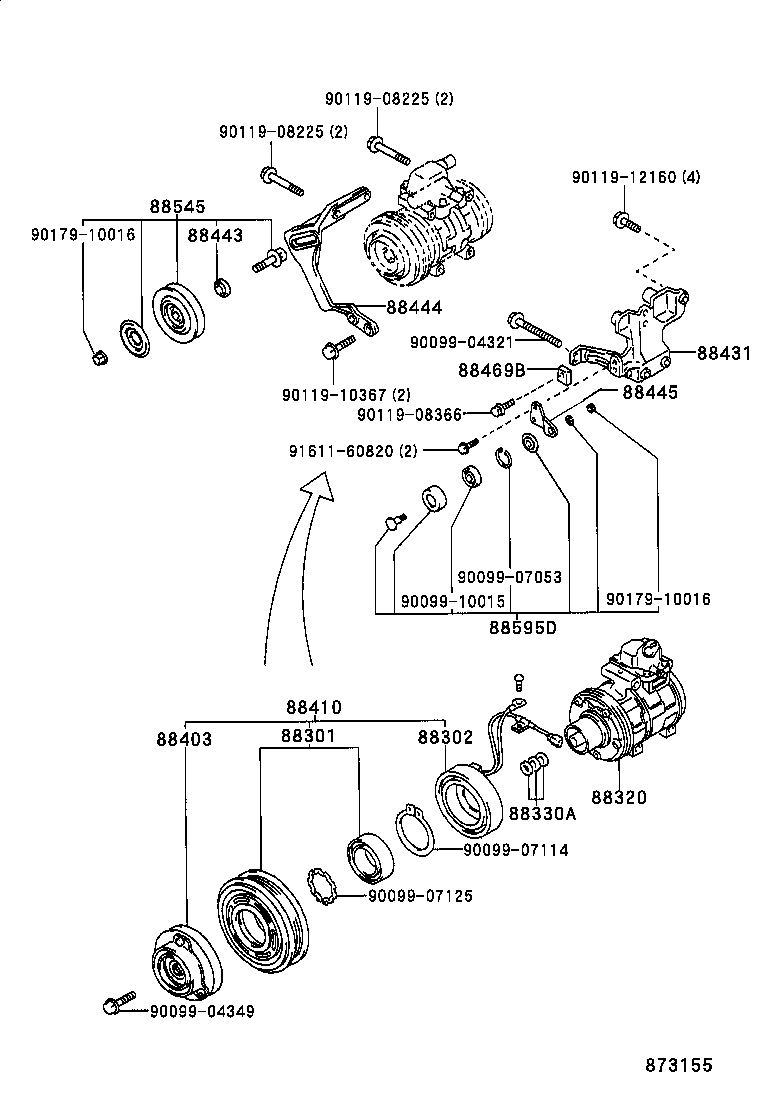

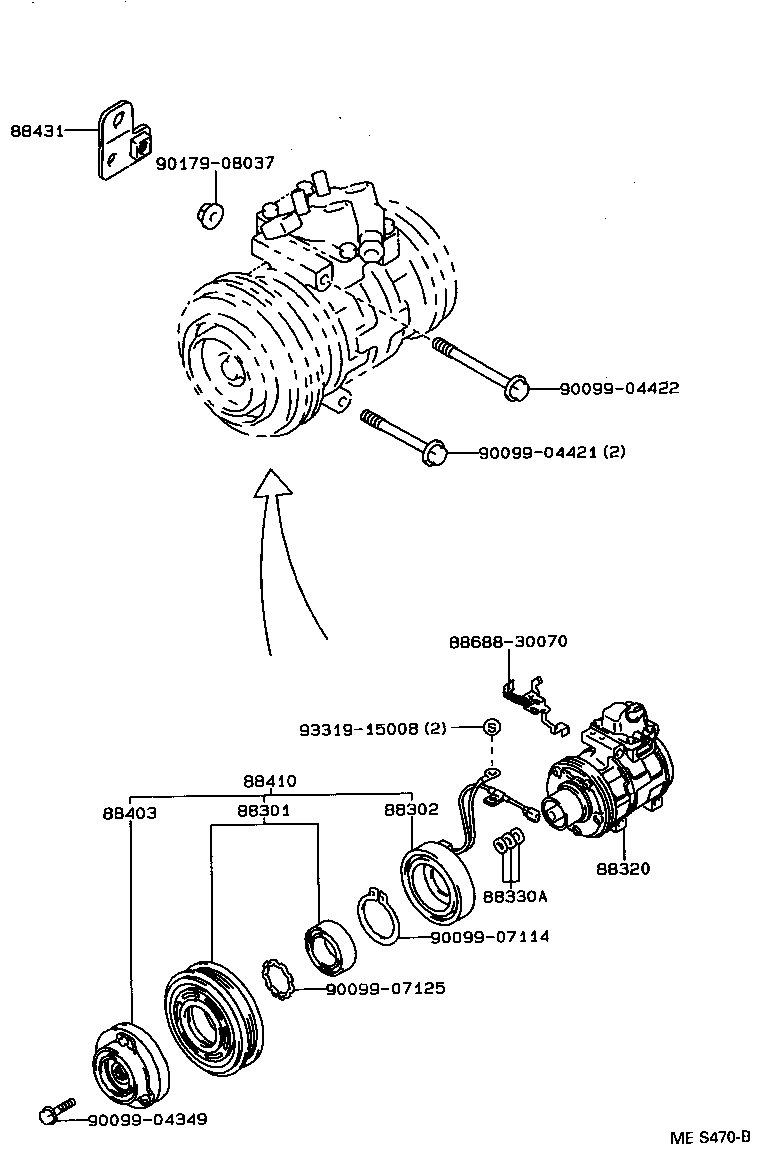

Heating & Air Conditioning - Compressor
15 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 88301 | Rotor Sub-assy, Magnet Clutch |
| 88302 | Stator Sub-assy, Magnet Clutch |
| 88320 | Compressor Assy, Cooler |
| 88330A | Washer (FOR MAGNET CLUTCH) |
| 88375 | Cap, Cooler Compressor Service Valve |
| 88403 | Hub Sub-assy, Magnet Clutch |
| 88410 | Clutch Assy, Magnet |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88443 | Collar, Idle Pulley |
| 88444 | Bracket, Idle Pulley |
| 88445 | Bracket, Idle Pulley |
| 88446 | Bolt, Idle Pulley |
| 88469B | Collar |
| 88545 | Pulley Assy, Idle |
| 88595D | Pulley Assy, Idle |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
