Toyota Crown/Crown Majesta

1995-08 → 2001-08 · chassis GS151,JZS15#,LS151,UZS15# · catalogue 331190 · Japan

Discontinued model Data version 2003-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Disc Wheel & Wheel Cap

8 part groups · 4 illustrations

Illustrations

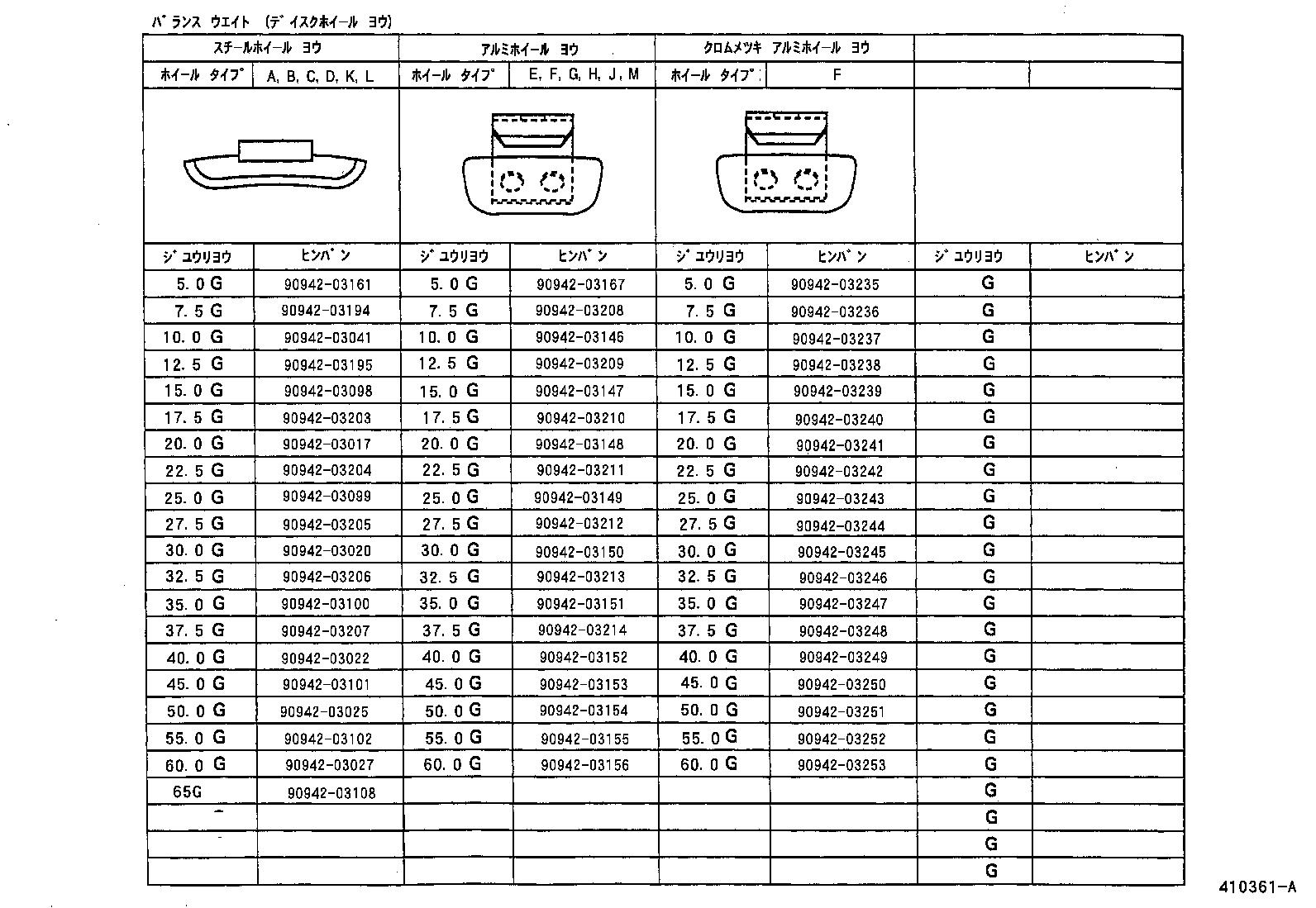

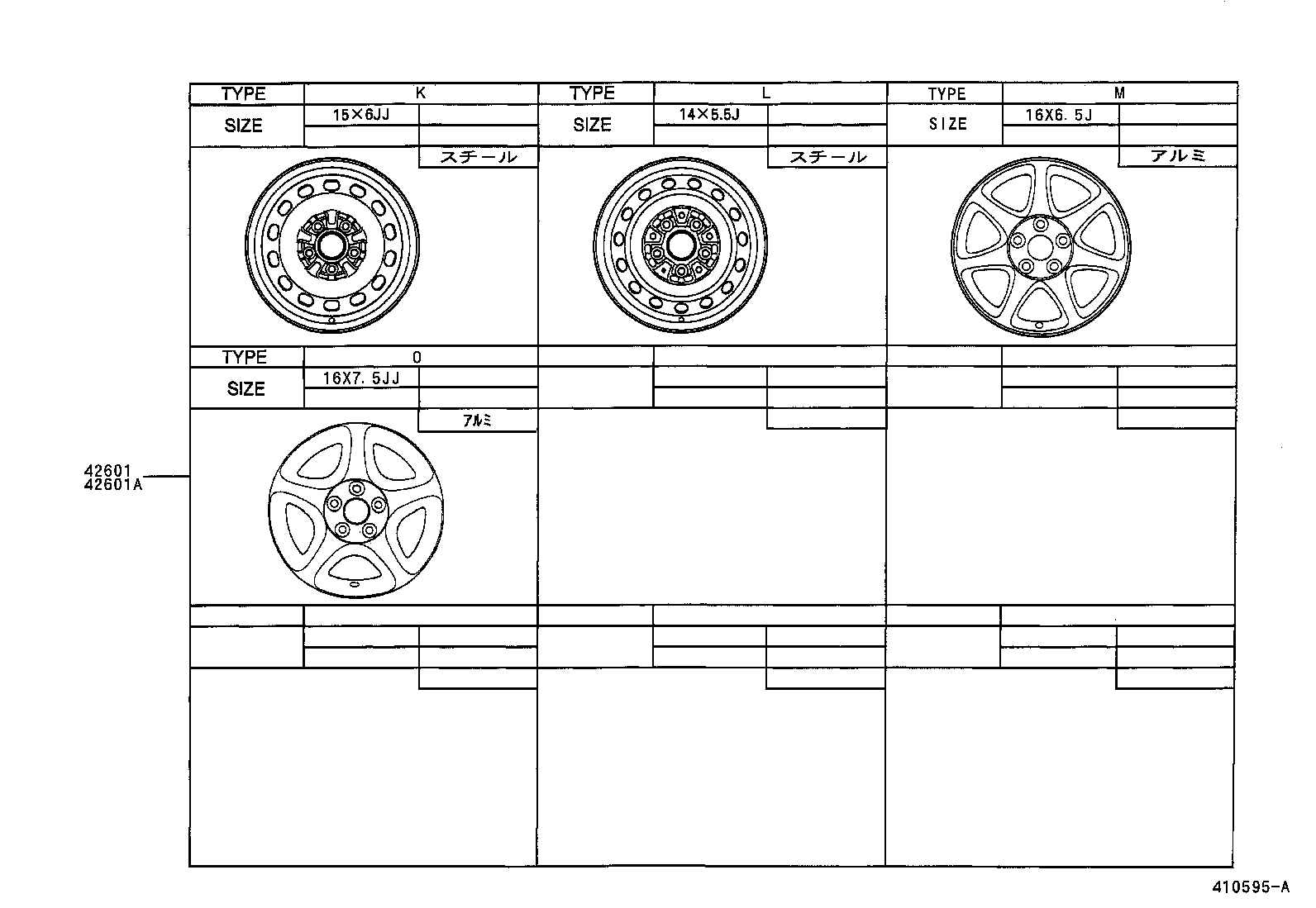

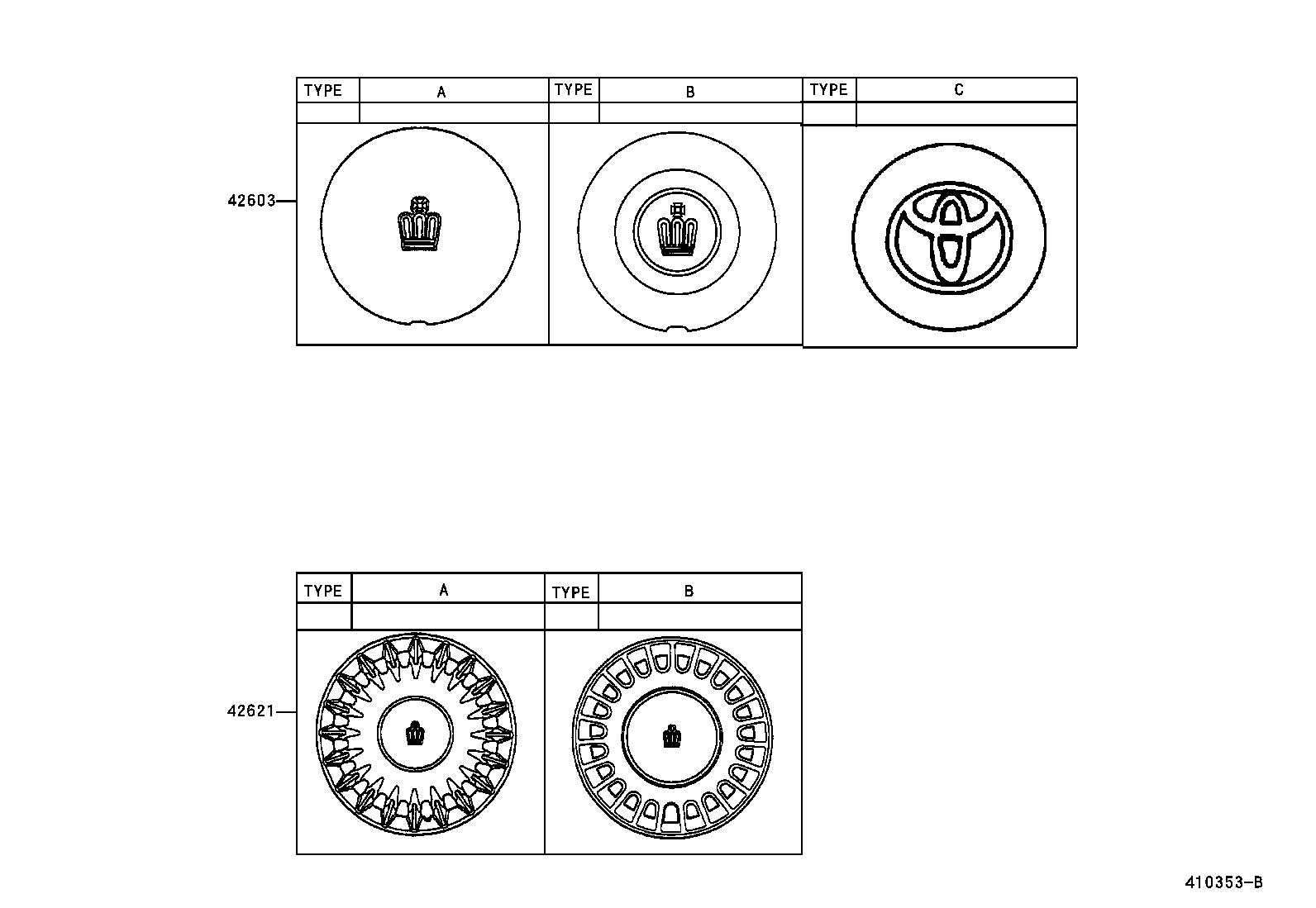

Figure 410351D 410351D 1995-08 → — Figure 410595A 410595A 1995-08 → — Figure 410353B 410353B 1995-08 → — Figure 410361A 410361A 1995-08 → —

Part groups

PNCDescription
42601 Wheel, Disc
42601A Wheel, Disc (FOR SPARE)
42601C Nut, Hub (FOR AXLE)
42603 Ornament Sub-assy, Wheel Hub
42611G Valve (FOR TUBELESS TIRE)
42611J Valve (FOR TUBELESS TIRE SPARE)
42611U Cap, Tire Valve
42621 Cap, Wheel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
