Toyota Crown/Crown Majesta
1995-08 → 2001-08 · chassis GS151,JZS15#,LS151,UZS15# · catalogue 331190 · Japan
Discontinued model
Data version 2003-10

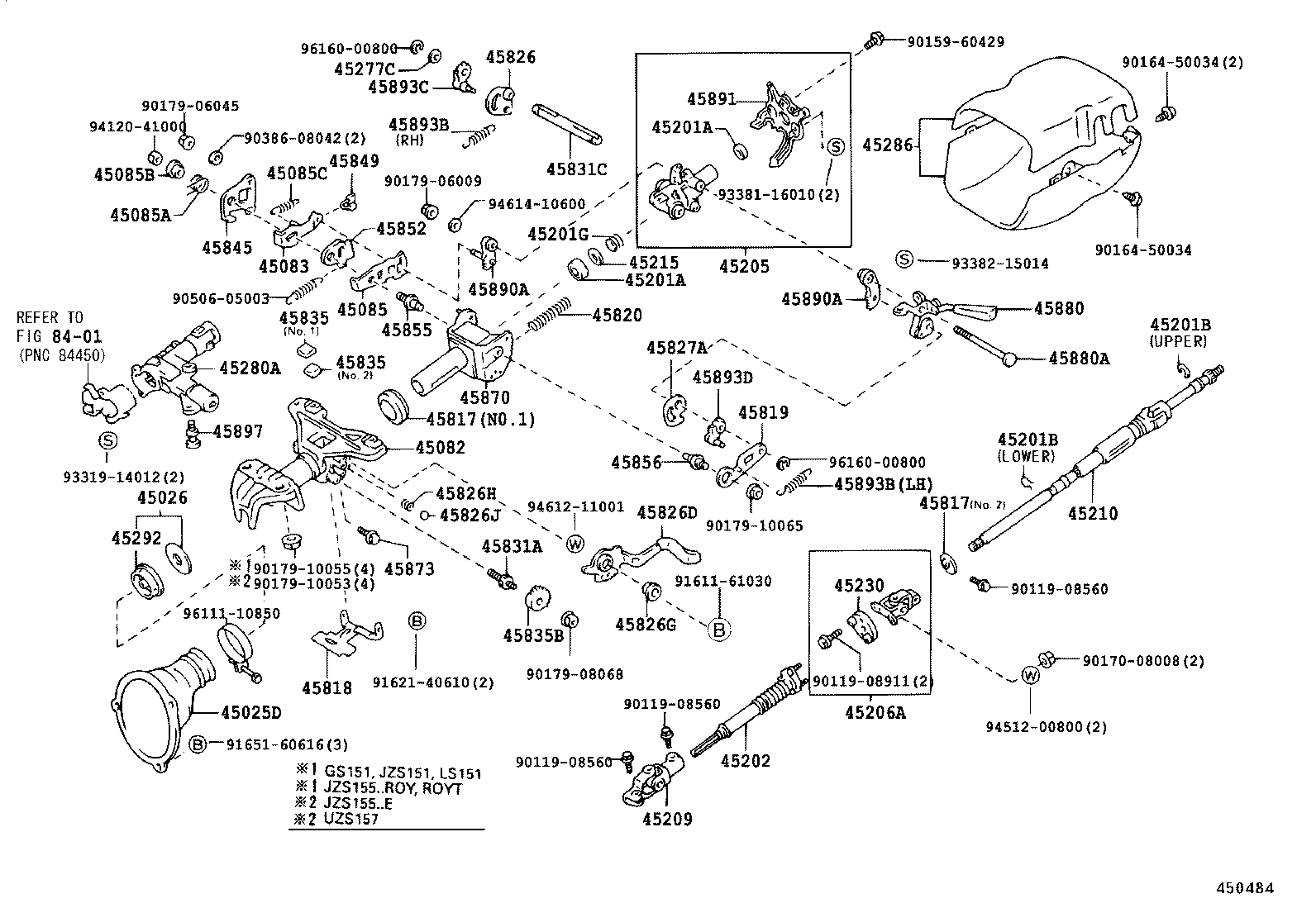

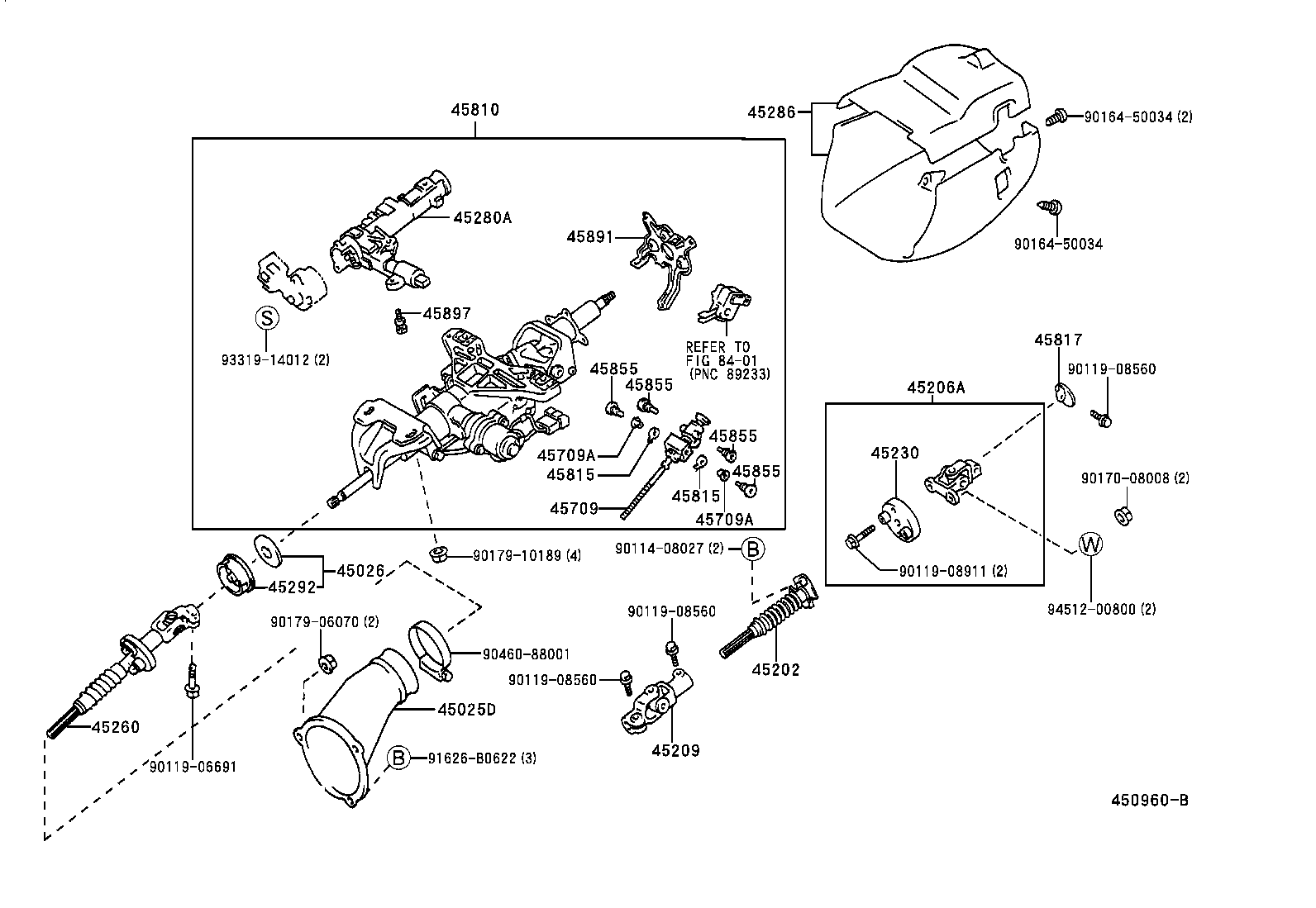

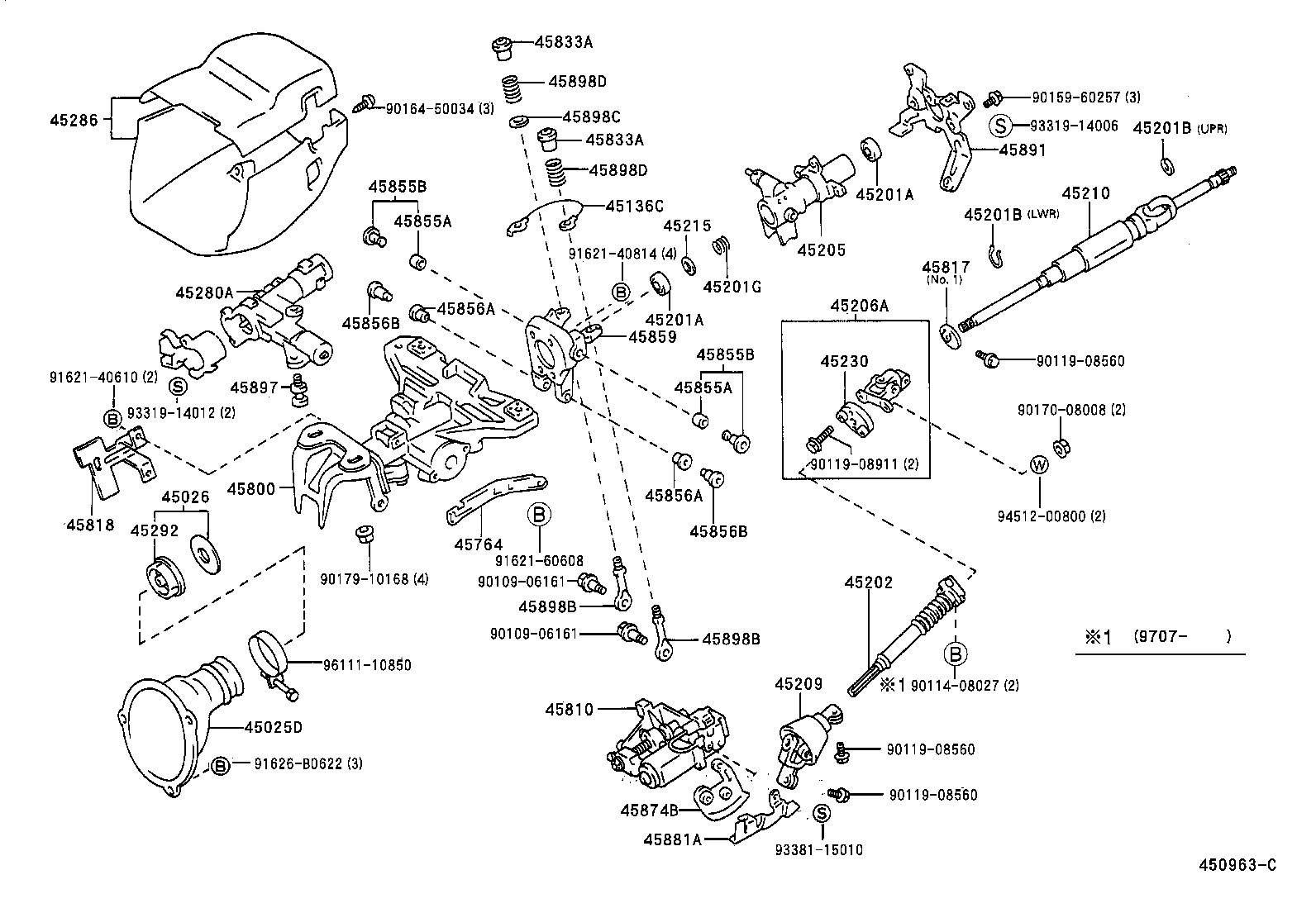

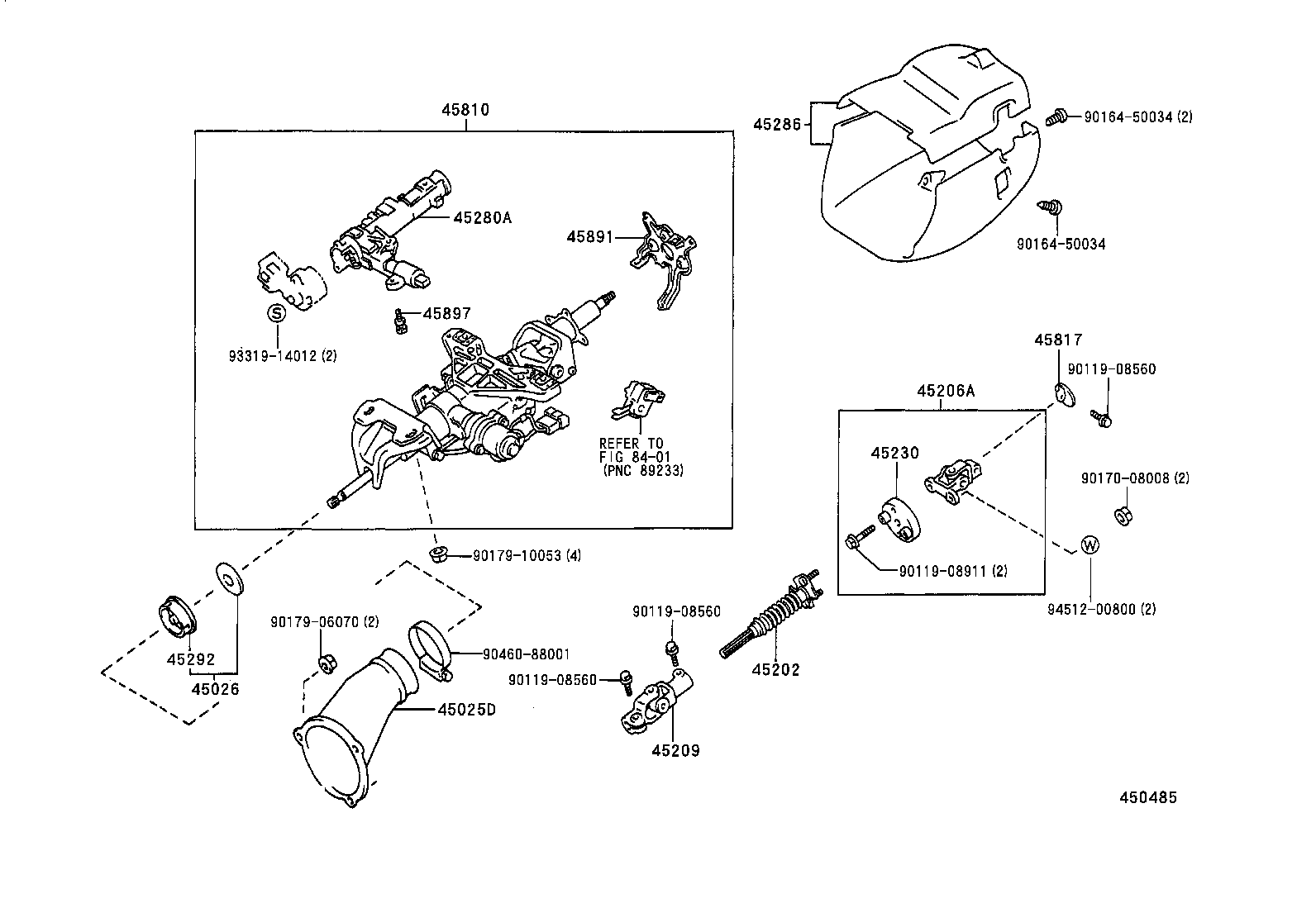

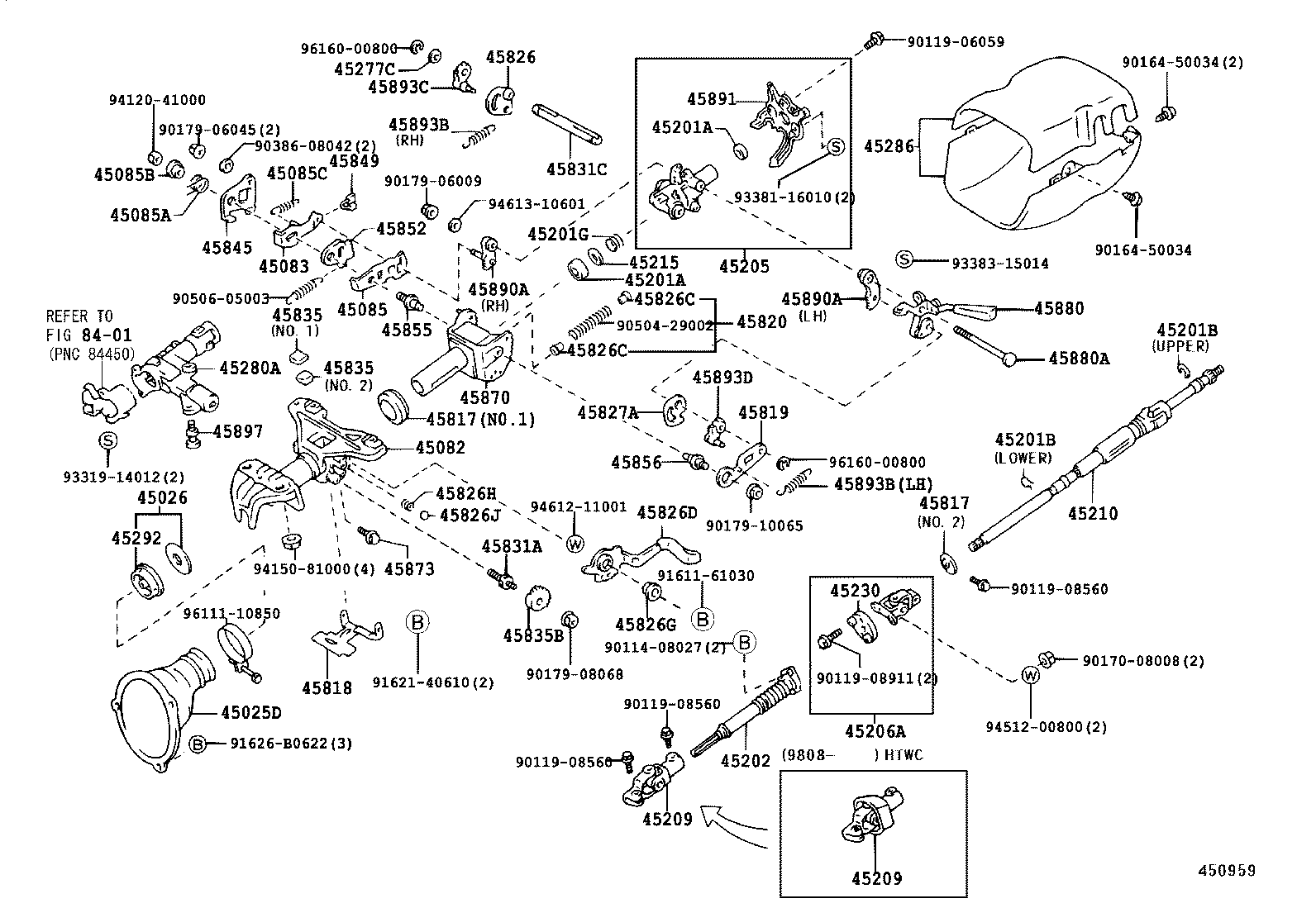

Steering Column & Shaft
75 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 45025D | Cover Sub-assy, Steering Column Hole, NO.1 |
| 45026 | Cover Sub-assy, Steering Column Hole, NO.2 |
| 45082 | Bracket Sub-assy, Break Away W/Capsule |
| 45083 | Plate Sub-assy, Tilt Release Memory |
| 45085 | Plate Sub-assy, Tilt Memory, NO.1 |
| 45085A | Spring, Torsion(FOR TILT MEMORY PLATE SUB-ASSY NO.1) |
| 45085B | Spacer(FOR TILT MEMORY PLATE SUB-ASSY NO.1) |
| 45085C | Spring, Tension(FOR TILT MEMORY PLATE SUB-ASSY NO.1) |
| 45136C | Cable, Bond(FOR HORN EARTH) |
| 45201A | Bearing(FOR STEERING MAIN SHAFT) |
| 45201B | Ring, Shaft Snap(FOR STEERING MAIN SHAFT) |
| 45201G | Spring, Compression(FOR STEERING MAIN SHAFT) |
| 45202 | Shaft Sub-assy, Steering Intermediate |
| 45205 | Tube Sub-assy, Steering Column |
| 45206A | Yoke Sub-assy, Steering Sliding W/Coupling |
| 45209 | Yoke Sub-assy, Steering Sliding |
| 45210 | Shaft Assy, Steering Main |
| 45215 | Collar, Main Shaft Bearing Thrust |
| 45230 | Coupling Assy, Flexible |
| 45260 | Shaft Assy, Steering Intermediate, NO.2 |
| 45271 | Clamp, Steering Column, Upper |
| 45273 | Bush, Steering Main Shaft |
| 45273A | Ring, Hole Snap(FOR STEERING MAIN SHAFT BUSH) |
| 45277C | Spacer(FOR TILT STEERING SUPPORT) |
| 45280A | Bracket Assy, Steering Column, Upper |
| 45286 | Cover, Steering Column |
| 45292 | Seal, Main Shaft Lower Dust |
| 45709 | Slider Sub-assy, Tilt Steering |
| 45709A | Bush(FOR TILT STEERING SLIDER) |
| 45764 | Plate, Telescopic Position Sensor |
| 45800 | Gear Assy, Telescopic Steering, W/Motor |
| 45810 | Gear Assy, Tilt Steering, W/Motor |
| 45815 | Shim, Tilt Steering Support |
| 45817 | Stopper, Steering Shaft Thrust |
| 45818 | Bracket, Connector |
| 45819 | Retainer, Tilt Lever |
| 45820 | Spring Assy, Tilt Steering Support |
| 45826 | Lever, Steering Tilt |
| 45826C | Bush(FOR STEERING TILT LEVER) |
| 45826D | Lever, Steering Telescopic |
| 45826G | Collar(FOR STEERING TELESCOPIC LEVER) |
| 45826H | Spring, Compression(FOR STEERING TELESCOPIC LEVER) |
| 45826J | Ball(FOR STEERING TELESCOPIC LEVER) |
| 45827A | Lever, Steering Tilt Sub |
| 45831A | Bolt, Telescope Lever Lock |
| 45831C | Shaft, Tilt Lever Lock |
| 45833A | Nut, Support Stopper |
| 45835 | Wedge, Lock |
| 45835B | Attachment, Telescopic Lever Serration |
| 45845 | Support, Tilt Memory |
| 45849 | Retainer, Tilt Adjuster Memory Spring |
| 45852 | Plate, Tilt Memory, NO.2 |
| 45855 | Bolt, Tilt Steering, NO.1 |
| 45855A | Bush(FOR TILT STEERING BOLT NO.1) |
| 45855B | Shaft, T1LT Steering, NO.1 |
| 45856 | Bolt, Tilt Steering, NO.2 |
| 45856A | Bush(FOR TILT STEERING BOLT NO.2) |
| 45856B | Shaft, T1LT Steering, NO.2 |
| 45859 | Support, Tilt Steering Housing |
| 45865 | Collar, Steering Main Shaft |
| 45870 | Tube Assy, Steering Column |
| 45873 | Stopper, Steering Column Tube |
| 45874B | Protector, Steering Column, NO.1 |
| 45880 | Lever Assy, Steering Tilt |
| 45880A | Bolt(FOR STEERING TILT LEVER) |
| 45881A | Protector, Steering Column, NO.2 |
| 45890A | Pawl Assy, Tilt Steering |
| 45891 | Bracket, Turn Signal |
| 45893B | Spring, Tension(FOR TILT STEERING PAWL STOPPER) |
| 45893C | Stopper, Steering Pawl, RH |
| 45893D | Stopper, Steering Pawl, LH |
| 45897 | Bolt, Steering Lock Set |
| 45898B | Bolt, Tilt Steering Support Stopper |
| 45898C | Spacer(FOR TILT STEERING SUPPORT STOPPER BOLT) |
| 45898D | Spring(FOR TILT STEERING SUPPORT STOPPER BOLT) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
