Toyota Crown/Crown Majesta
1995-08 → 2001-08 · chassis GS151,JZS15#,LS151,UZS15# · catalogue 331190 · Japan
Discontinued model
Data version 2003-10

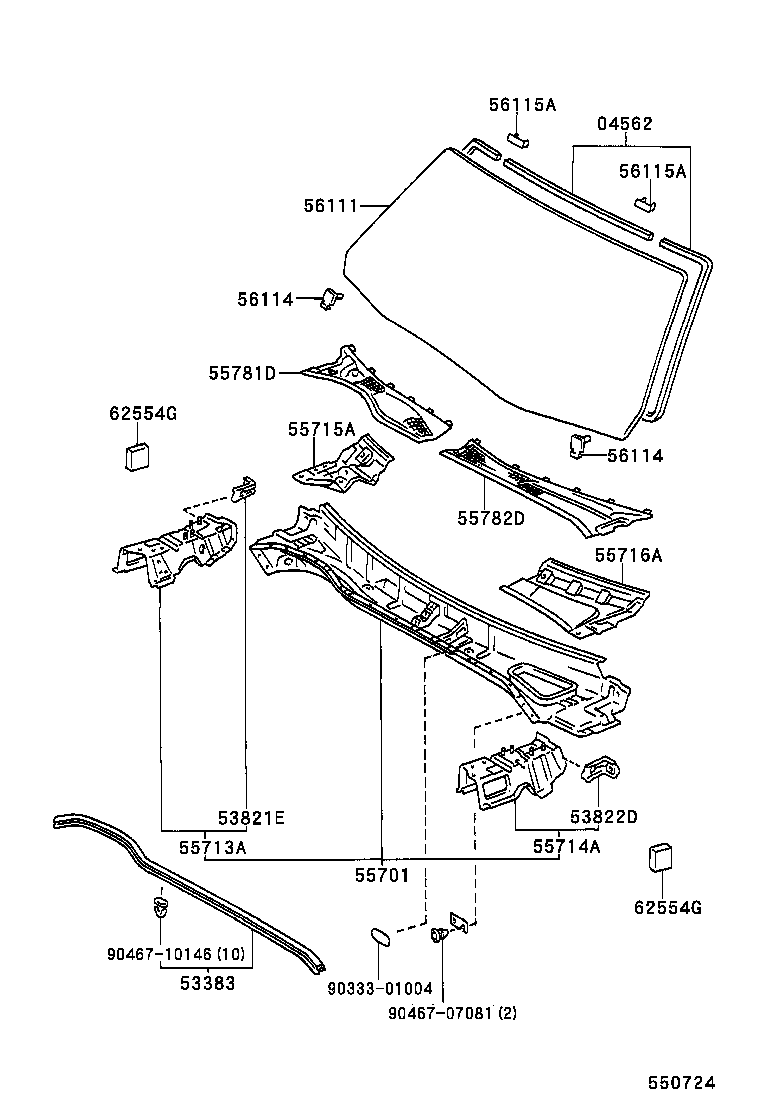

Cowl Panel & Windshield Glass
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04562 | Dam Kit, Windshield Glass |
| 53383 | Seal, Hood TO Cowl Top |
| 53821E | Bracket, Front Fender, Rear RH |
| 53822D | Bracket, Front Fender, Rear LH |
| 55701 | Panel Sub-assy, Cowl |
| 55713A | Panel, Cowl Top Side, RH |
| 55714A | Panel, Cowl Top Side, LH |
| 55715A | Brace, Cowl Top TO Apron, RH |
| 55716A | Brace, Cowl Top TO Apron, LH |
| 55781D | Louver, Cowl Top Ventilator, RH |
| 55782D | Louver, Cowl Top Ventilator, LH |
| 56111 | Glass, Windshield |
| 56114 | Retainer, Windshield Glass |
| 56115A | Stopper, Windshield Glass, NO.1 |
| 62554G | Pad, Pillar, NO.4 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
