Toyota Crown/Crown Majesta
1995-08 → 2001-08 · chassis GS151,JZS15#,LS151,UZS15# · catalogue 331190 · Japan
Discontinued model
Data version 2003-10

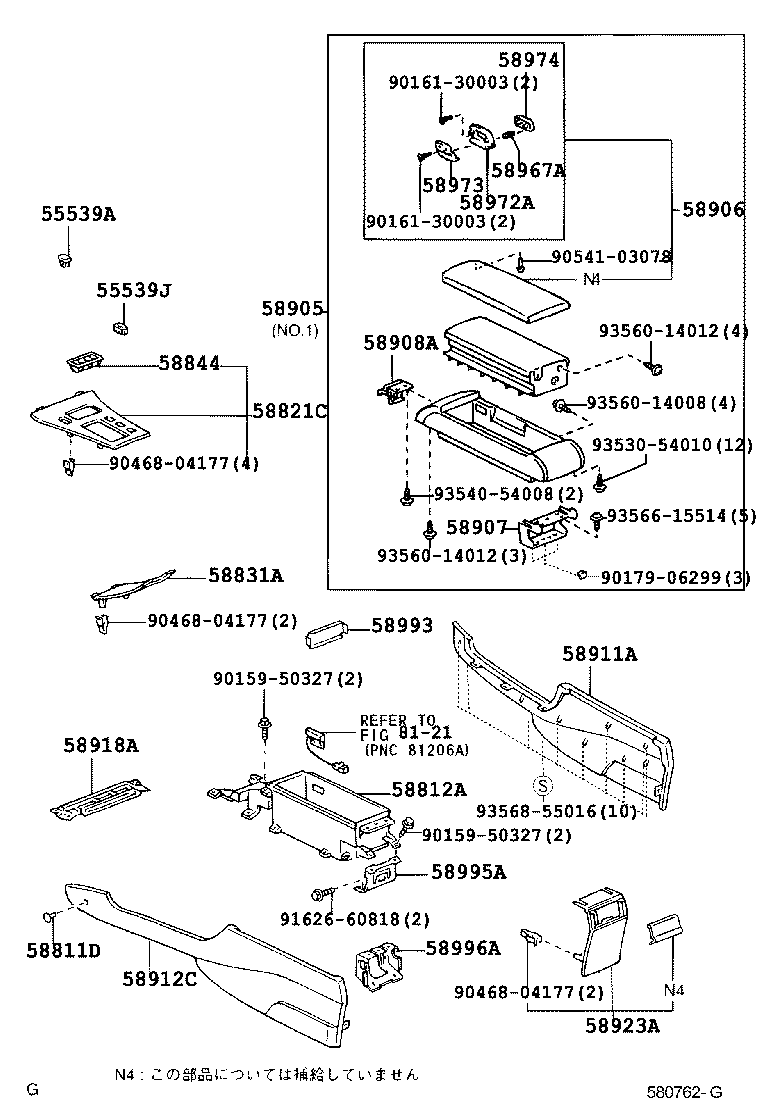

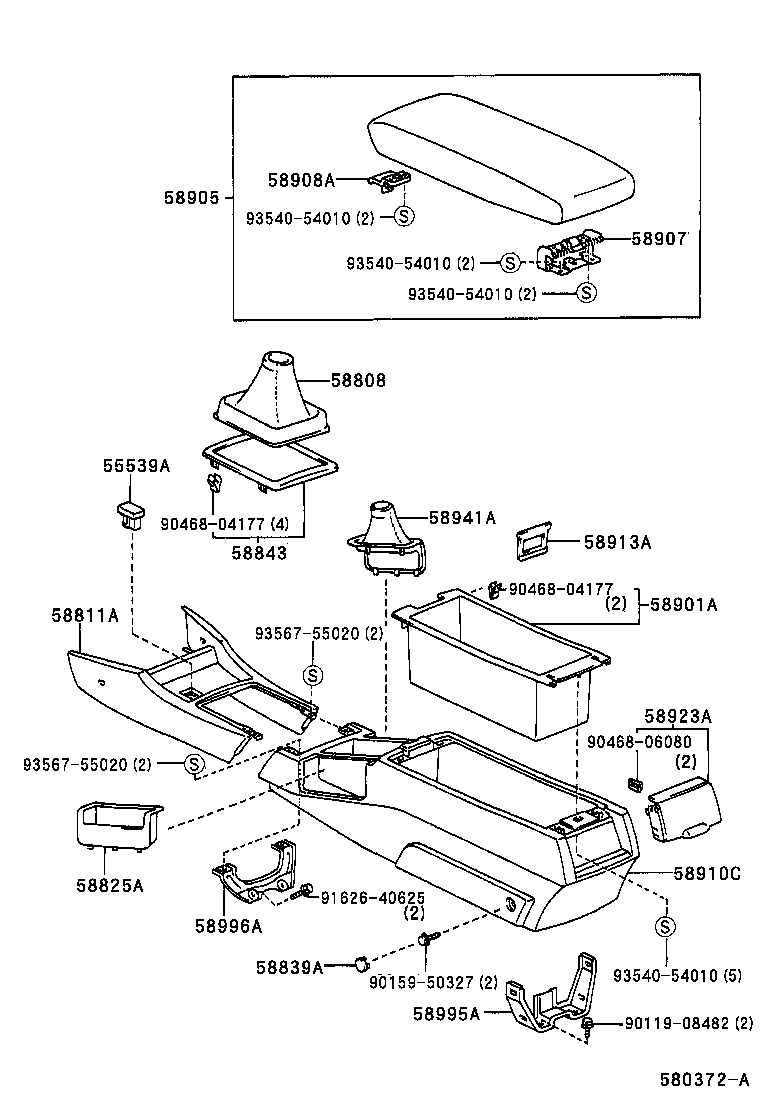

Console Box & Bracket
37 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55539A | Cover, Spare Switch Hole |
| 55539J | Cover, Spare Switch Hole |
| 55539K | Cover, Spare Switch Hole |
| 58808 | Cover Sub-assy, Shifting Hole |
| 58811A | Box, Console, Front |
| 58811B | Box, Console |
| 58811D | Clip(FOR CONSOLE BOX) |
| 58812A | Box, Console, Lower |
| 58816B | Insert, Console Box |
| 58821C | Panel, Console, Upper |
| 58825A | Pocket, Console Box |
| 58831A | Garnish, Console Upper Panel, Front |
| 58839A | Cover, Console Box Hole |
| 58843 | Bezel, Shifting Hole |
| 58844 | Bezel, Console Box |
| 58901A | Box Sub-assy, Console, Rear |
| 58905 | Door Sub-assy, Console Compartment |
| 58906 | Door Sub-assy, Upper Console |
| 58907 | Hinge Sub-assy, Console Compartment Door |
| 58908A | Lock Sub-assy, Console Compartment Door |
| 58910C | Box Assy, Console, Rear |
| 58911A | Panel, Box Side, NO.1 |
| 58912C | Panel, Box Side, NO.2 |
| 58913A | Panel, Box, NO.3 |
| 58915 | Panel, Box Bottom |
| 58918A | Bracket, Box Support |
| 58923A | Panel, Console Rear End |
| 58941A | Cover, Parking Brake Hole |
| 58967A | Spring, Console Door Stopper |
| 58972A | Base, Console Compartment Door Lock |
| 58973 | Pin, Console Compartment Door Lock |
| 58974 | Plate, Console Compartment Door Lock |
| 58993 | Bracket, Console Box Mounting, Rear |
| 58995A | Bracket, Console Box Mounting, NO.1 |
| 58996A | Bracket, Console Box Mounting, NO.2 |
| 58997 | Bracket, Console Box Mounting, NO.3 |
| 87511B | Plate, Seat Heater Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
