Toyota Crown/Crown Majesta

1995-08 → 2001-08 · chassis GS151,JZS15#,LS151,UZS15# · catalogue 331190 · Japan

Discontinued model Data version 2003-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Member

87 part groups · 7 illustrations

Illustrations

614603 1995-08 → —

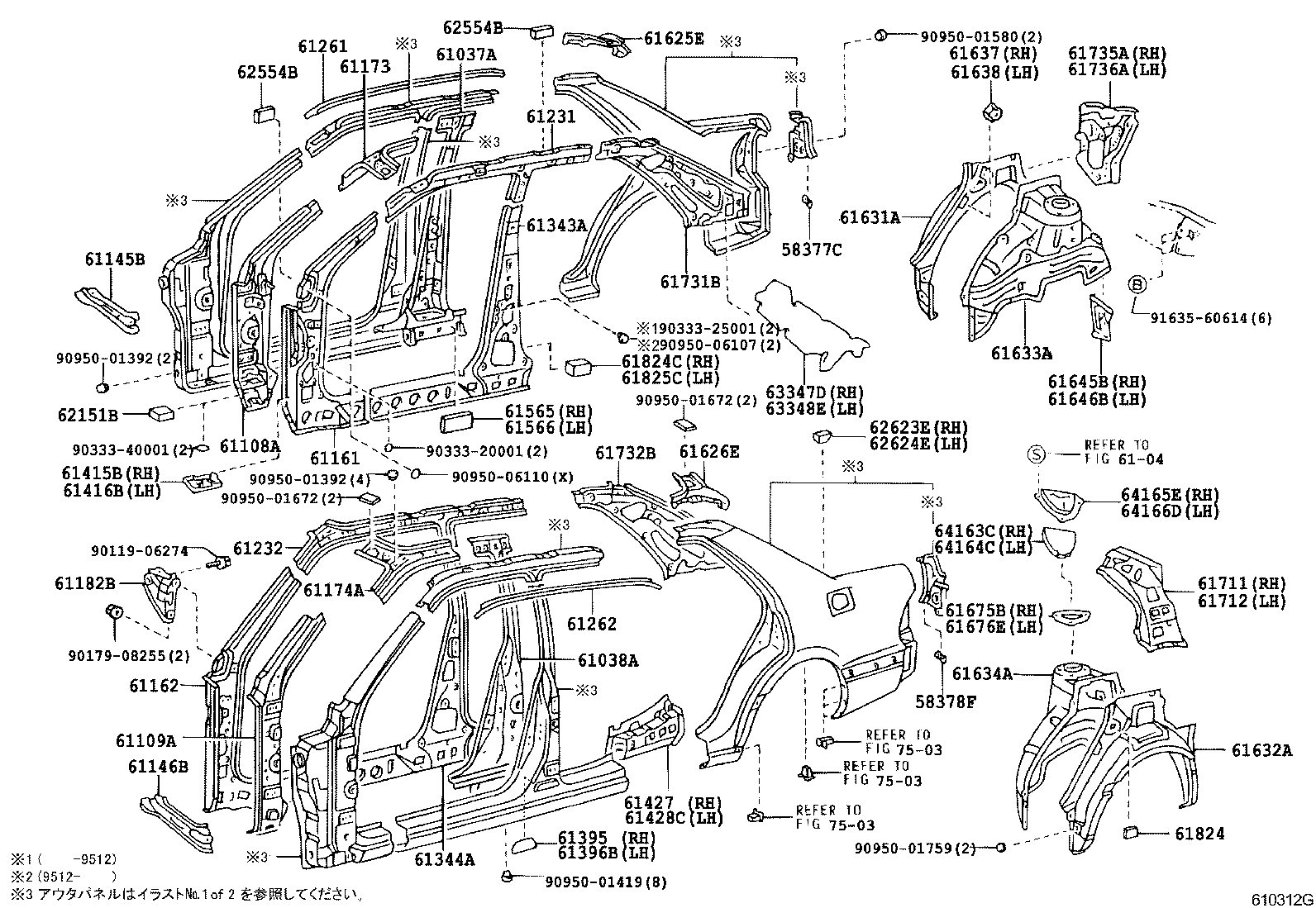

610312G 1995-08 → 1997-07

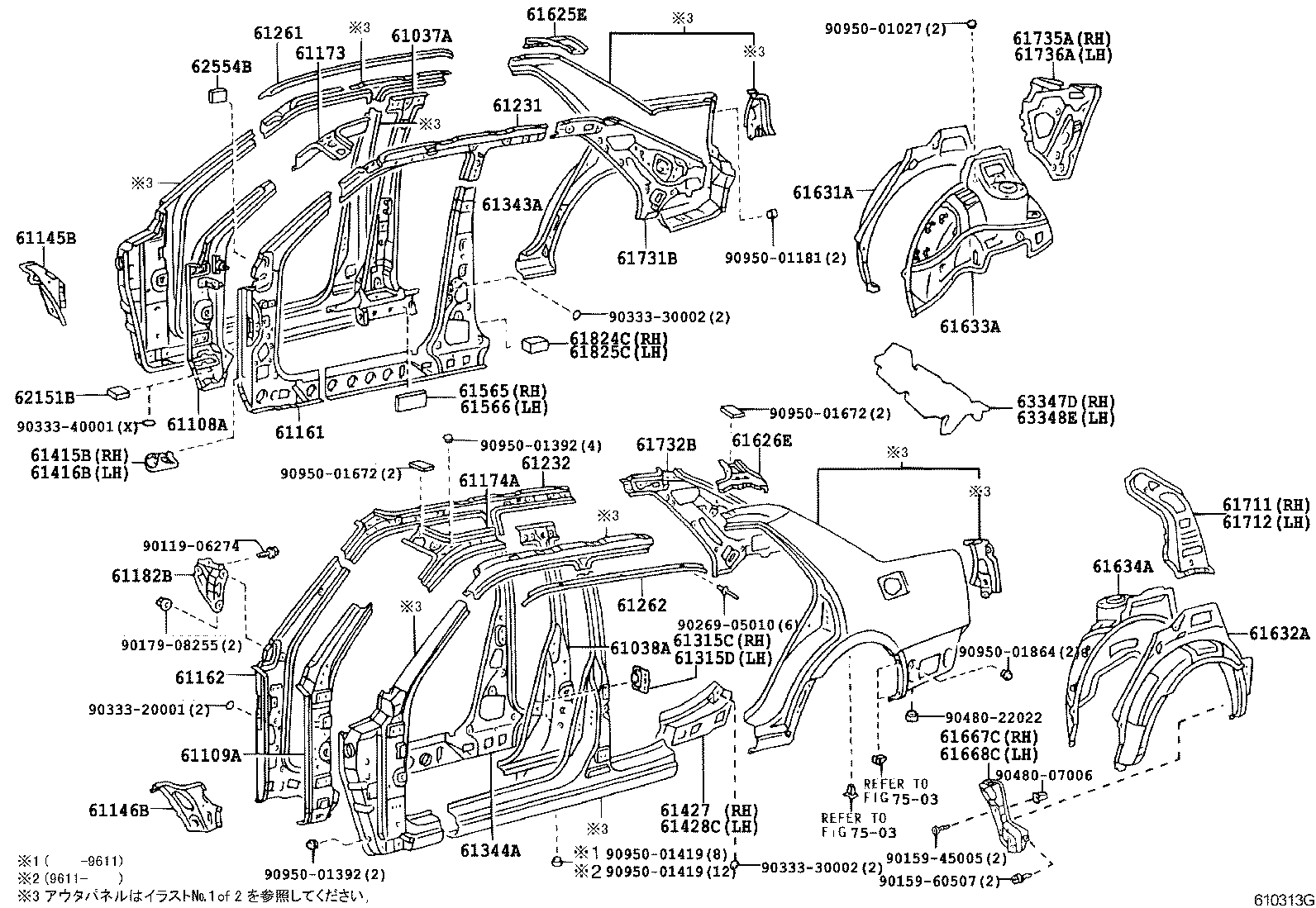

610313G 1995-08 → 1997-07

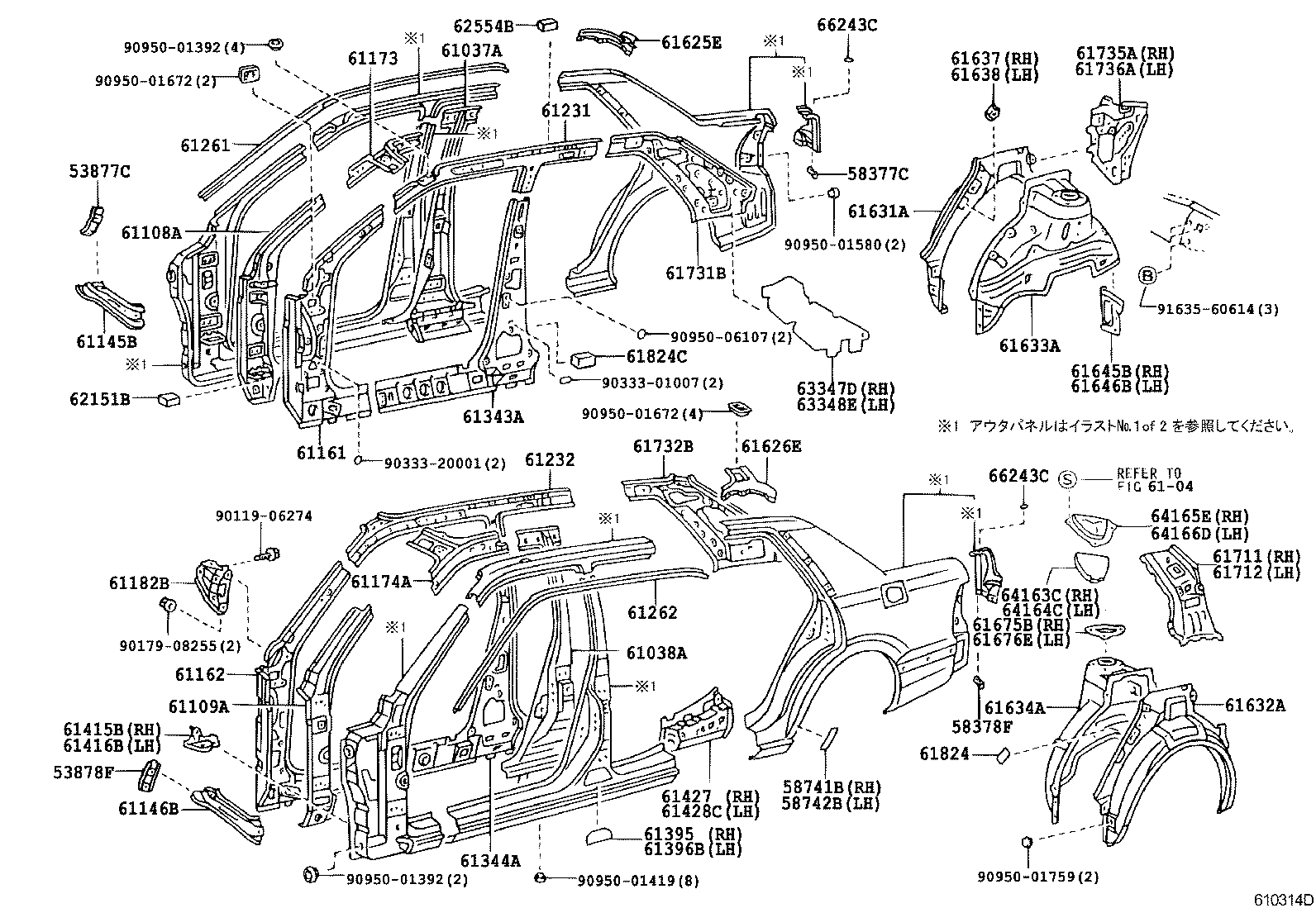

610314D 1995-12 → 1997-07

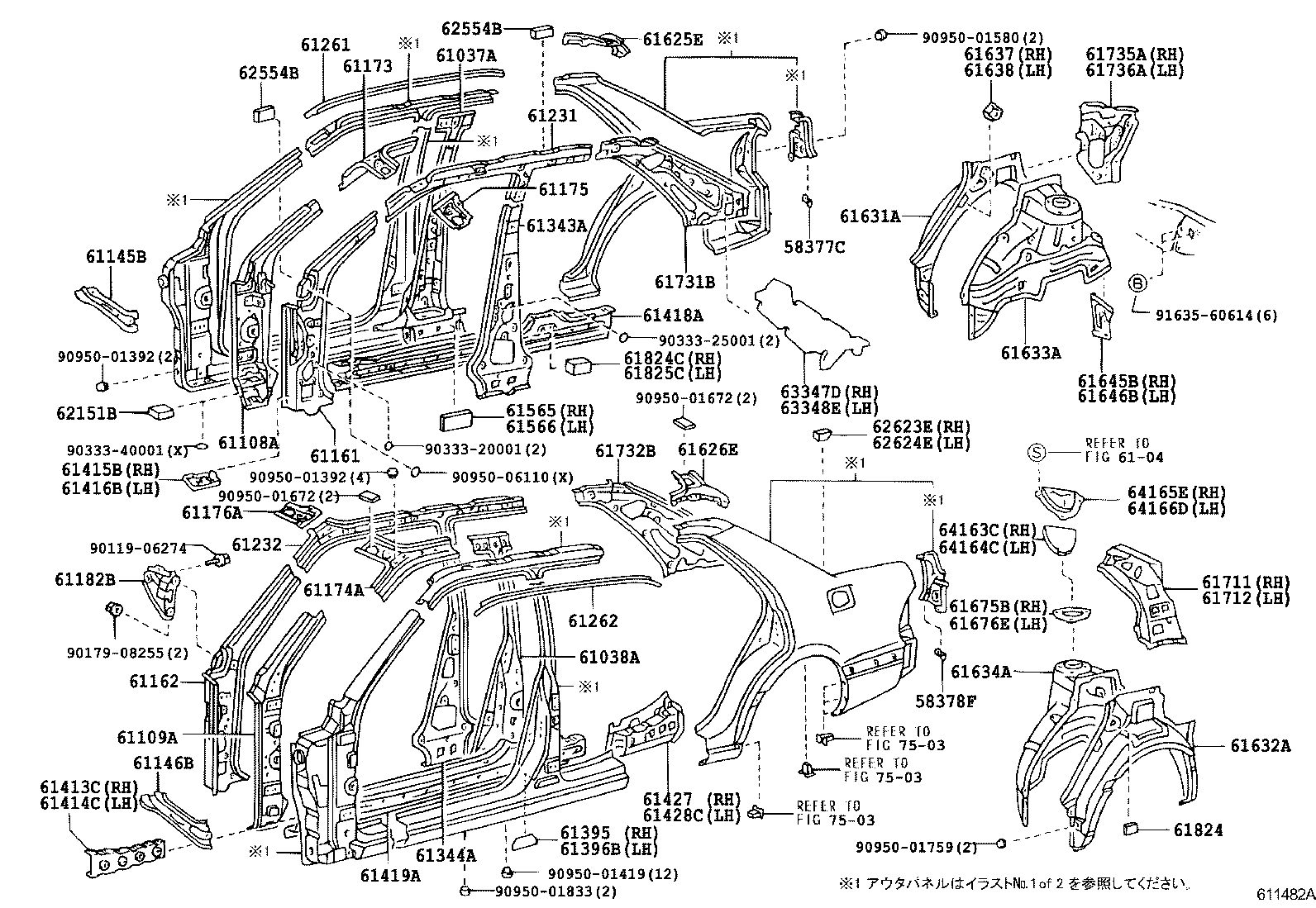

611482A 1997-07 → —

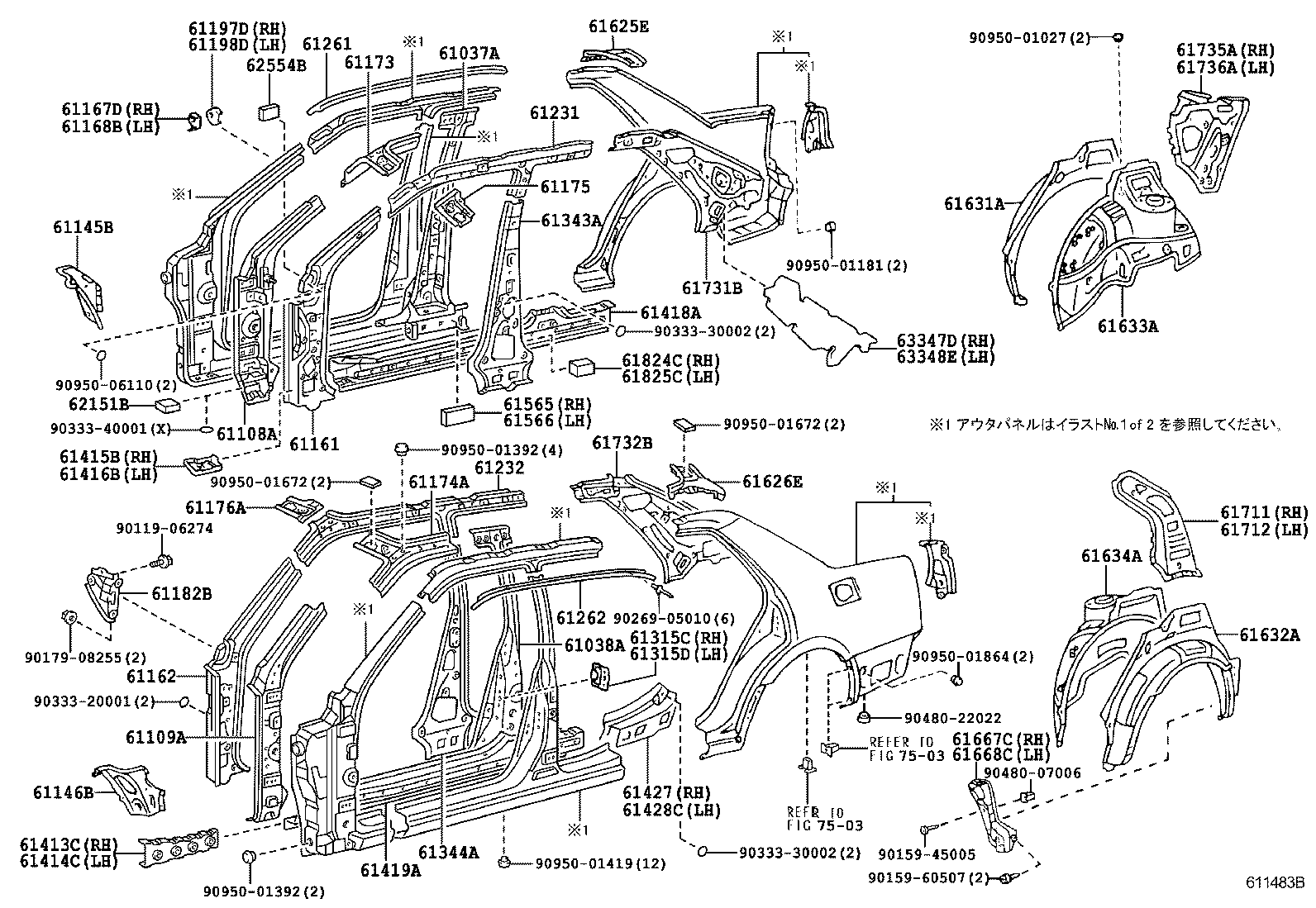

611483B 1997-07 → —

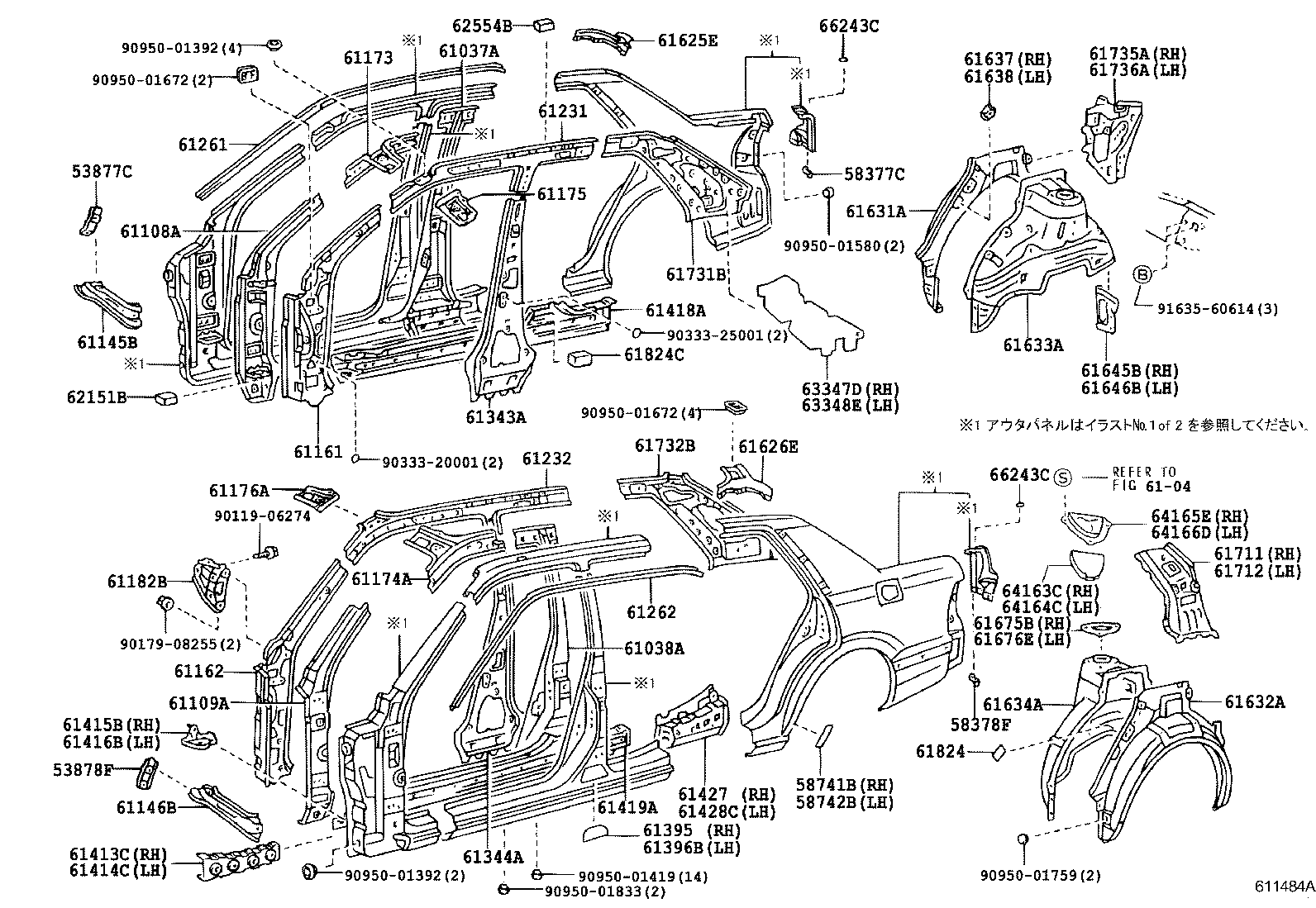

611484A 1997-07 → —

Part groups

PNC	Description
53877C	Bracket, Front Fender Liner, RH
53878F	Bracket, Front Fender Liner, LH
58377C	Retainer, Lower Back Trim, RH
58378F	Retainer, Lower Back Trim, LH
58741B	Protector, Quarter Panel, RH
58742B	Protector, Quarter Panel, LH
61037A	Reinforcement Sub-assy, Center Body Pillar, RH
61038A	Reinforcement Sub-assy, Center Body Pillar, LH
61108A	Reinforce Sub-assy, Front Body Pillar, Lower RH
61109A	Reinforce Sub-assy, Front Body Pillar, Lower LH
61131	Pillar, Front Body, Upper Outer RH
61132	Pillar, Front Body, Upper Outer LH
61145B	Gusset, Front Body Pillar, Lower RH
61146B	Gusset, Front Body Pillar, Lower LH
61161	Pillar, Front Body, Upper Inner RH
61162	Pillar, Front Body, Upper Inner LH
61167D	Brace, Front Body Pillar, Inner RH
61168B	Brace, Front Body Pillar, Inner LH
61173	Reinforcement, Front Body Pillar, Upper Inner
61174A	Reinforcement, Front Body Pillar, Upper Inner LH
61175	Reinforcement, Front Body Pillar, Inner NO.2 RH
61176A	Reinforcement, Front Body Pillar, Inner NO.2 LH
61182B	Bracket, Instrument Panel Side, NO.1 LH
61197D	Plate, Front Body Pillar, RH
61198D	Plate, Front Body Pillar, LH
61211	Rail, Roof Side, Outer RH
61212	Rail, Roof Side, Outer LH
61231	Rail, Roof Side, Inner RH
61232	Rail, Roof Side, Inner LH
61261	Channel, Roof Drip, RH
61262	Channel, Roof Drip, LH
61311B	Pillar, Center Body, Outer RH
61312B	Pillar, Center Body, Outer LH
61315C	Retainer, Door Lock Striker, RH
61315D	Retainer, Door Lock Striker, LH
61343A	Pillar, Center Body, Inner RH
61344A	Pillar, Center Body, Inner LH
61395	Seal, Center Body Pillar, RH
61396B	Seal, Center Body Pillar, LH
61413C	Reinforcement, Rocker Panel, NO.2 RH
61414C	Reinforcement, Rocker Panel, NO.2 LH
61415B	Extension, Rocker, Outer RH
61416B	Extension, Rocker, Outer LH
61418A	Reinforcement, Rocker Panel, RH
61419A	Reinforcement, Rocker Panel, LH
61427	Reinforcement, Rocker Panel, NO.5 RH
61428C	Reinforcement, Rocker Panel, NO.5 LH
61565	Plate, NO.5 Pillar, Outer RH
61566	Plate, NO.5 Pillar, Outer LH
61611	Panel, Quarter, RH
61612	Panel, Quarter, LH
61621C	Trough, Luggage Compartment Opening, RH
61622C	Trough, Luggage Compartment Opening, LH
61625E	Extension, Quarter Panel, Inner Rear RH
61626E	Extension, Quarter Panel, Inner Rear LH
61631A	Panel, Quarter Wheel House, Outer RH
61632A	Panel, Quarter Wheel House, Outer LH
61633A	Panel, Quarter Wheel House, Inner RH
61634A	Panel, Quarter Wheel House, Inner LH
61637	Brace, Quarter Wheel House, RH
61638	Brace, Quarter Wheel House, LH
61645B	Gusset, Quarter Wheel House, Rear RH
61646B	Gusset, Quarter Wheel House, Rear LH
61667C	Seal, Qaurter Panel, NO.1
61668C	Seal, Quarter Panel, NO.2
61675B	Reinforcement, Rear Suspension Spring Support
61676E	Reinforcement, Rear Suspension Spring Support
61711	Panel, Roof Side, Outer RH
61712	Panel, Roof Side, Outer LH
61731B	Panel, Roof Side, Inner RH
61732B	Panel, Roof Side, Inner LH
61735A	Panel, Roof Side, Inner Rear RH
61736A	Panel, Roof Side, Inner Rear LH
61824	Plate, Noise Control, NO.1
61824C	Pad, Noise Shutter, NO.1
61825C	Pad, Noise Shutter, NO.2
62151B	Pad, Cowl Side Silencer
62554B	Pad, Pillar, NO.4
62623E	Pad, Quarter Wheel House, Inner Rear RH
62624E	Pad, Quarter Wheel House, Inner Rear LH
63347D	Pad, Roof Side Rail Silencer, RH
63348E	Pad, Roof Side Rail Silencer, LH
64163C	Cover, Back Corner, RH
64164C	Cover, Back Corner, LH
64165E	Cover, Upper Back Panel Hole, NO.1
64166D	Cover, Upper Back Panel Hole, NO.2
66243C	Protector, Rear Body, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
