Factory parts data · Europe

Toyota Crown/Crown Majesta

1995-08 → 2001-08 · chassis GS151,JZS15#,LS151,UZS15# · catalogue 331190 · Japan

Discontinued model Data version 2003-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Side Ventilator

3 part groups · 2 illustrations

Illustrations

610321 1995-08 → —

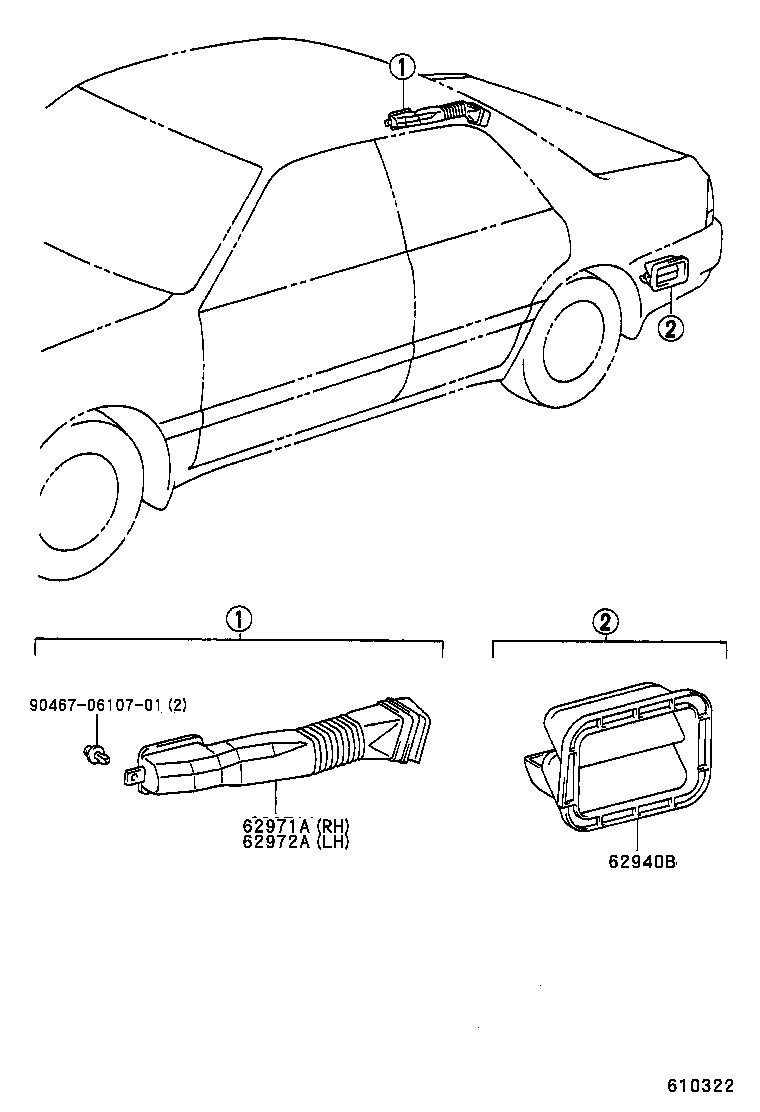

610322 1995-08 → —

Part groups

PNC	Description
62940B	Duct Assy, Quarter Vent, LH
62971A	Duct, Roof Side Air, NO.1 RH
62972A	Duct, Roof Side Air, NO.1 LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
