Toyota Crown/Crown Majesta

1995-08 → 2001-08 · chassis GS151,JZS15#,LS151,UZS15# · catalogue 331190 · Japan

Discontinued model Data version 2003-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Luggage Compartment Door & Lock

15 part groups · 3 illustrations

Illustrations

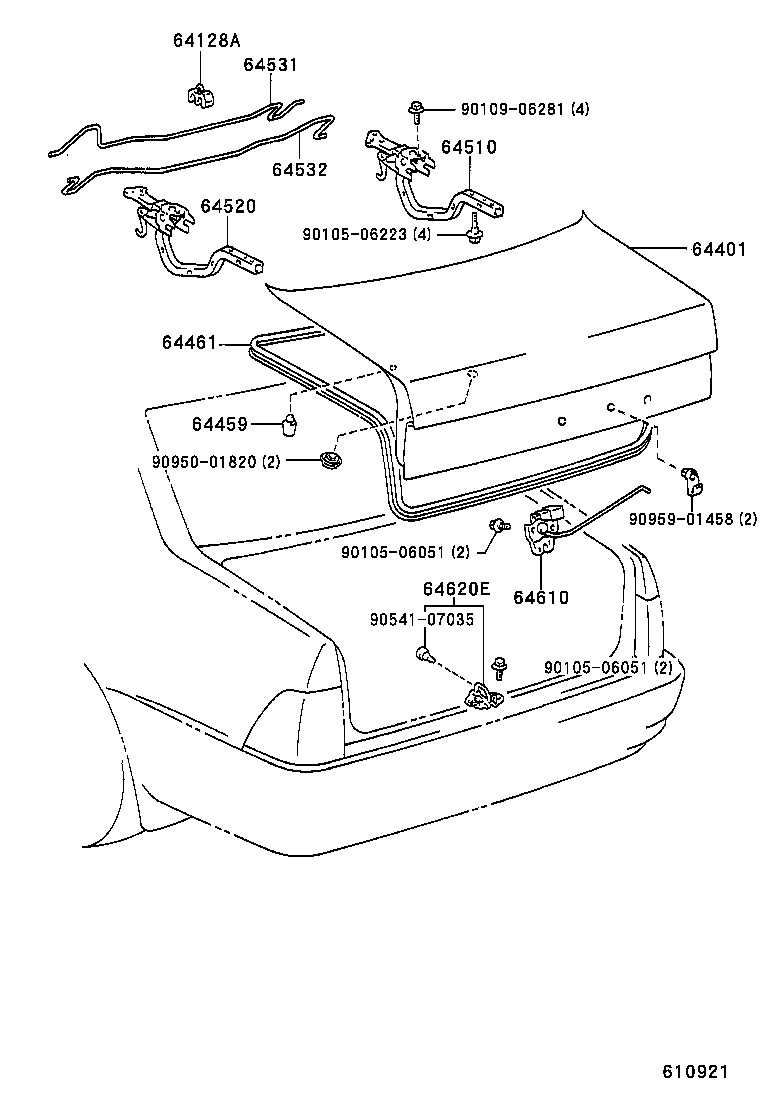

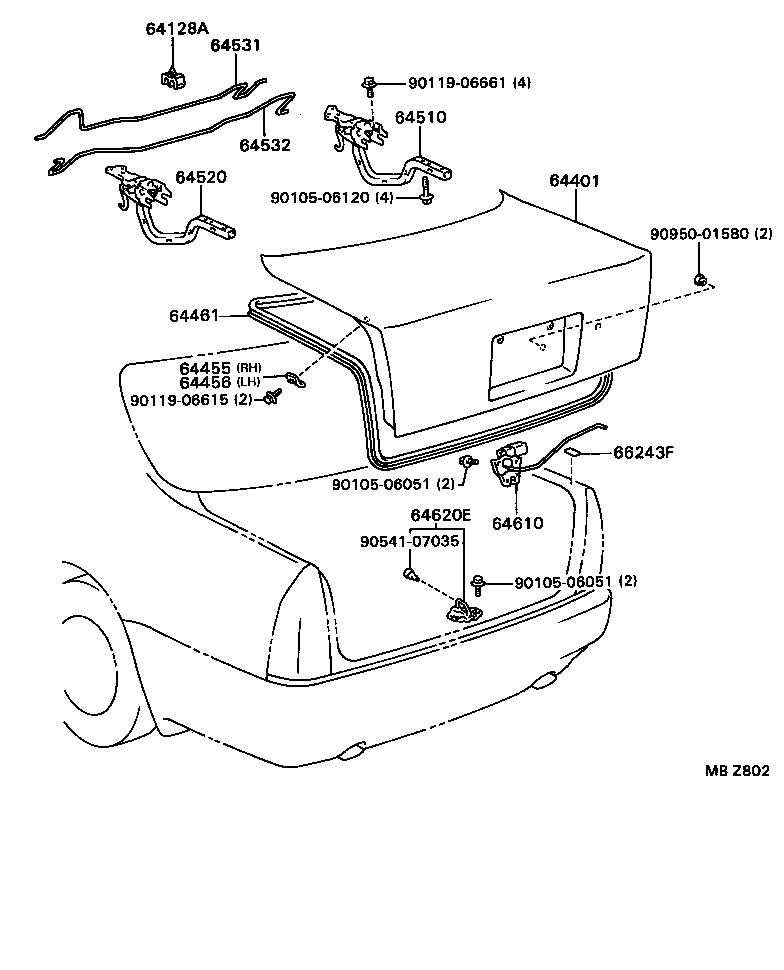

Figure 610757C 610757C 1995-08 → — Figure MBZ802 MBZ802 1995-08 → — Figure 610921 610921 1995-12 → —

Part groups

PNCDescription
64128A Support, Luggage Compartment Door Torsion Bar, NO.2
64401 Panel Sub-assy, Luggage Compartment Door
64455 Cushion, Luggage Compartment Door Side, RH
64456 Cushion, Luggage Compartment Door Side, LH
64459 Cushion, Luggage Compartment Door
64461 Weatherstrip, Luggage Compartment Door
64510 Hinge Assy, Luggage Compartment Door, RH
64520 Hinge Assy, Luggage Compartment Door, LH
64531 Bar, Luggage Door Hinge Torsion, RH
64532 Bar, Luggage Door Hinge Torsion, LH
64571B Cover, Luggage Compartment Door Hinge, RH
64572 Cover, Luggage Compartment Door Hinge, LH
64610 Lock Assy, Luggage Compartment Door
64620E Striker Assy, Luggage Compartment Door
66243F Protector, Rear Body, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
