Toyota Crown/Crown Majesta
1995-08 → 2001-08 · chassis GS151,JZS15#,LS151,UZS15# · catalogue 331190 · Japan
Discontinued model
Data version 2003-10

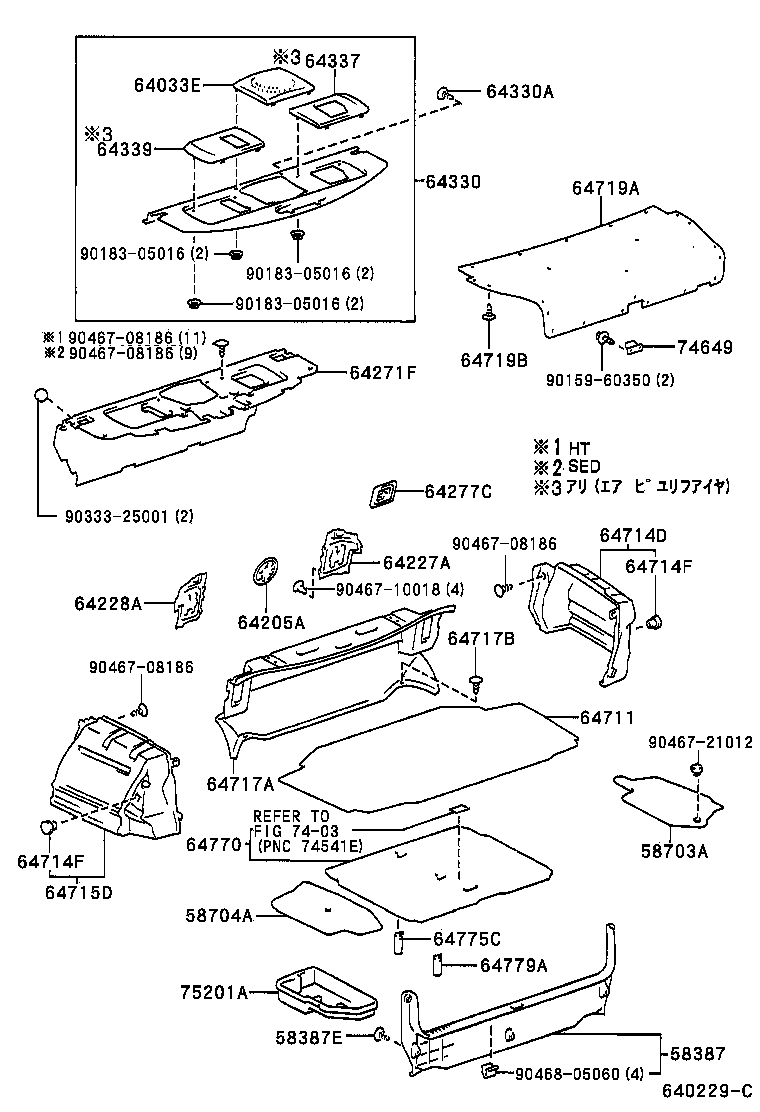

Package Tray Panel & Luggage Compartment Mat
33 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58387 | Plate, Rear Floor Finish |
| 58387E | Clip(FOR REAR FLOOR FINISH PLATE) |
| 58703A | Cover Sub-assy, Luggage Compartment Side, RH |
| 58704A | Cover Sub-assy, Luggage Compartment Side, LH |
| 64033E | Grille Sub-assy, Rear Speaker |
| 64195A | Insulator, Room Partition Panel |
| 64205A | Cover Sub-assy, Room Partition |
| 64227A | Extension, Center Floor TO Blace, NO.1 |
| 64228A | Extension, Center Floor TO Brace, NO.2 |
| 64271F | Trim, Room Partition |
| 64277C | Cover, Room Partition, NO.2 |
| 64287A | Cover, Room Partition, NO.4 RH |
| 64288A | Cover, Room Partition, NO.4 LH |
| 64330 | Panel Assy, Package Tray Trim |
| 64330A | Clip(FOR PACKAGE TRAY TRIM PANEL) |
| 64337 | Garnish, Package Tray Trim, RH |
| 64339 | Garnish, Package Tray Trim, LH |
| 64711 | Mat, Luggage Compartment Floor |
| 64714D | Cover, Luggage Compartment Trim, Side, RH |
| 64714F | Plug, Hole(FOR LUGGAGE COMPARTMENT SIDE COVER) |
| 64715D | Cover, Luggage Compartment Trim, Side, LH |
| 64717A | Cover, Luggage Compartment Trim, Front |
| 64717B | Clip(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER) |
| 64719A | Cover, Luggage Compartment Door |
| 64719B | Clip(FOR LUGGAGE COMPARTMENT DOOR) |
| 64721A | Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER) |
| 64770 | Cover Assy, Spare Wheel |
| 64775B | Guard, Spare Wheel |
| 64775C | Support, Spare Wheel Cover |
| 64777G | Cushion, Spare Wheel |
| 64779A | Stopper, Spare Wheel Cover |
| 74649 | Grip, Luggage Compartment Door Assist |
| 75201A | Box, Tool |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
