Toyota Crown/Crown Majesta
1995-08 → 2001-08 · chassis GS151,JZS15#,LS151,UZS15# · catalogue 331190 · Japan
Discontinued model
Data version 2003-10

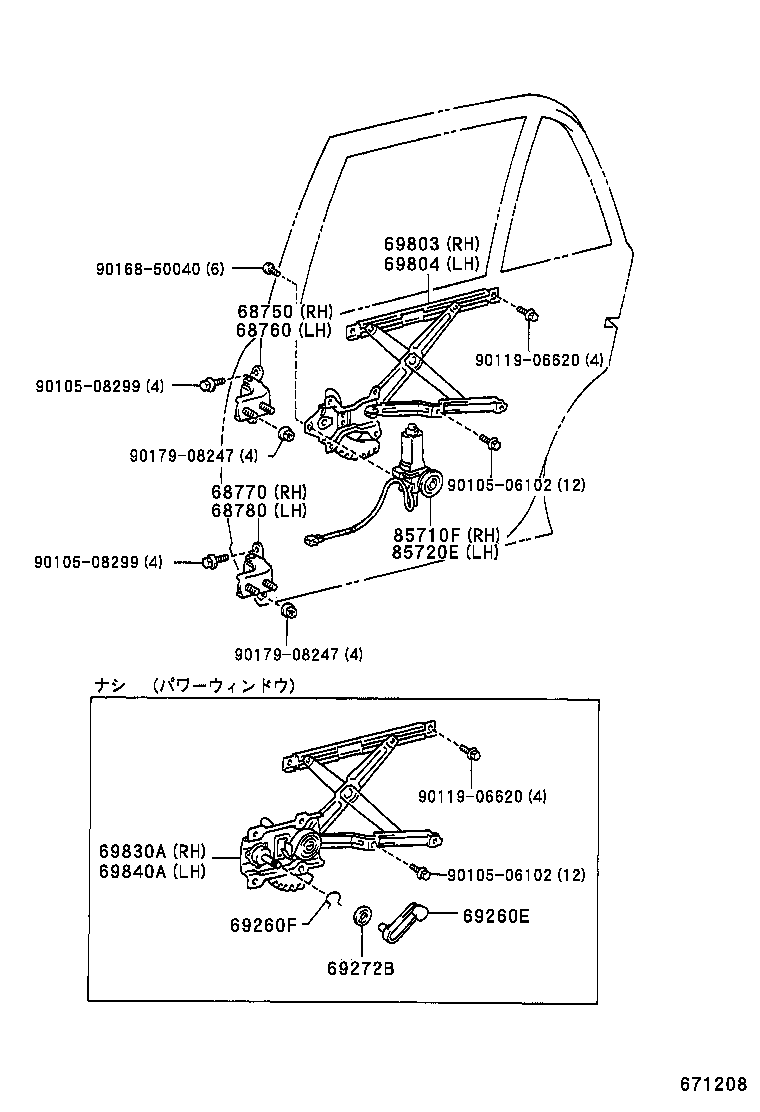

Rear Door Window Regulator & Hinge
21 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 63277H | Shim, Window Regulator |
| 67211B | Stop, Rear Door Window, Upper |
| 67235B | Stabilizer, Door Glass Female, RH |
| 67236B | Stabilizer, Door Glass Female, LH |
| 68147B | Stop, Rear Door Glass, Upper |
| 68750 | Hinge Assy, Rear Door, Upper RH |
| 68760 | Hinge Assy, Rear Door, Upper LH |
| 68770 | Hinge Assy, Rear Door, Lower RH |
| 68780 | Hinge Assy, Rear Door, Lower LH |
| 69260E | Handle Assy, Rear Door Window Regulator |
| 69260F | Ring, Shaft Snap(FOR REAR DOOR WINDOW REGULATOR HANDLE) |
| 69272B | Plate, Rear Door Regulator Inside Handle |
| 69803 | Regulator Sub-assy, Rear Door Window, RH |
| 69804 | Regulator Sub-assy, Rear Door Window, LH |
| 69813C | Plate, Rear Door Power Window Regulator Base |
| 69830A | Regulator Assy, Rear Door Window, RH |
| 69840A | Regulator Assy, Rear Door Window, LH |
| 69905 | Bracket Sub-assy, Rear Door Glass, RH |
| 69906 | Bracket Sub-assy, Rear Door Glass, LH |
| 85710F | Motor Assy, Power Window Regulator, RH |
| 85720E | Motor Assy, Power Window Regulator, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
