Toyota Crown/Crown Majesta
1995-08 → 2001-08 · chassis GS151,JZS15#,LS151,UZS15# · catalogue 331190 · Japan
Discontinued model
Data version 2003-10

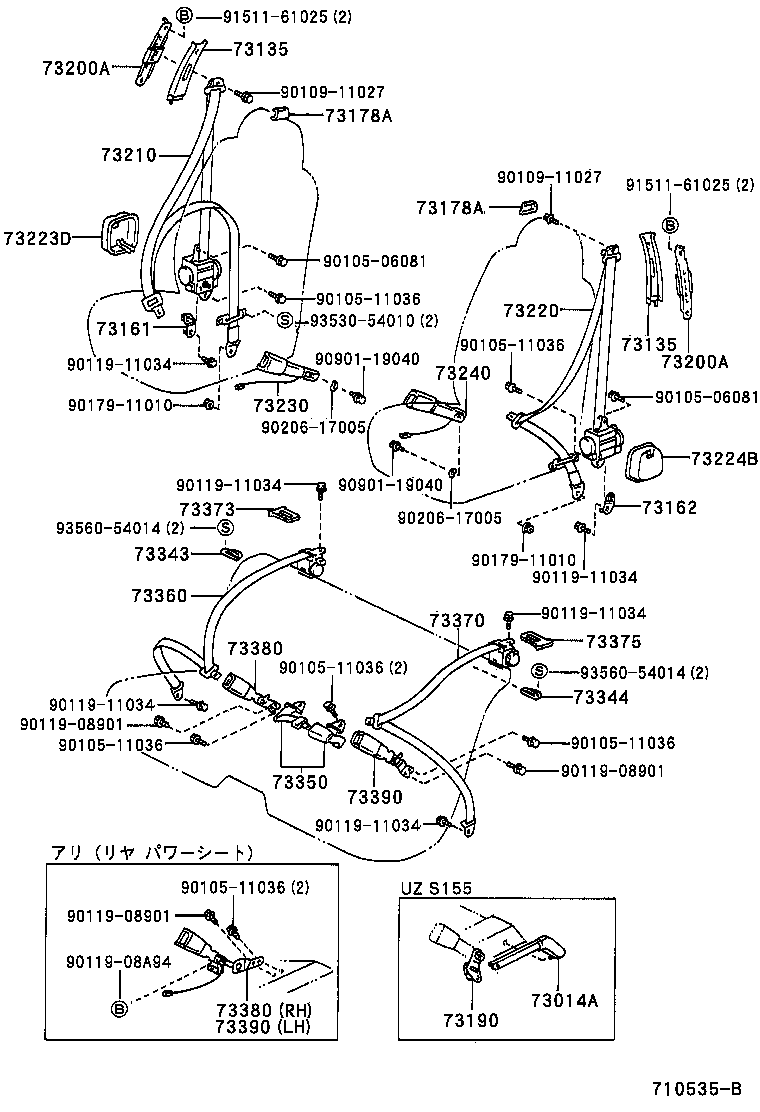

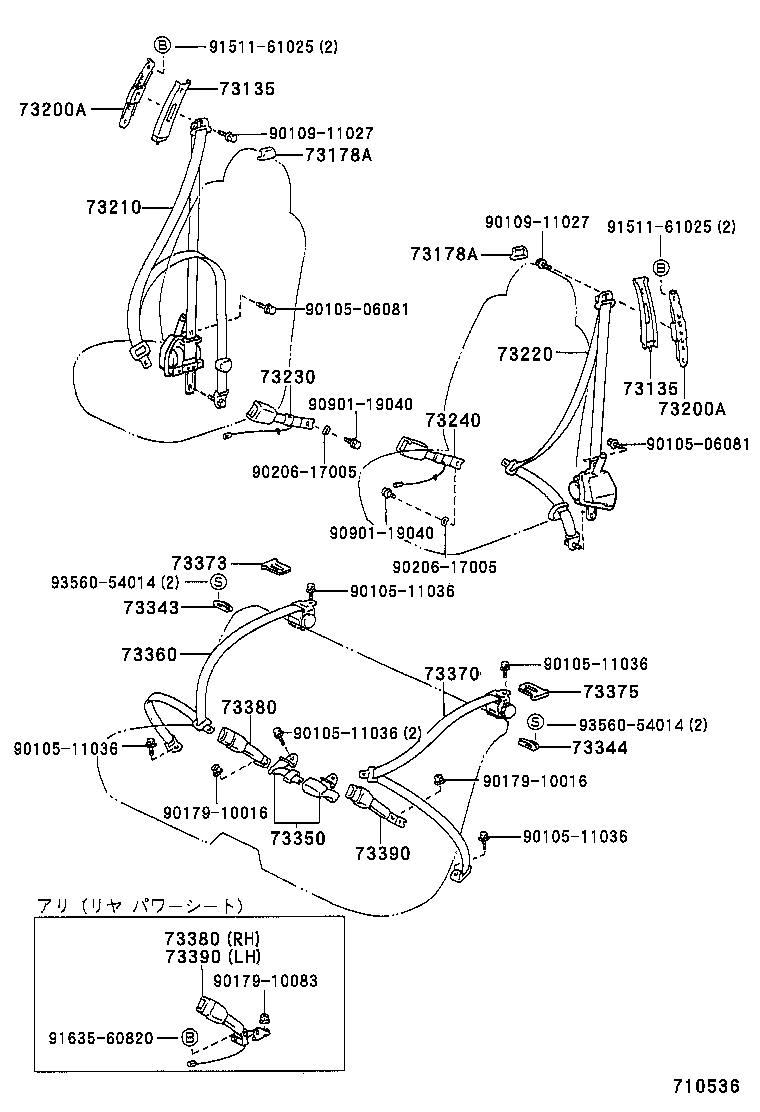

Seat Belt & Child Restraint Seat
22 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 73014A | Plate Sub-assy, Front Seat Belt Inner Anchor, LH |
| 73135 | Cover, Shoulder Belt Anchorage Plate |
| 73161 | Plate, Front Shoulder Belt Anchor, RH |
| 73162 | Plate, Front Shoulder Belt Anchor, LH |
| 73178A | Cap, Seat Belt Anchor Cover |
| 73190 | Bracket Assy, Seat Belt Inner Anchor, LH |
| 73200A | Adjuster Assy, Front Shoulder Belt Anchor |
| 73210 | Belt Assy, Front Seat Outer, RH |
| 73220 | Belt Assy, Front Seat Outer, LH |
| 73223D | Cover, Front Seat Belt Retractor, RH |
| 73224B | Cover, Front Seat Belt Retractor, LH |
| 73230 | Belt Assy, Front Seat Inner, RH |
| 73240 | Belt Assy, Front Seat Inner, LH |
| 73343 | Guide, Rear Seat Shoulder Belt, RH |
| 73344 | Guide, Rear Seat Shoulder Belt, LH |
| 73350 | Belt Assy, Rear Seat Lap Type, Center |
| 73360 | Belt Assy, Rear Seat 3 Point Type, Outer RH |
| 73370 | Belt Assy, Rear Seat 3 Point Type, Outer LH |
| 73373 | Cover, Rear Seat Shoulder Belt |
| 73375 | Cover, Rear Seat Shoulder Belt, LH |
| 73380 | Belt Assy, Rear Seat 3 Point Type, Inner, RH |
| 73390 | Belt Assy, Rear Seat 3 Point Type, Inner, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
