Toyota Crown/Crown Majesta

1995-08 → 2001-08 · chassis GS151,JZS15#,LS151,UZS15# · catalogue 331190 · Japan

Discontinued model Data version 2003-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

9 part groups · 3 illustrations

Illustrations

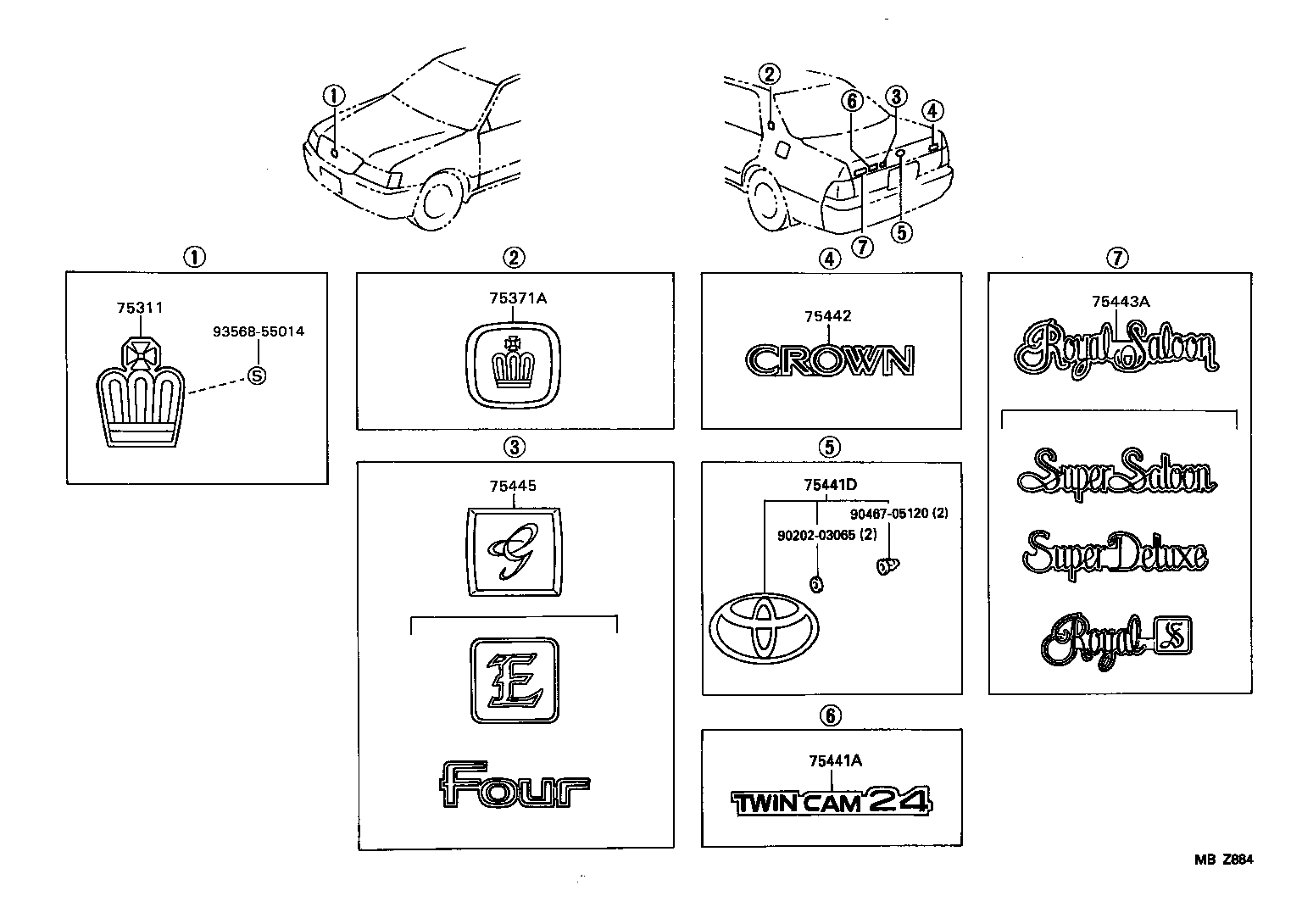

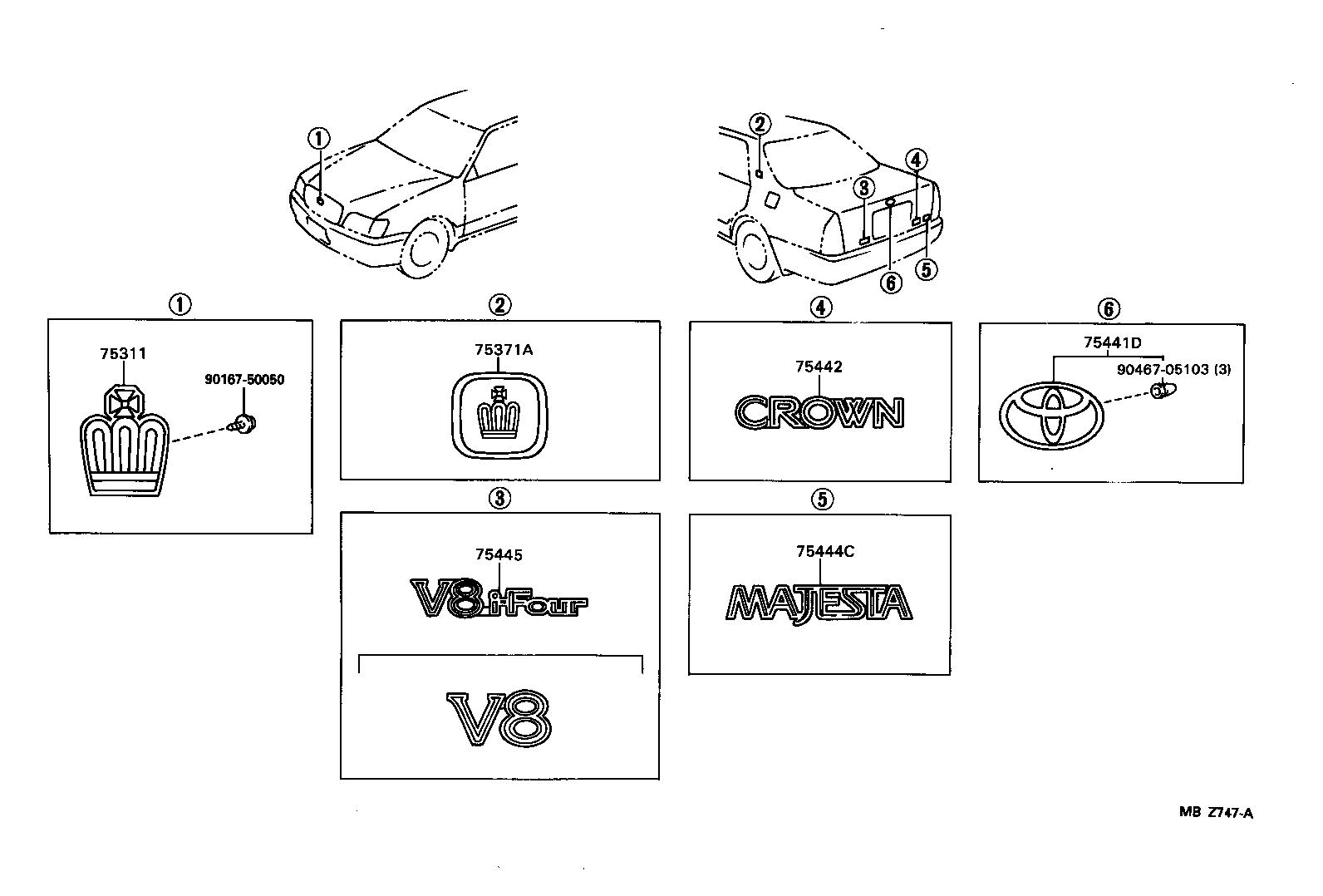

Figure 750202A 750202A 1995-08 → — Figure MBZ747A MBZ747A 1995-08 → — Figure MBZ884 MBZ884 1995-12 → —

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75371A Emblem, Quarter Panel
75441A Plate, Luggage Compartment Door Name, NO.1
75441D Plate, Luggage Compartment Door Name, NO.1
75442 Plate, Luggage Compartment Door Name, NO.2
75443A Plate, Luggage Compartment Door, NO.3
75444 Plate, Luggage Compartment Door, NO.4
75444C Plate, Luggage Compartment Door Name, NO.4
75445 Plate, Luggage Compartment Door Name, NO.5
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
