Toyota Crown/Crown Majesta

1995-08 → 2001-08 · chassis GS151,JZS15#,LS151,UZS15# · catalogue 331190 · Japan

Discontinued model Data version 2003-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Moulding

7 part groups · 2 illustrations

Illustrations

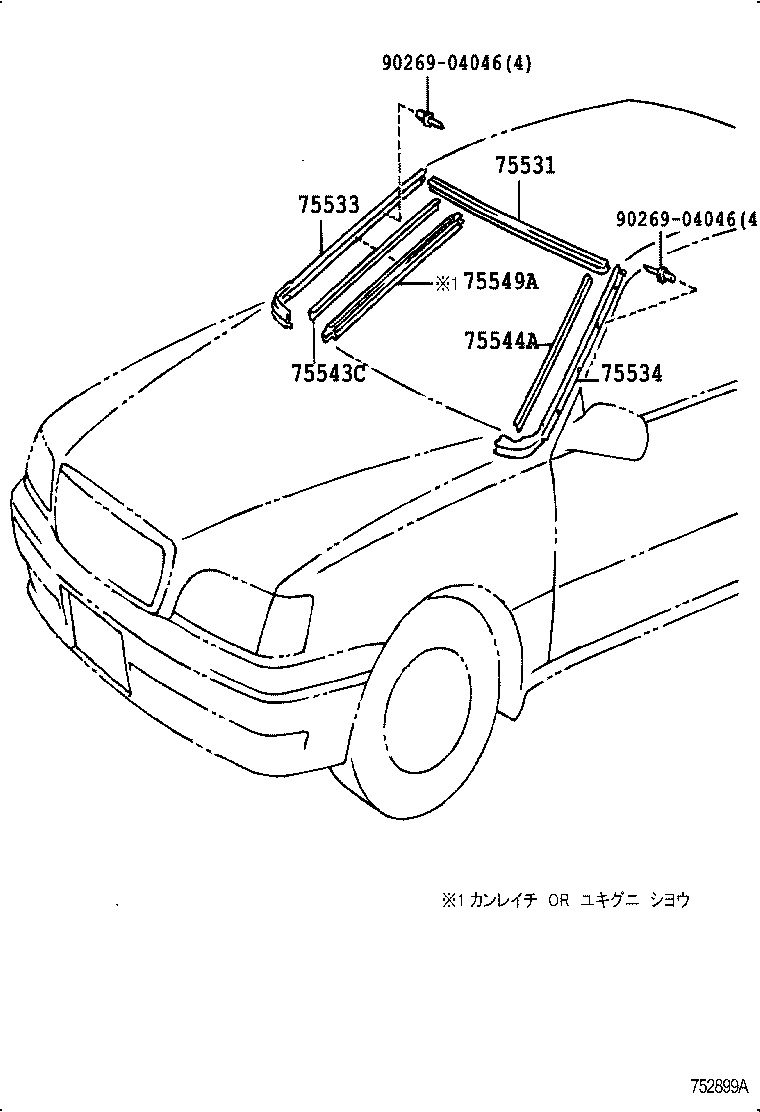

Figure 750927C 750927C 1995-08 → — Figure 752899A 752899A 1995-08 → —

Part groups

PNCDescription
75531 Moulding, Windshield, Outer Upper
75533 Moulding, Windshield, Outside RH
75534 Moulding, Windshield, Outside LH
75543C Moulding, Windshield, Outside NO.2 RH
75544A Moulding, Windshield, Outside NO.2 LH
75549A Moulding, Windshield Outside Sub
75770 Moulding Assy, Hood, Front
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
