Toyota Crown/Crown Majesta

1995-08 → 2001-08 · chassis GS151,JZS15#,LS151,UZS15# · catalogue 331190 · Japan

Discontinued model Data version 2003-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

5 part groups · 3 illustrations

Illustrations

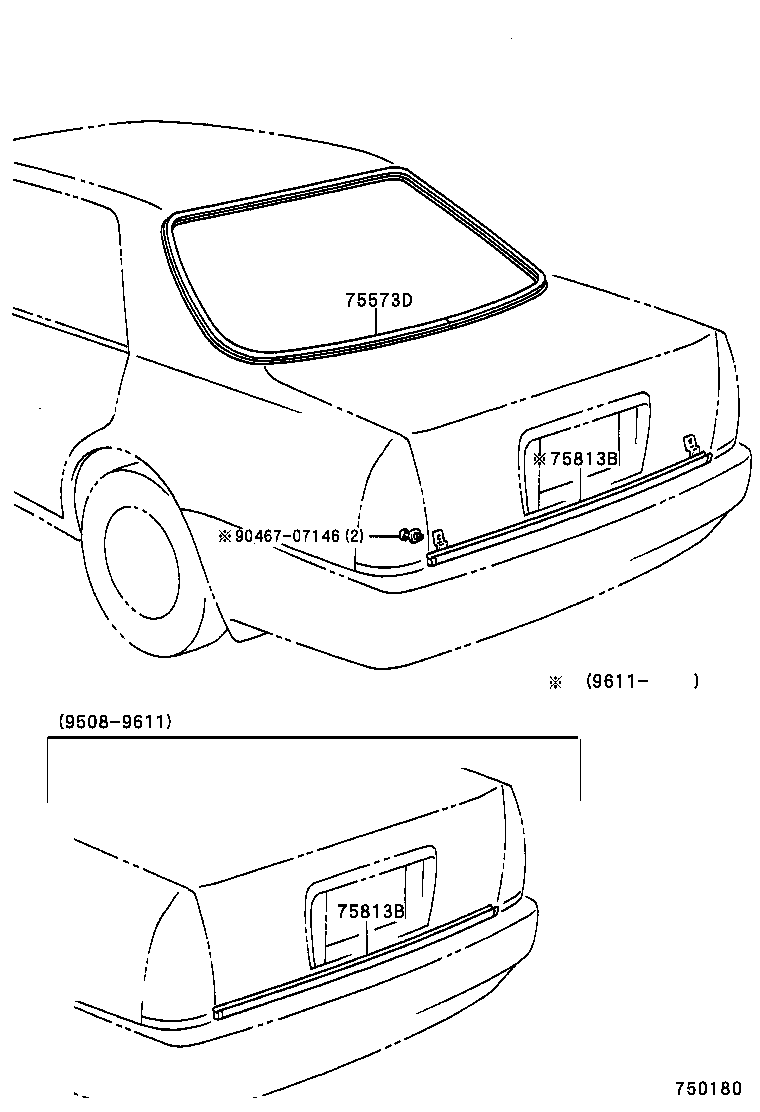

Figure 750435 750435 1995-08 → — Figure 750180 750180 1995-08 → — Figure MBZ880 MBZ880 1995-12 → —

Part groups

PNCDescription
75573D Moulding, Back Window, Outside
75813B Moulding, Luggage Compartment Door
75819 Clip, Luggage Compartment Door Moulding
75825 Pad, Luggage Compartment Door Moulding
76801A Garnish Sub-assy, Luggage Compartment Door, Outside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
