Toyota Crown/Crown Majesta

1995-08 → 2001-08 · chassis GS151,JZS15#,LS151,UZS15# · catalogue 331190 · Japan

Discontinued model Data version 2003-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

16 part groups · 8 illustrations

Illustrations

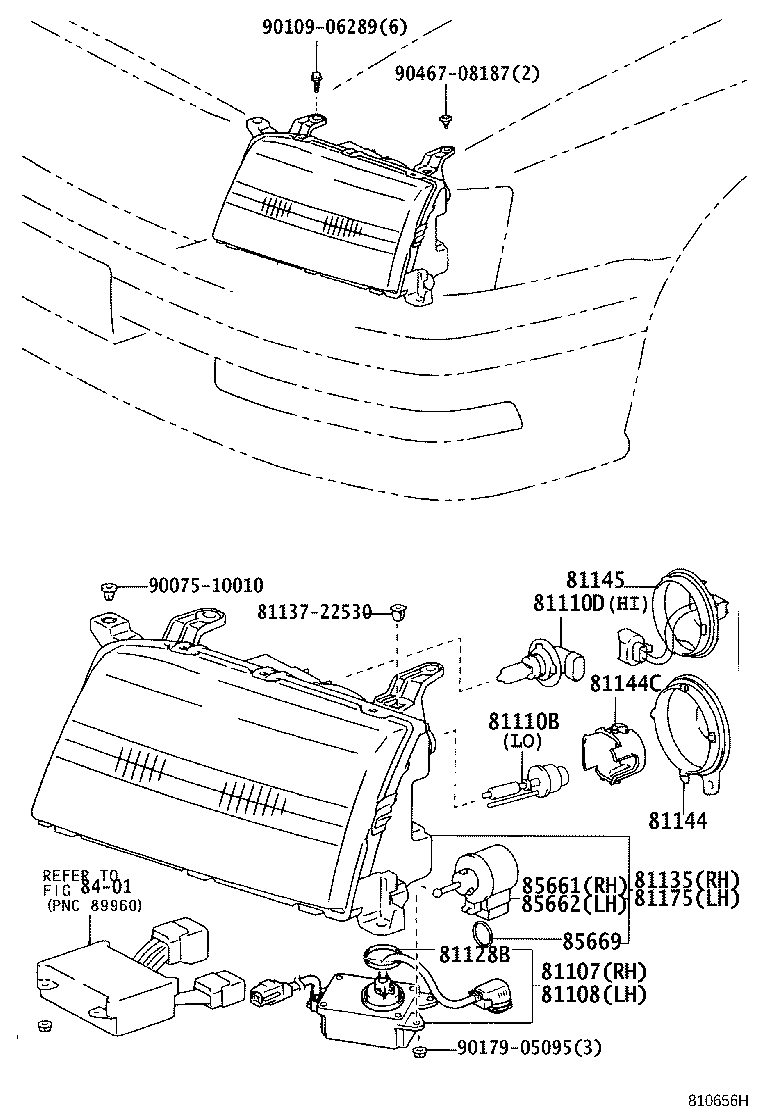

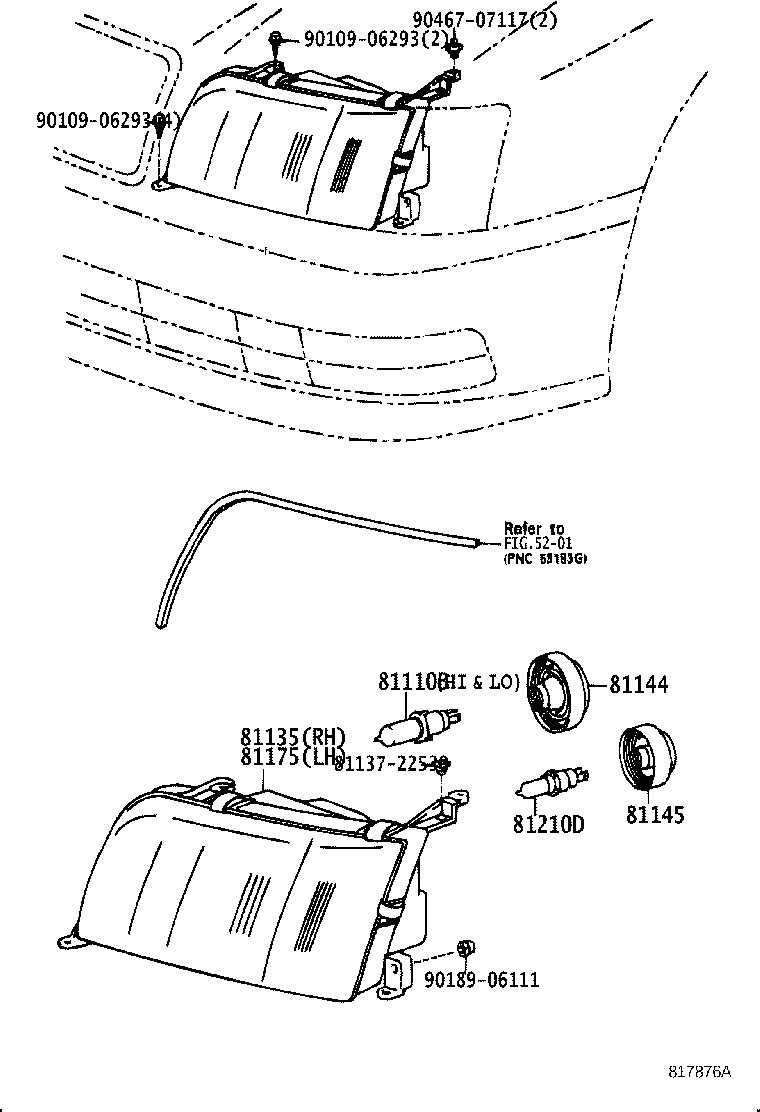

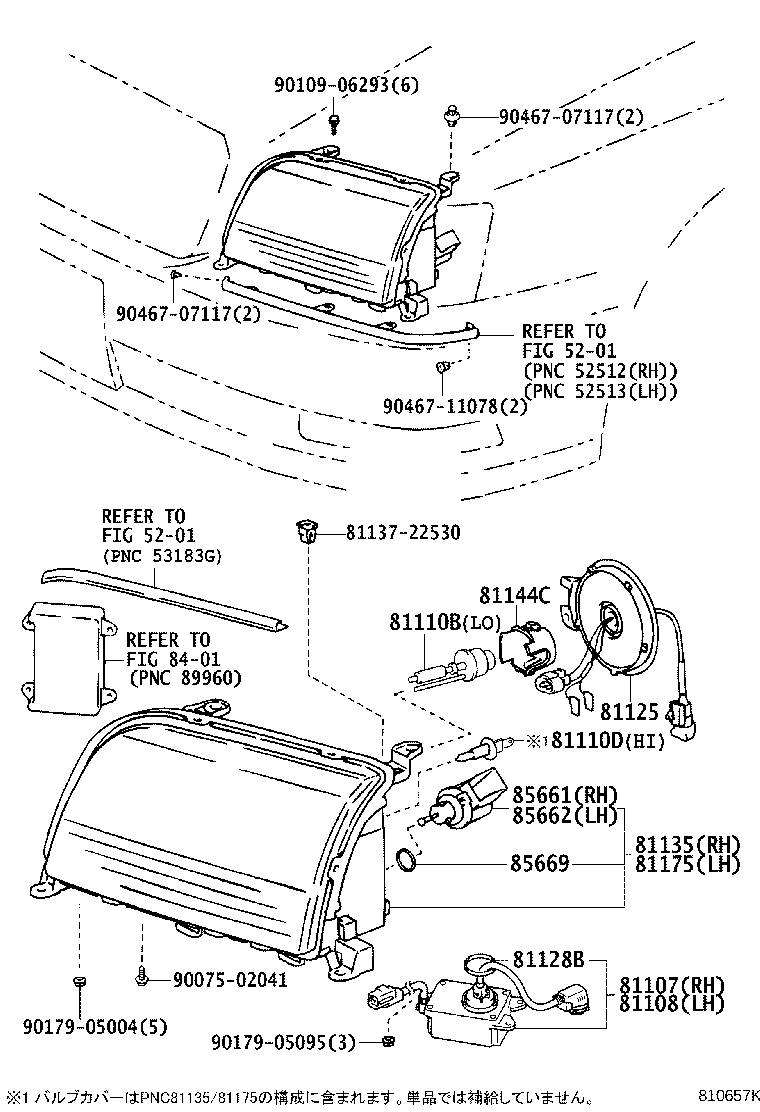

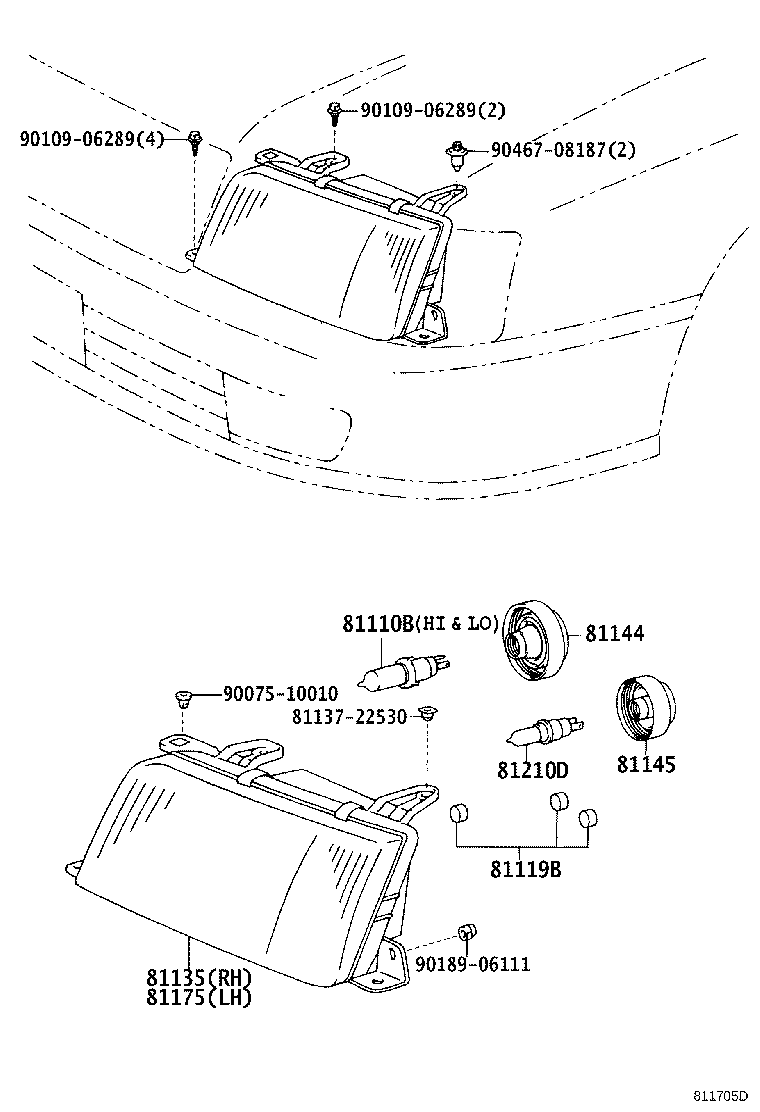

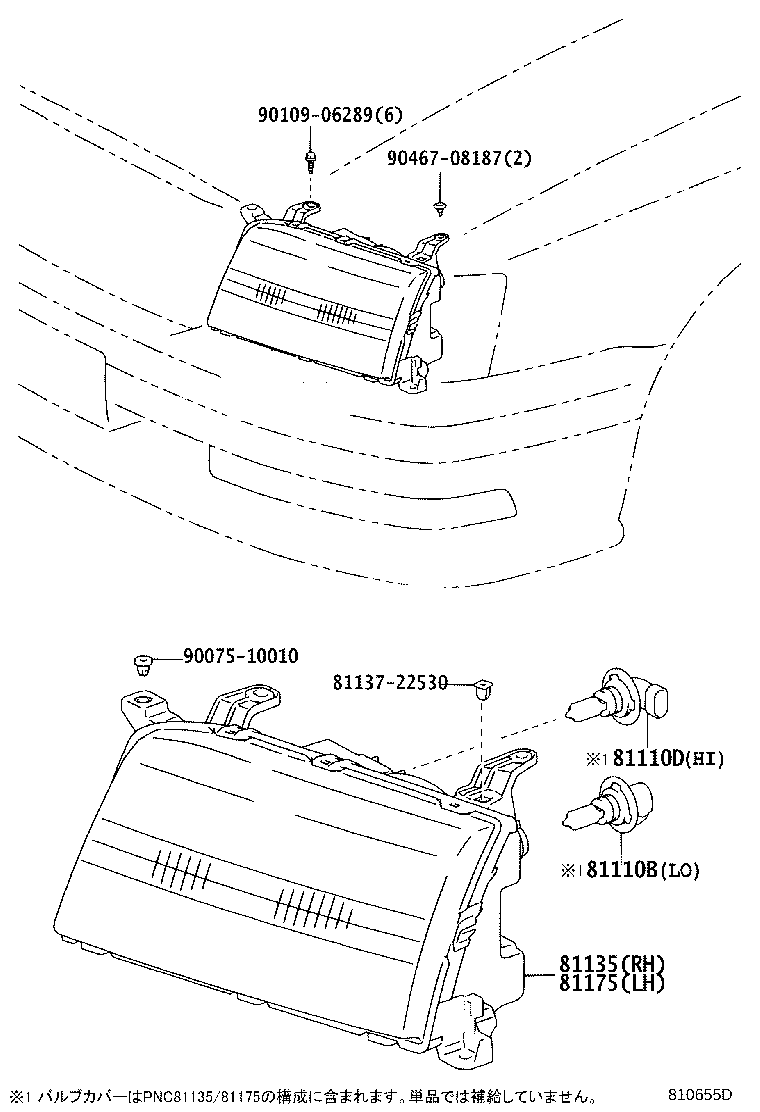

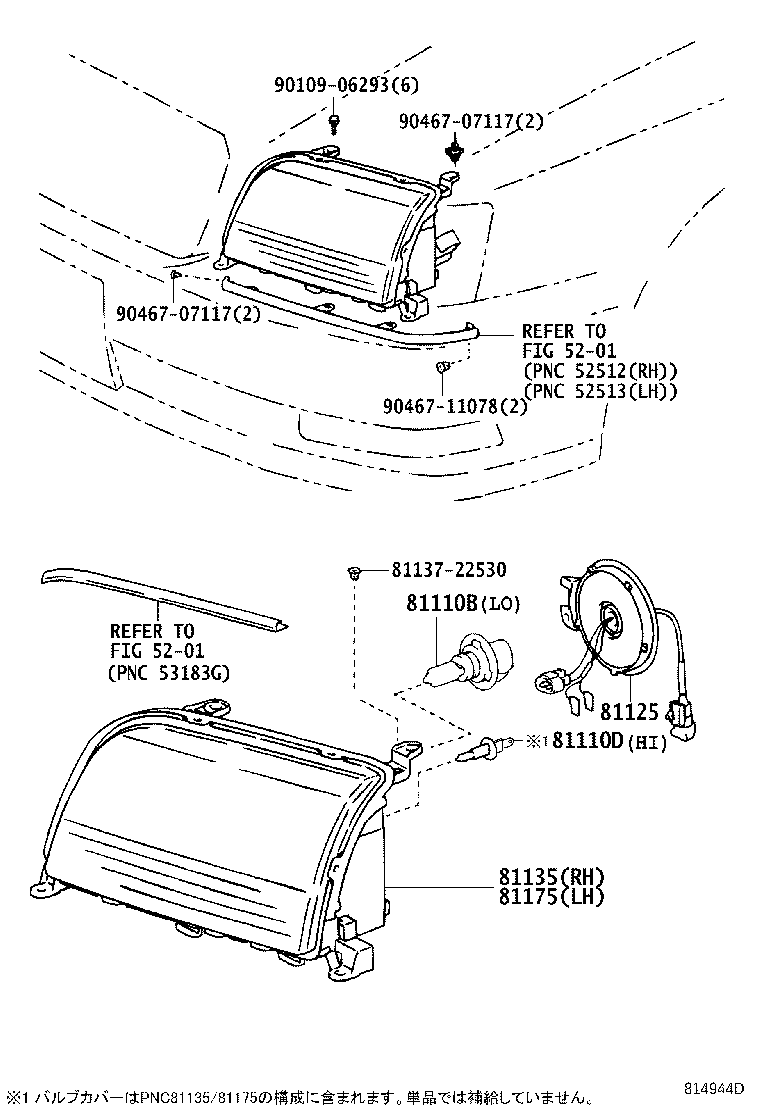

Figure 812424B 812424B 1995-08 → 1997-07 Figure 817876A 817876A 1995-08 → 1997-07 Figure 811705D 811705D 1995-08 → — Figure 810655D 810655D 1997-07 → — Figure 810656H 810656H 1997-07 → — Figure 810656H 810656H 1998-10 → — Figure 810657K 810657K 1997-07 → — Figure 814944D 814944D 1997-07 → —

Part groups

PNCDescription
81107 Computer Sub-assy, Headlamp Light Control, RH
81108 Computer Sub-assy, Headlamp Light Control, LH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81119B Filter, Headlamp
81125 Cord, Headlamp
81128B Packing, Headlamp (FOR BALLAST)
81135 Unit Assy, Headlamp, RH
81144 Cover, Headlamp, NO.1
81144C Cover, Headlamp Socket
81145 Cover, Headlamp, NO.2
81175 Unit Assy, Headlamp, LH
81210D Bulb, Fog Lamp
85661 Motor, Headlamp Leveling, RH
85662 Motor, Headlamp Leveling, LH
85669 Packing, Headlamp Leveling Motor Base
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
