Toyota Crown/Crown Majesta

1995-08 → 2001-08 · chassis GS151,JZS15#,LS151,UZS15# · catalogue 331190 · Japan

Discontinued model Data version 2003-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Turn Signal Lamp

8 part groups · 5 illustrations

Illustrations

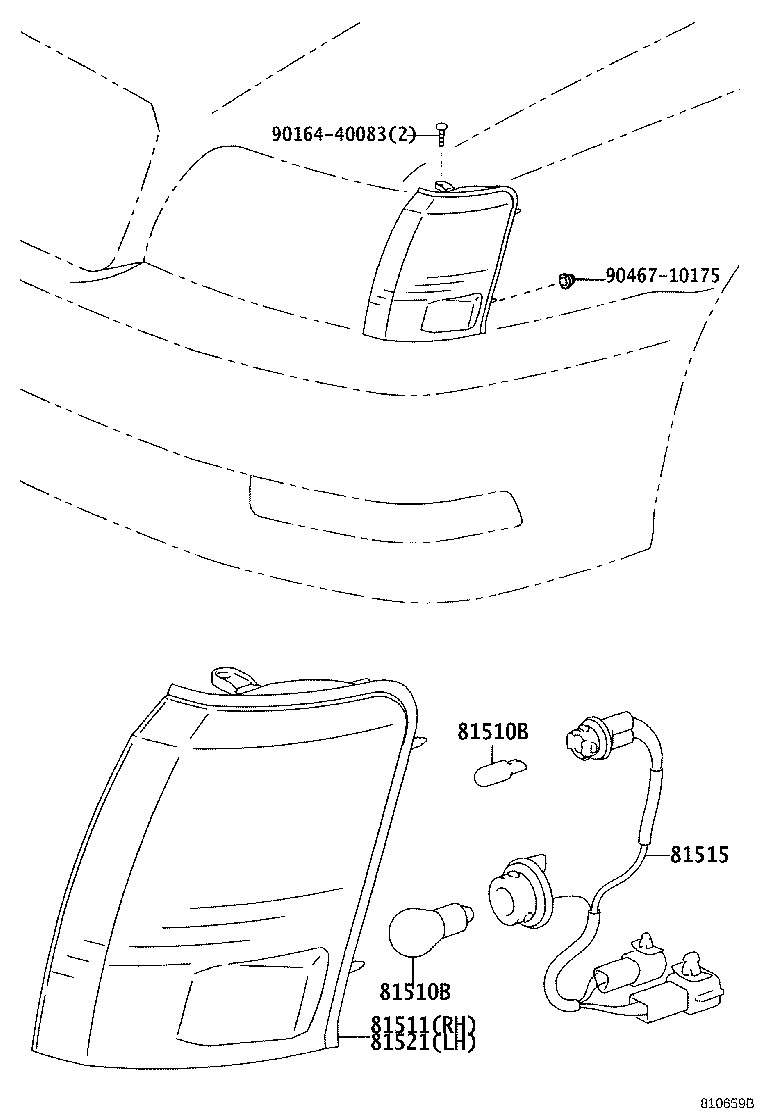

Figure MEZ816 MEZ816 1995-08 → 1997-07 Figure 818908 818908 1995-08 → 1997-07 Figure 818909 818909 1995-08 → — Figure 810658B 810658B 1997-07 → — Figure 810659B 810659B 1997-07 → —

Part groups

PNCDescription
81210F Bulb, Fog Lamp
81510 Lamp Assy, Front Turn Signal, RH
81510B Bulb (FOR FRONT TURN SIGNAL LAMP)
81511 Lens, Front Turn Signal Lamp, RH
81515 Wire Sub-assy, Front Turn Signal Lamp Body
81515A Plug Assy, Front Turn Signal Lamp
81520 Lamp Assy, Front Turn Signal, LH
81521 Lens, Front Turn Signal Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
