Toyota Crown/Crown Majesta

1995-08 → 2001-08 · chassis GS151,JZS15#,LS151,UZS15# · catalogue 331190 · Japan

Discontinued model Data version 2003-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

14 part groups · 3 illustrations

Illustrations

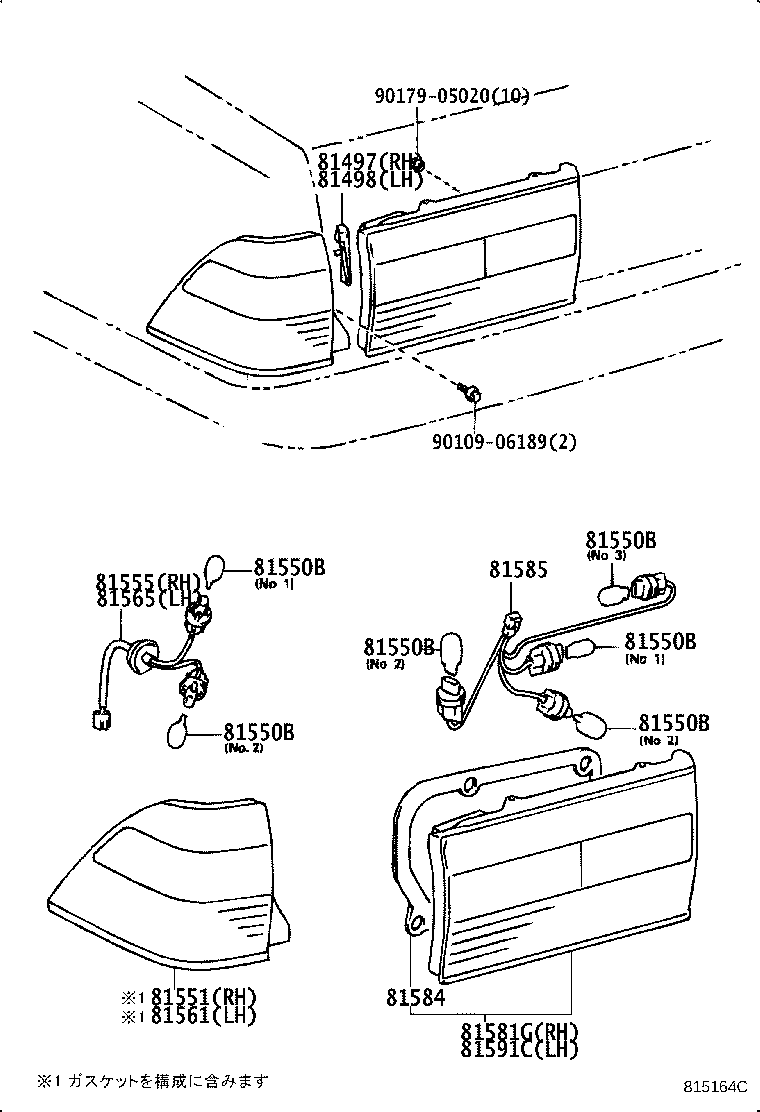

Figure 819773A 819773A 1995-08 → — Figure 810643D 810643D 1995-08 → — Figure 815164C 815164C 1995-12 → —

Part groups

PNCDescription
81497 Cover, Rear Combination Lamp, RH
81498 Cover, Rear Combination Lamp, LH
81550 Lamp Assy, Rear Combination, RH
81550B Bulb(FOR REAR COMBINATION LAMP)
81551 Lens, Rear Combination Lamp, RH
81552C Gasket, Rear Combination Lamp
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81581G Lens, Rear Lamp, RH
81584 Packing, Rear Lamp RH
81585 Socket & Wire, Rear Lamp
81591C Lens, Rear Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
