Toyota Crown/Crown Majesta
1995-08 → 2001-08 · chassis GS151,JZS15#,LS151,UZS15# · catalogue 331190 · Japan
Discontinued model
Data version 2003-10

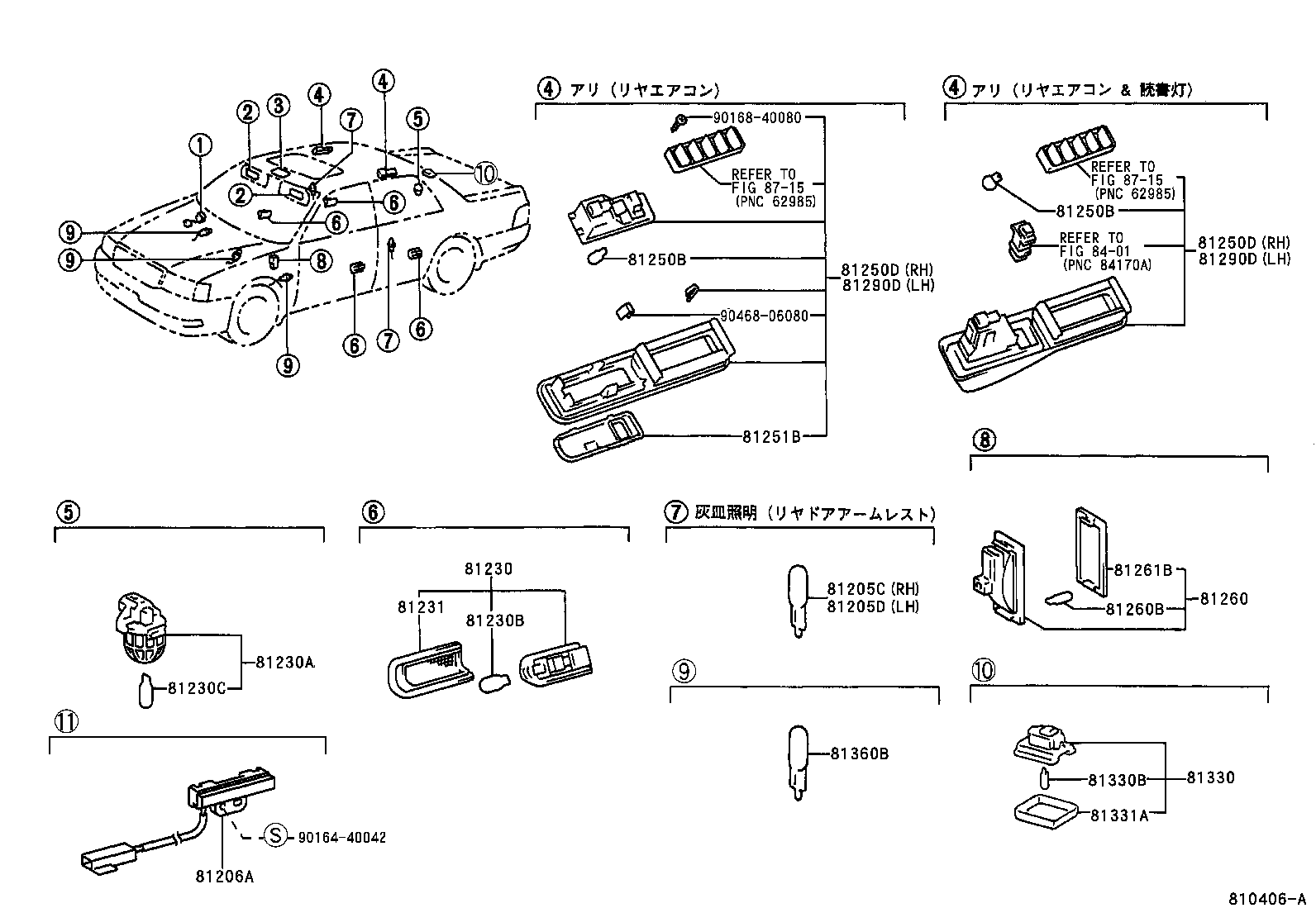

Interior Lamp
29 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81205C | Bulb, Ash Receptacle Lamp, Rear RH |
| 81205D | Bulb, Ash Receptacle Lamp, Rear LH |
| 81206A | Lamp Sub-assy, Console Box |
| 81230 | Lamp Assy, Courtesy |
| 81230A | Lamp Assy, Courtesy, NO.2 |
| 81230B | Bulb(FOR COURTESY LAMP) |
| 81230C | Bulb(FOR COURTESY LAMP NO.2) |
| 81231 | Lens, Courtesy Lamp |
| 81250B | Bulb, Room Lamp, NO.2 |
| 81250D | Lamp Assy, Rear Room, RH |
| 81251B | Lens, Rear Room Lamp, RH |
| 81260 | Lamp Assy, Glove Box |
| 81260A | Lamp Assy, Map |
| 81260B | Bulb(FOR GLOVE BOX) |
| 81260C | Bulb(FOR MAP LAMP) |
| 81261 | Lens And Cover, Map Lamp |
| 81261B | Lens,Glove Box Lamp |
| 81290D | Lamp Assy, Rear Room, LH |
| 81330 | Lamp Assy, Luggage Compartment, NO.1 |
| 81330B | Bulb, Luggage Compartment Lamp |
| 81331A | Cover, Luggage Compartment Lamp |
| 81340 | Lamp Assy, Vanity |
| 81340B | Bulb (FOR VANITY LAMP) |
| 81341 | Lens, Vanity Lamp |
| 81360B | Bulb, Step OR Spot Lamp |
| 81870D | Lamp Assy, Key Cylinder |
| 81870E | Bulb, Key Cylinder Lamp |
| 81870F | Cap, Key Cylinder Lamp Bulb |
| 81871 | Lens, Key Illumination |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
