Toyota Crown/Crown Majesta

1995-08 → 2001-08 · chassis GS151,JZS15#,LS151,UZS15# · catalogue 331190 · Japan

Discontinued model Data version 2003-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

33 part groups · 25 illustrations

Illustrations

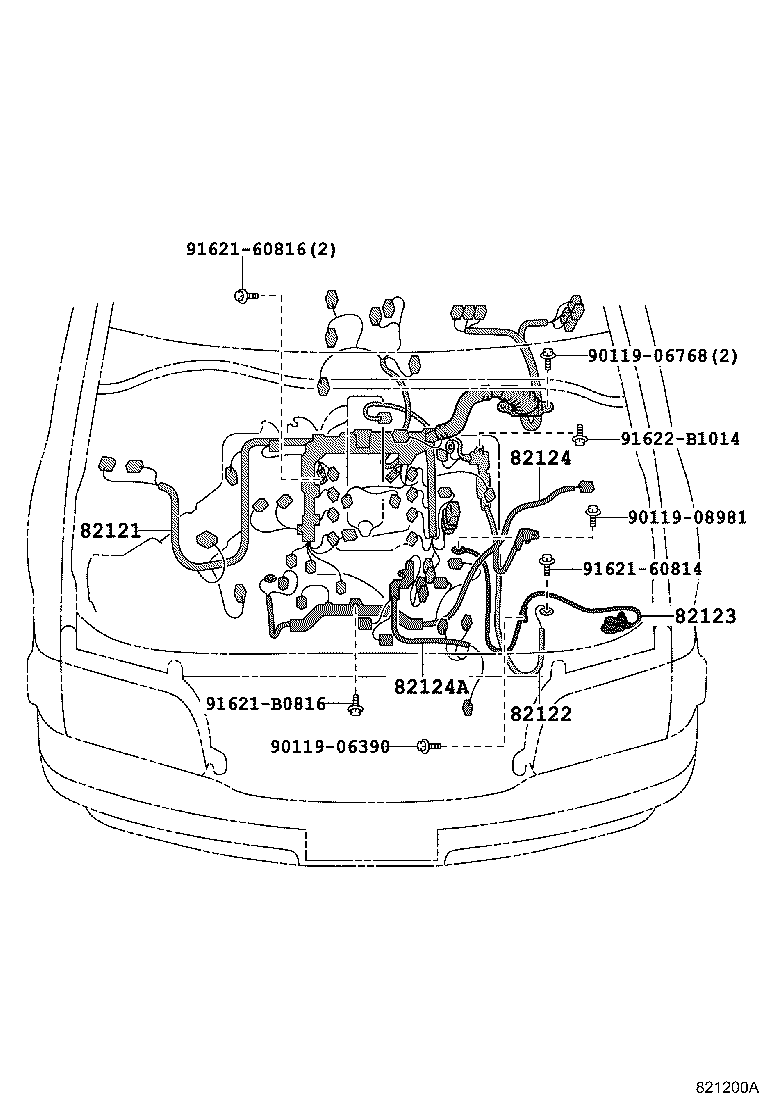

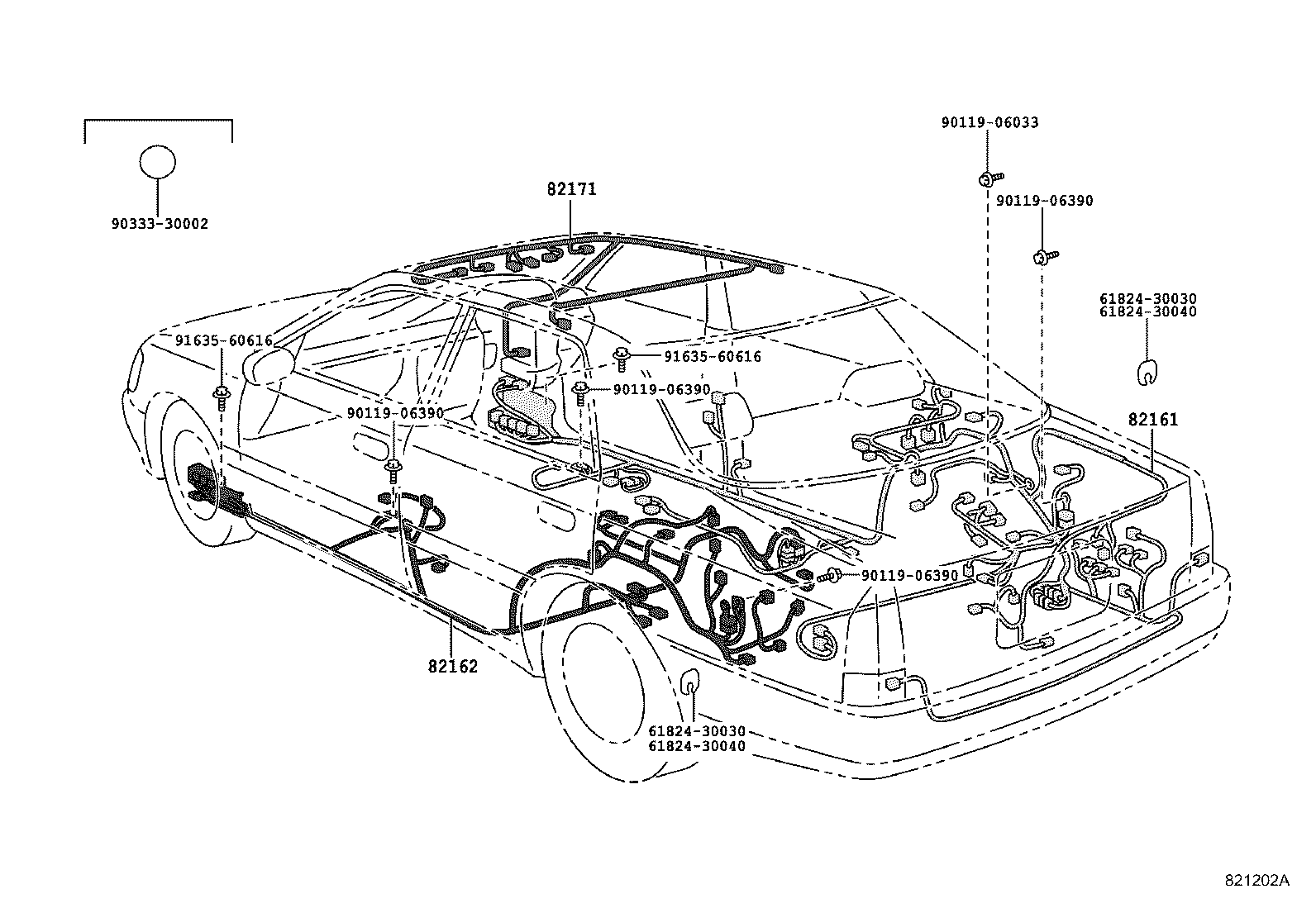

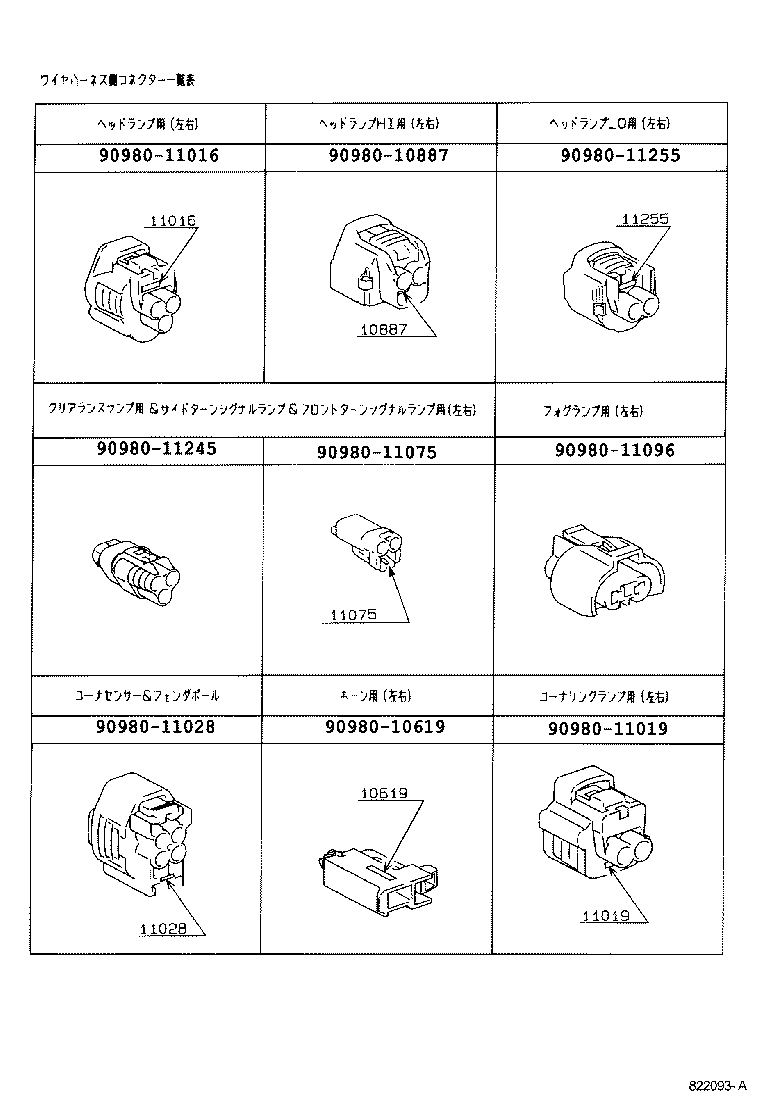

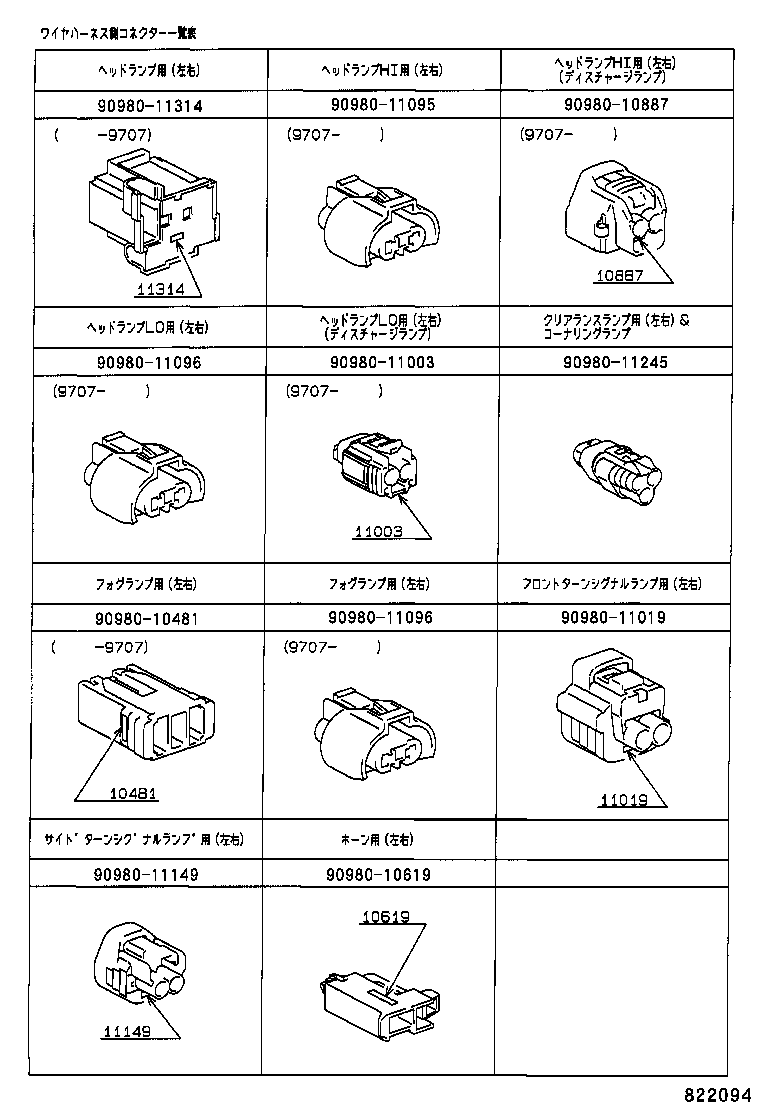

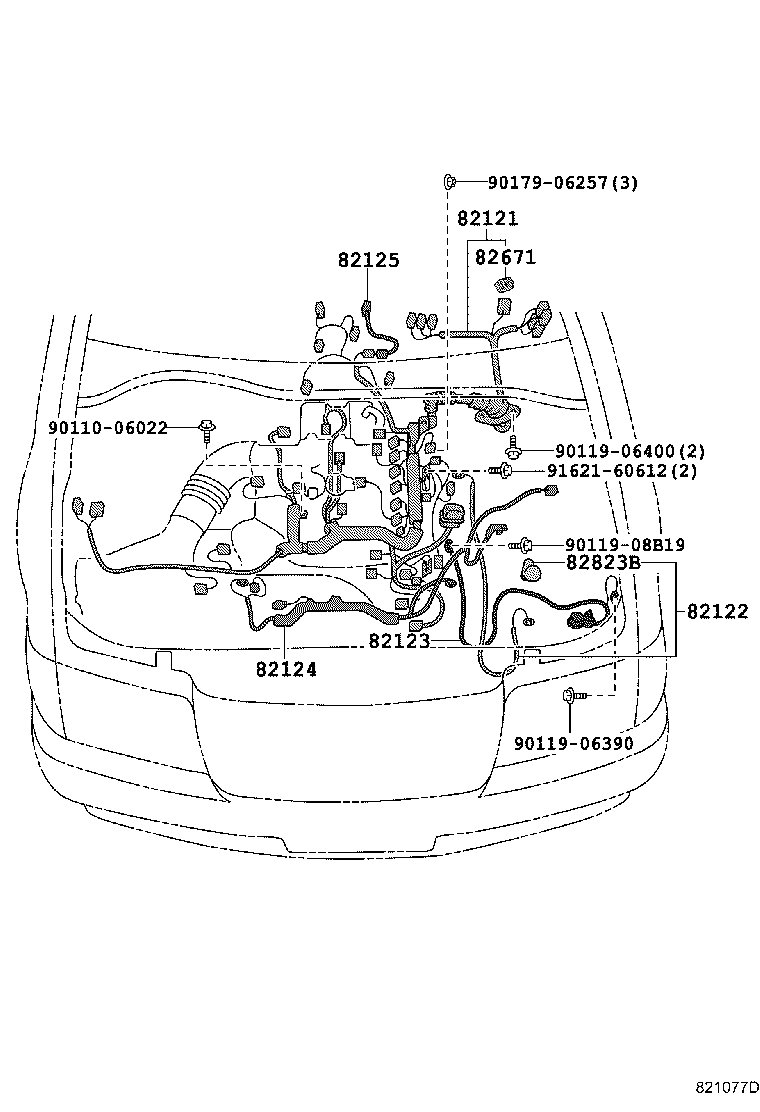

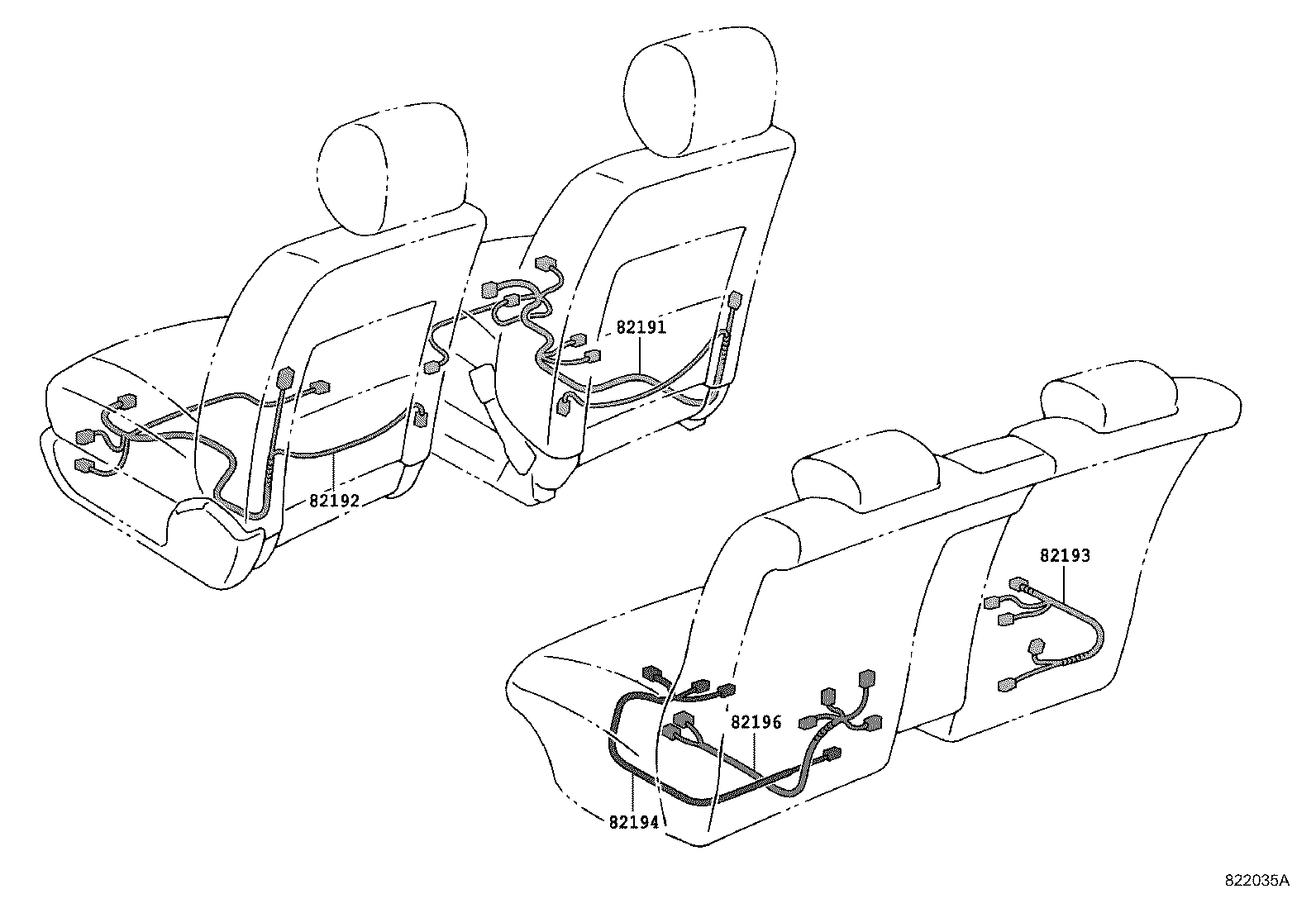

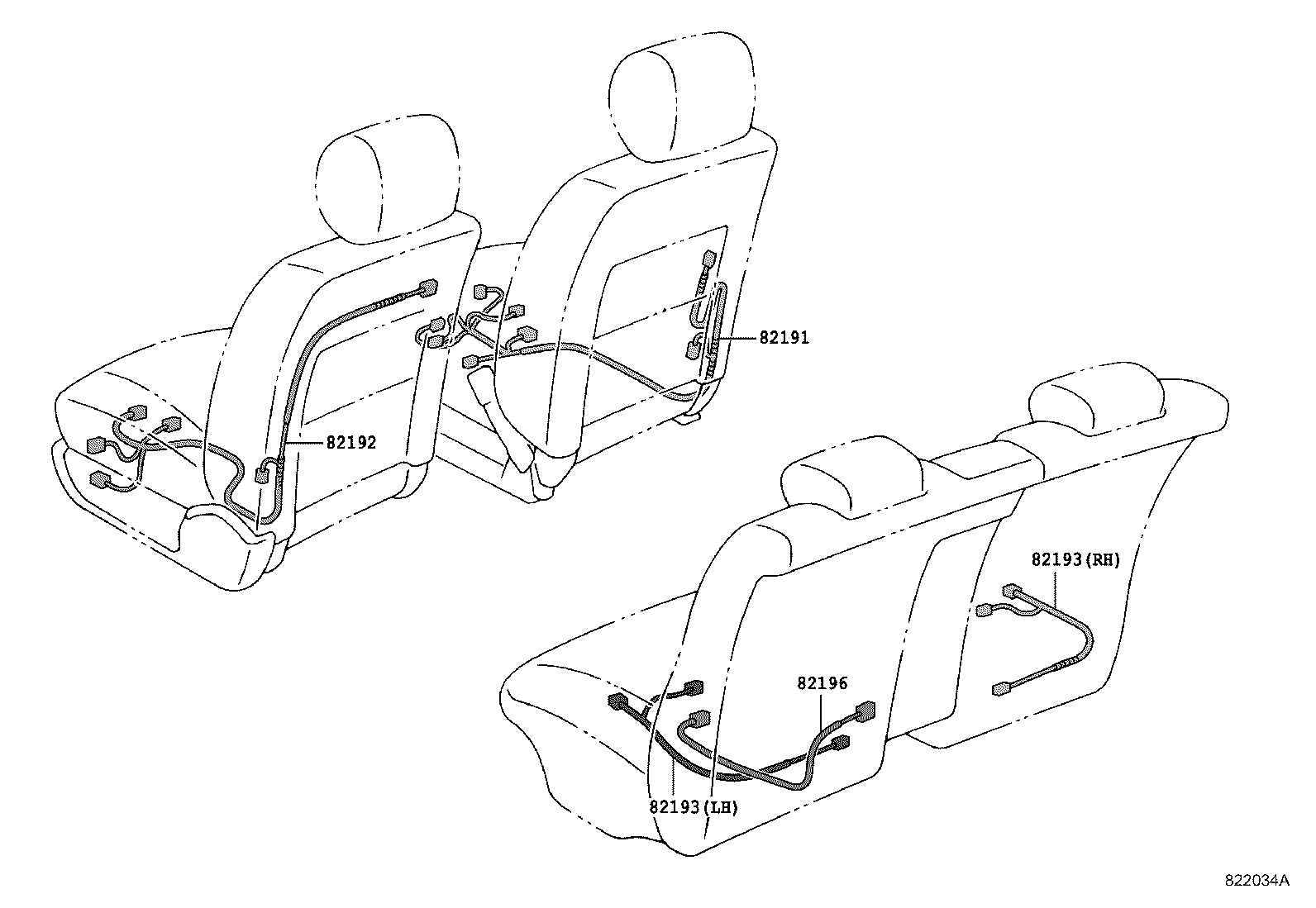

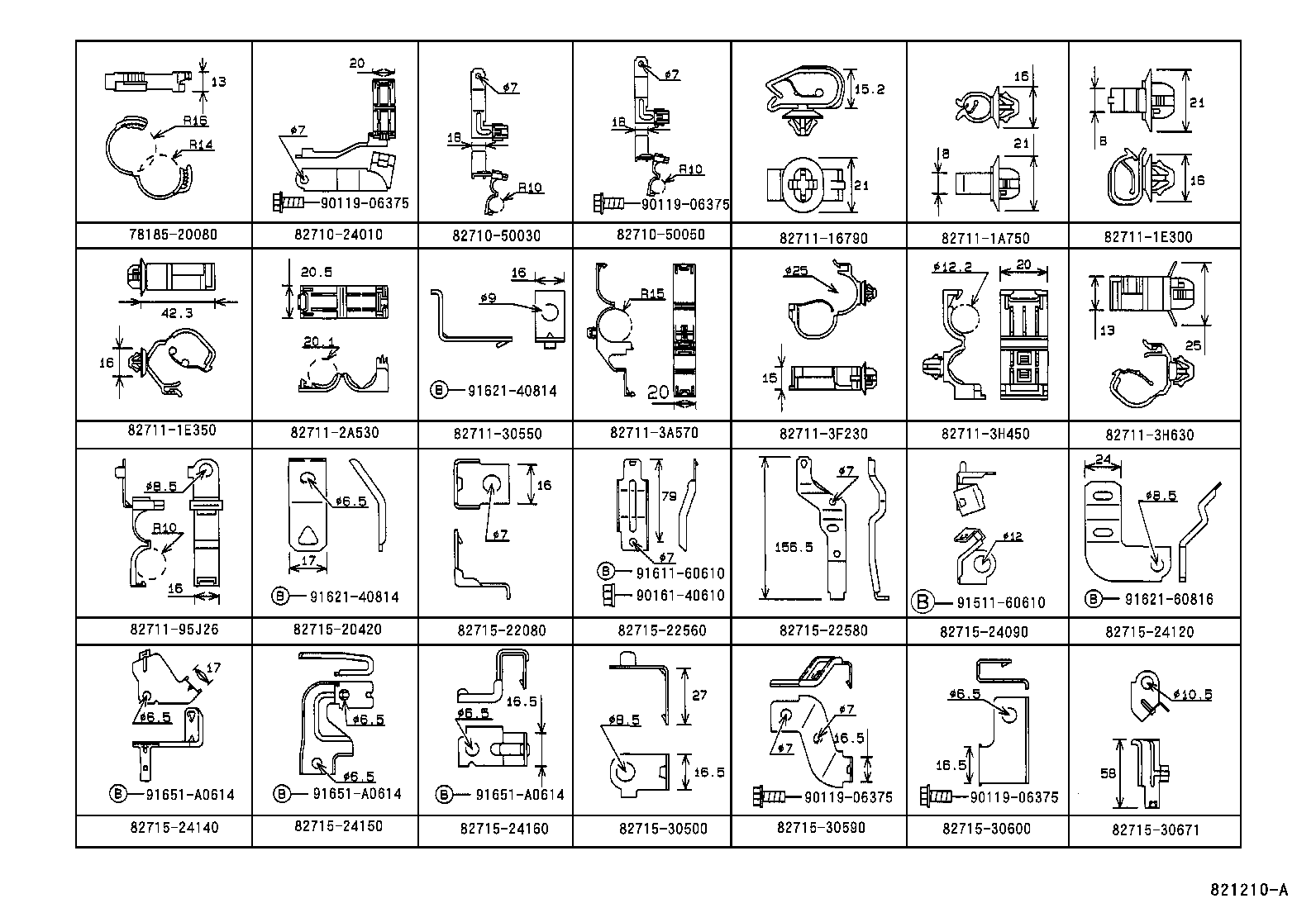

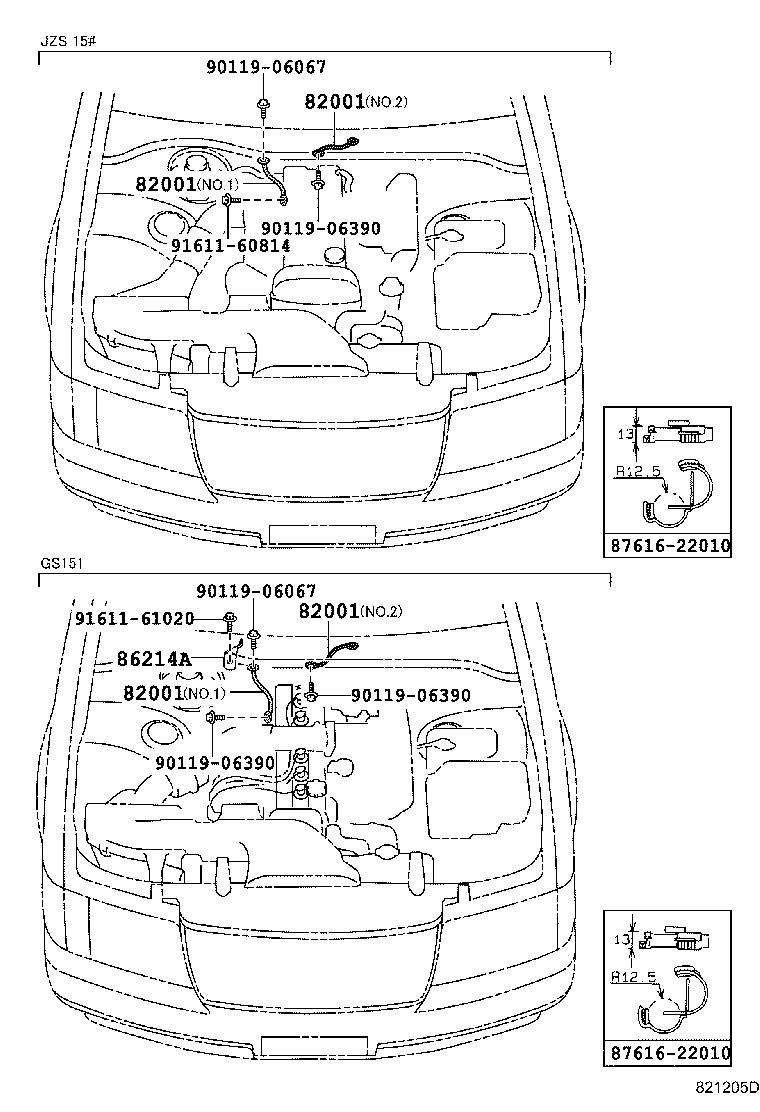

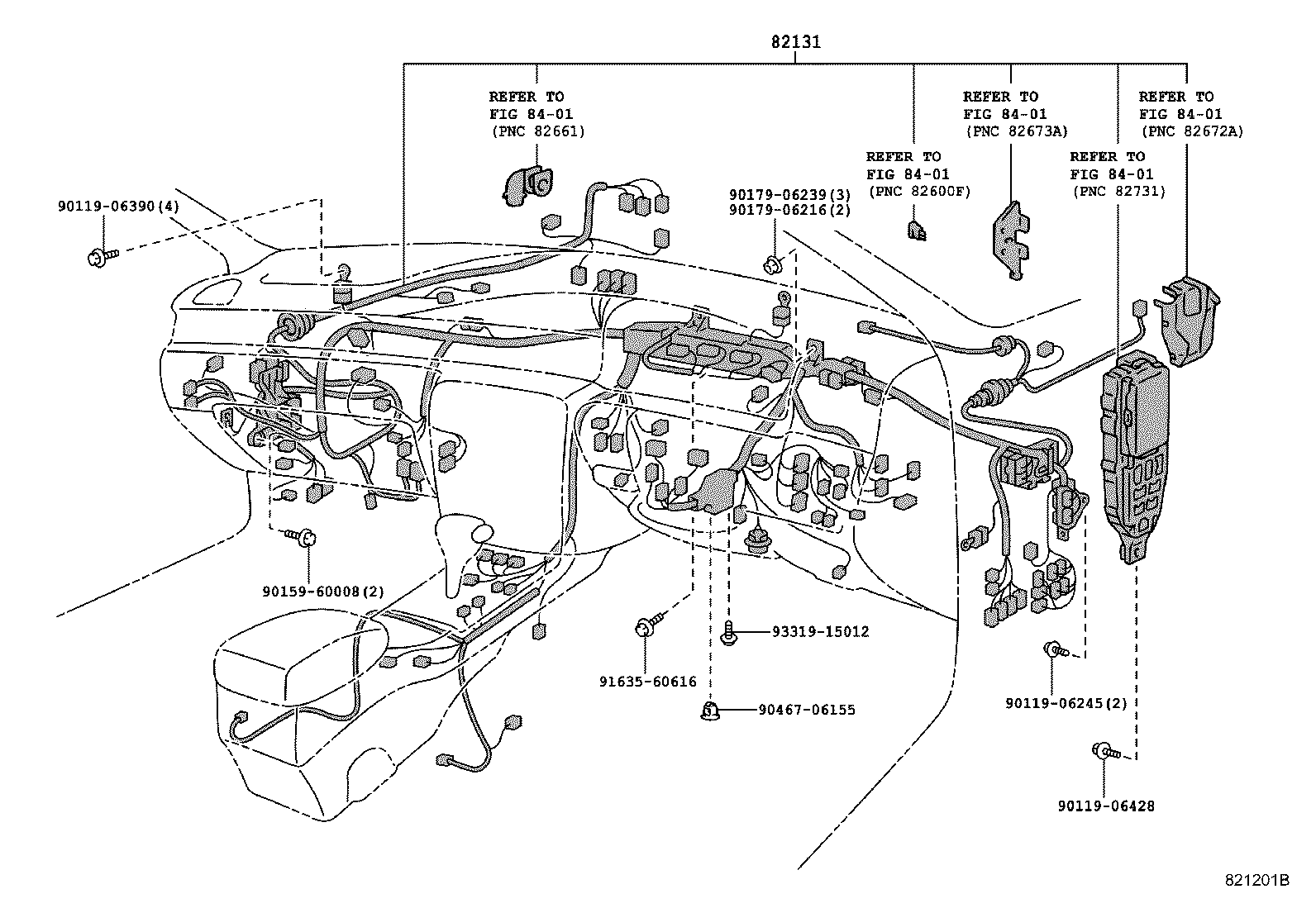

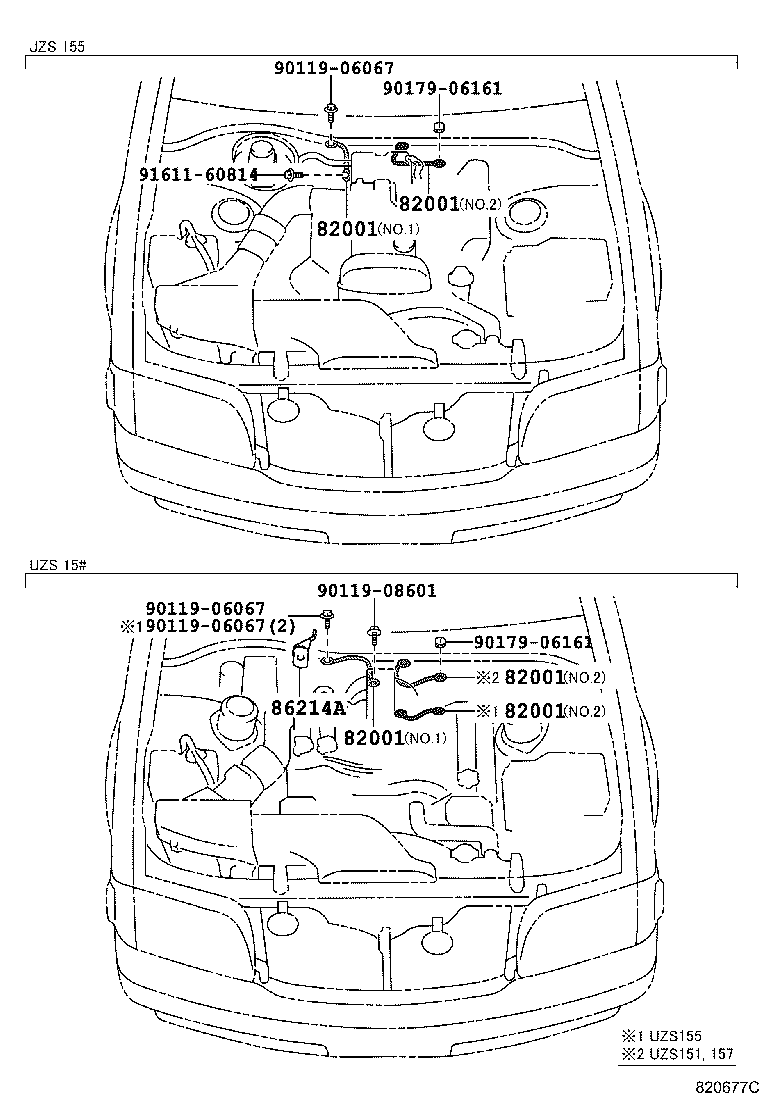

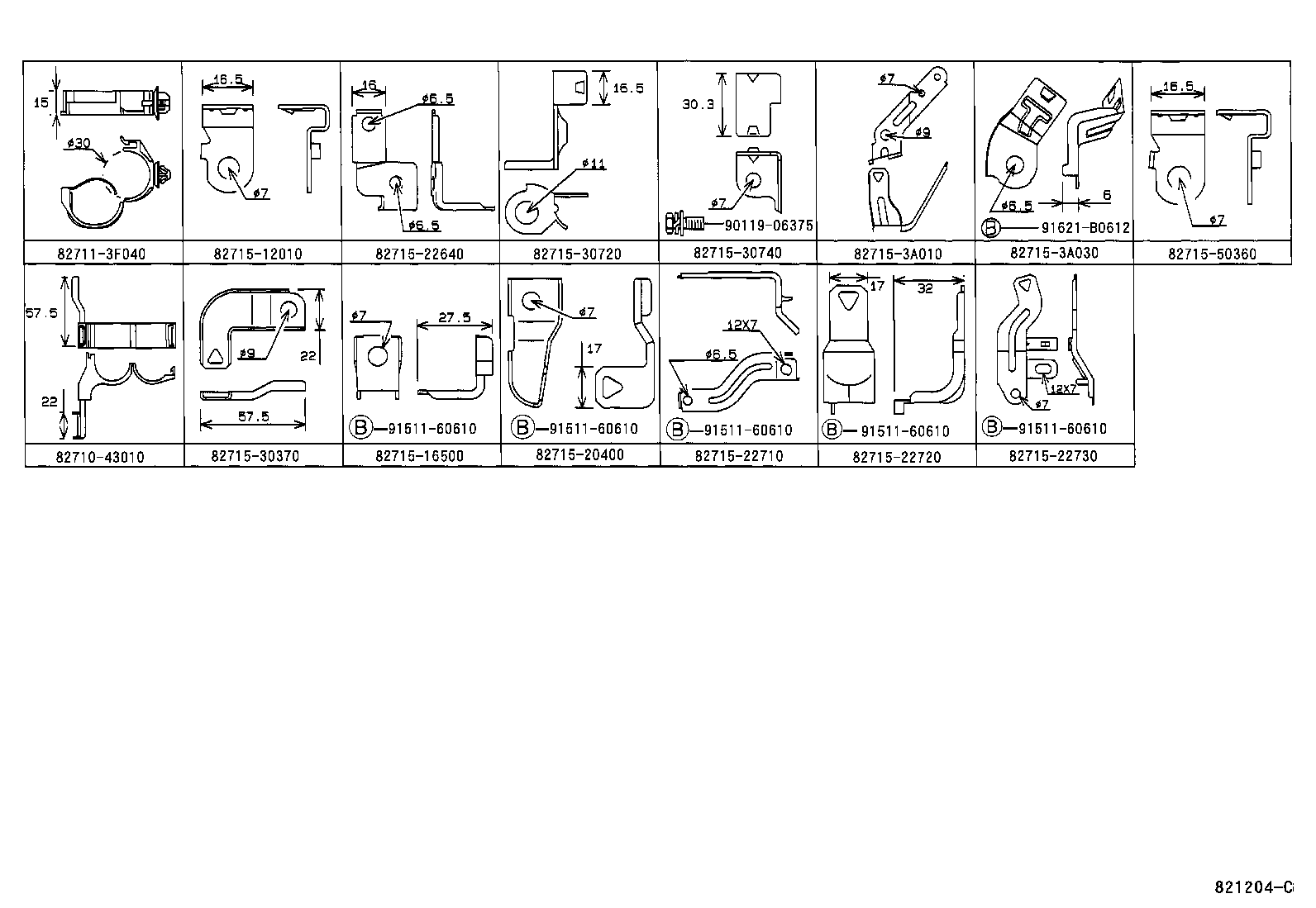

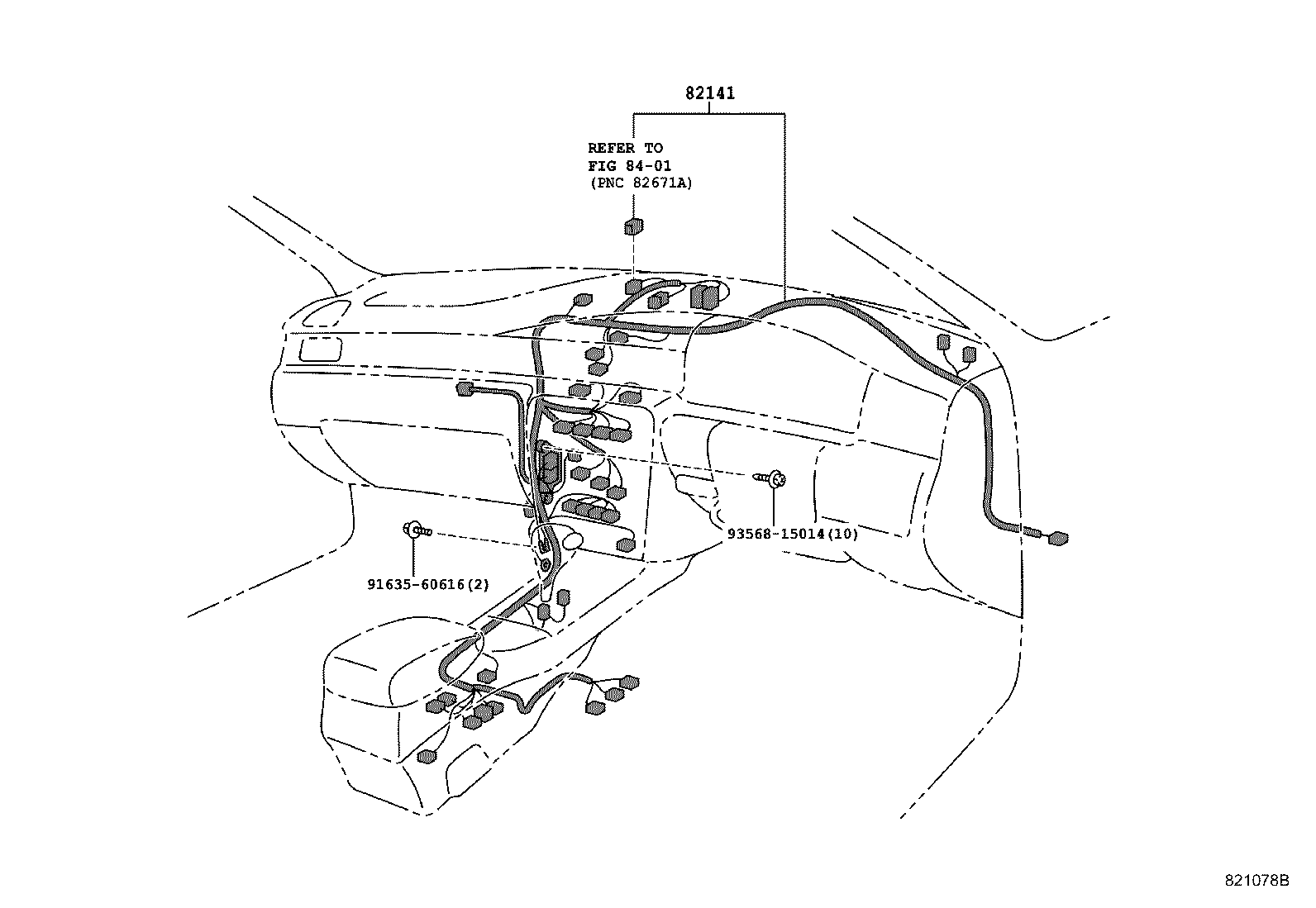

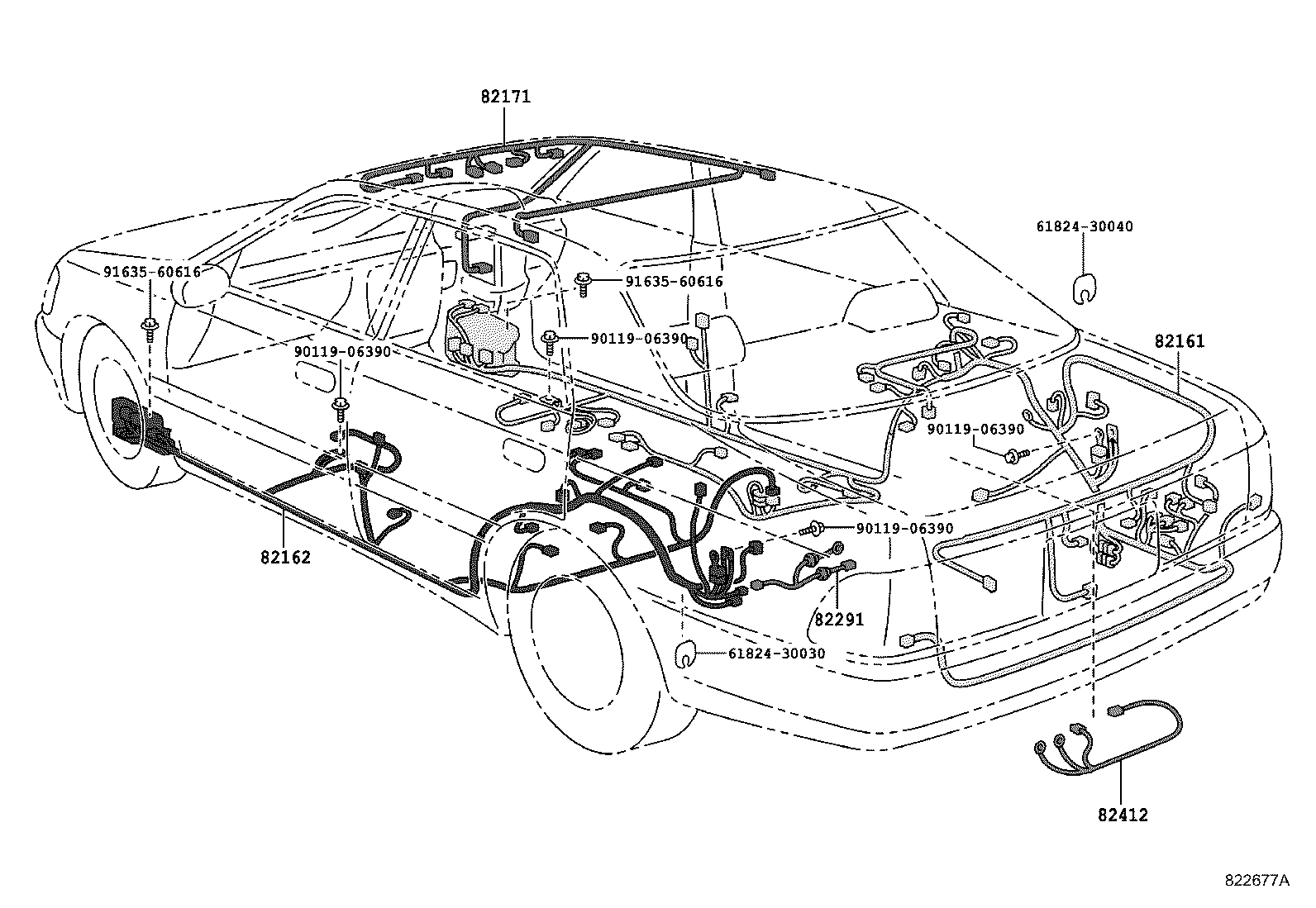

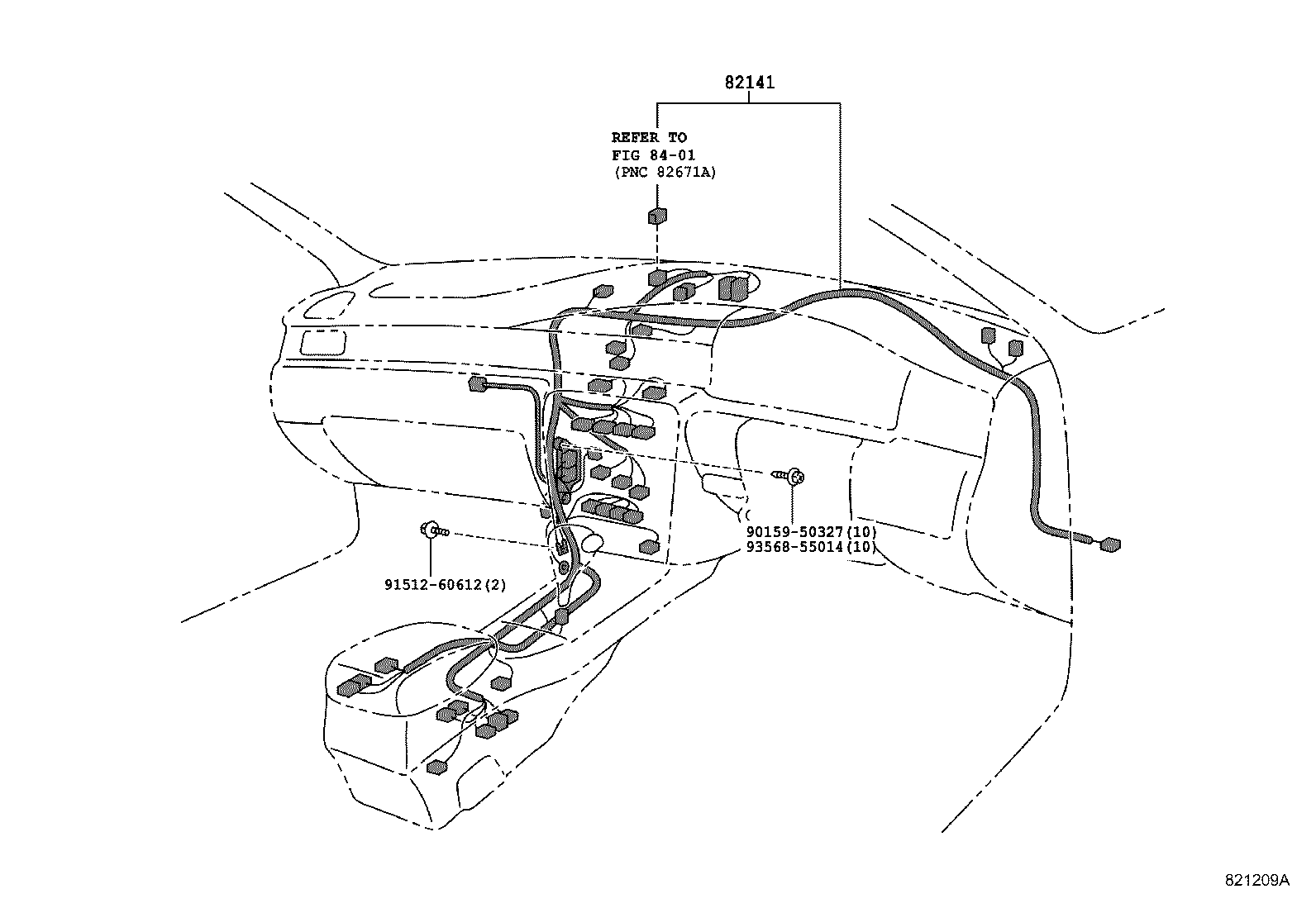

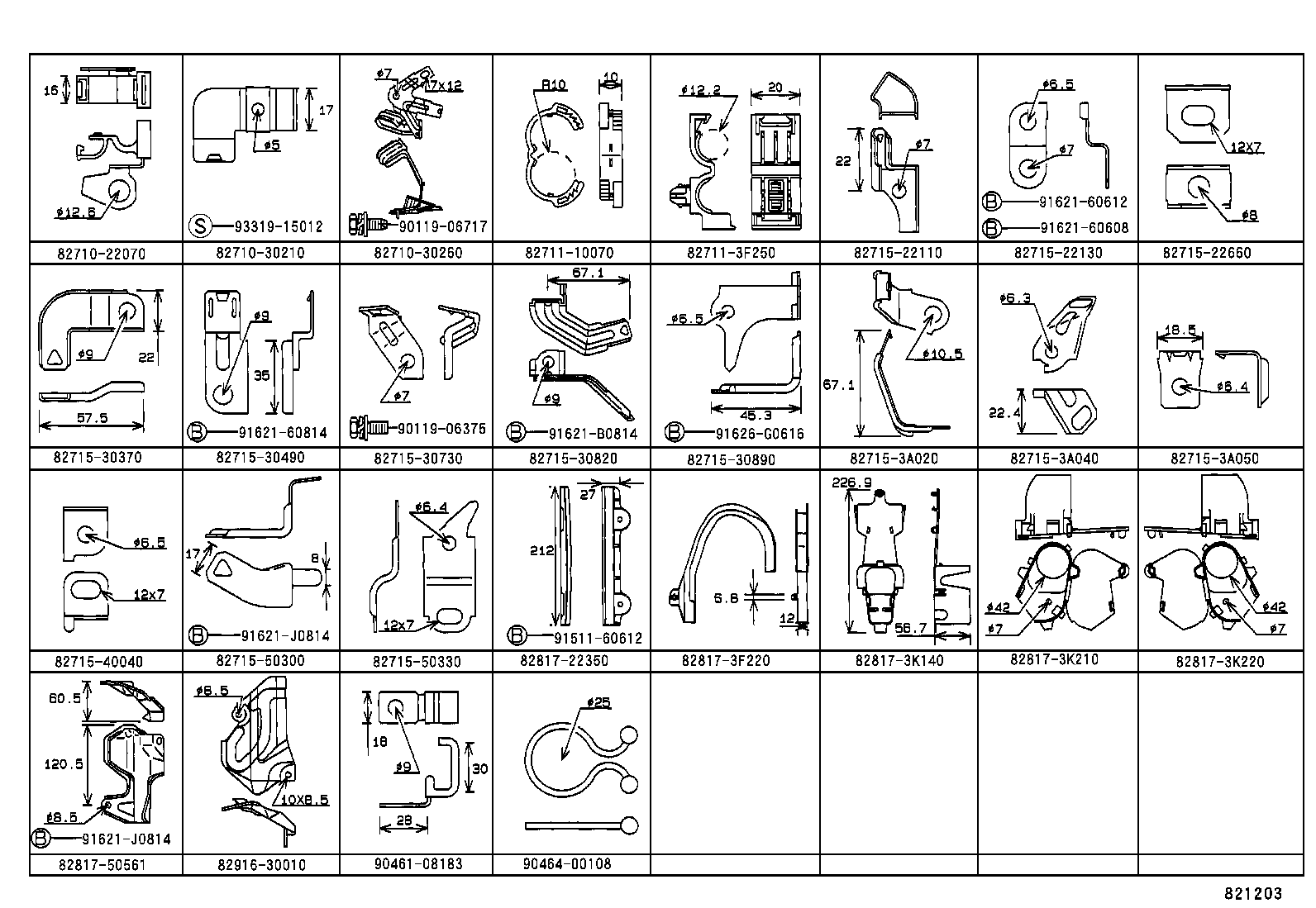

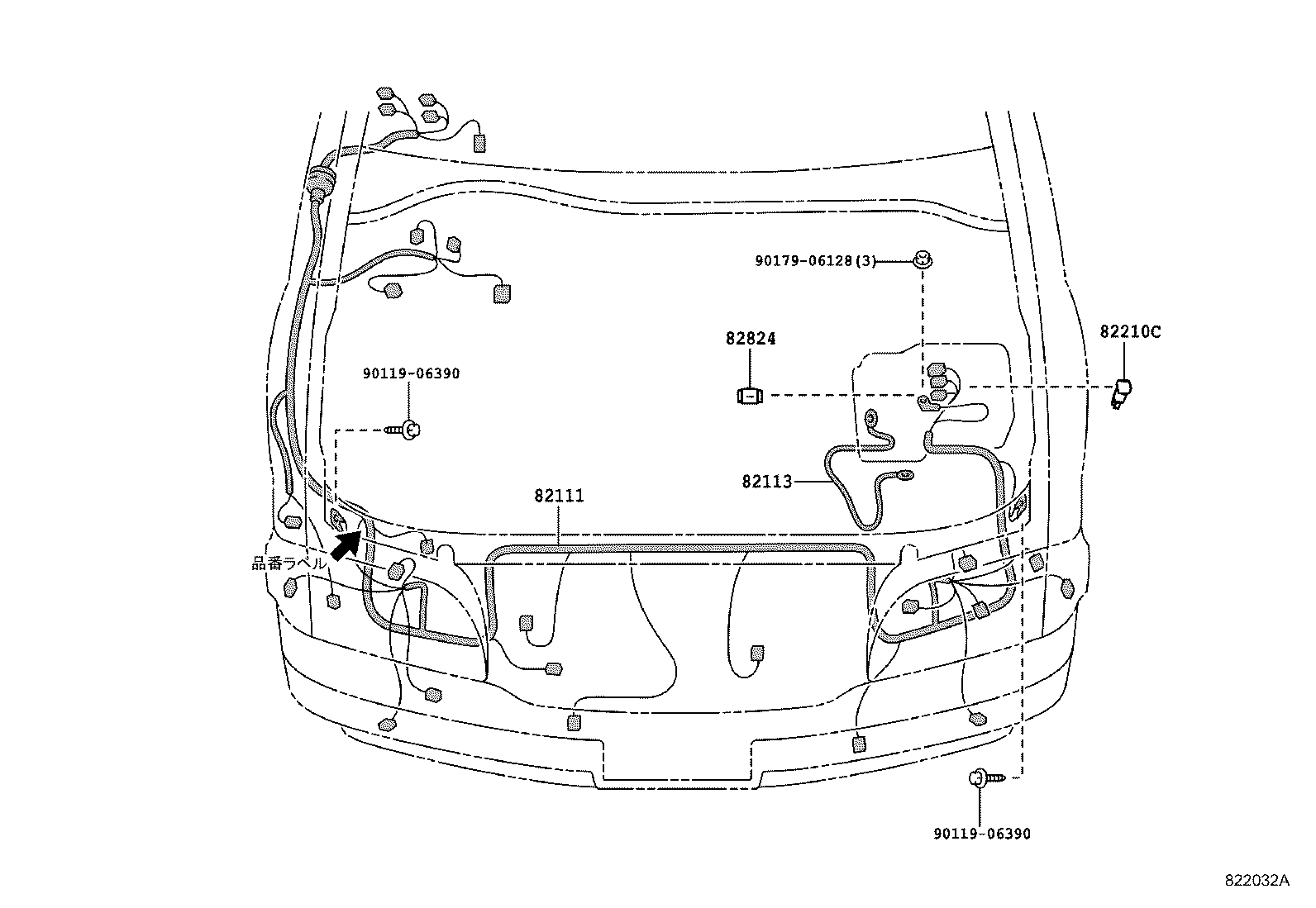

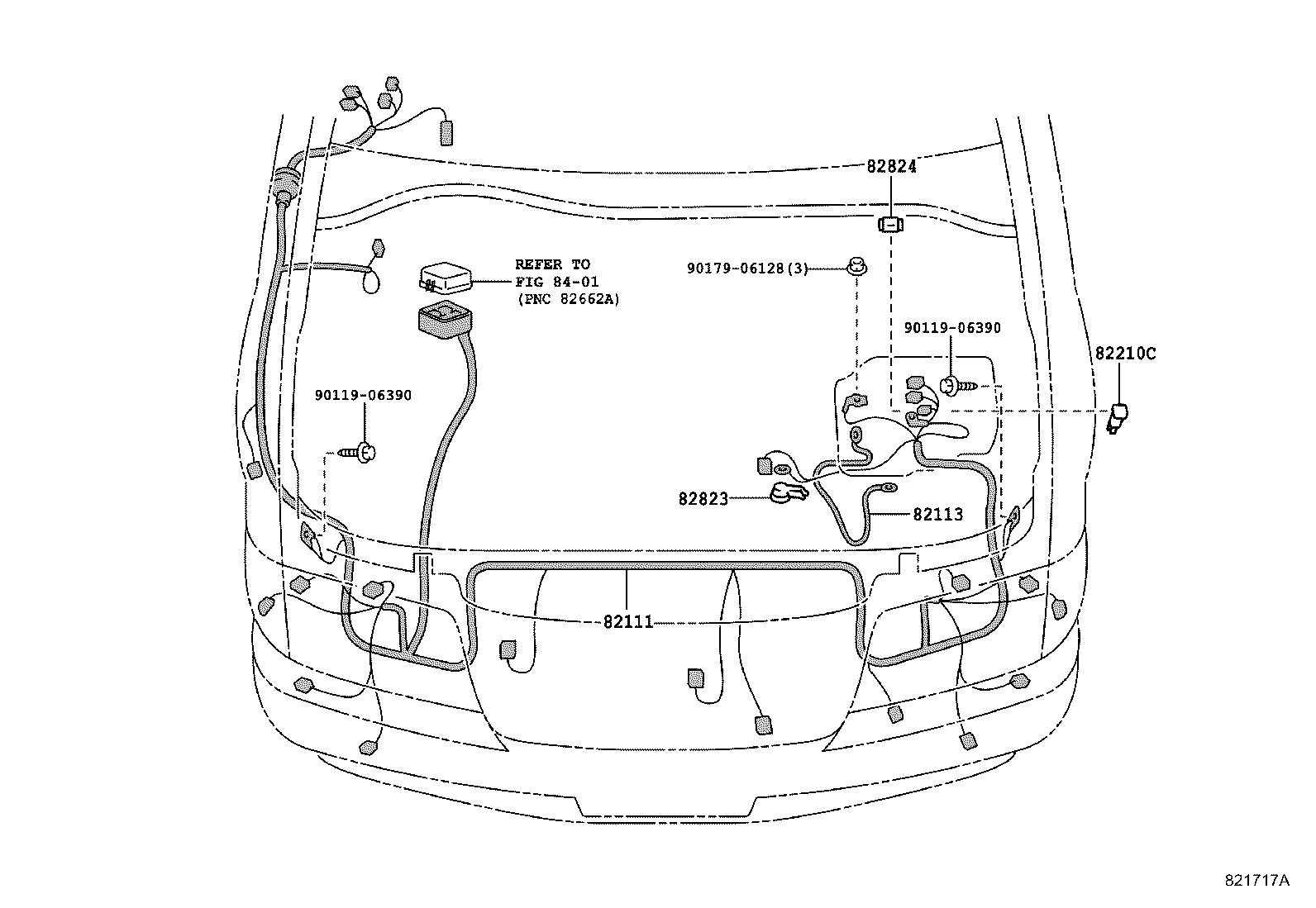

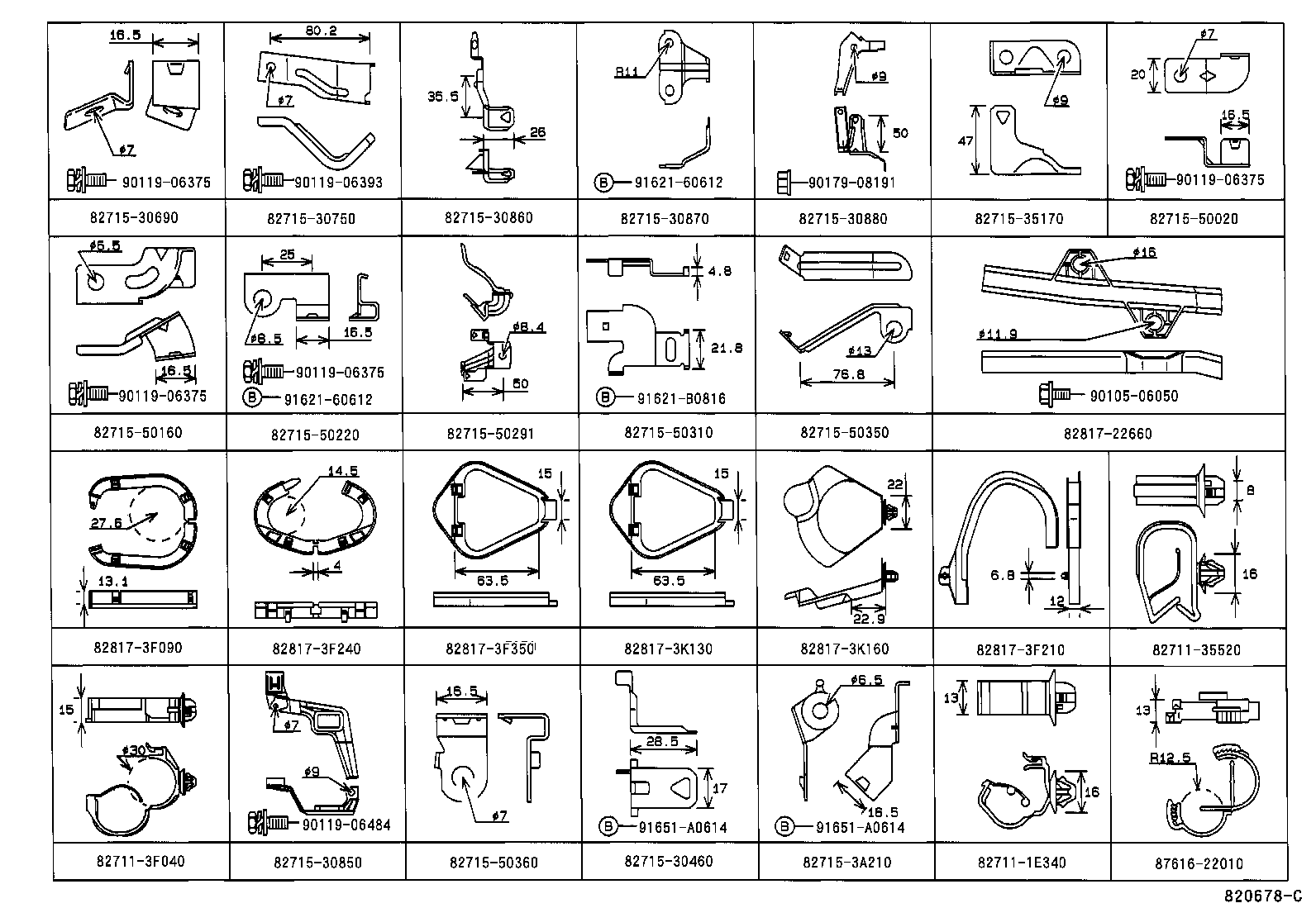

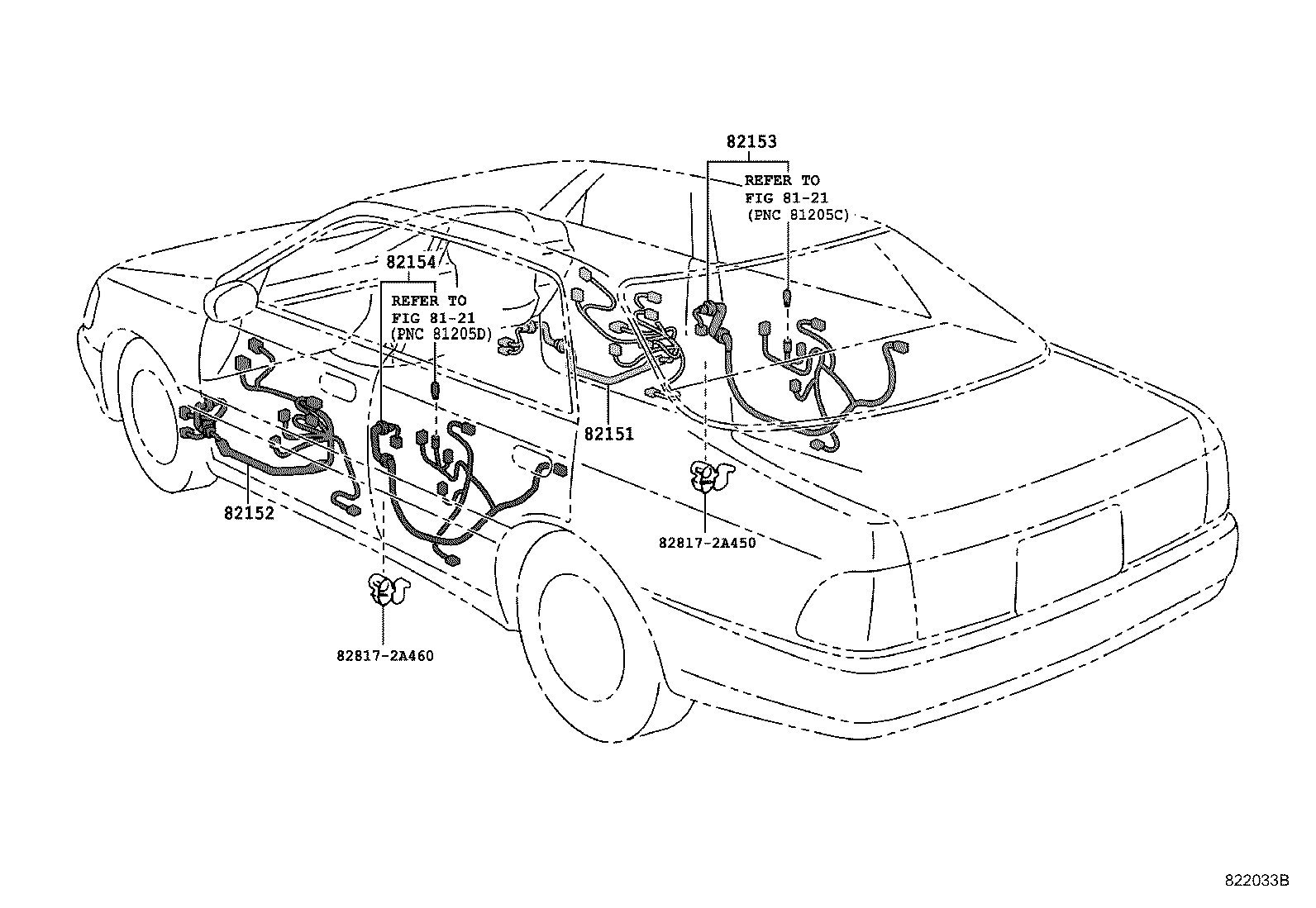

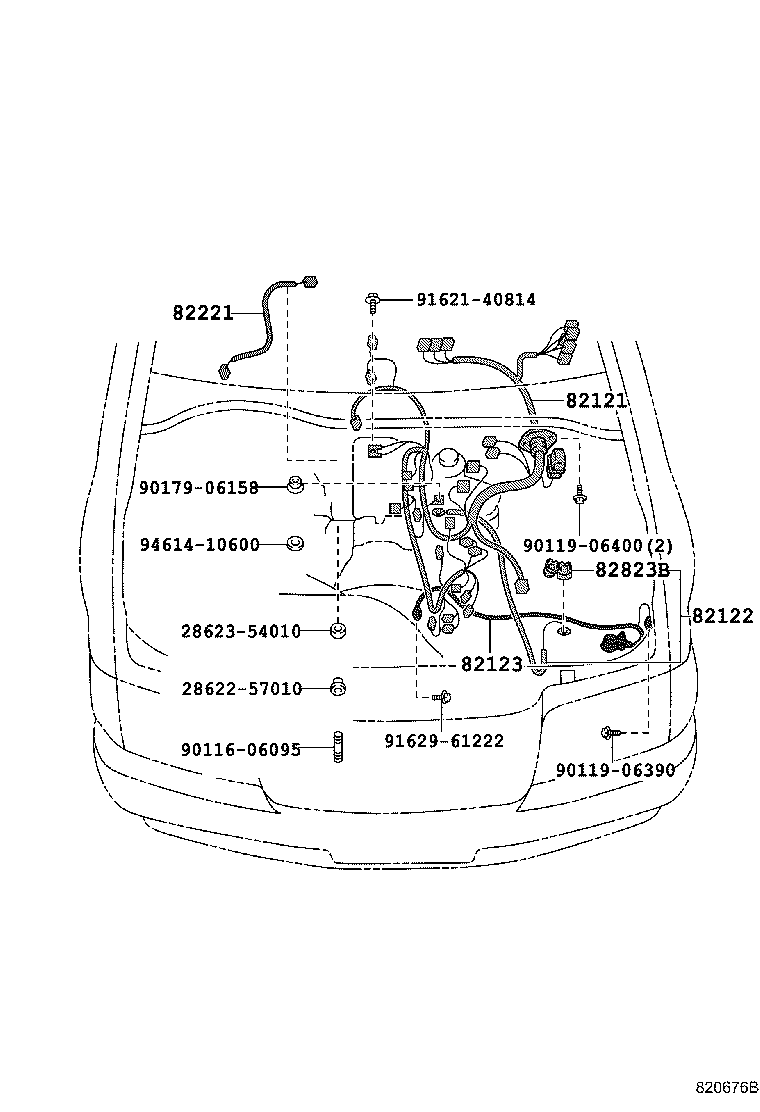

Figure 820675D 820675D 1995-08 → — Figure 821077D 821077D 1995-08 → — Figure 820676B 820676B 1995-08 → — Figure 821200A 821200A 1995-08 → — Figure 821717A 821717A 1995-08 → — Figure 822032A 822032A 1995-08 → — Figure 821201B 821201B 1995-08 → — Figure 821209A 821209A 1995-08 → — Figure 821078B 821078B 1995-08 → — Figure 822033B 822033B 1995-08 → — Figure 822677A 822677A 1995-08 → — Figure 821202A 821202A 1995-08 → — Figure 822034A 822034A 1995-08 → — Figure 822035A 822035A 1995-08 → — Figure 821210A 821210A 1995-08 → — Figure 820678C 820678C 1995-08 → — Figure 821203 821203 1995-08 → — Figure 821204C 821204C 1995-08 → — Figure 821205D 821205D 1995-08 → — Figure 820677C 820677C 1995-08 → — Figure 822036 822036 1995-08 → — Figure 822092 822092 1995-08 → 1997-07 Figure 822093A 822093A 1997-07 → — Figure 822094 822094 1995-08 → — Figure 822095 822095 1995-12 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82113 Wire, Engine Room, NO.3
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82124A Wire, Engine, NO.5
82125 Wire, Transmission
82131 Wire, Cowl
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82171 Wire, Roof, NO.1
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82193 Wire, Rear Seat, RH
82194 Wire, Rear Seat, LH
82196 Wire, Rear Seat, LH NO.2
82210C Fusible Link
82221 Wire, Oil Pressure Switch
82291 Wiring, TO Solenoid
82345 Diode
82412 Wire, Fuel Gage
82671 Block, Junction
82823 Cap, Terminal, NO.1
82823B Cap, Terminal, NO.3
82824 Connector, Wiring Harness
86214A Bracket, Radio Earth
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
