Toyota Crown/Crown Majesta
1995-08 → 2001-08 · chassis GS151,JZS15#,LS151,UZS15# · catalogue 331190 · Japan
Discontinued model
Data version 2003-10
Meter
43 part groups · 14 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|

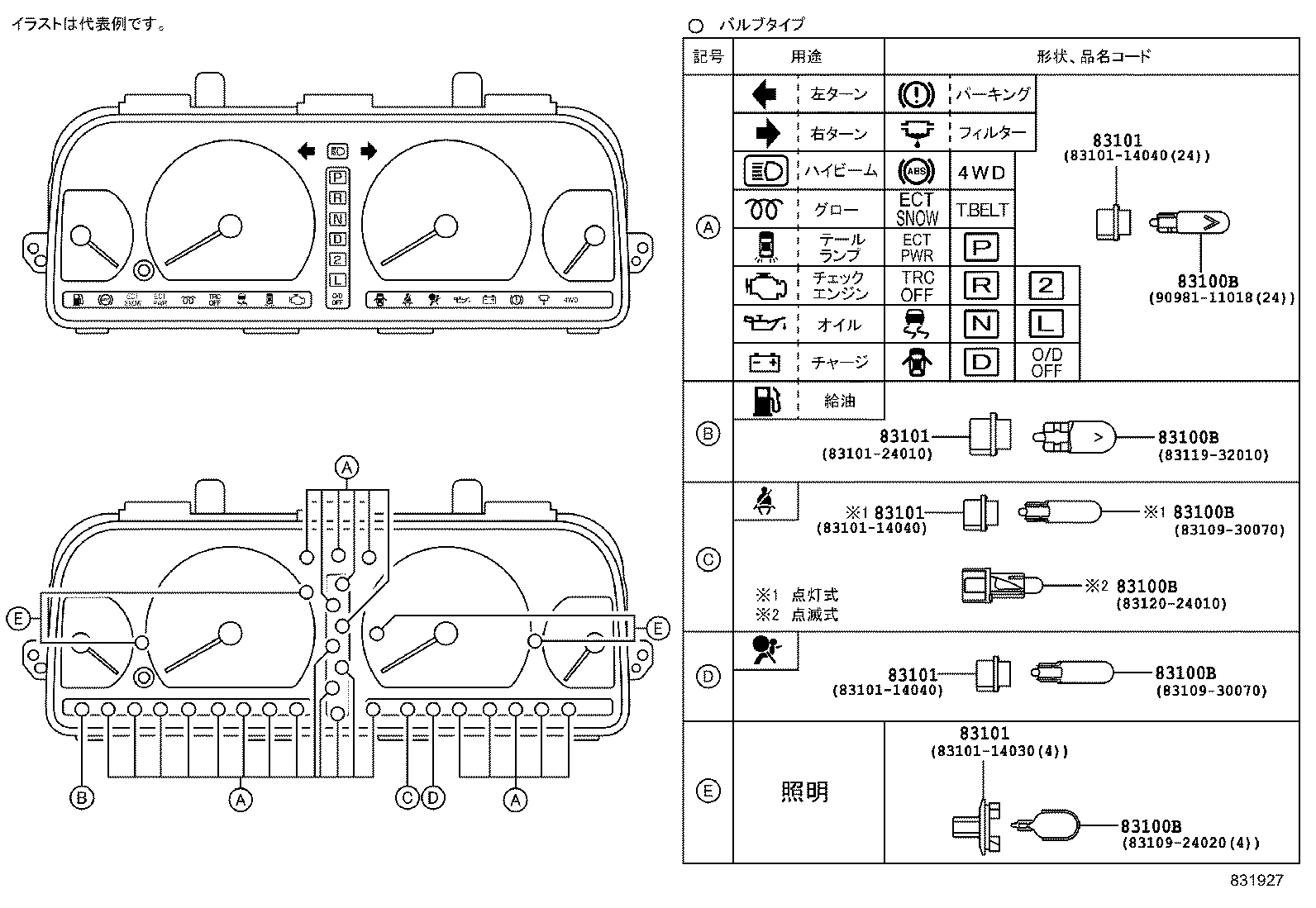

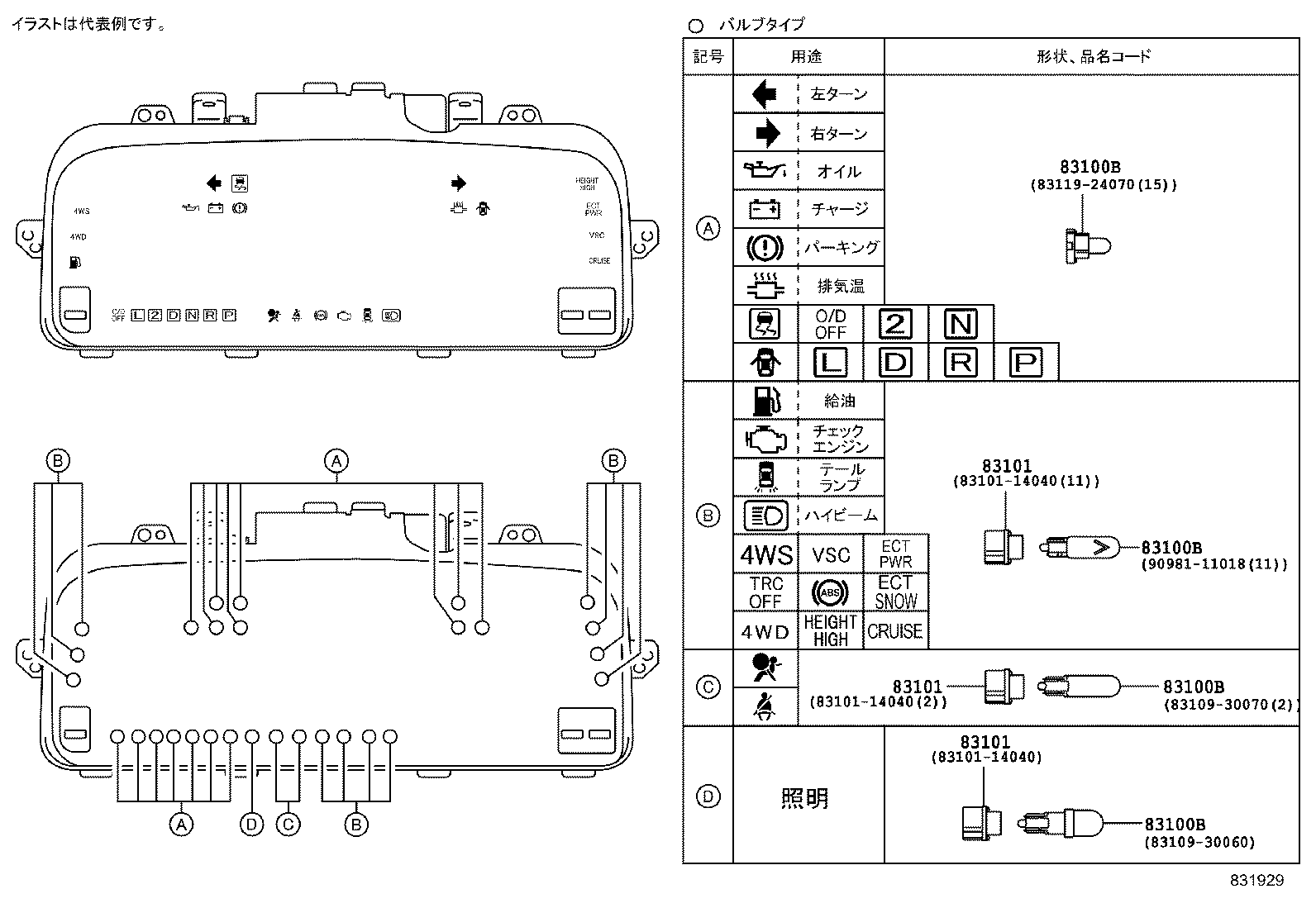

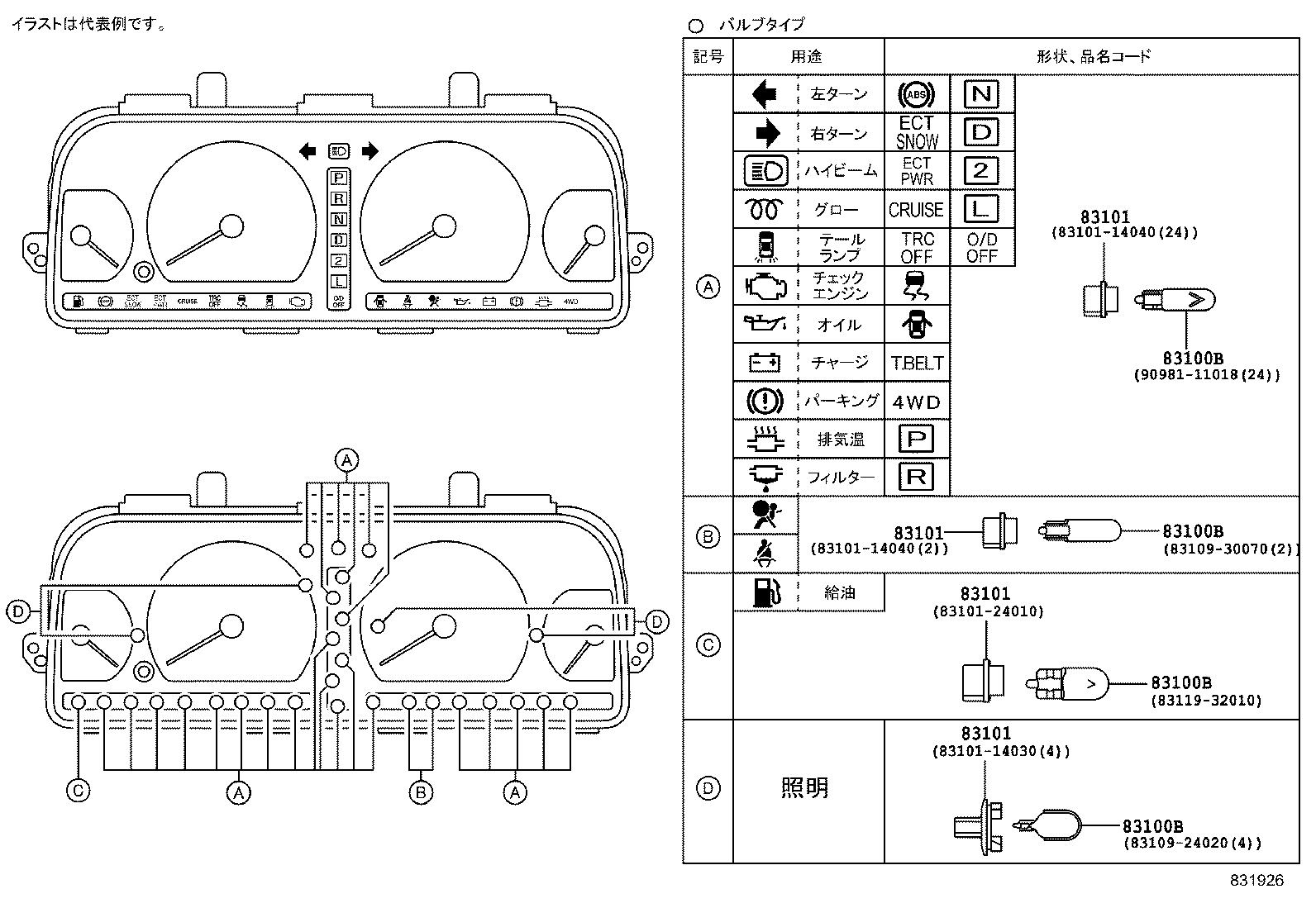

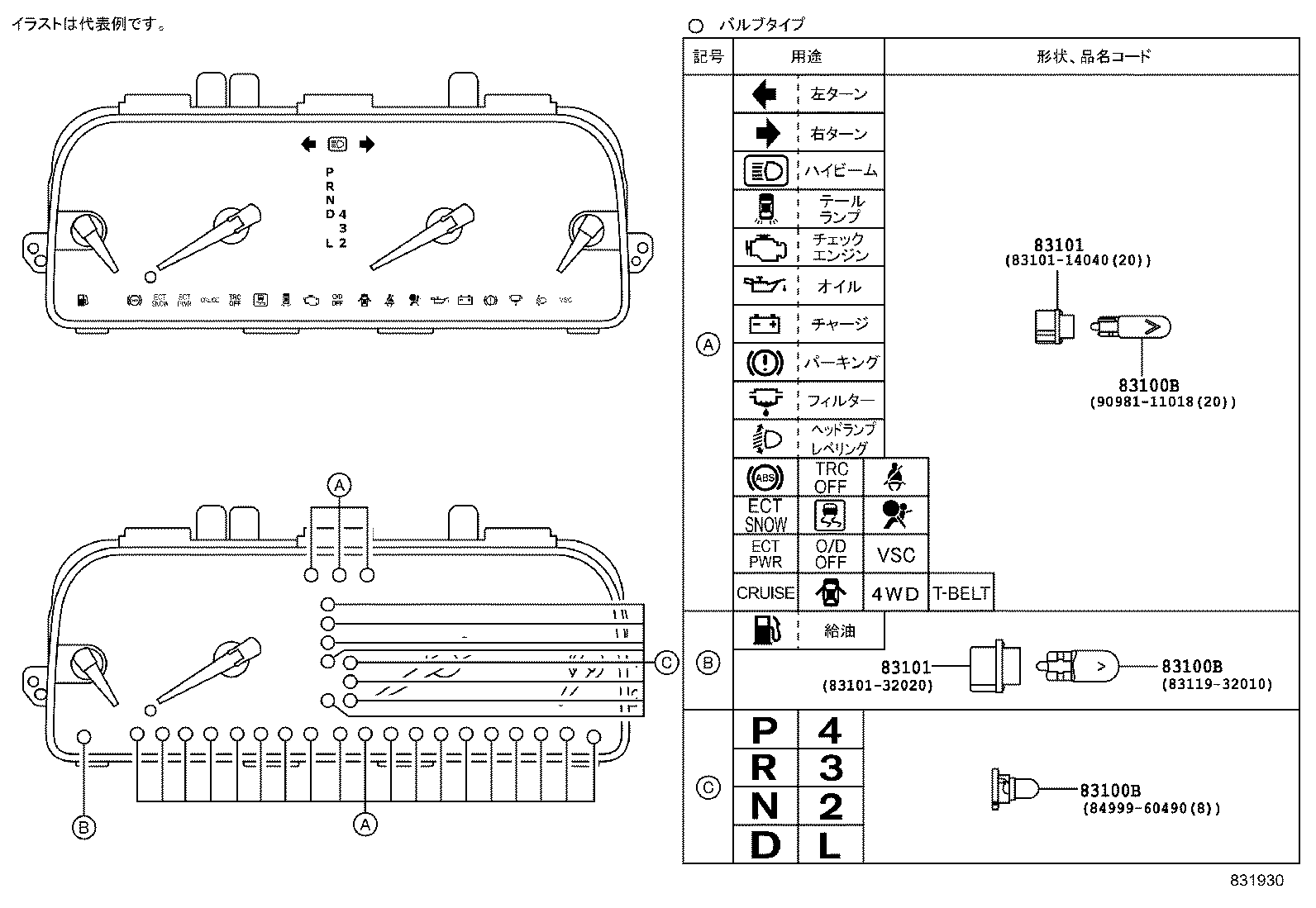

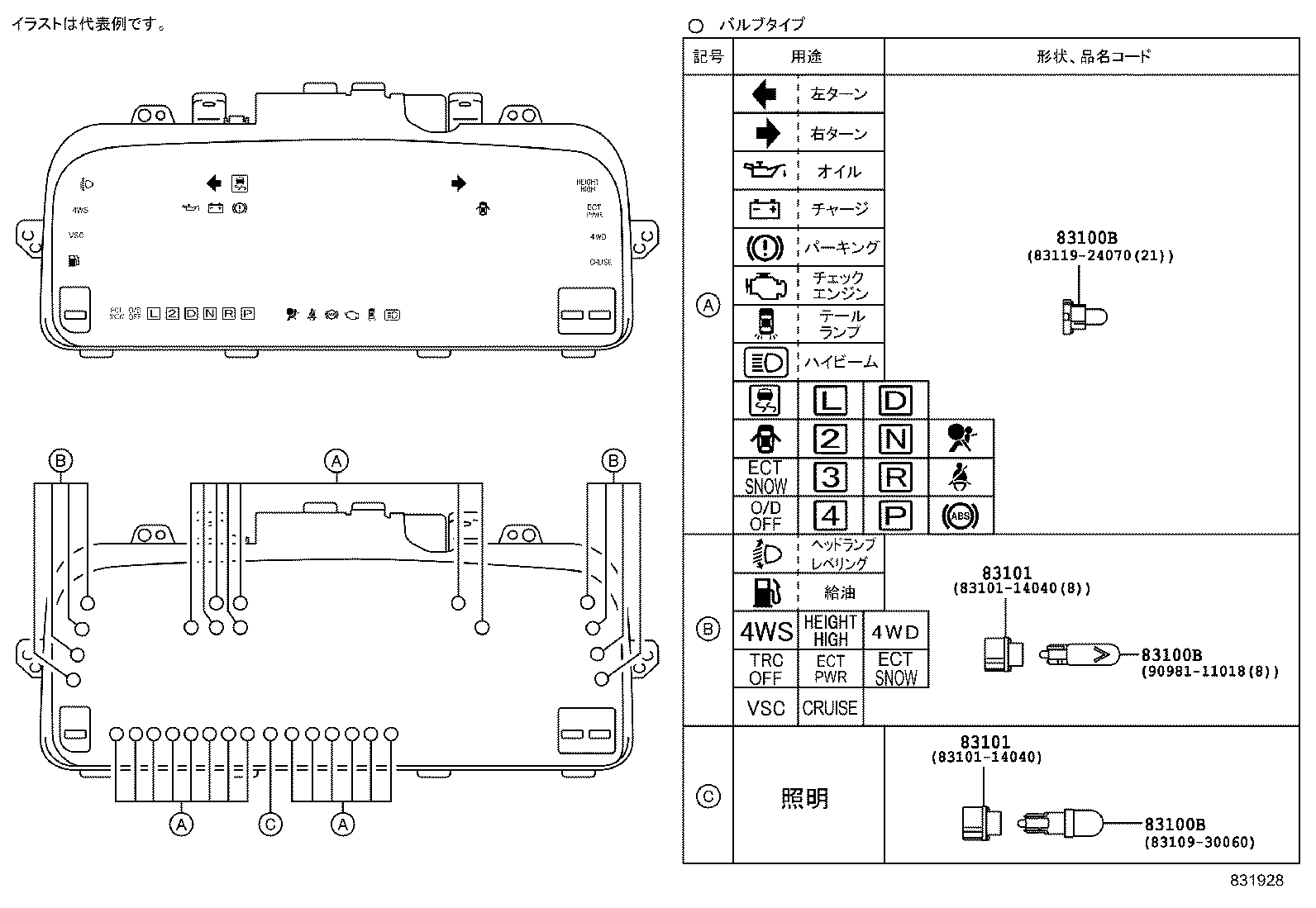

| 83100B | Bulb, Combination Meter, NO.1 |
| 83101 | Socket Sub-assy, Combination Meter Bulb |

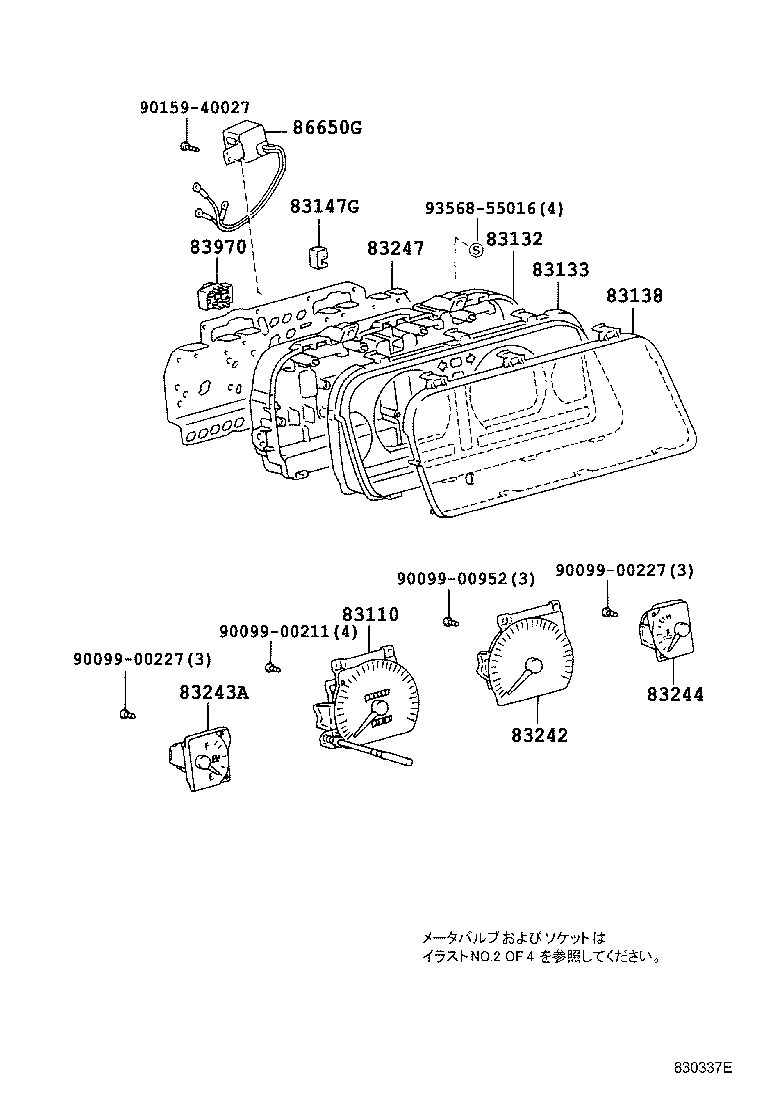

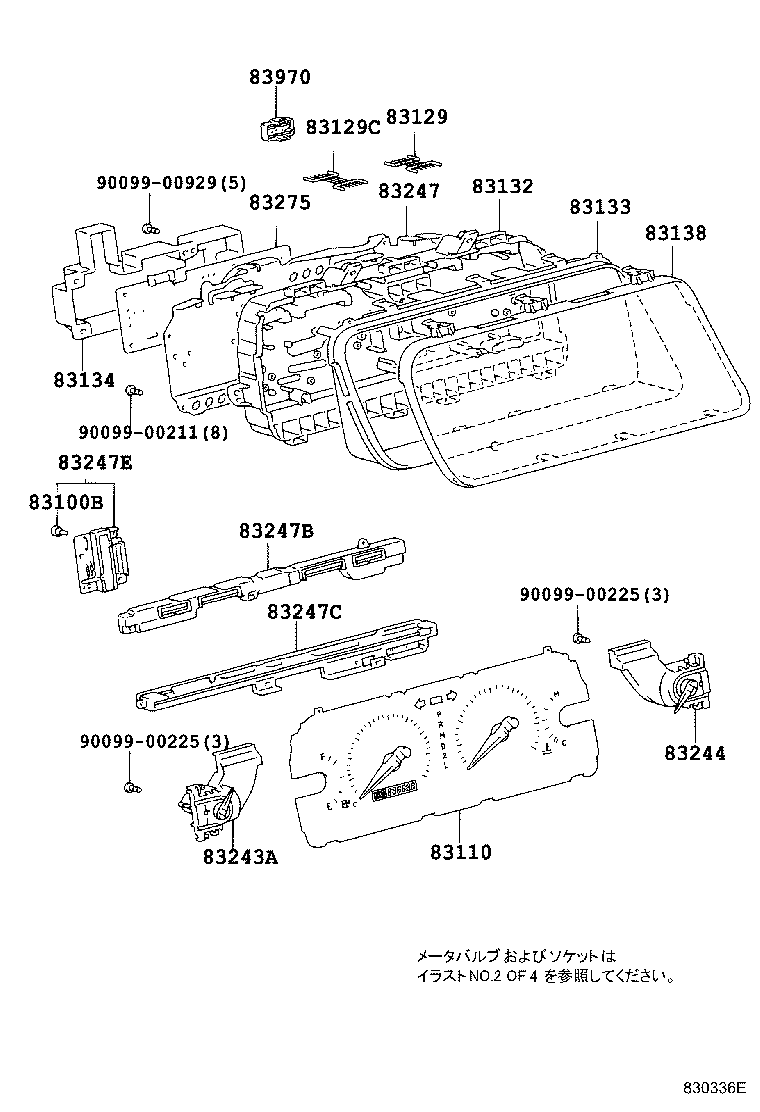

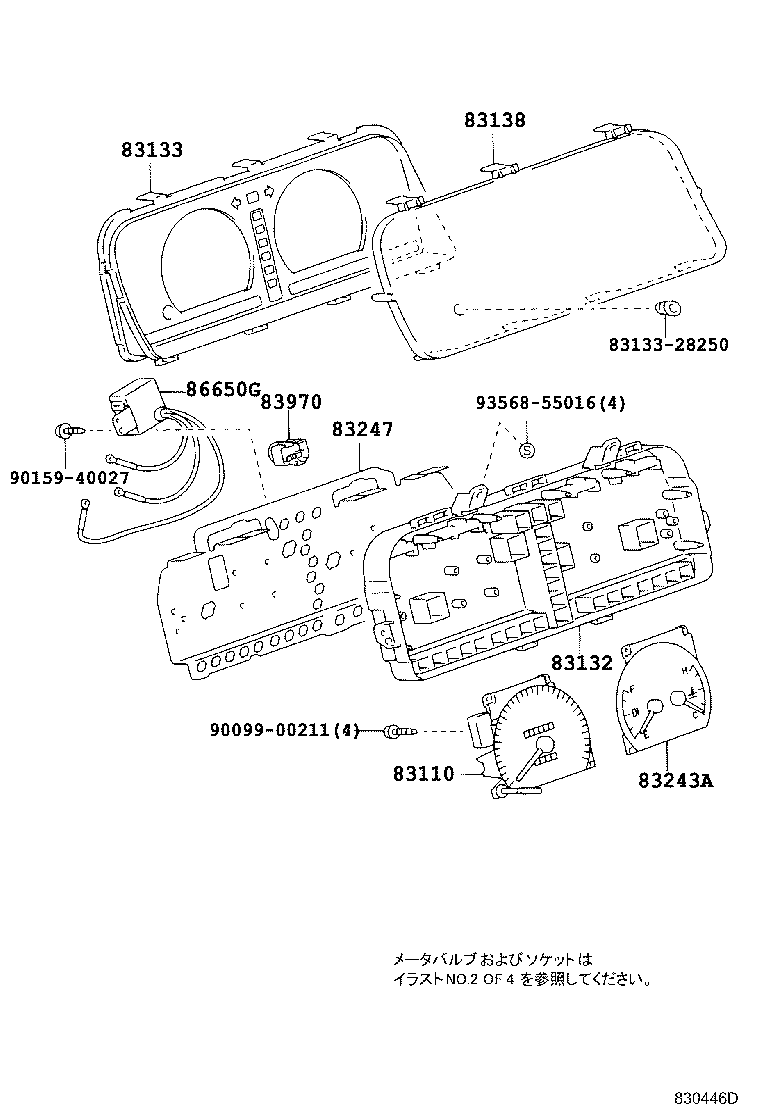

| 83110 | Speedometer Assy |
| 83116 | Bracket, Speedometer |
| 83116A | Bracket, Speedometer NO.2 |
| 83119 | Bulb, Combination Meter, NO.3 |
| 83129 | Wire, Meter |
| 83129C | Wire, Combination Meter |
| 83132 | Case, Combination Meter |
| 83132B | Case, Combination Meter NO.3 |
| 83132D | Case, Combination Meter, NO.2 |
| 83133 | Plate, Combination Meter, NO.1 |
| 83133A | Plate, Combination Meter, NO.2 |
| 83133J | Case, Combination Meter NO.3 |
| 83134 | Cover, Combination Meter, NO.1 |
| 83138 | Glass, Speedometer |
| 83141A | Computer, Combination Meter Mirror |
| 83142A | Wire, Combination Meter |
| 83144A | Mirror, Combination Meter |
| 83146A | Cover, Speedmeter |
| 83146C | Cover,Combination Meter NO.2 |
| 83147G | Connector, Combination Meter |
| 83159 | Switch, Meter, NO.1 |
| 83159A | Switch, Meter, NO.2 |
| 83168 | Display, Combination |
| 83181A | Sensor, Speedometer |
| 83181B | Ring, O (FOR SPEEDOMETER SENSOR) |
| 83242 | Tachometer Assy, Engine |
| 83243A | Gauge Sub-assy, Fuel Receiver |
| 83244 | Gauge Sub-assy, Water Temperature Receiver |
| 83247 | Plate, Meter Circuit |
| 83247B | Plate, Meter Circuit, NO.2 |
| 83247C | Plate, Mater Circuit, NO.3 |
| 83247E | Plate, Mater Circuit, NO.4 |
| 83248 | Chime, Speed Warning |
| 83275 | Plate,Computer Meter Circuit NO.1 |
| 83276 | Plate,Computer Meter Circuit NO.2 |
| 83291 | Computer, Combination Meter |
| 83770 | Adapter Assy, Speedometer Cable |
| 83783 | Key, Speedmeter Sensor |
| 83910 | Clock Assy |
| 83970 | Buzzer Assy, Reverse Warning |
| 86650G | Buzzer Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
